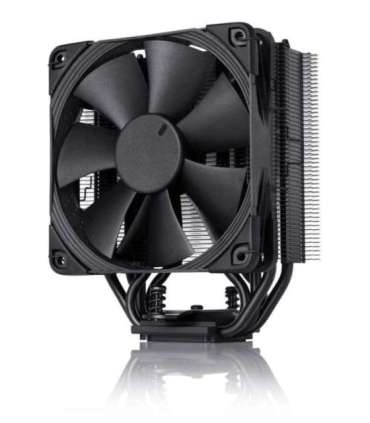

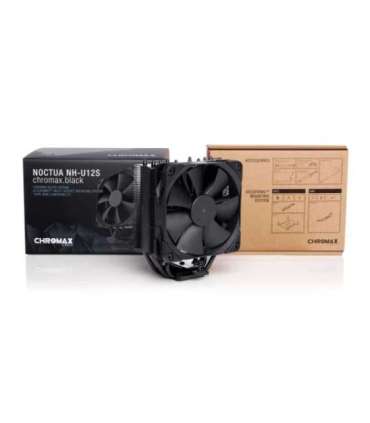

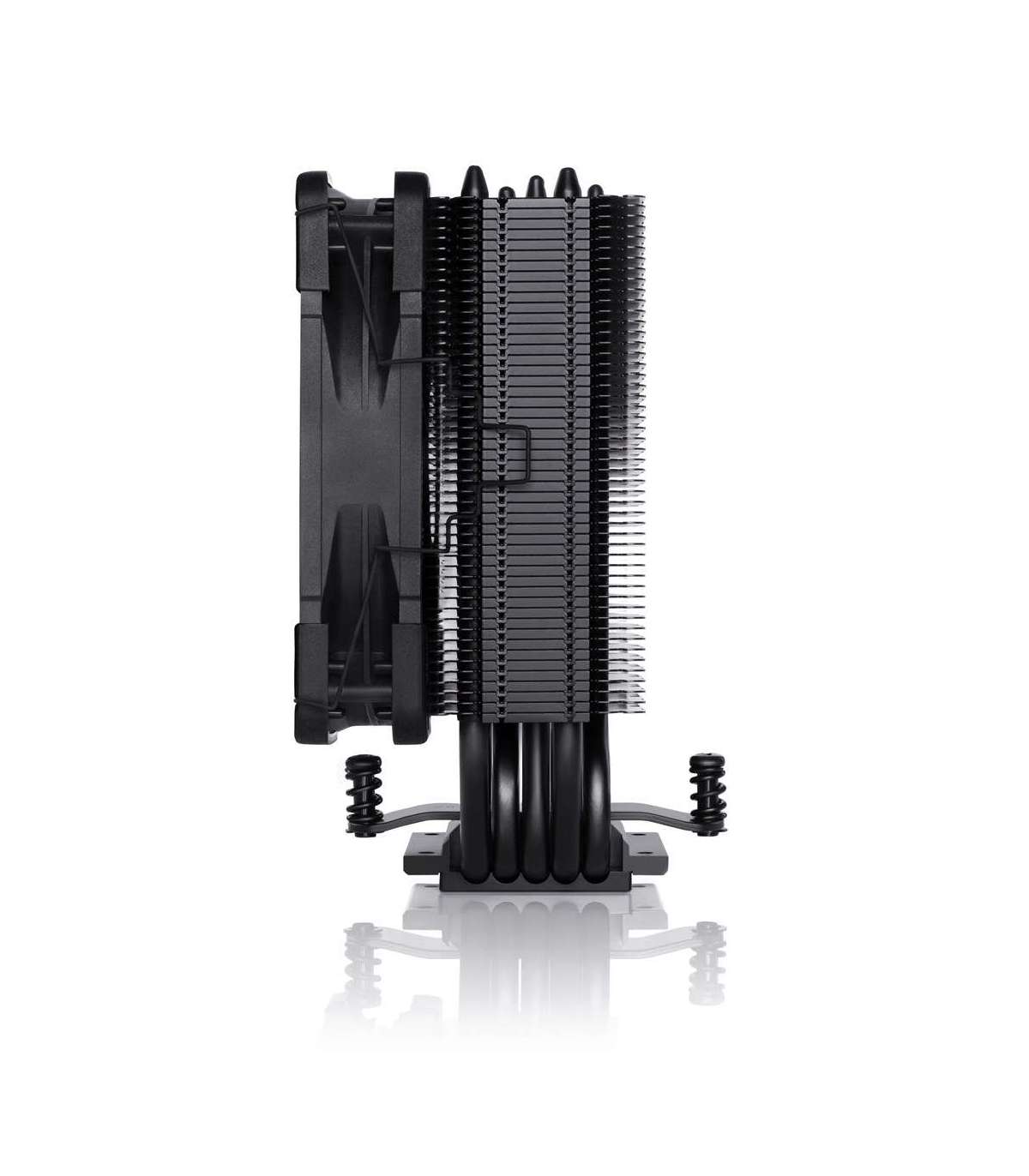

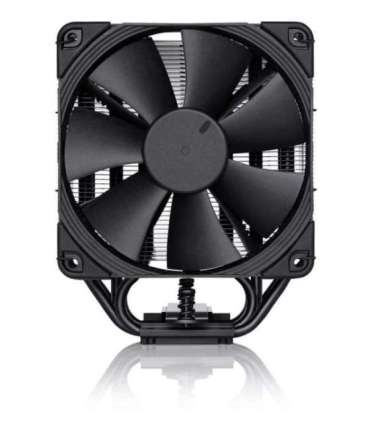

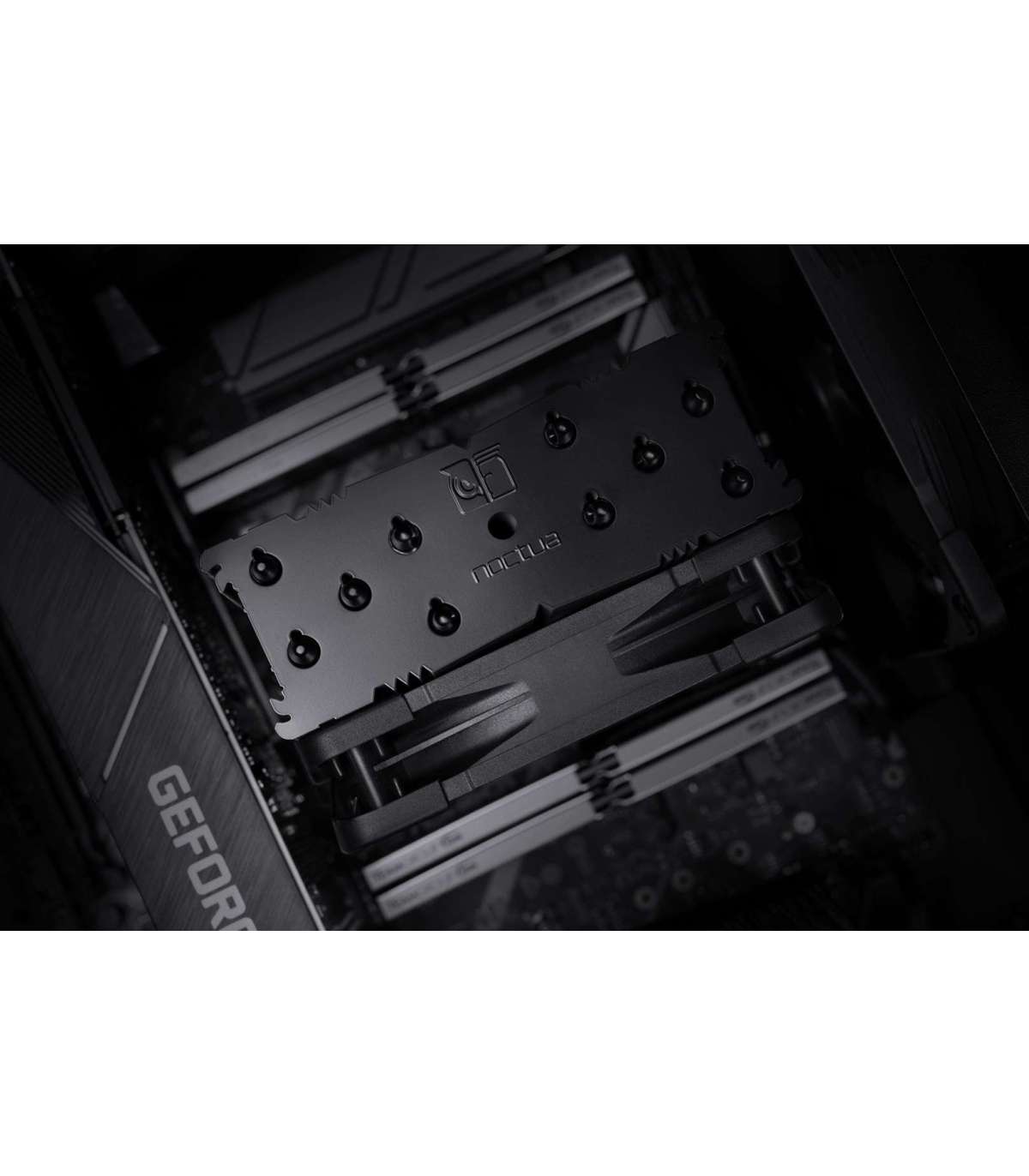

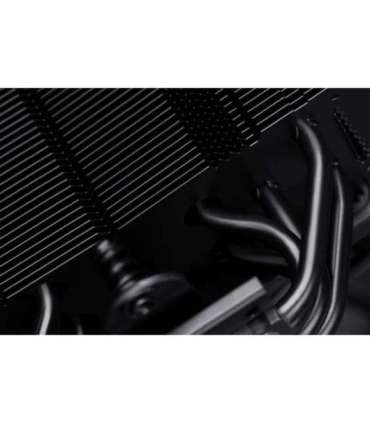

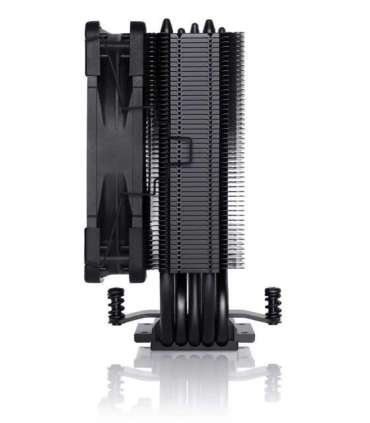

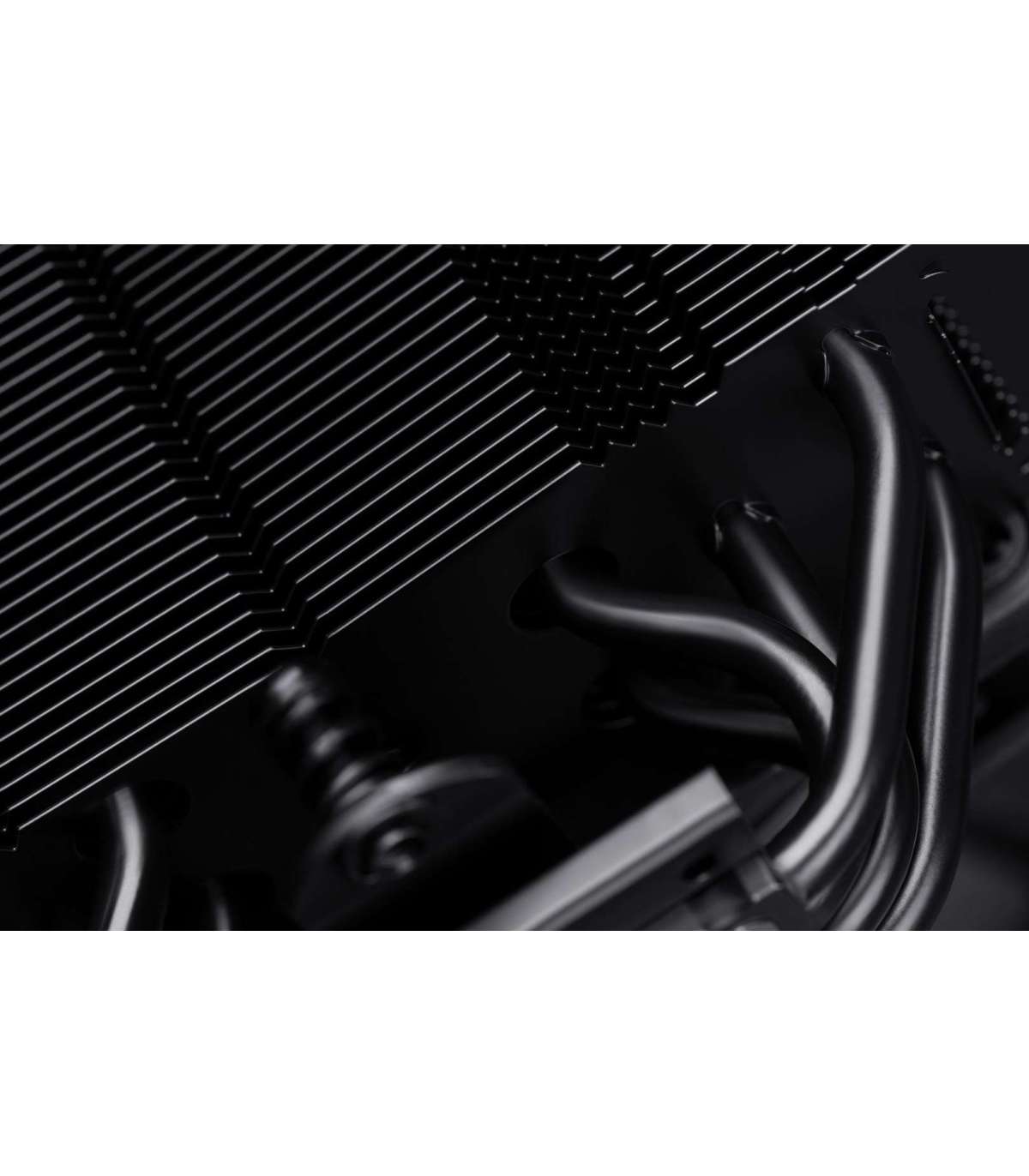

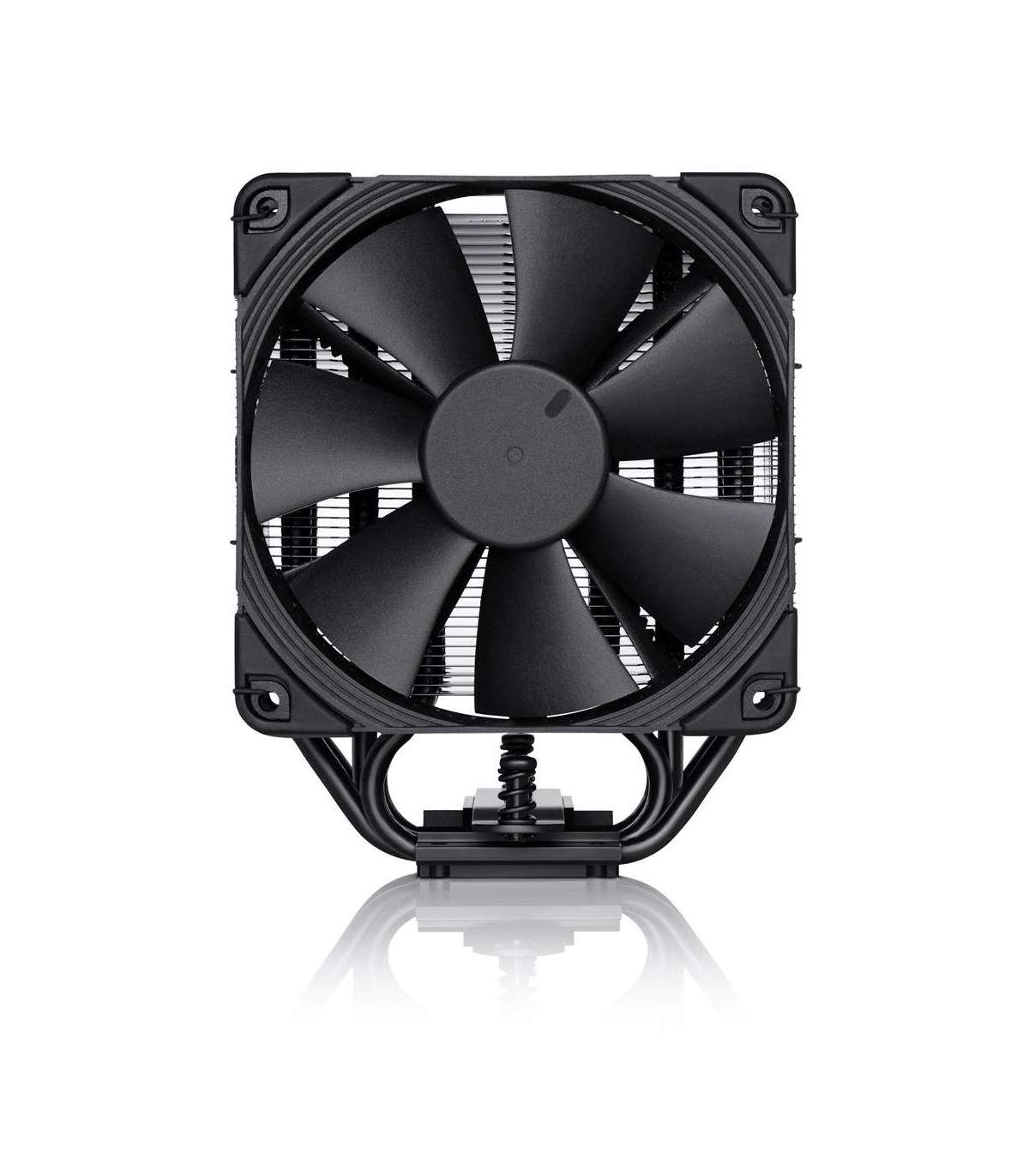

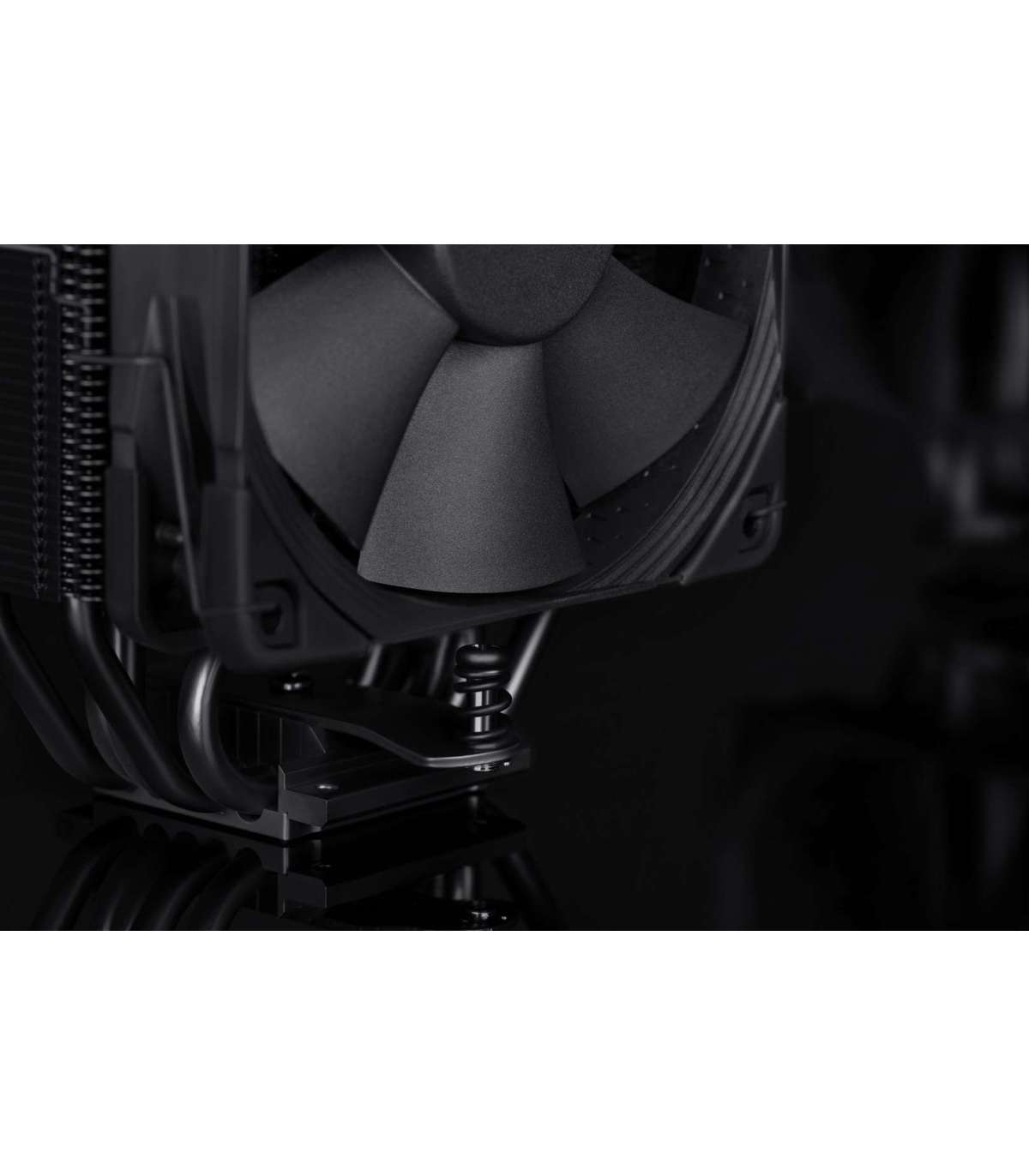

Noctua NH-U12S chromax.black Processor Cooler 12 cm

Характеристики

Depth

71 mm

Weight

755 g

Height

158 mm

Width

125 mm

Package weight

1.44 kg

Product colour

Black

Package width

169 mm

Package depth

145 mm

Package height

212 mm

Package type

Box

Power supply

0.6 W

Master (outer) case height

460 mm

Master (outer) case width

355 mm

Master (outer) case length

440 mm

Master (outer) case gross weight

18.5 kg

Products per master (outer) case

12 pc(s)

Compatible processor series

AMD A
Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Supported processor sockets

LGA 1150 (Socket H3)
LGA 1151 (Socket H4)
LGA 1155 (Socket H2)
LGA 1156 (Socket H)
LGA 2011 (Socket R)
LGA 2011-v3 (Socket R)
LGA 2066
Socket AM1
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+

Type

Cooler

Airflow

93.4 m³/h

Rated voltage

12 V

Rotational speed (max)

1500 RPM

Noise level (high speed)

22.4 dB

Suitable for

Processor

Number of fans

1 fan(s)

Fan diameter

12 cm

Bearing type

Self-Stabilising Oil-pressure Bearing (SSO)

Mean time to failure (MTTF)

150000 h

Rotational speed (min)

300 RPM

Fan connector

4-pin

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Pulse-width modulation (PWM) support

Yes

Maximum air pressure

2.61 mmH2O

Base plate material

Copper

Fins material

Aluminium

Heatsink weight

580 g

Rotational speed with LNA (max)

1200 RPM

Noise level with LNA (max)

18.6 dB

Airflow with LNA (max)

74.3 m³/h

Heatsink dimensions (W x D x H)

125 x 45 x 158 mm

Maximum air pressure with LNA

1.83 mmH2O
