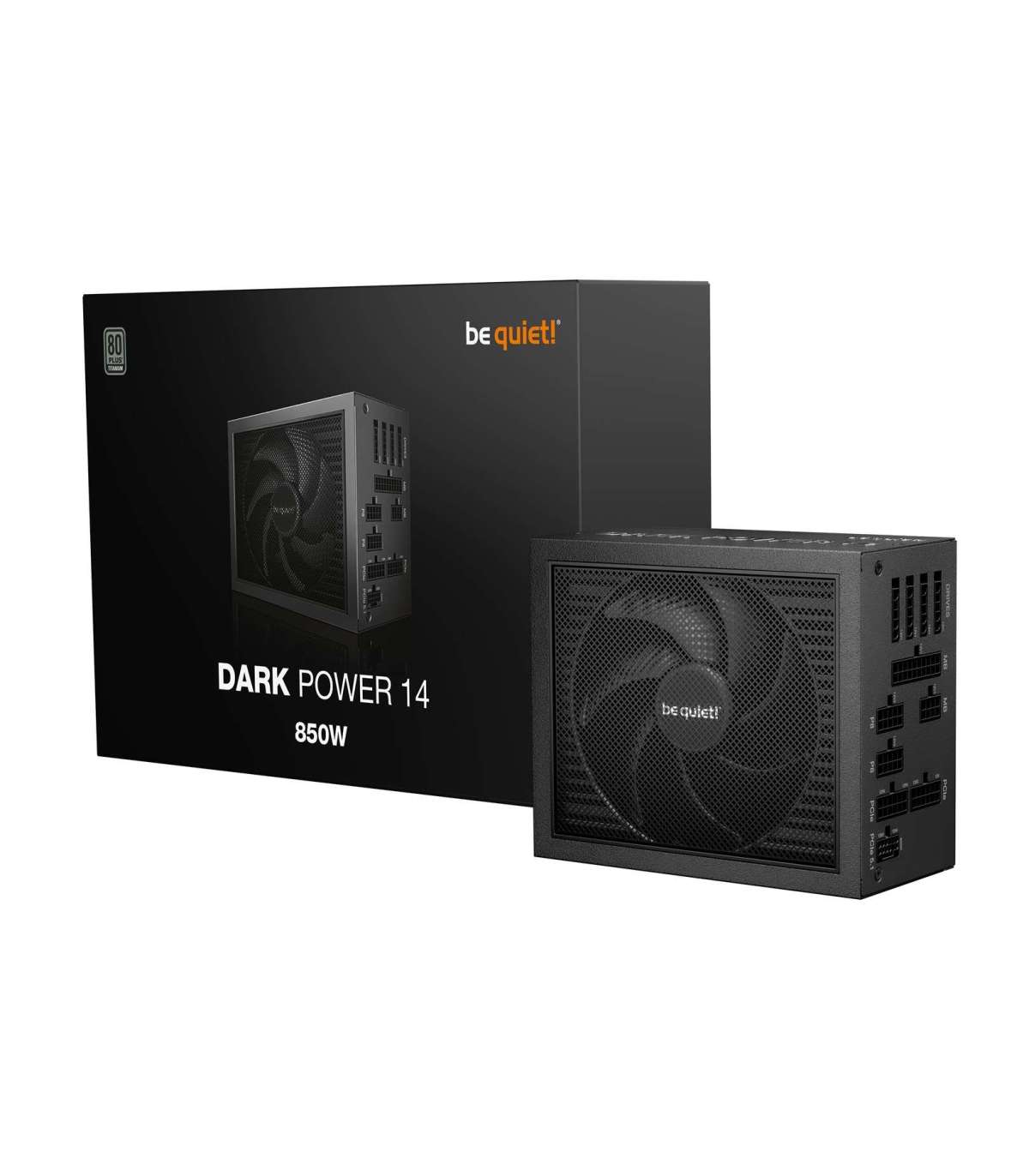

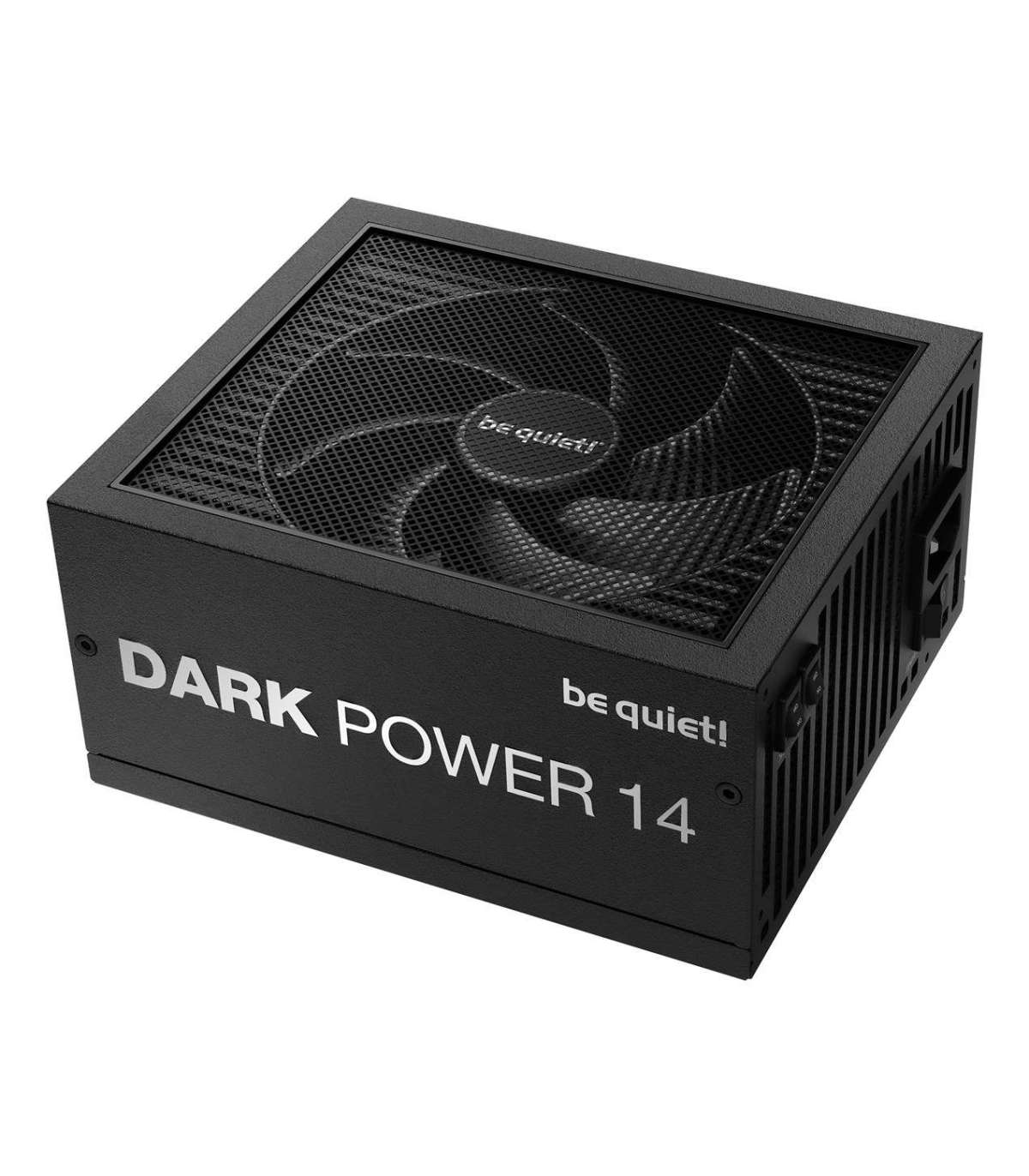

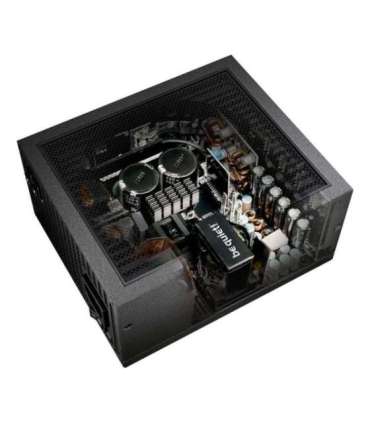

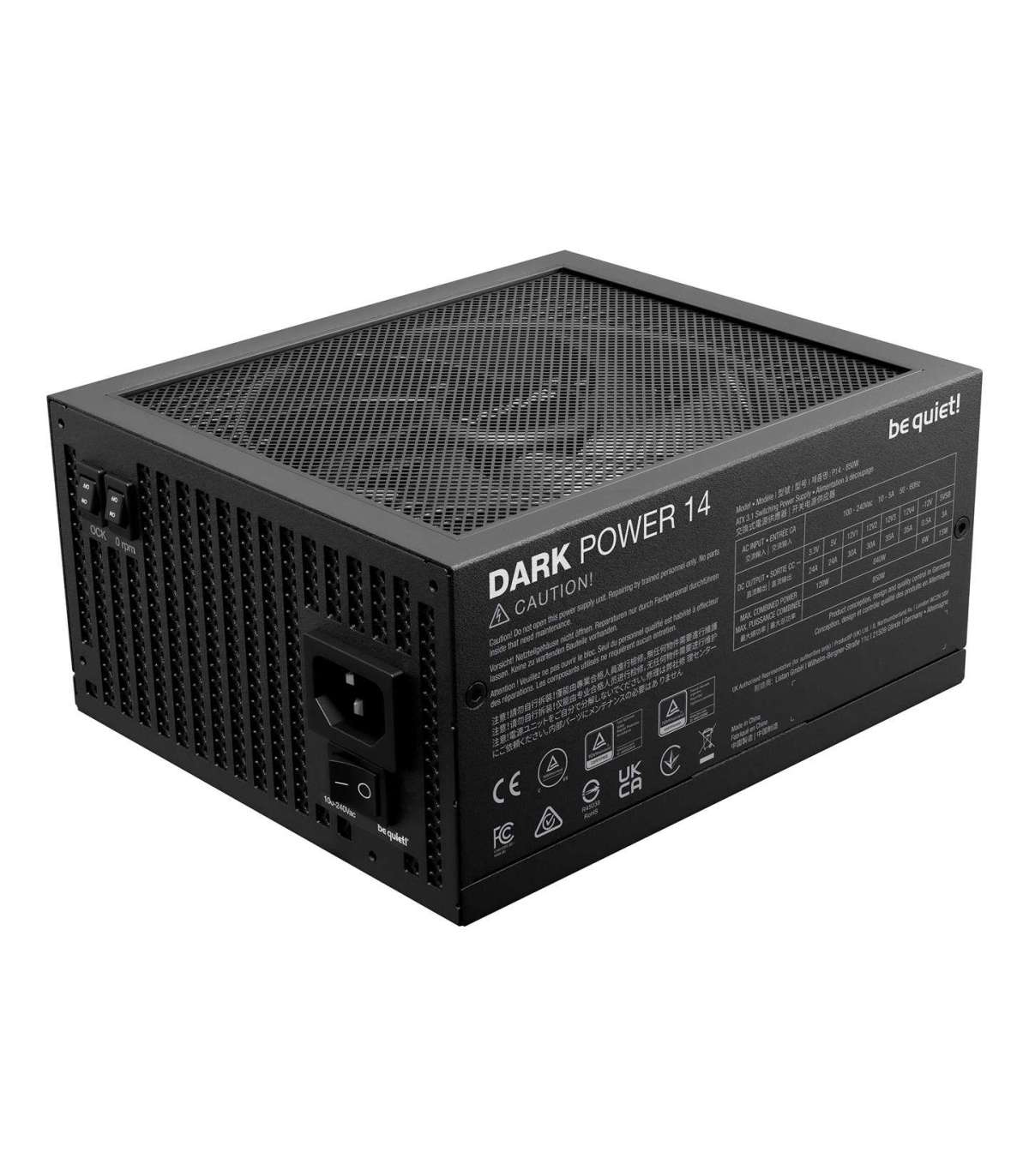

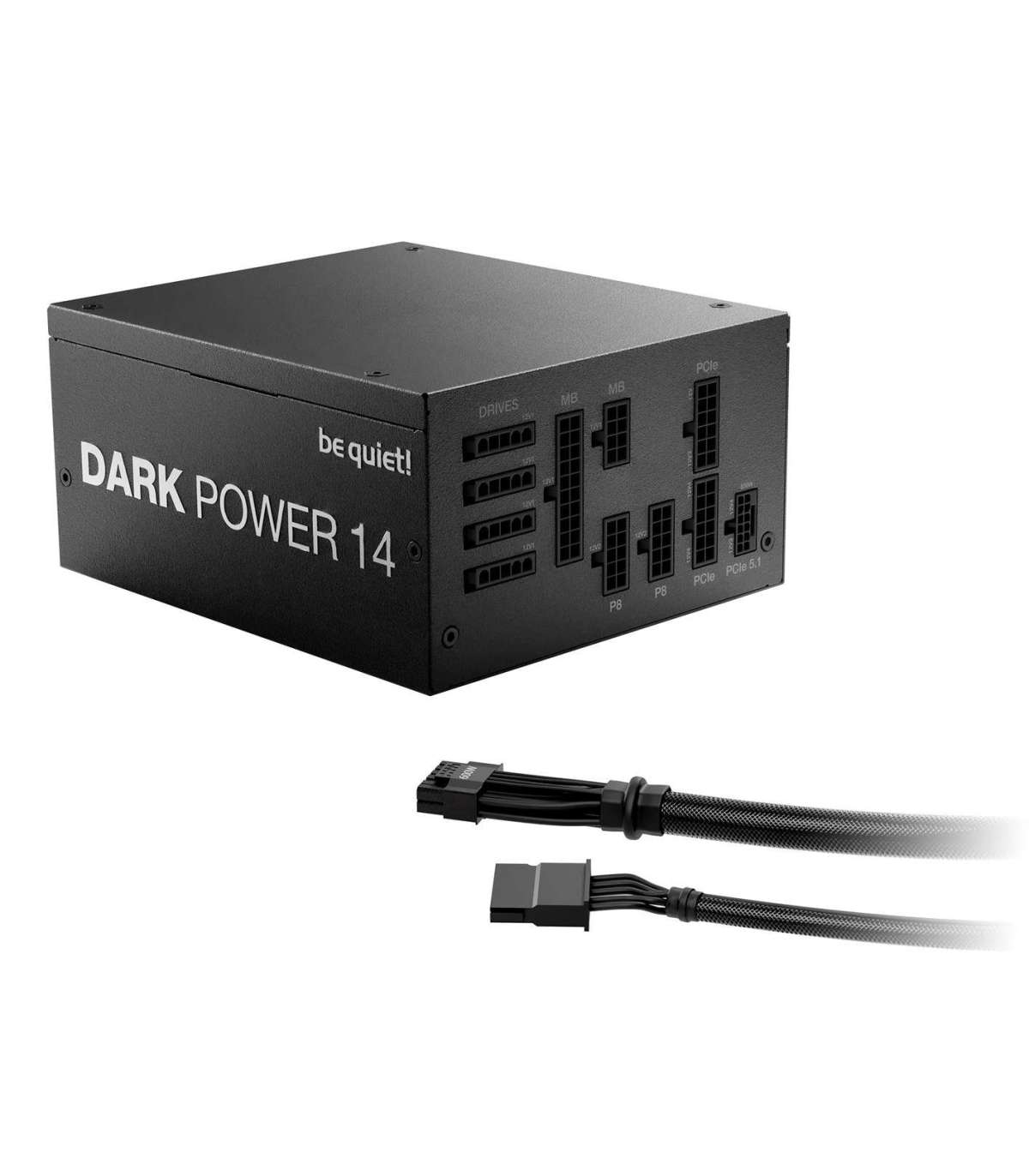

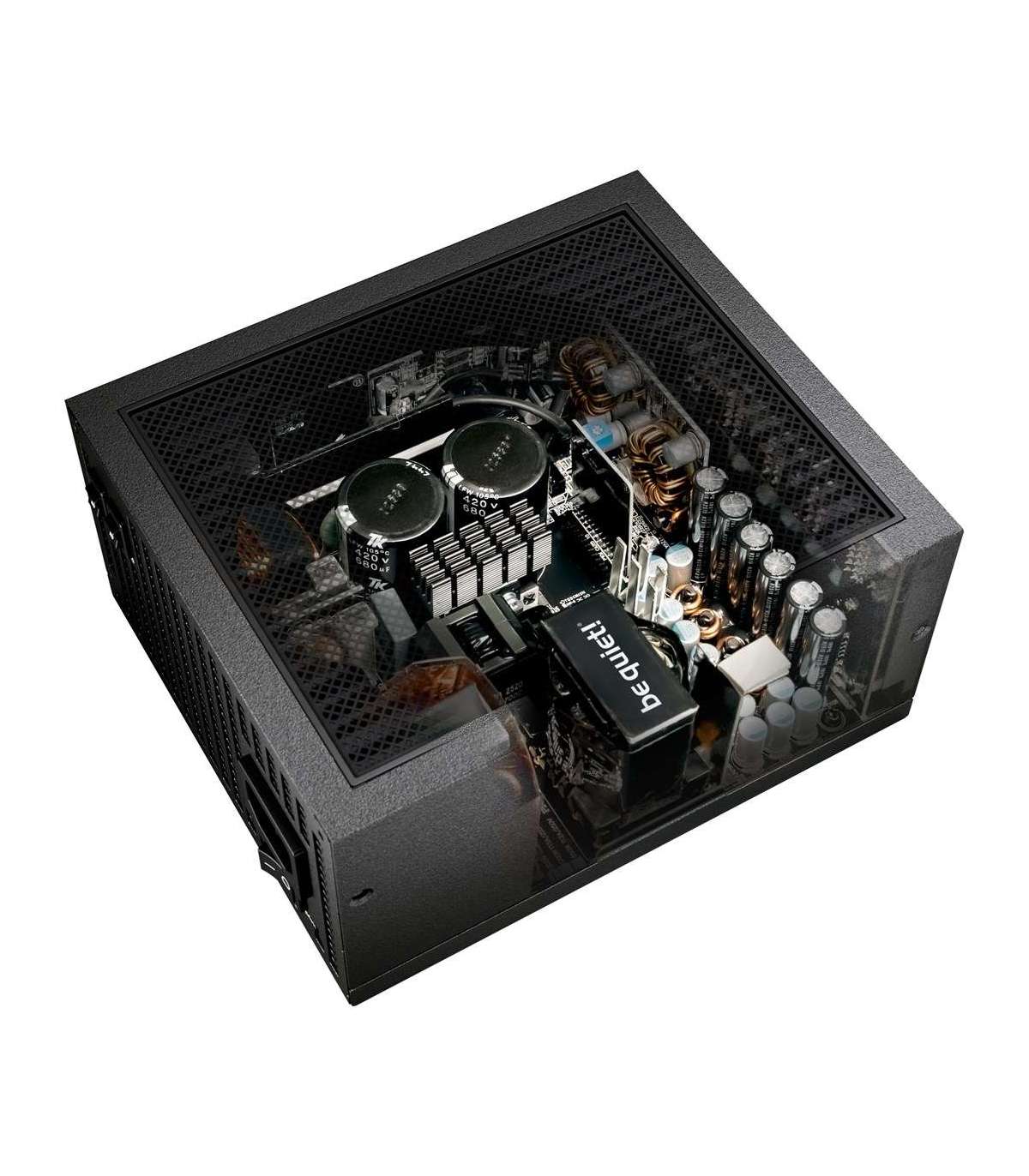

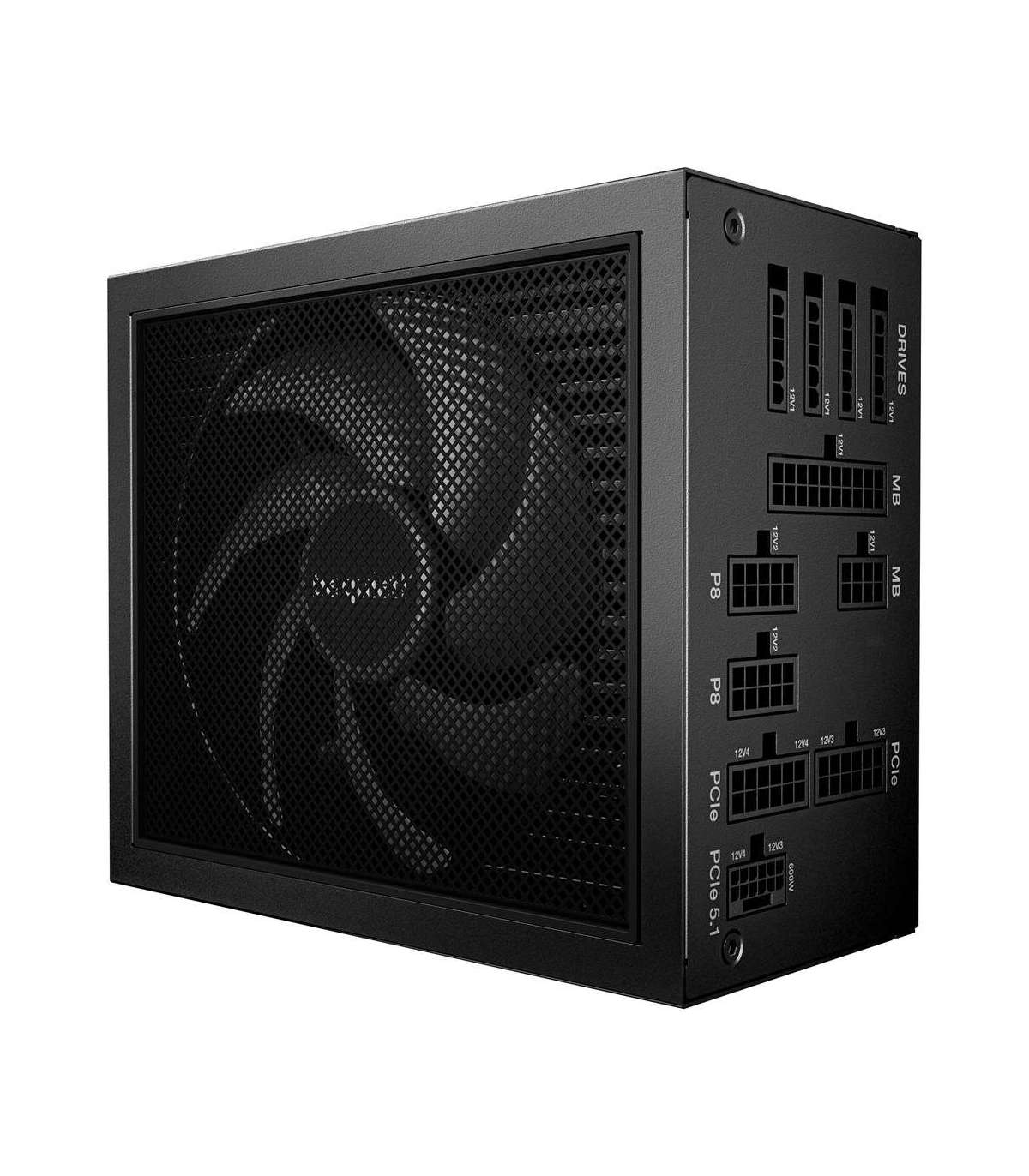

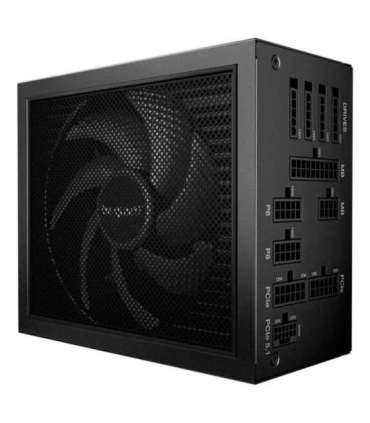

be quiet! Dark Power 14 850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

Характеристики

Depth

175 mm

Weight

2.2 kg

Height

86 mm

Width

150 mm

Package weight

3.5 kg

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Package width

230 mm

Package depth

126 mm

Package height

355 mm

Compliance certificates

CB
Federal Communications Commission (FCC)
RoHS
TÜV mark
UKCA
WEEE
cTUVus

Sustainability certificates

ENERGY STAR
ErP
Triman

Manual

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Mean time between failures (MTBF)

100000 h

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

4 pc(s)

Cooling type

Active

Screws included

Yes

Peripheral (Molex) power connectors (4-pin)

2

Noise level

16 dB

Efficiency

93.8%

Purpose

PC

Shipping (inner) case length

52.8 cm

Shipping (inner) case width

36.8 cm

Shipping (inner) case height

26 cm

Number of fans

1 fan(s)

Fan diameter

13.5 cm

Peak power

950 W

Manual languages

English
French
German
Italian
Japanese
Polish
Russian
Simplified Chinese
Spanish
Thai
Ukrainian

80 PLUS certification

80 PLUS Titanium

Total power

850 W

Power protection features

Over current
Overheating
Overload
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

FDB

Fan speed

0 - 2100 RPM

Combined power (+3.3V)

120 W

Max output current (+5V)

24 A

Max output current (+3.3V)

24 A

Combined power (+5V)

120 W

Combined power (+12V)

850 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.5 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

600
750 mm
900
1050 mm

Peripheral (Molex) power cable length

900
1050 mm

CPU power cable length

70 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

60 cm

EPS power connector (4+4 pin)

Yes

PCI Express power cable length

60 cm

Power factor

0.98

Maximum input current (@220V)

5 A

Maximum input current (@110V)

10 A

PCI Express connector

Yes

Max output current (+12V2)

30 A

Max output current (+12V1)

30 A

EPS version

2.92

Cable ties included

Yes

Number of +12V rail(s)

4

PCI Express power connectors (12-pin)

1

Shipping (inner) case net weight

19.3 kg

On/off fan switch

Yes

Max output current (+12V3)

35 A

Max output current (+12V4)

35 A

Number of SATA power cables

13
