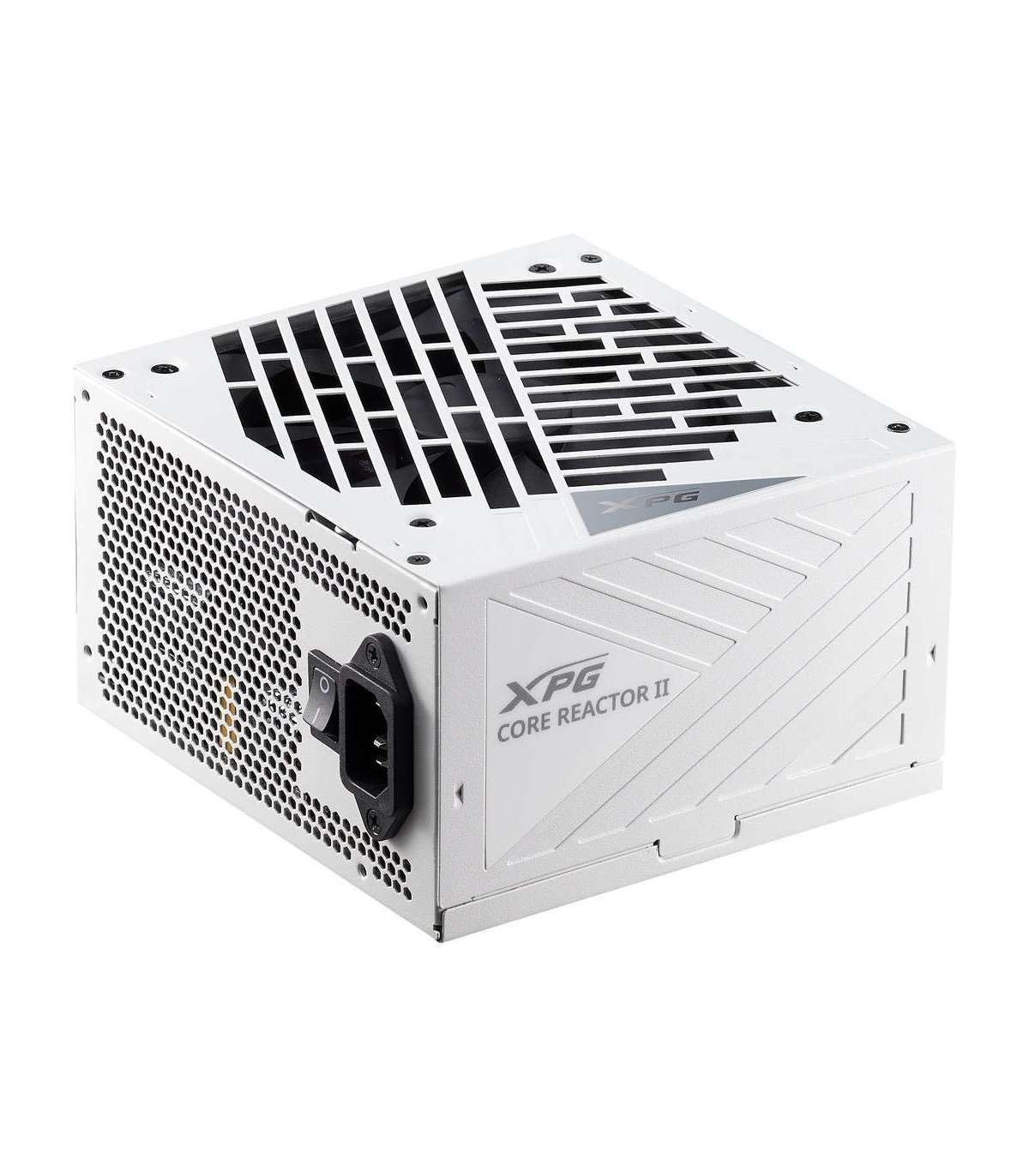

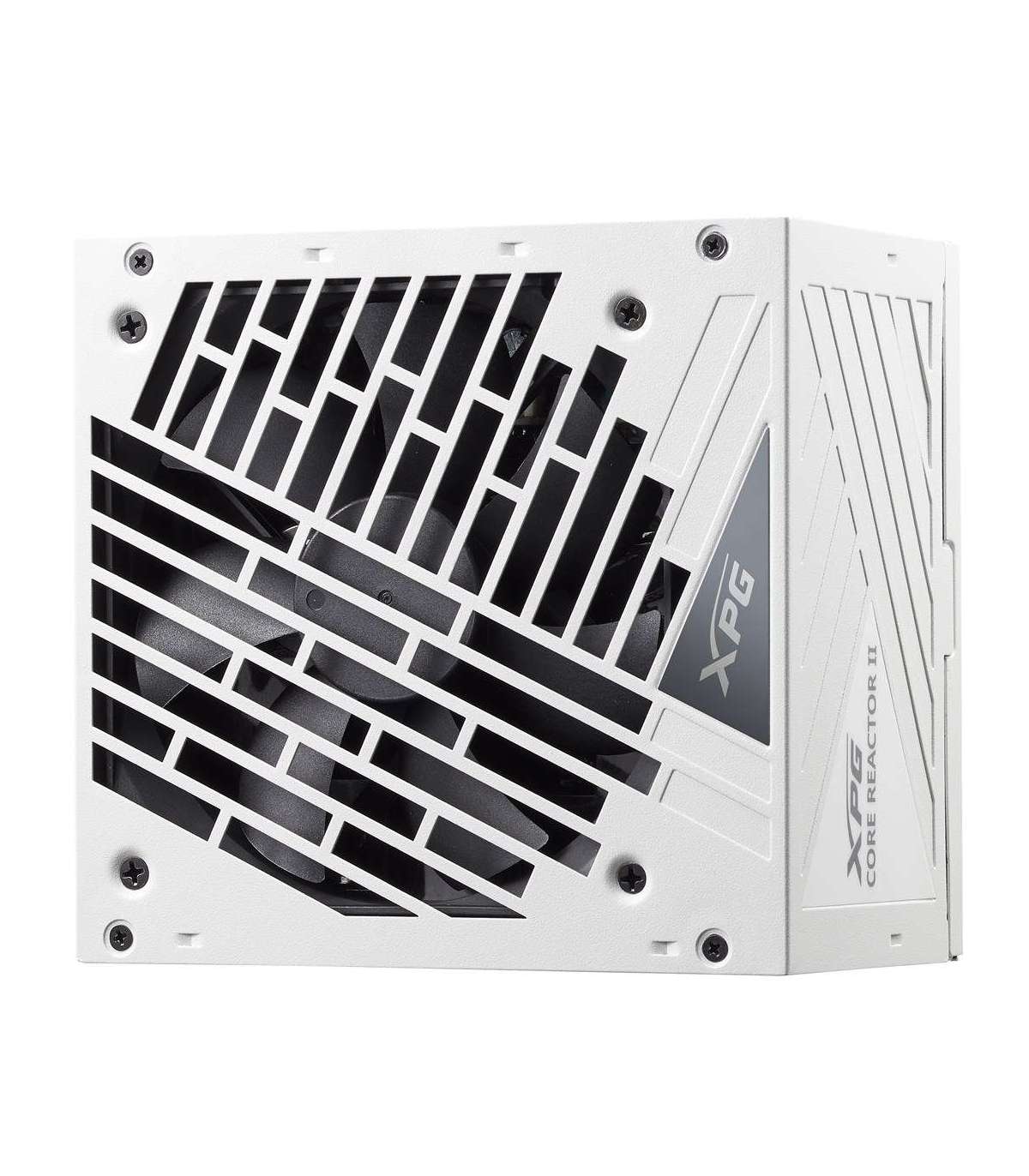

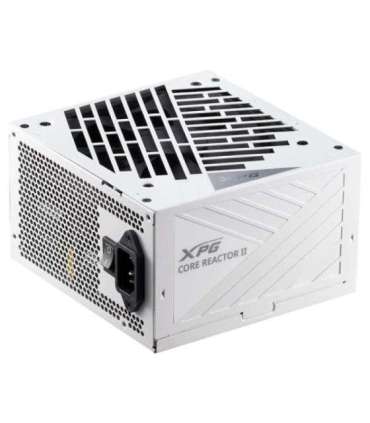

XPG COREREACTOR II 850W Power Supply

Характеристики

Depth

150 mm

Weight

1.6 kg

Height

86 mm

Width

140 mm

Package weight

3.1 kg

Product colour

White

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

12 A

Mean time between failures (MTBF)

100000 h

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

4

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

850 W

Power protection features

Over current
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

FDB

Max output current (+12V)

62.5 A

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.0

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

6

Motherboard power connector

20+4 pin ATX

Cabling type

Fully-Modular

Power factor

0.99

EPS version

2.92

ATX power connector (12+4 pin)

Yes
