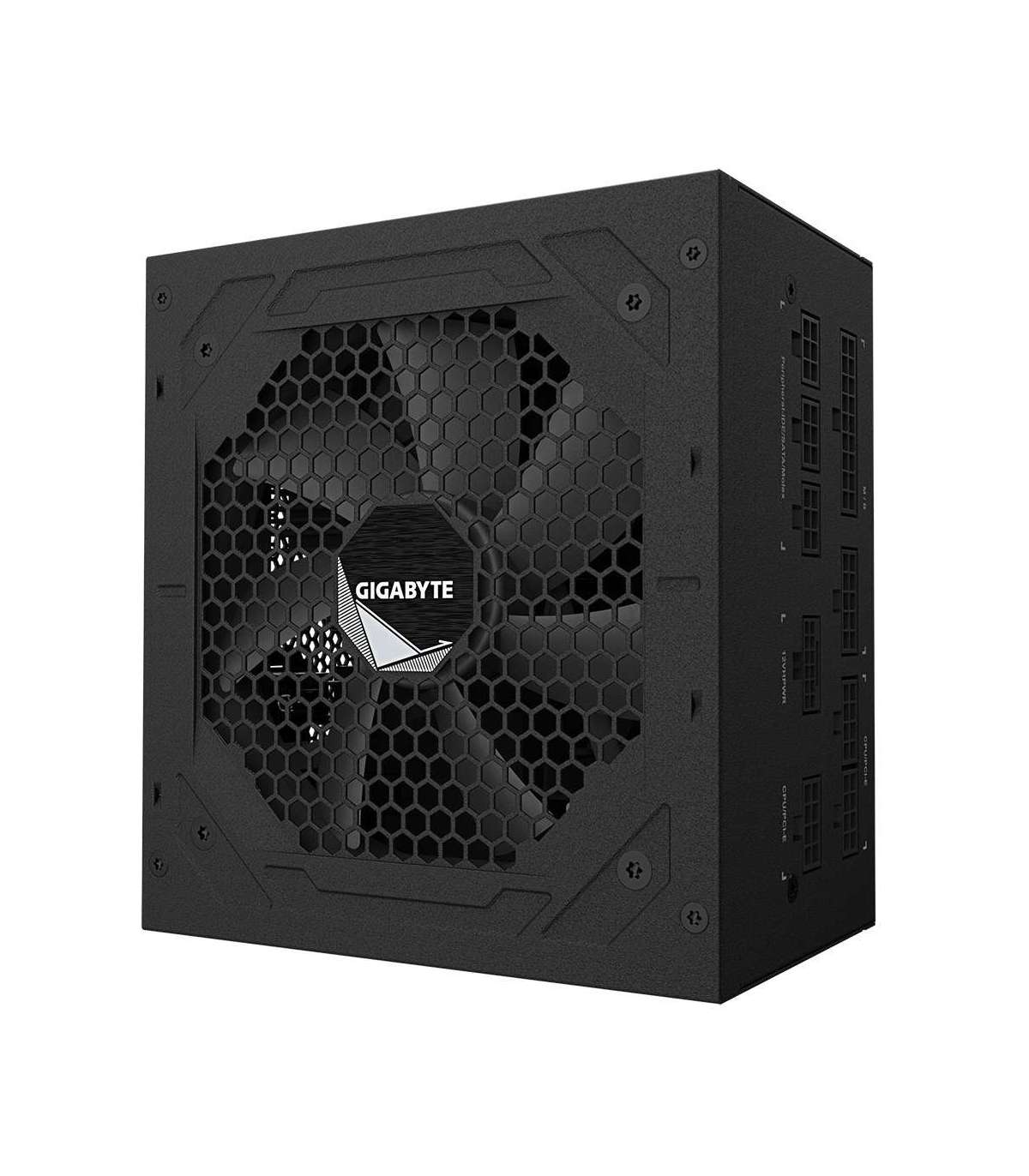

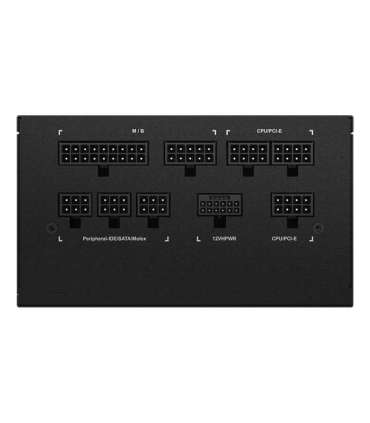

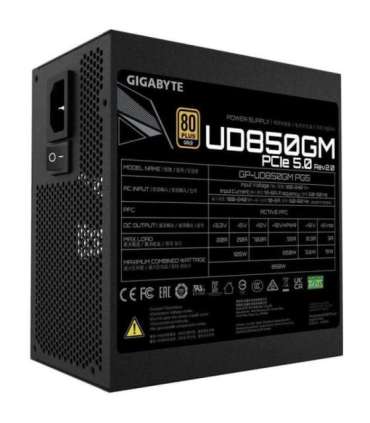

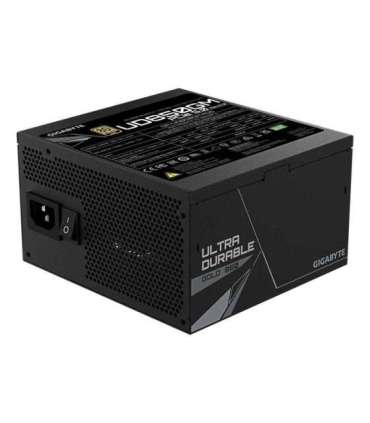

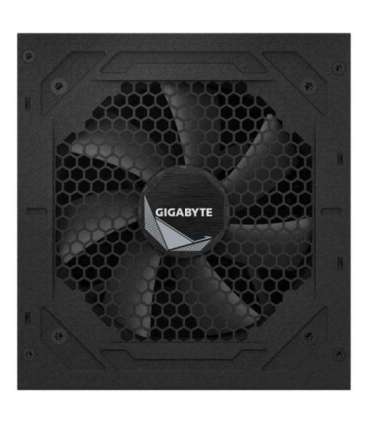

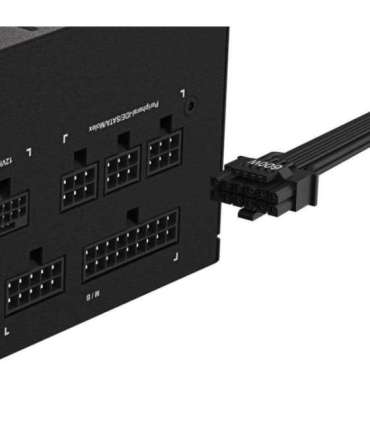

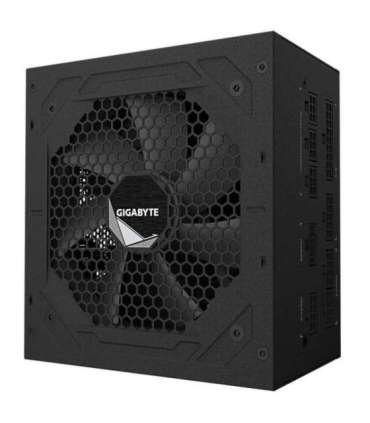

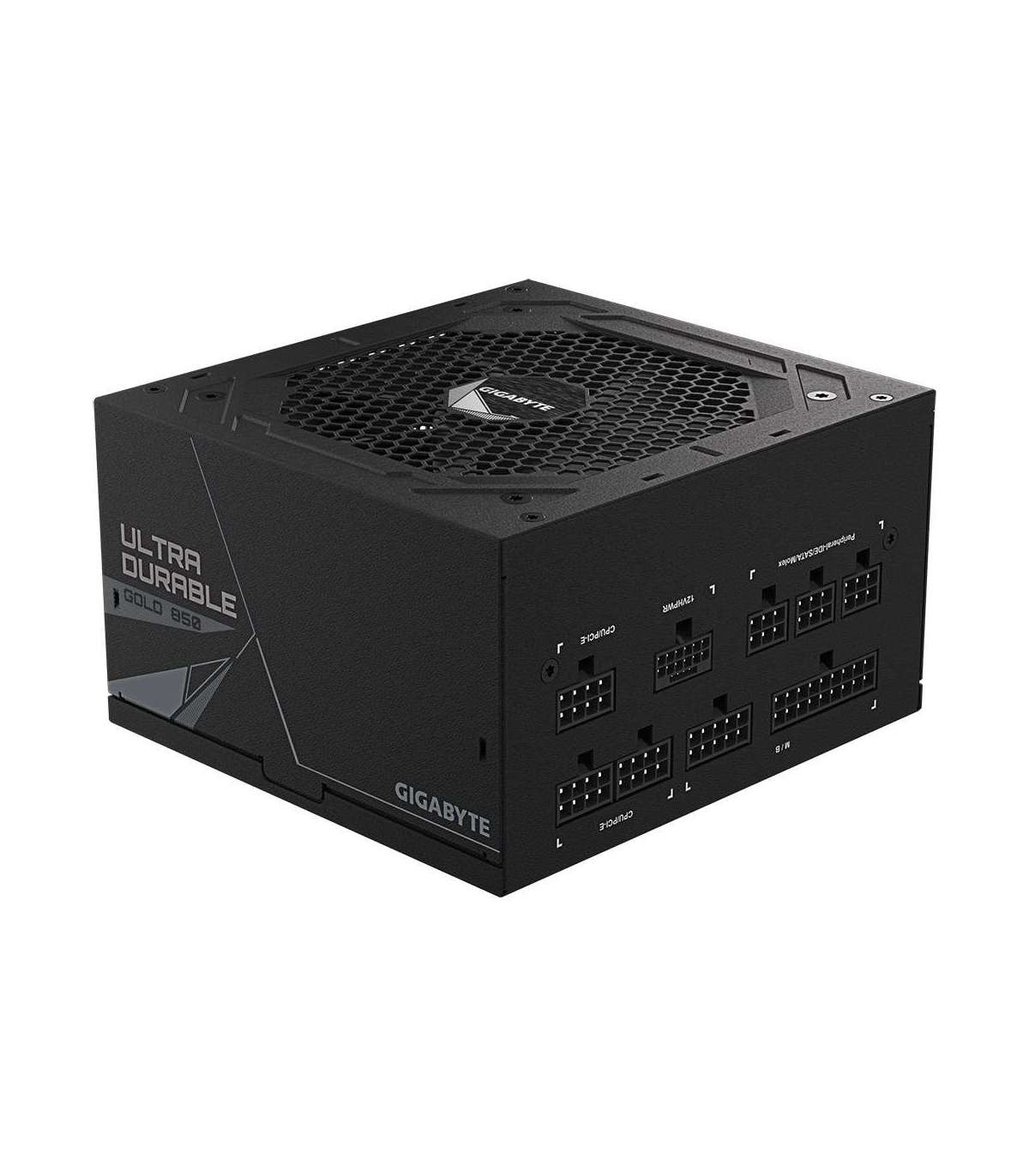

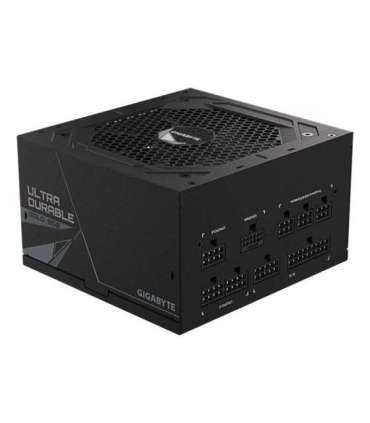

Gigabyte UD850GM 850W PG5 V2 (GP-UD850GM PG5 V2) - power supply, black

Характеристики

Depth

140 mm

Weight

2.4 kg

Height

86 mm

Width

150 mm

Package weight

2.56 kg

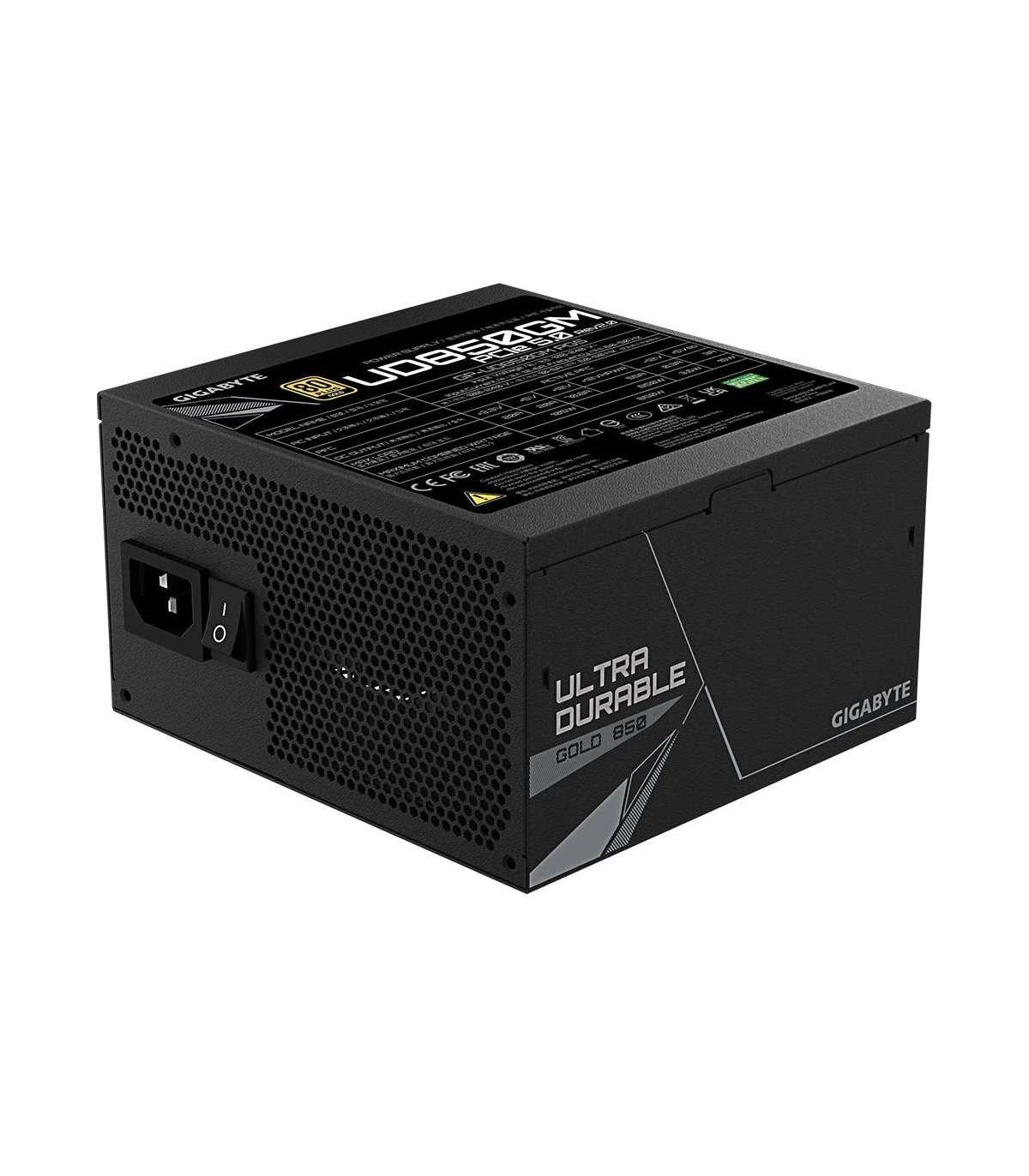

On/off switch

Yes

Product colour

Black

Package width

618 mm

Package depth

269 mm

Package height

211 mm

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

12 - 6 A

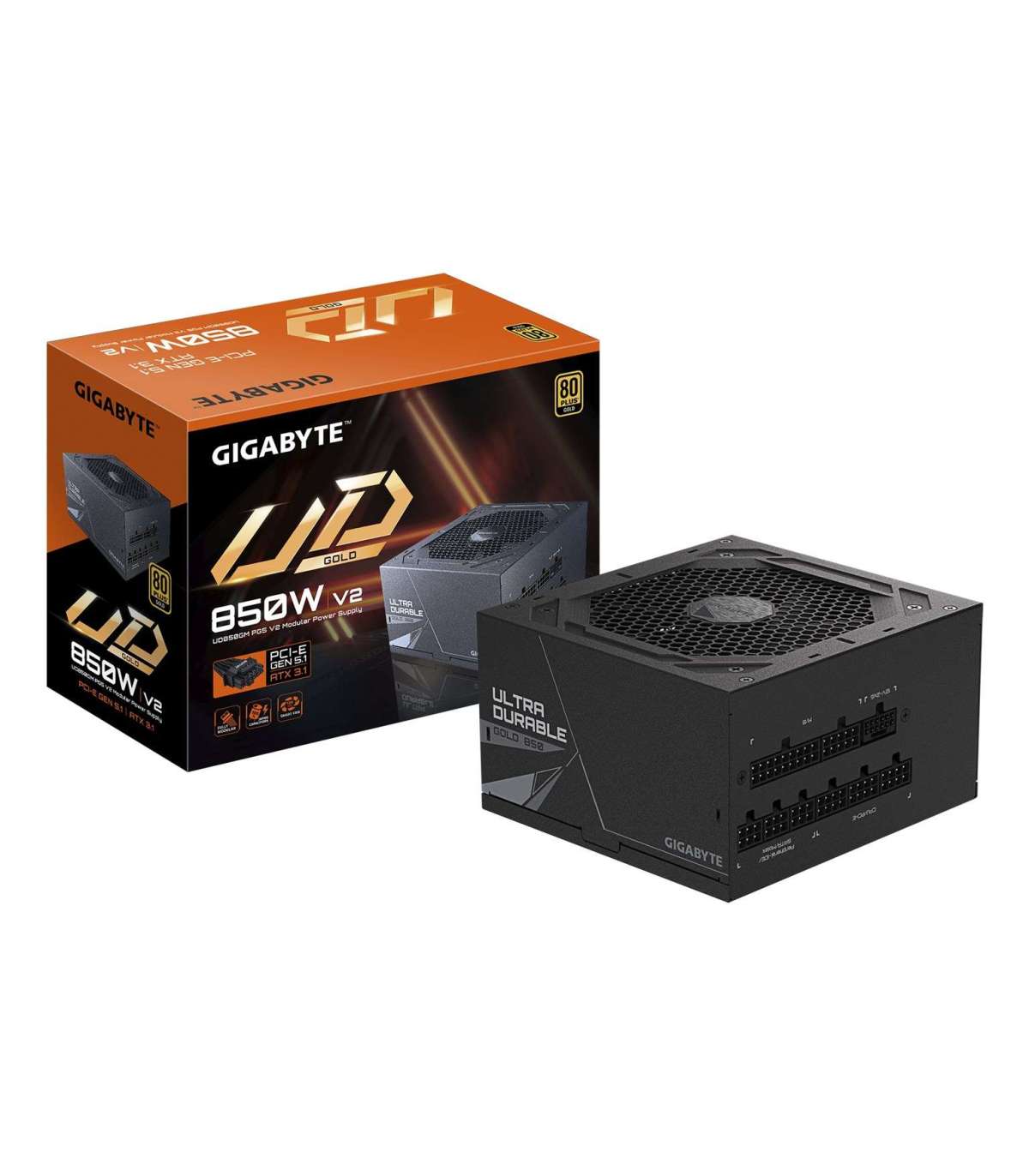

Package type

Box

Mean time between failures (MTBF)

100000 h

Warranty period

10 year(s)

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Efficiency

90%

Purpose

PC

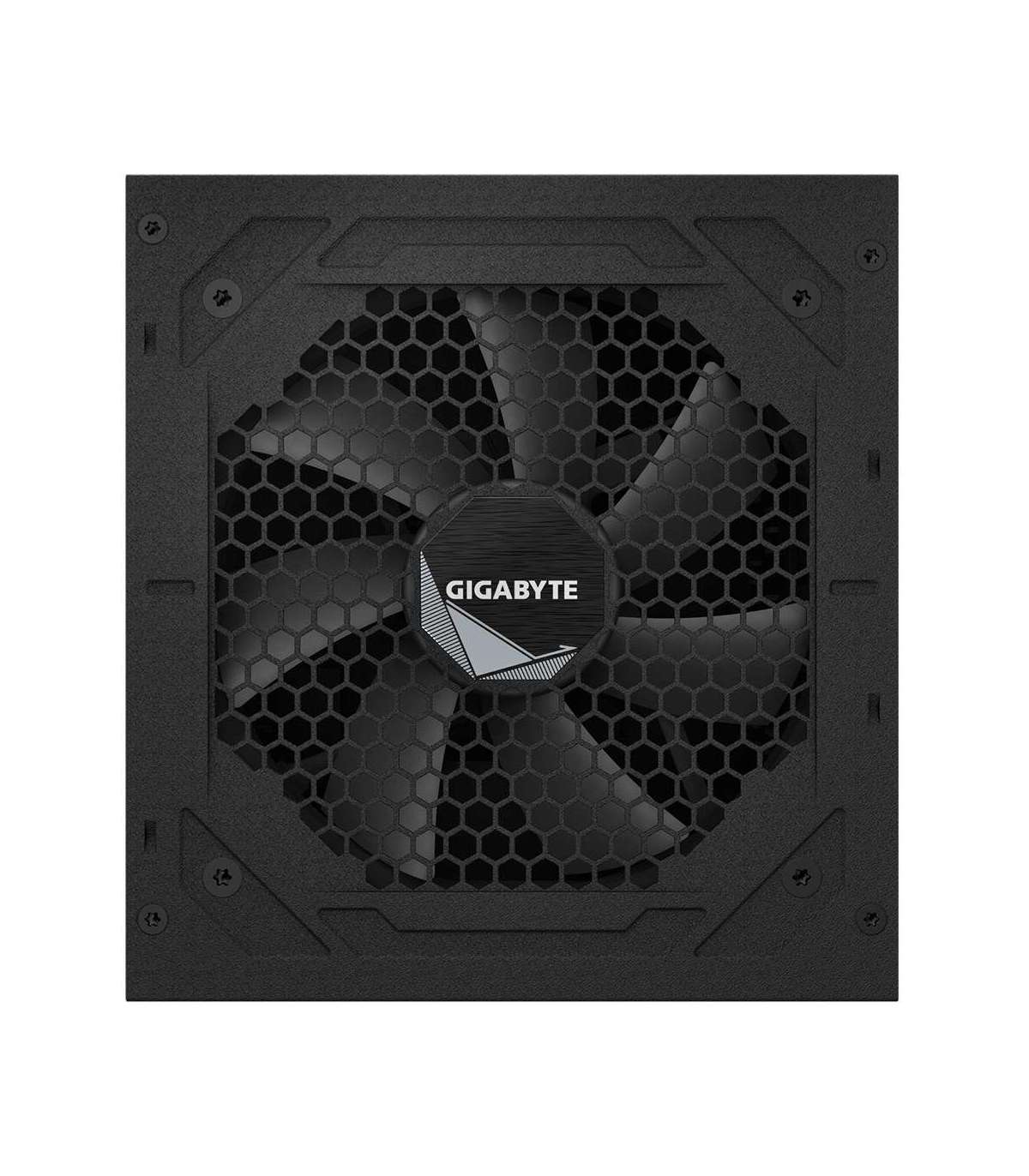

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

850 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

HYB

Power Factor Correction (PFC) type

Active

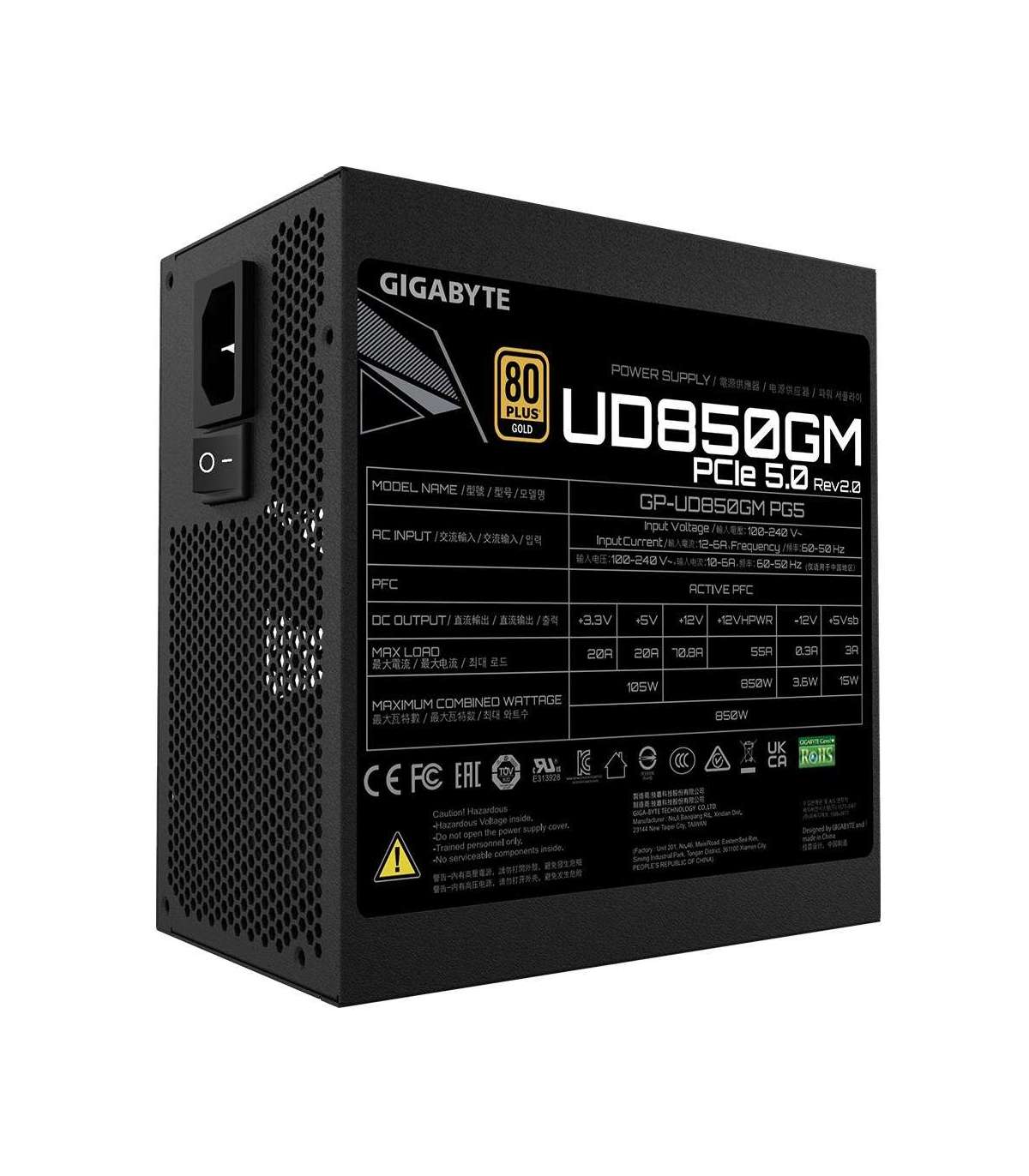

Combined power (-12V)

3.6 W

Max output current (+12V)

70.8 A

Combined power (+3.3V)

105 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

105 W

Hold time

16 ms

Combined power (+12V)

850 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

150
600 mm

Peripheral (Molex) power cable length

150
500 mm

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

Motherboard power cable length

61 cm

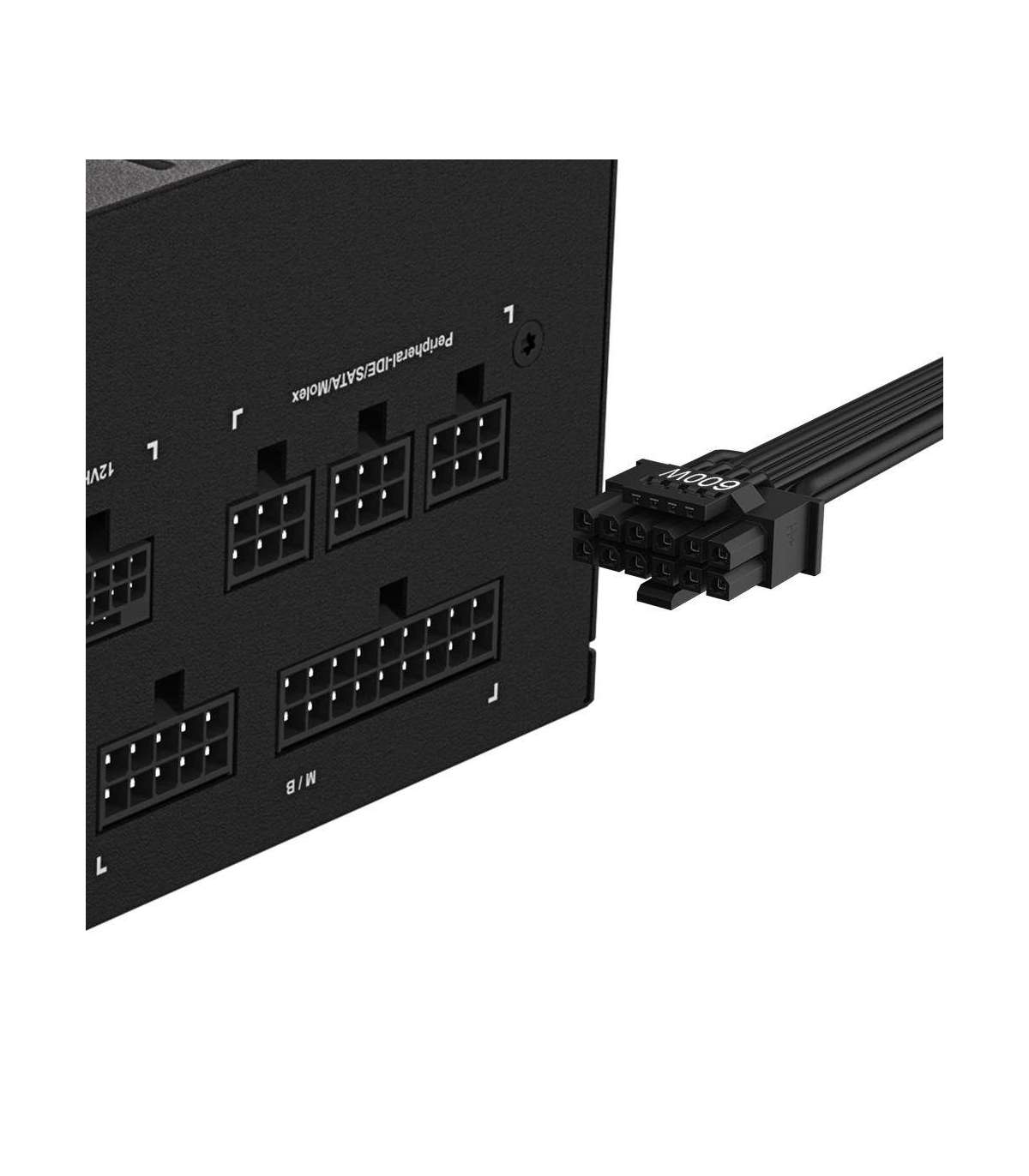

PCI Express power connectors (16-pin)

1

PCI Express power cable length

70 cm

Power factor

0.9

Floppy drive power connector

1

PCI Express connector

Yes

Number of EPS connectors

2
