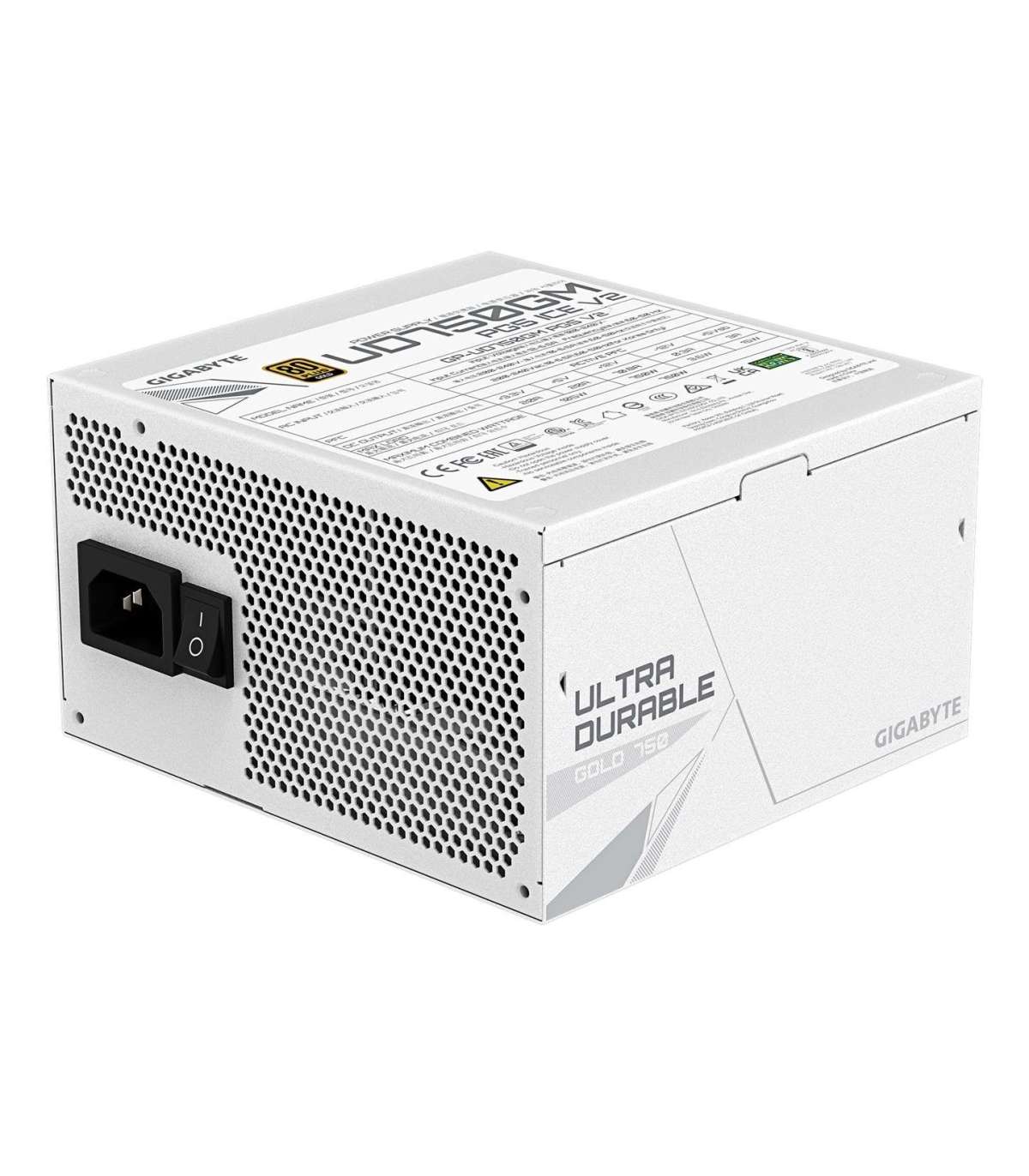

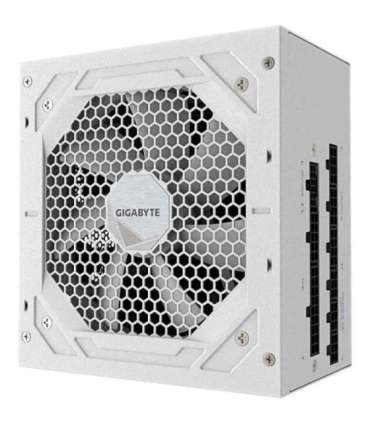

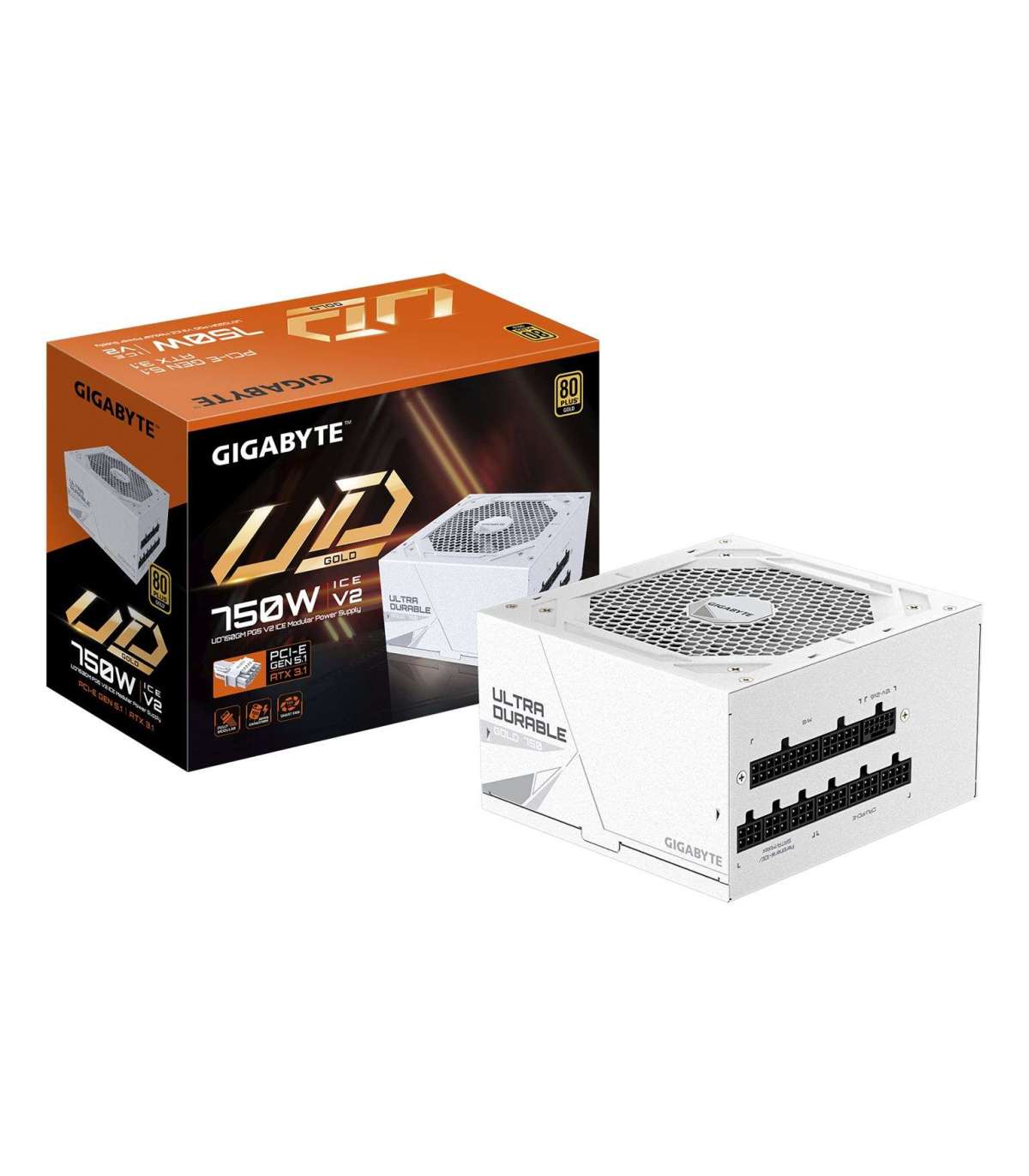

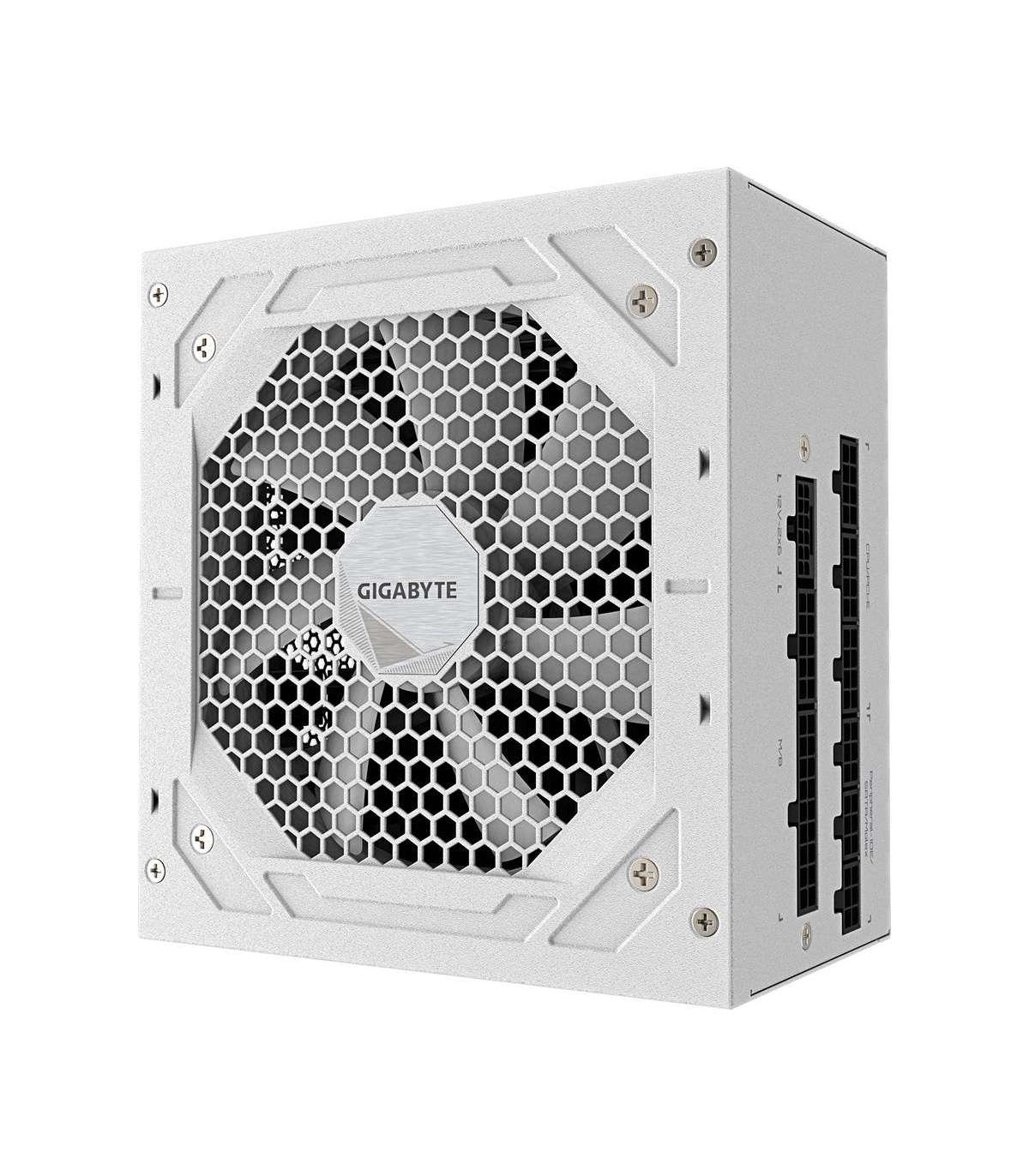

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

White

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

15 - 6.5 A

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Efficiency

90%

Purpose

PC

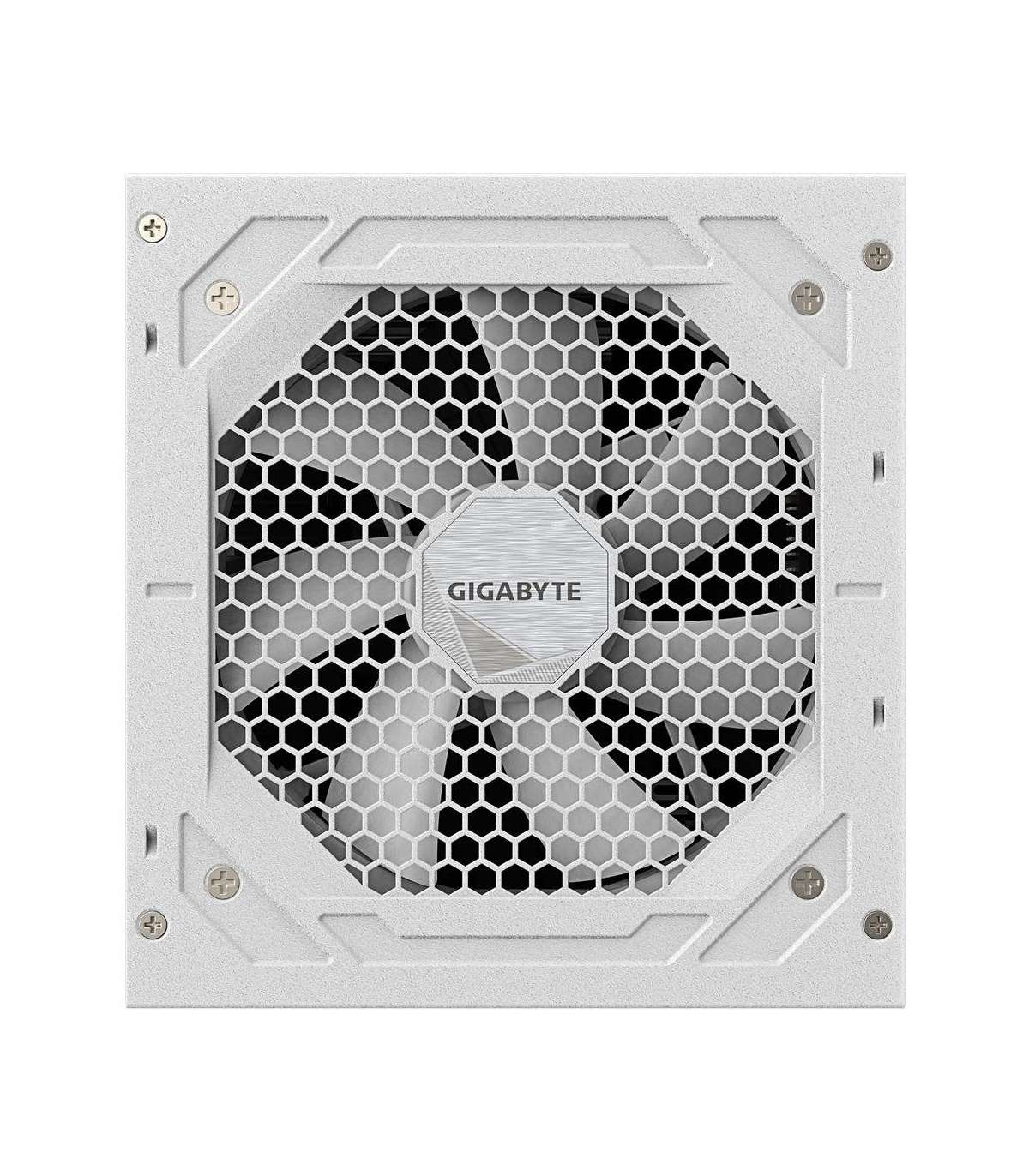

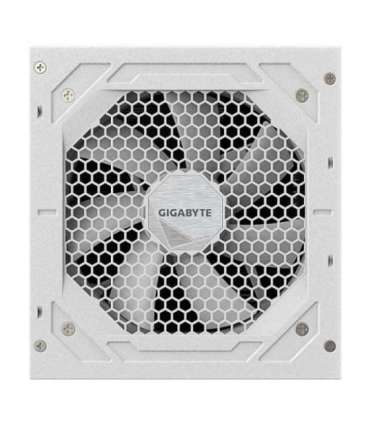

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

750 W

Power protection features

OCP
OPP
OTP
OVP
SCP
UVP

Power Factor Correction (PFC) type

Active

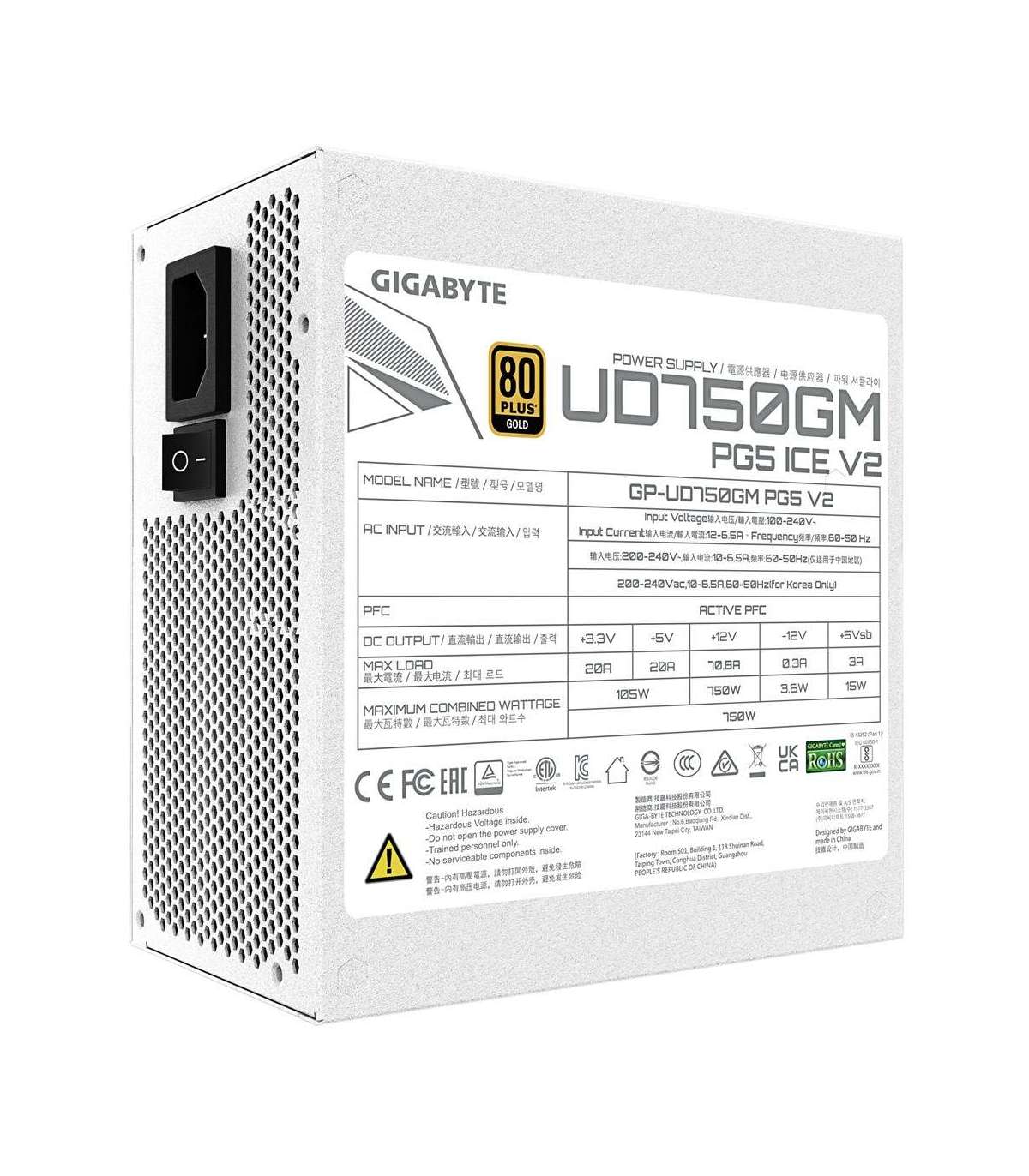

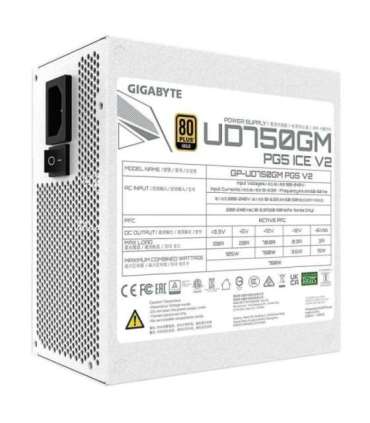

Combined power (-12V)

3.6 W

Max output current (+12V)

70.8 A

Combined power (+3.3V)

105 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

105 W

Hold time

16 ms

Combined power (+12V)

750 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

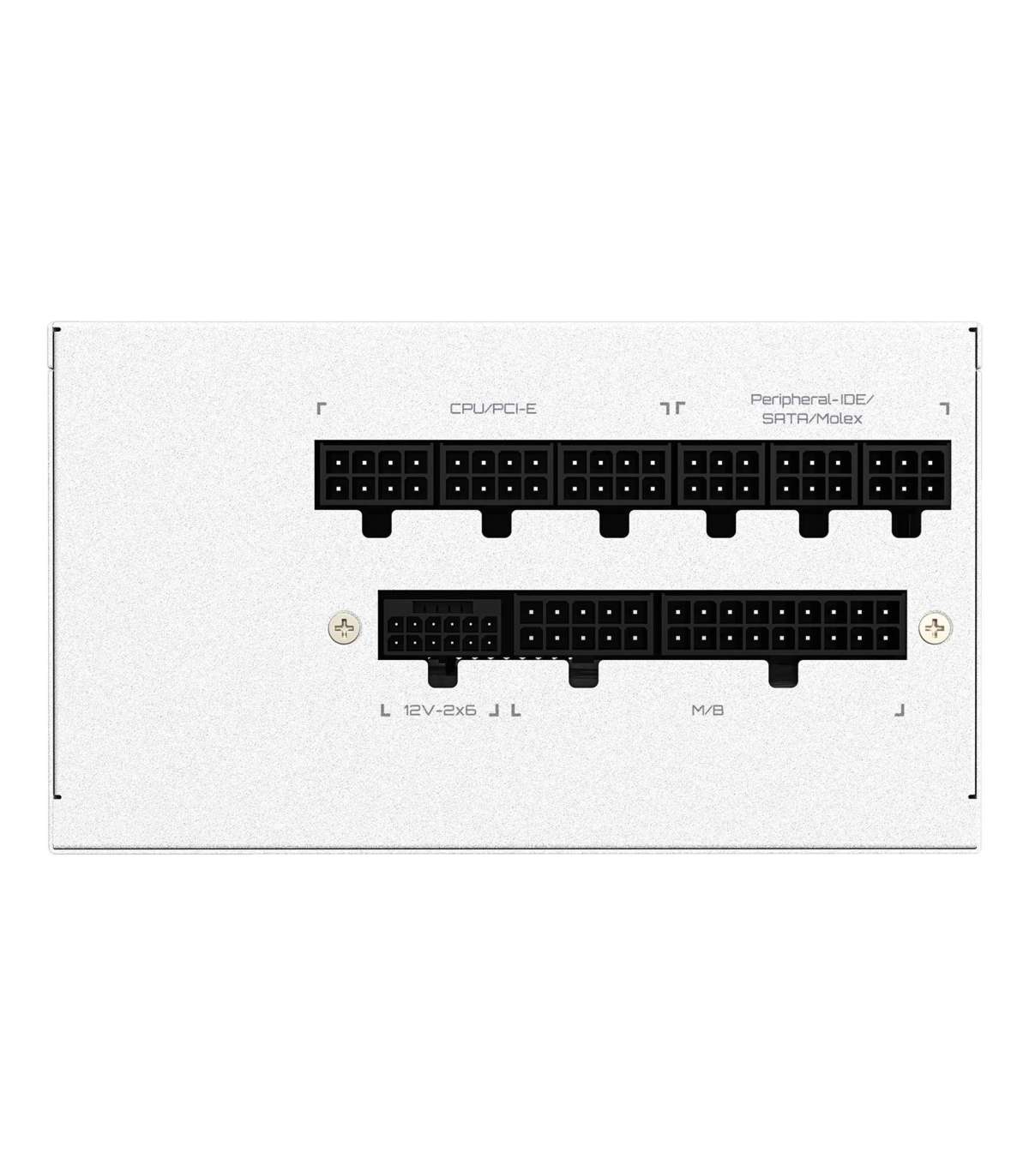

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

CPU power connector (4+4 pin)

Yes

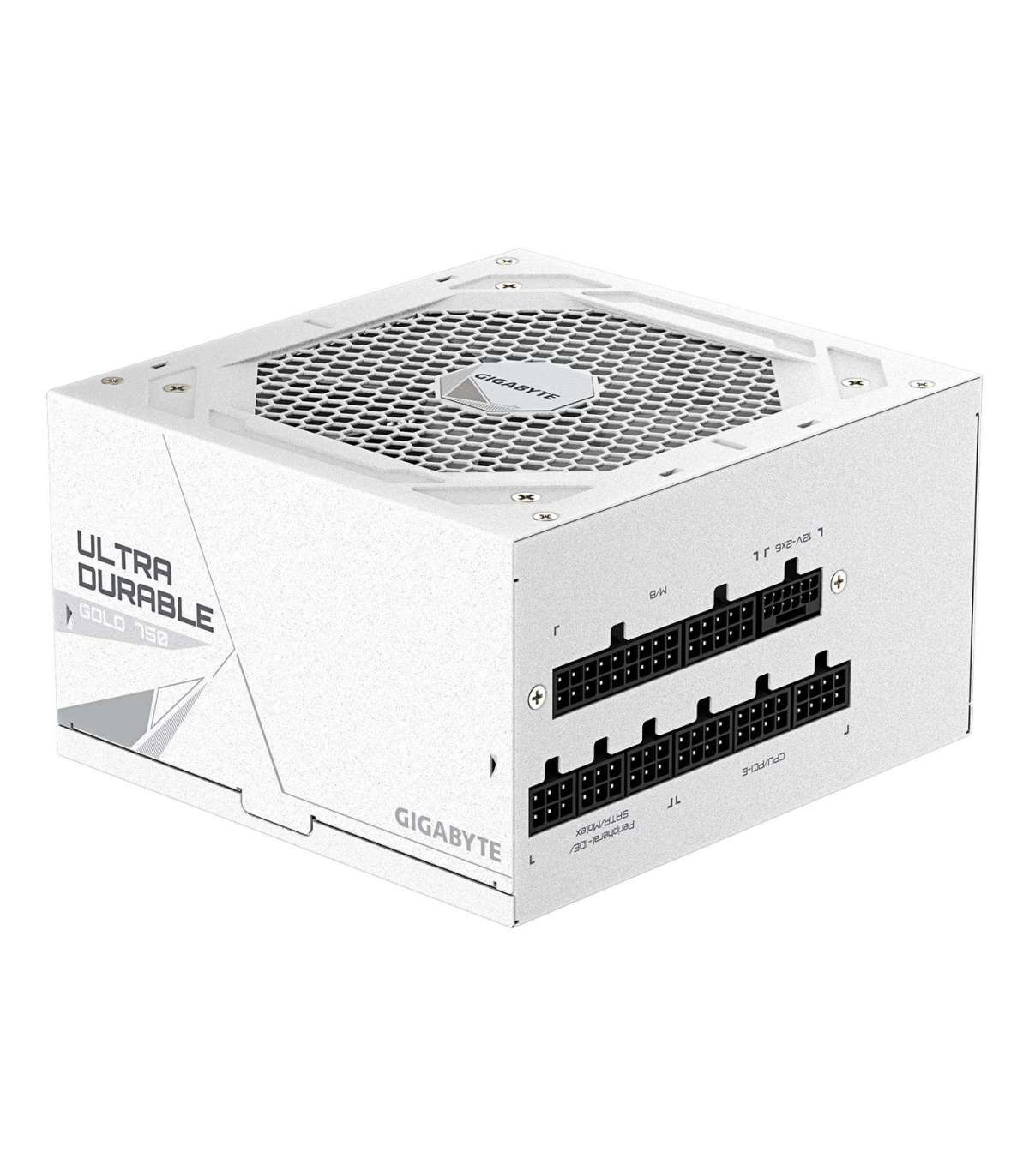

Cabling type

Fully-Modular

Motherboard power cable length

61 cm

Power factor

0.9

PCI Express connector

Yes

PCI Express power connectors (12+4 pin)

1

Number of EPS connectors

2

PCI Express power connectors (12+4 pin) cable length

700 mm
