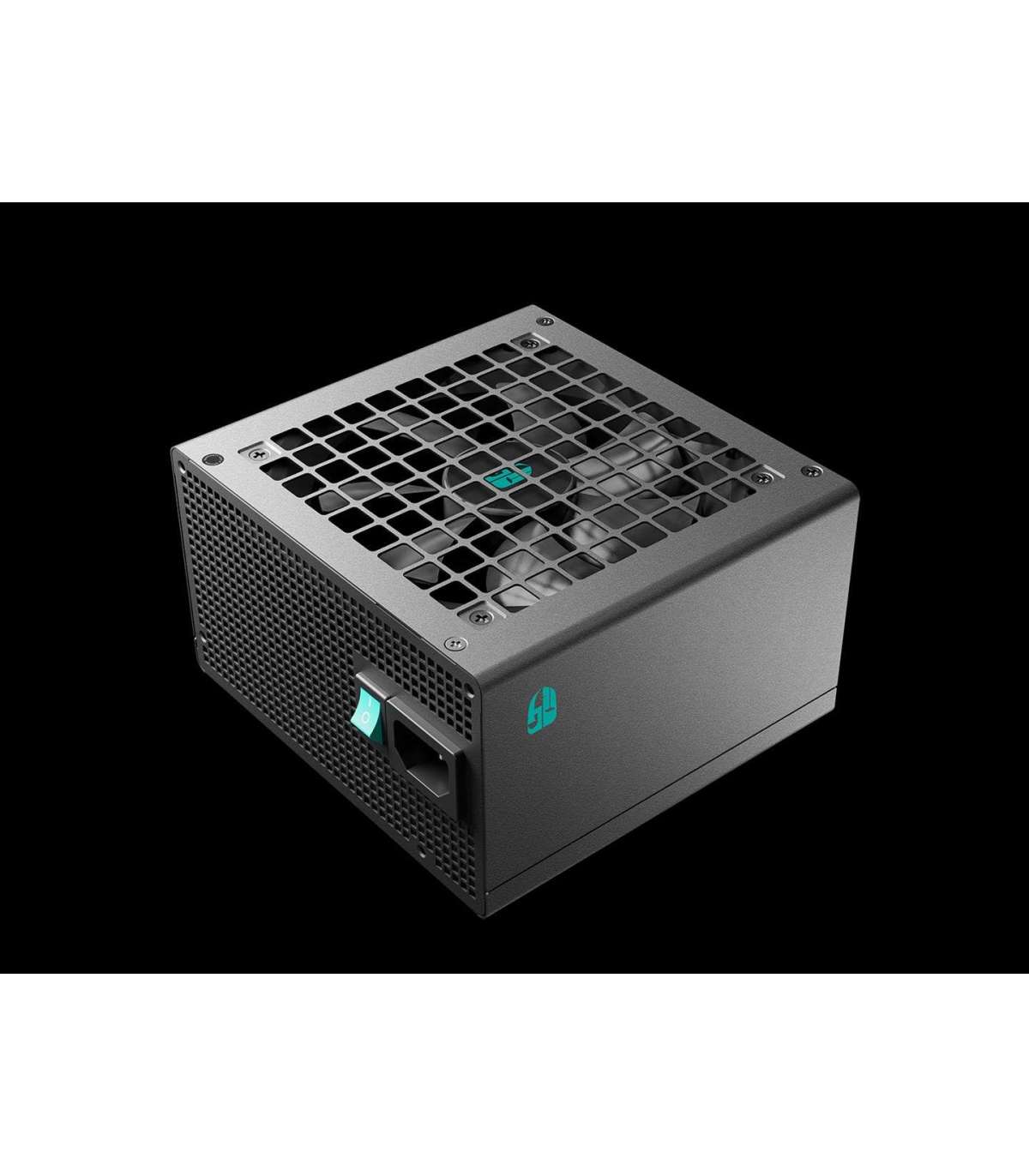

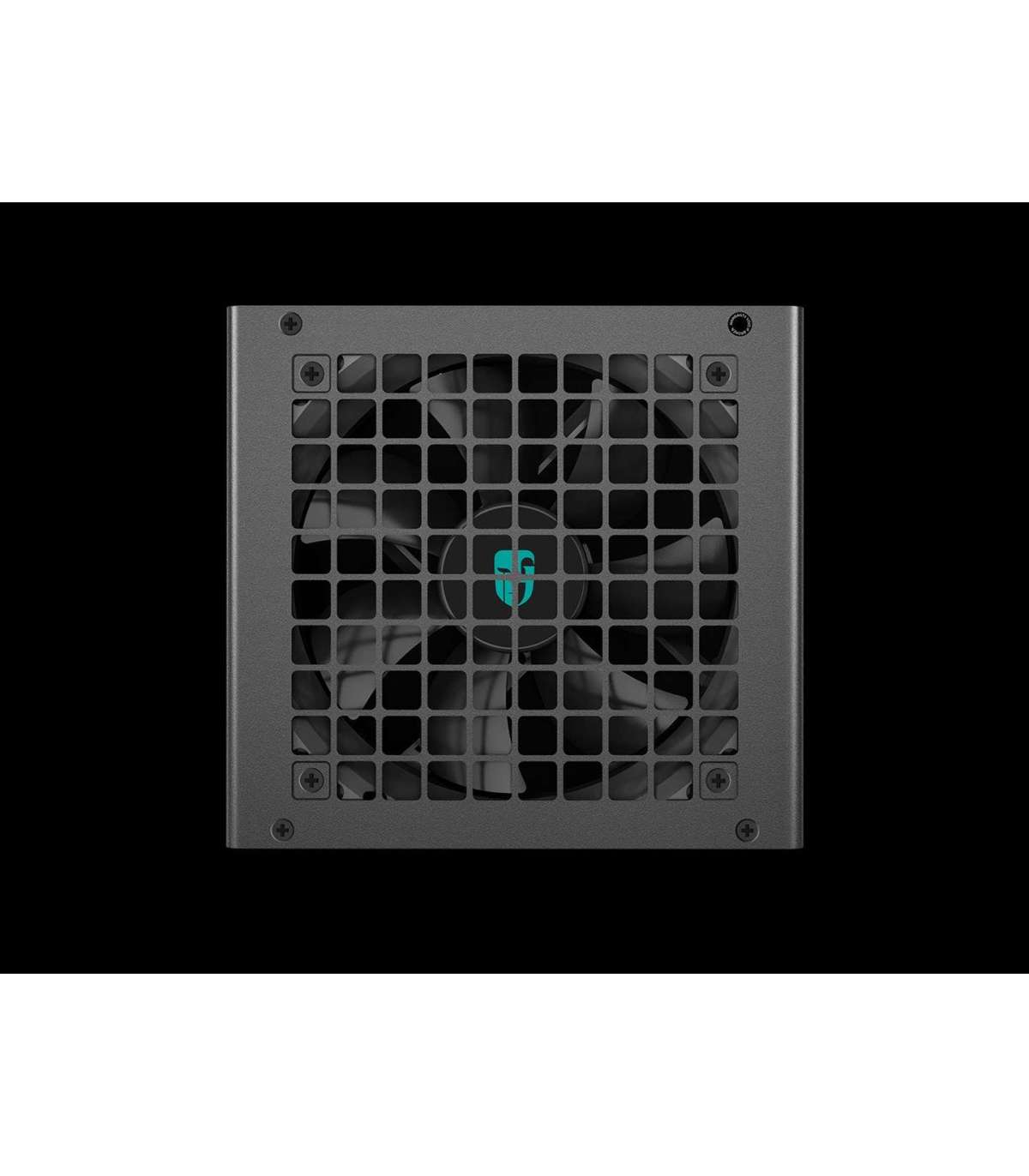

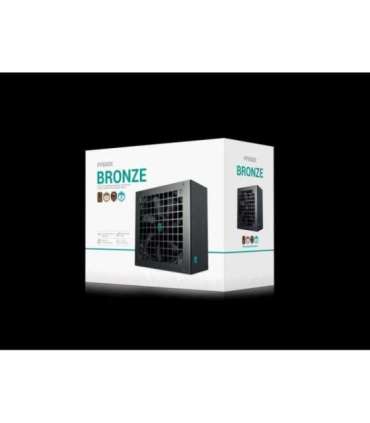

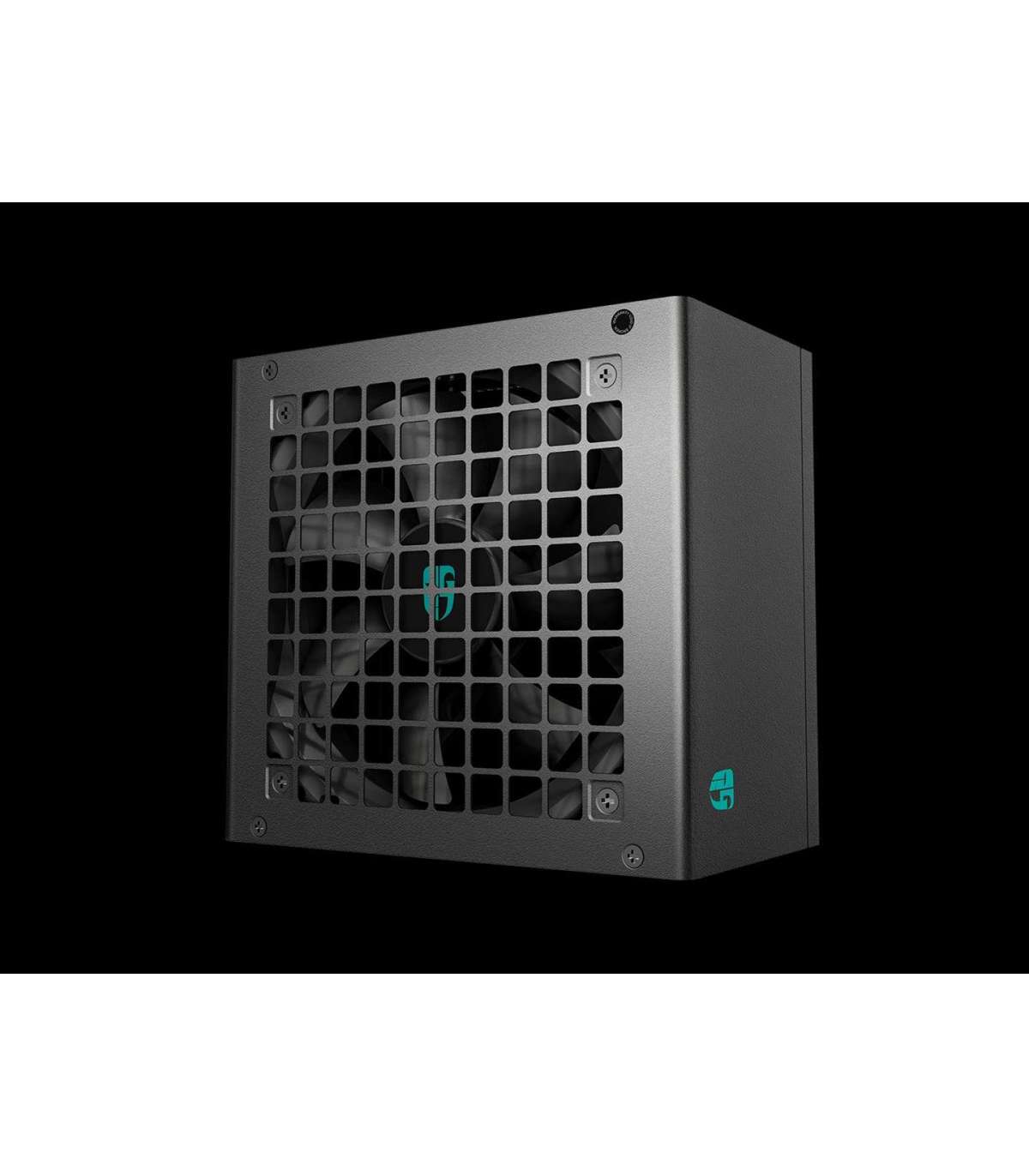

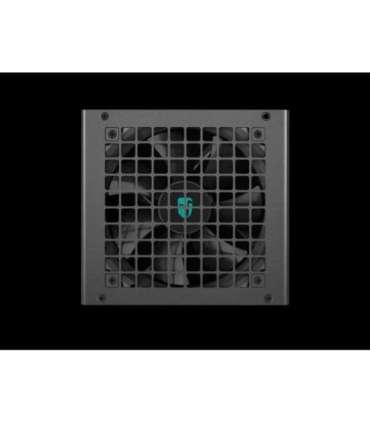

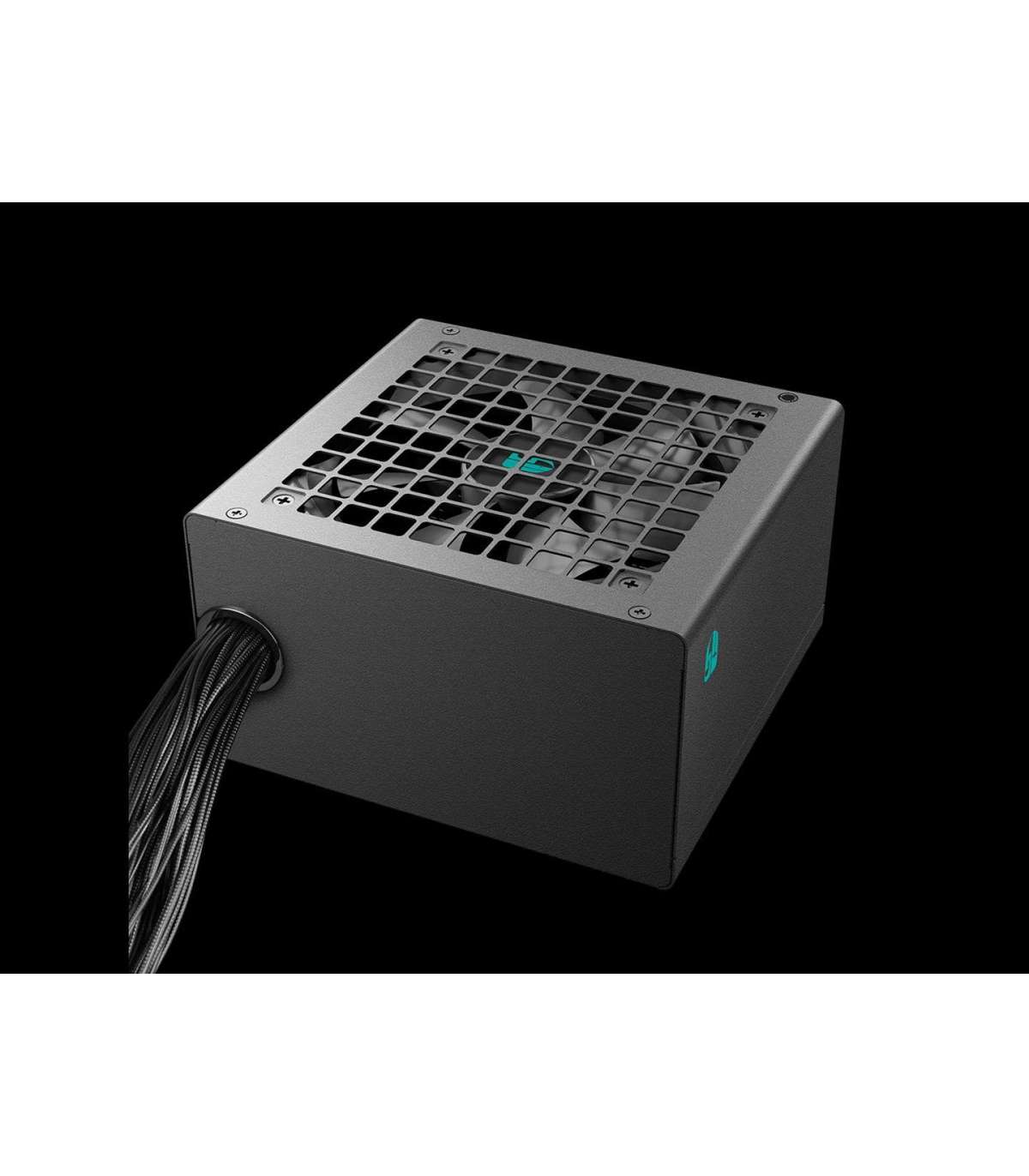

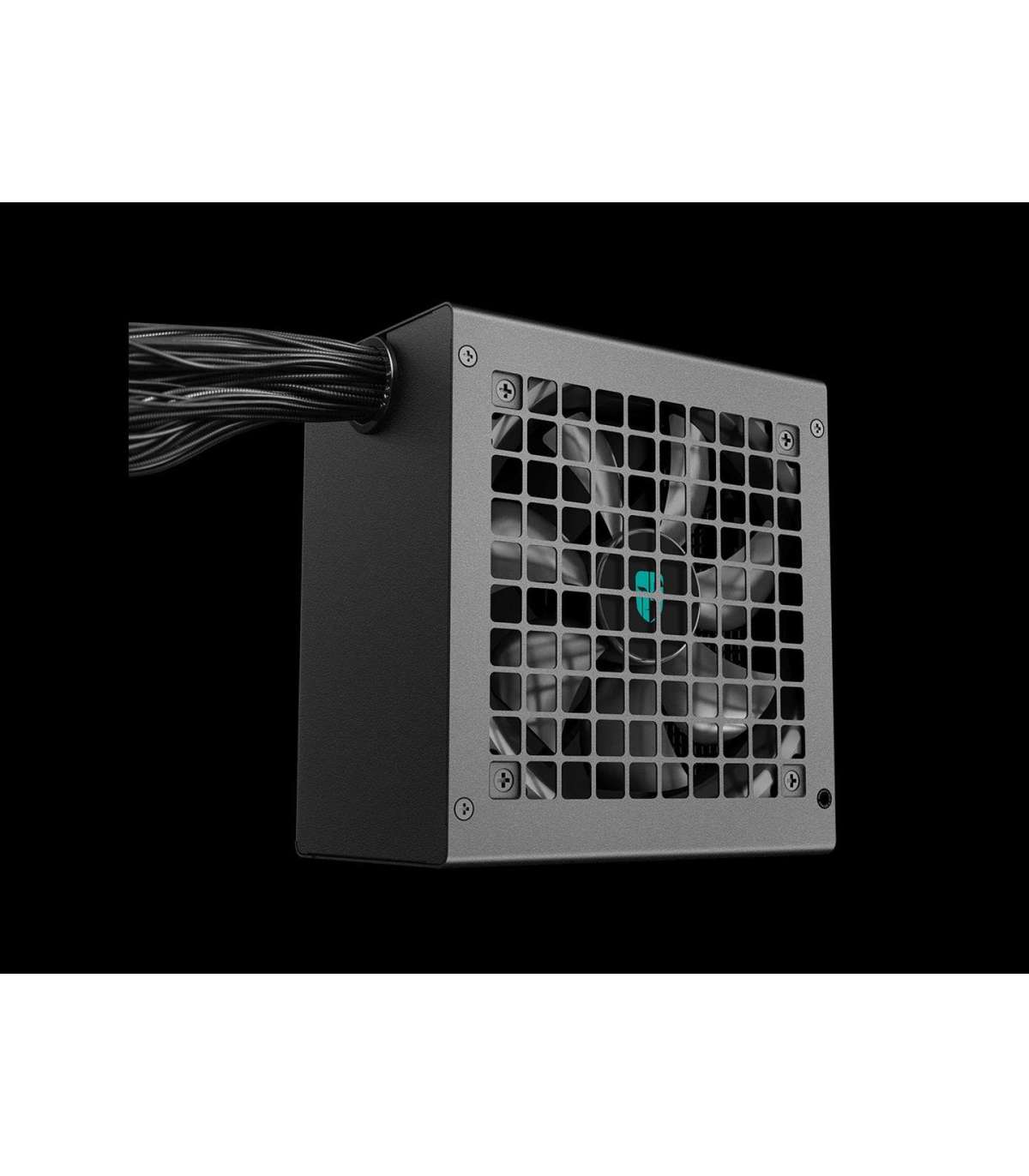

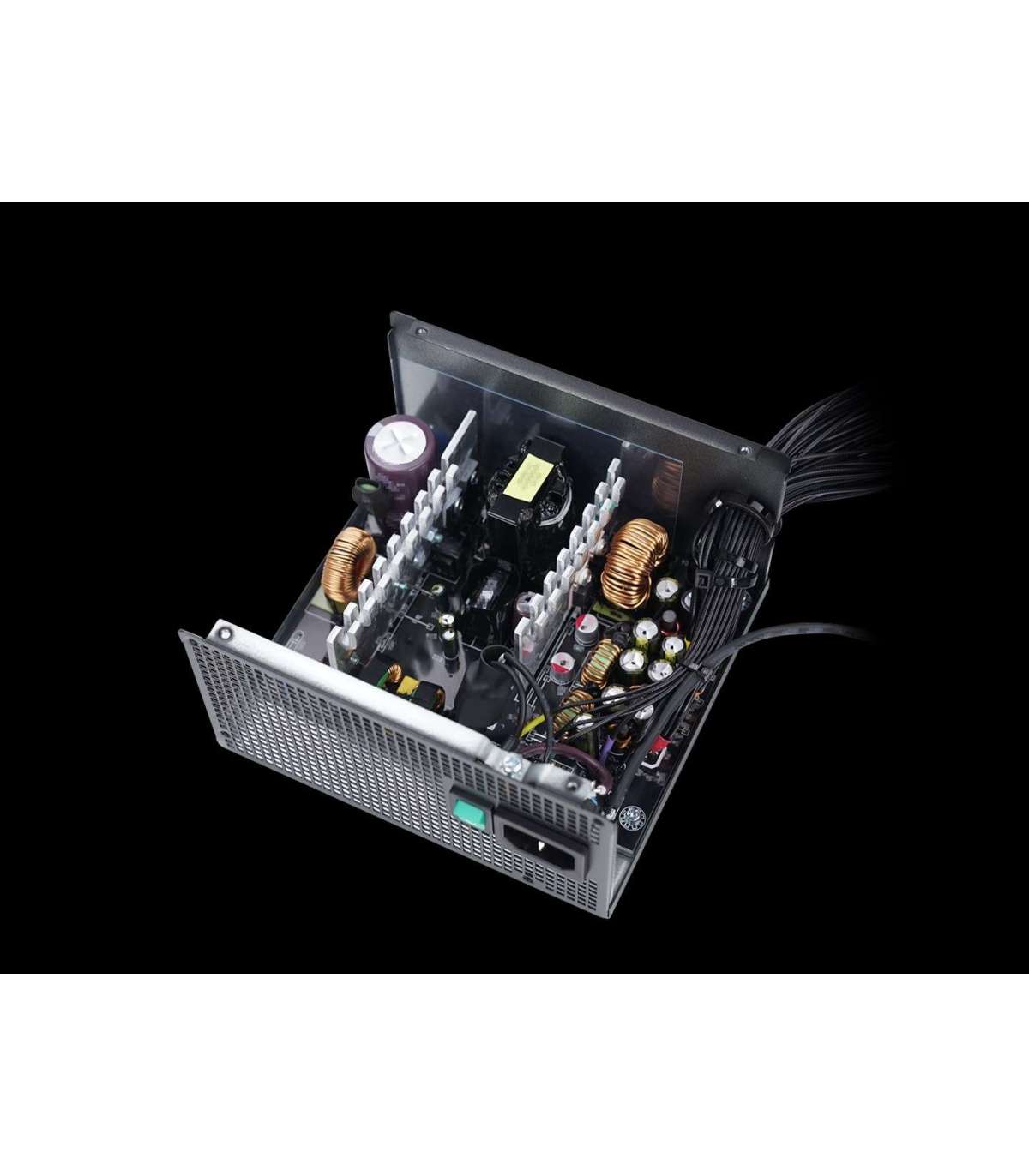

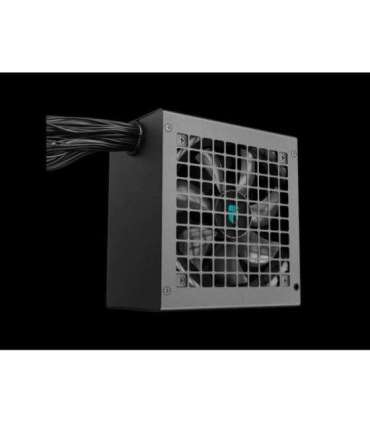

DeepCool PF600X power supply unit

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Cables included

AC

Compliance certificates

CCC
CE
KC
RCM

Sustainability compliance

Yes

Sustainability certificates

China RoHS
Triman
WEEE

AC input frequency

50/60 Hz

AC input voltage

200 - 240 V

Input current

5 A

Package type

Box

Mean time between failures (MTBF)

40000 h

Cooling type

Active

Efficiency

88%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

600 W

Power protection features

NLO
OCP
OPP
OTP
OVP
SCP
SIP
UVP

Bearing technology

HYB

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Max output current (+12V)

50 A

Combined power (+3.3V)

100 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

16 A

Max output current (+3.3V)

16 A

Combined power (+5V)

100 W

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+12V)

600 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.52

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

24-pin ATX

SATA power cable length

450 mm
600
750 mm
900 mm

CPU power connector (4+4 pin)

Yes

Motherboard power cable length

55 cm
