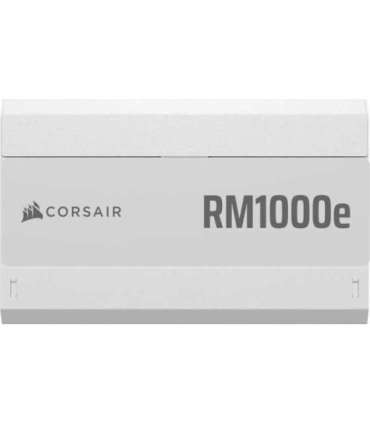

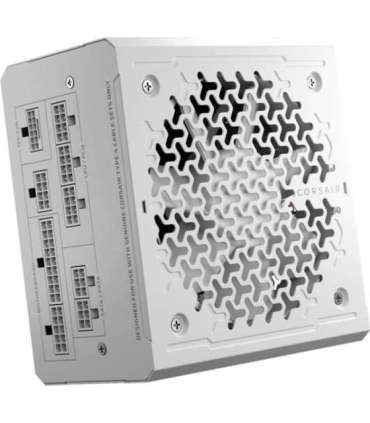

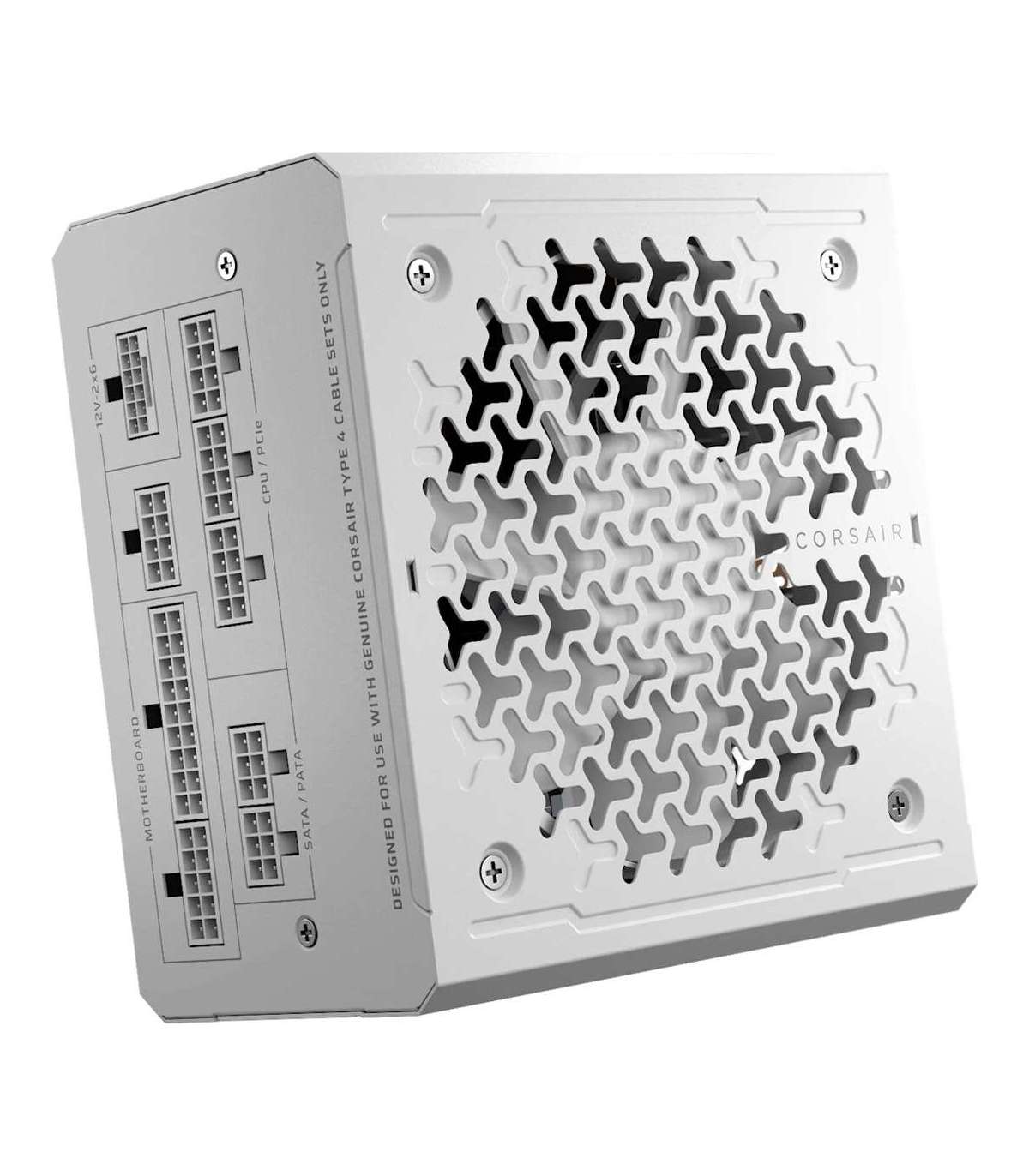

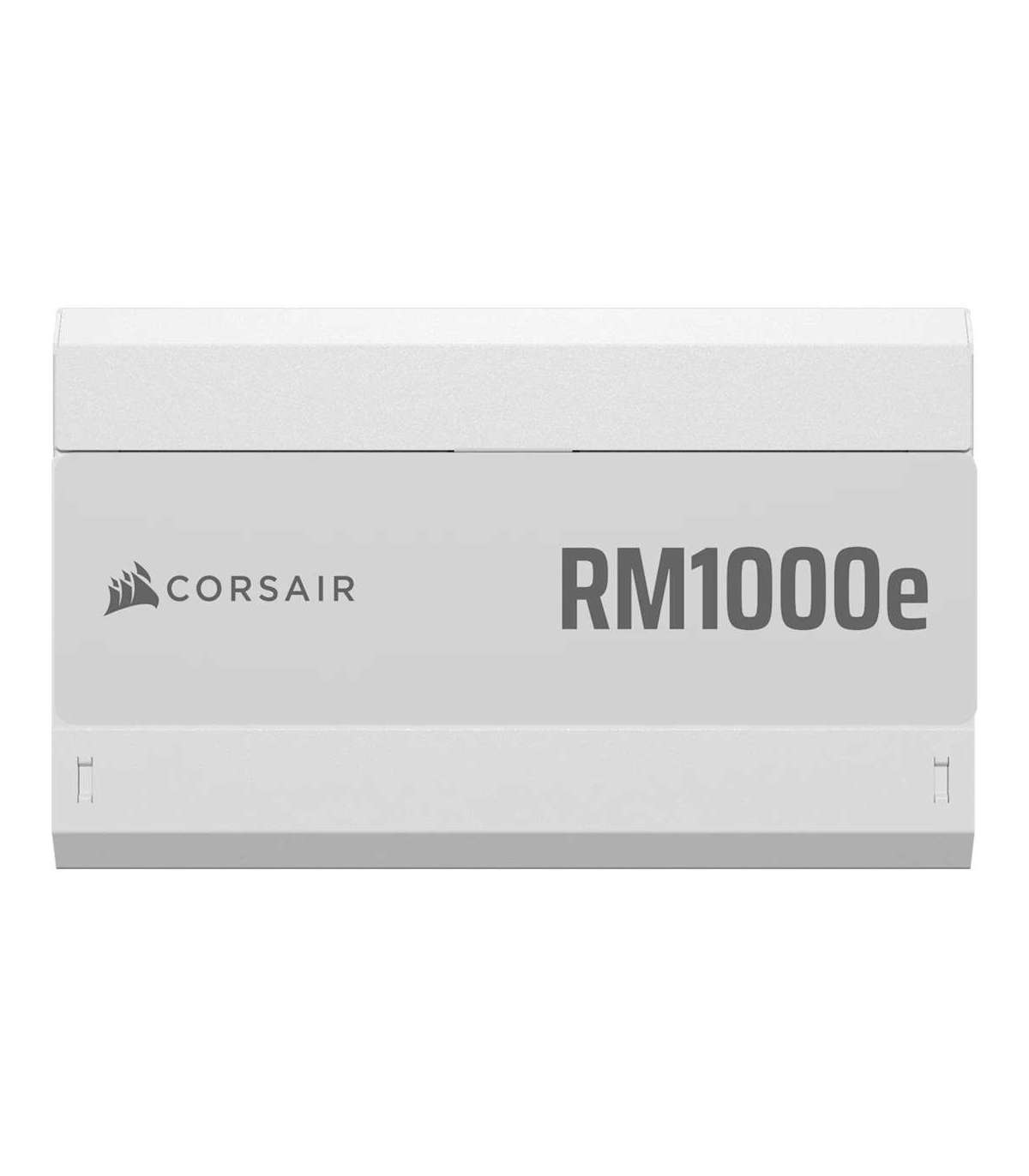

Corsair RMe Series RM1000e power supply unit 1000 W 24-pin ATX ATX White

Характеристики

Depth

86 mm

Weight

3.23 kg

Height

140 mm

Width

150 mm

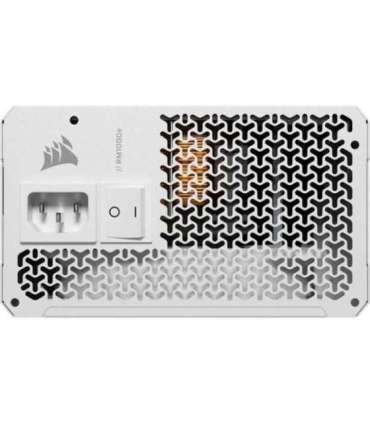

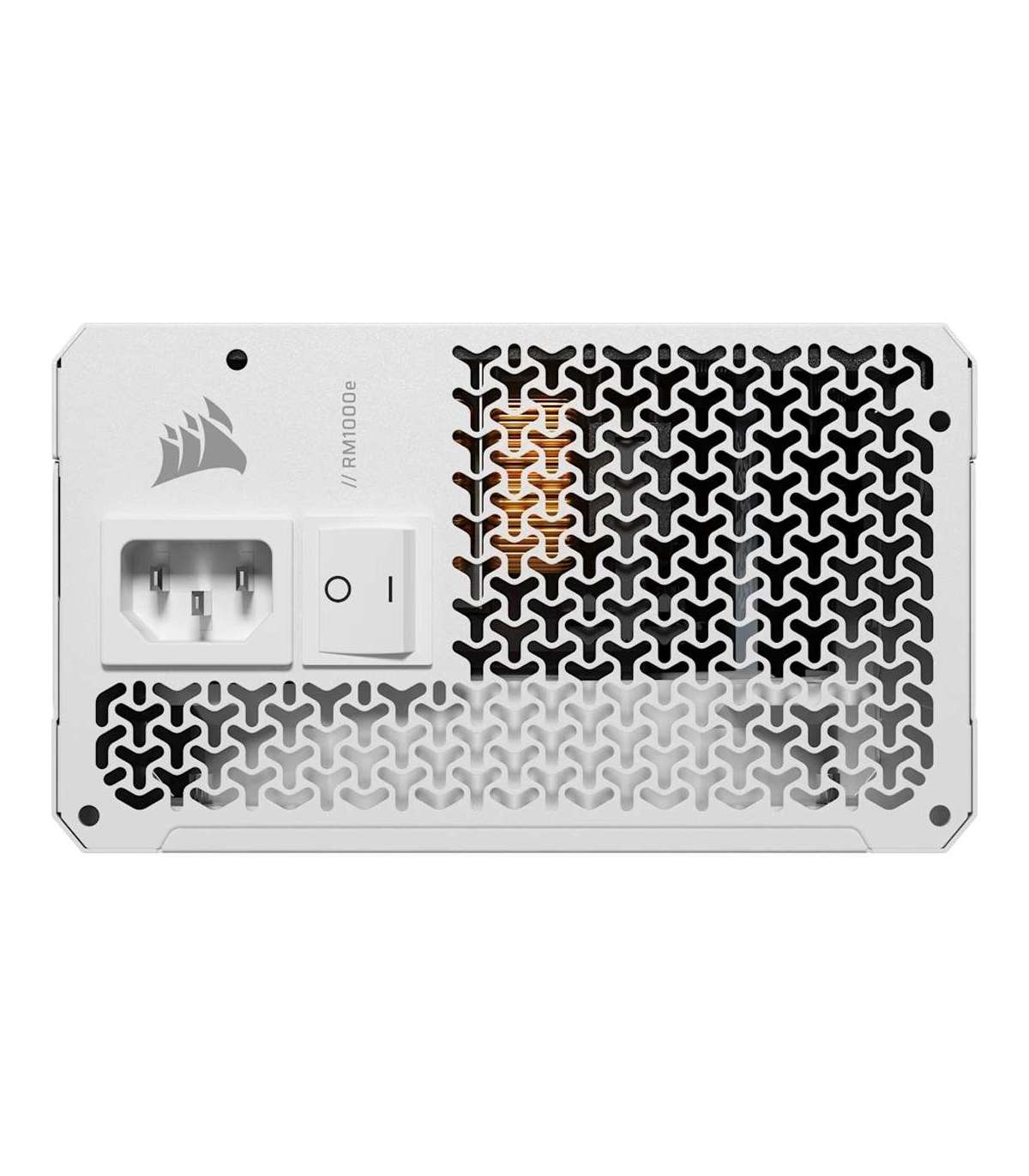

On/off switch

Yes

Product colour

White

Compliance certificates

CE
RoHS
UKCA

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

12 - 6 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Purpose

PC

Number of fans

1 fan(s)

Illumination

No

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

1000 W

Fan location

Front

Max output current (+12V)

83.3 A

Combined power (+3.3V)

150 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

150 W

Combined power (+12V)

1000 W

Max output current (+5Vsb)

3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

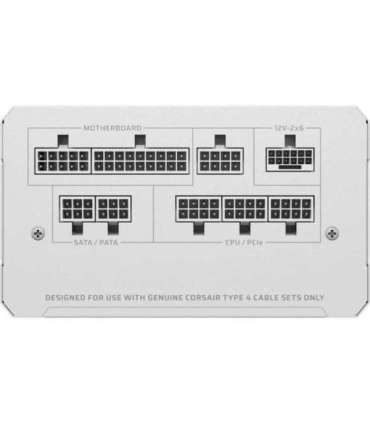

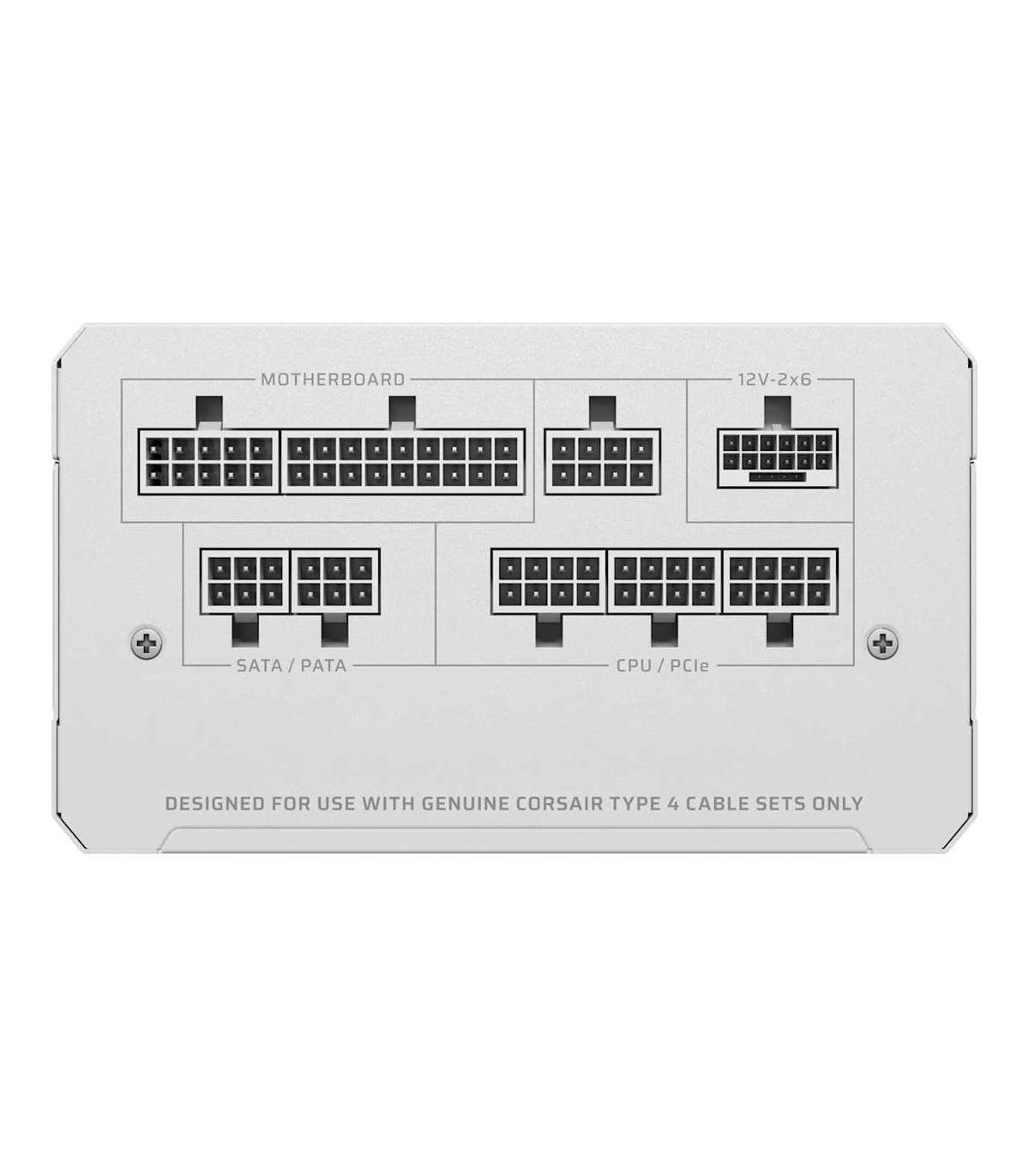

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

24-pin ATX

Cabling type

Fully-Modular

EPS power connector (4+4 pin)

Yes

Number of PATA power connectors

2

PCI Express power connectors (12+4 pin)

1

Number of EPS connectors

2
