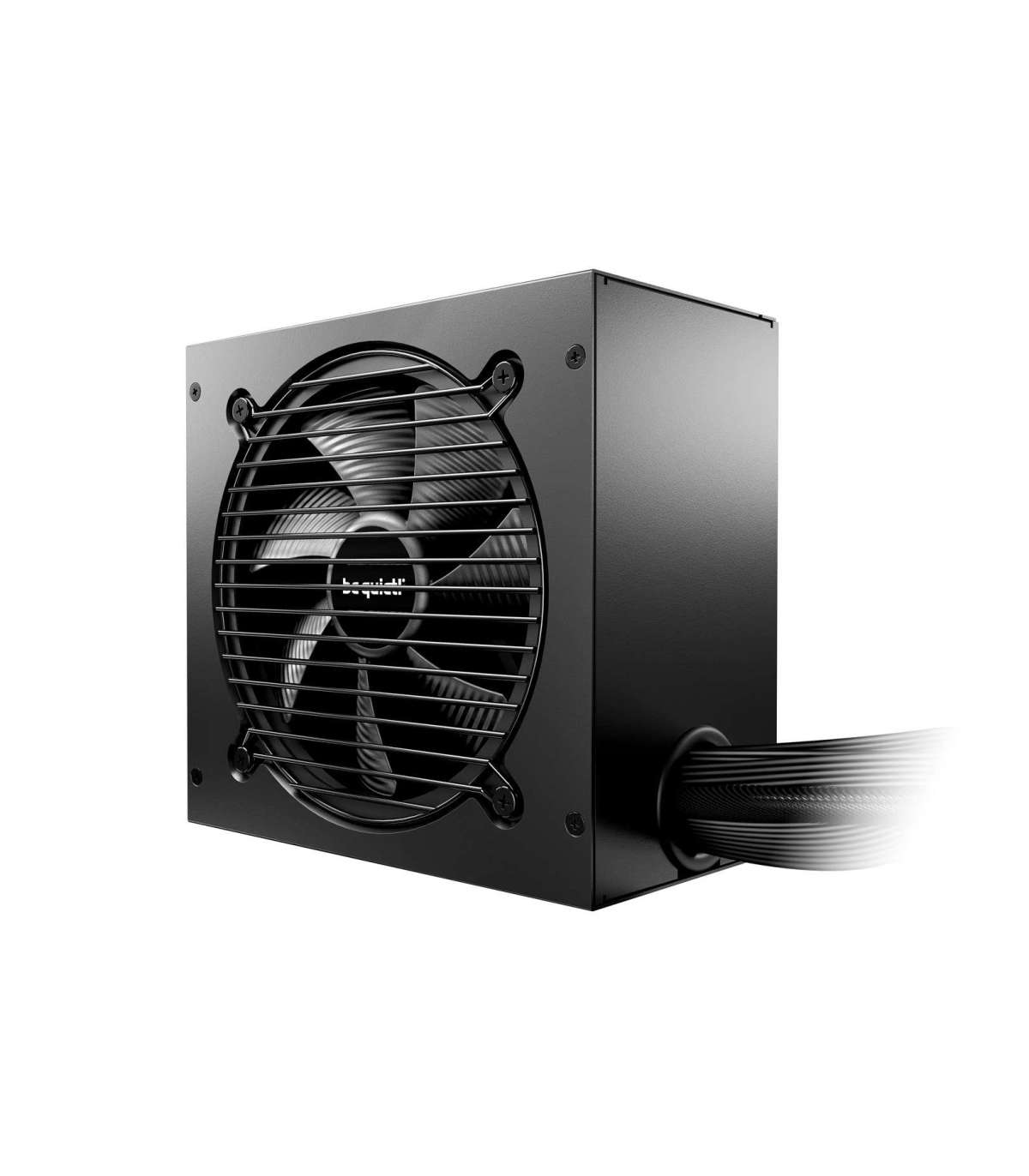

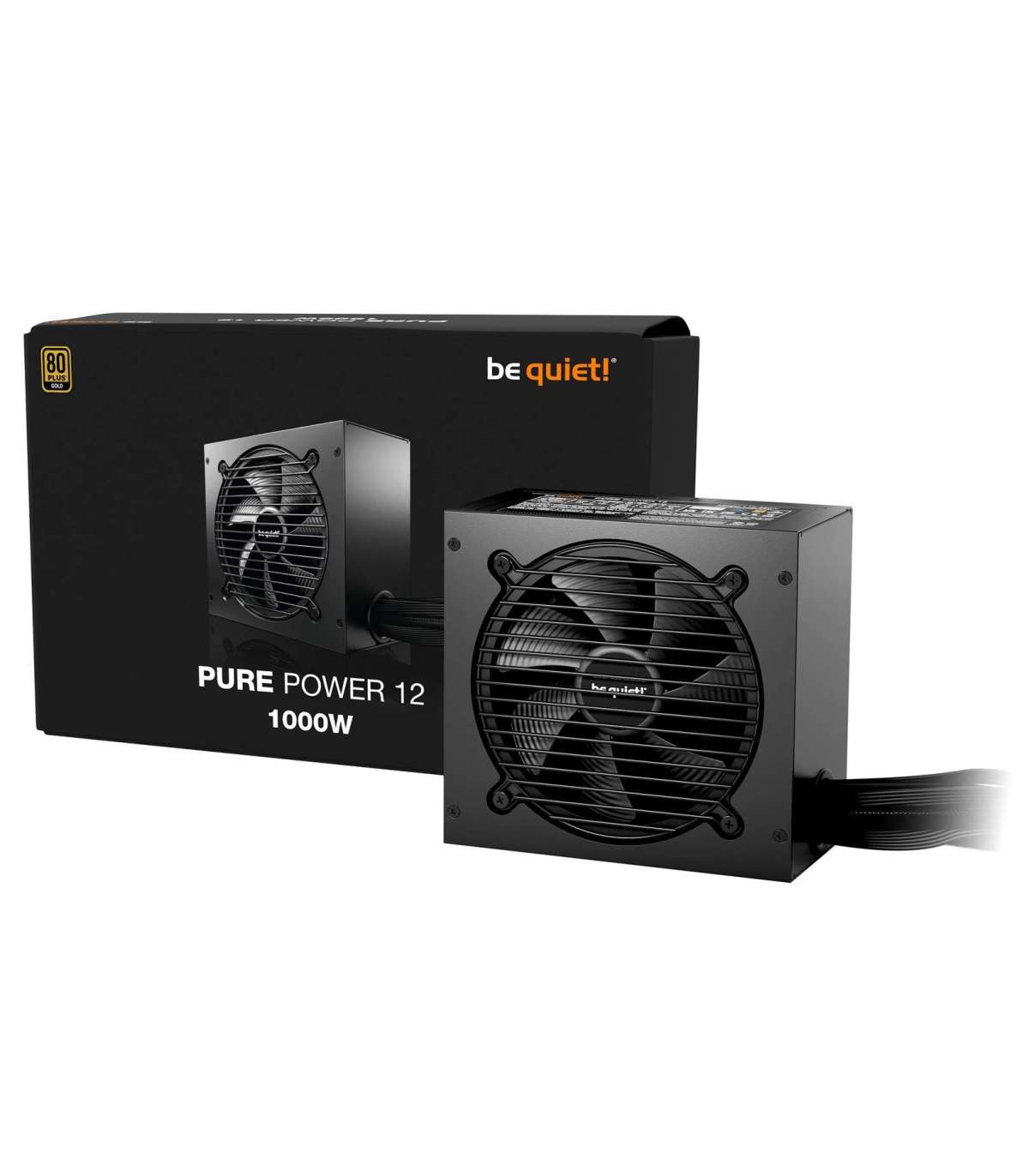

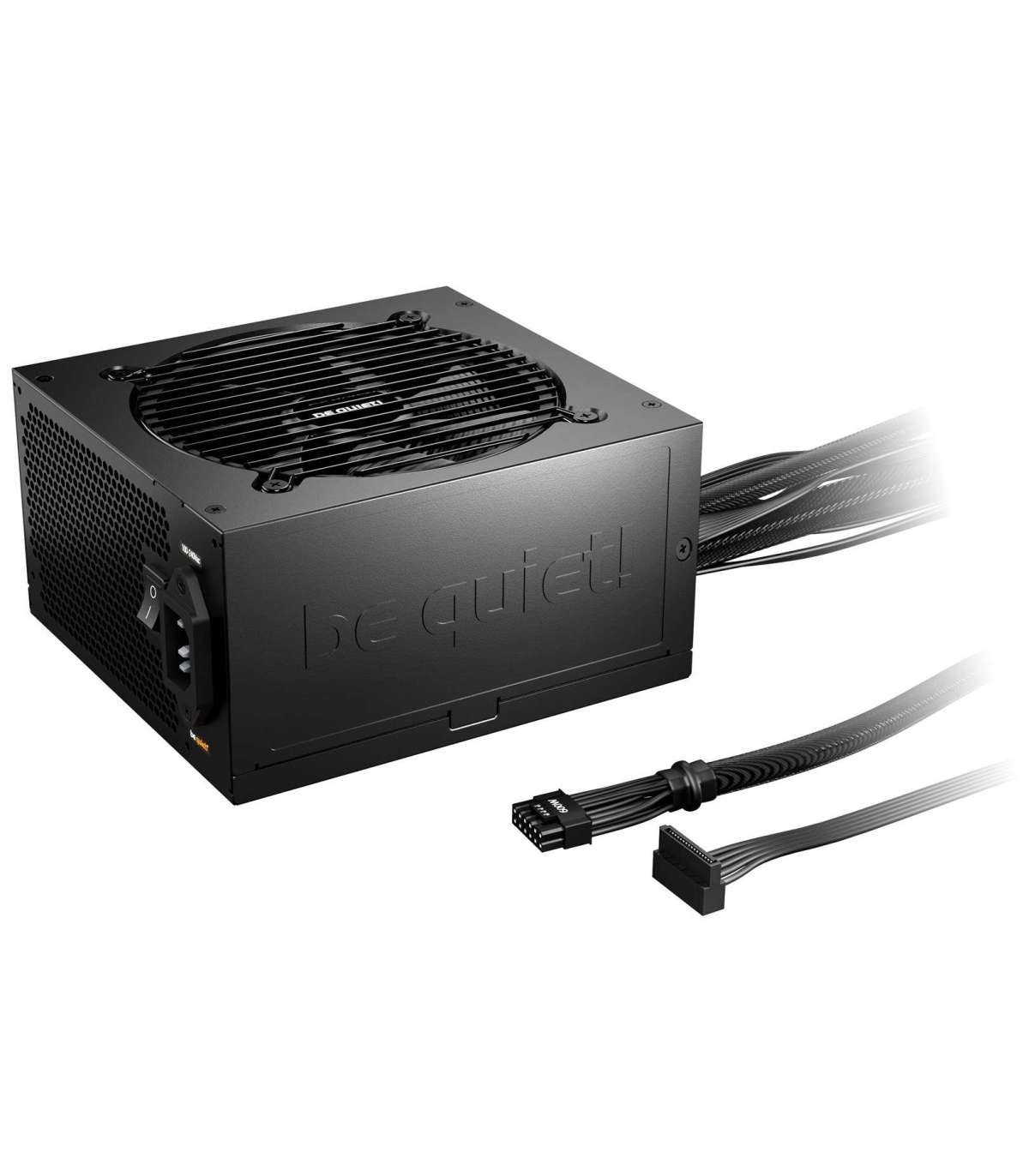

be quiet! PURE POWER 12 1000W power supply unit 20+4 pin ATX ATX Black

Характеристики

Depth

160 mm

Weight

2.8 kg

Height

150 mm

Width

86 mm

Package weight

3.2 kg

On/off switch

Yes

Product colour

Black

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

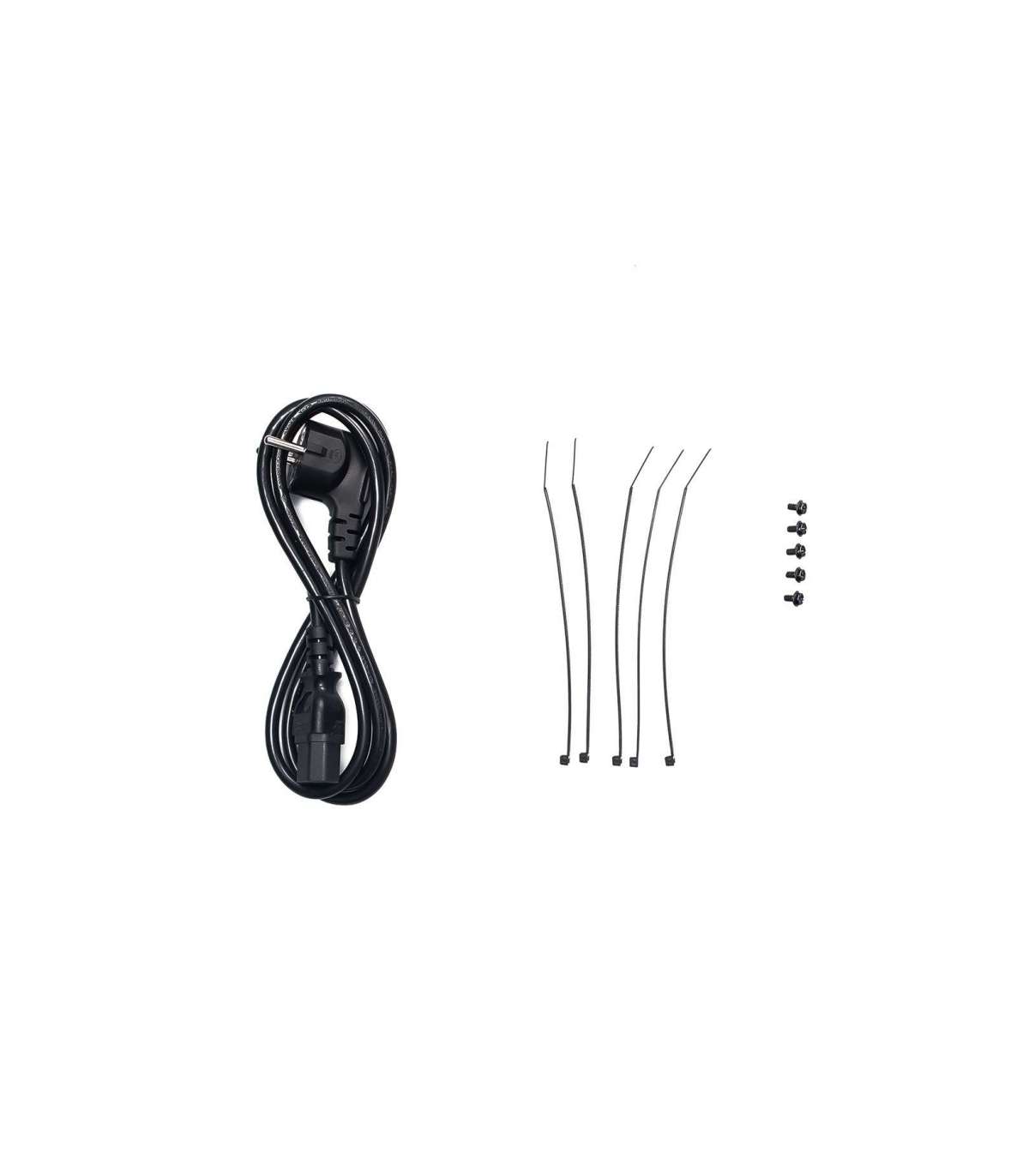

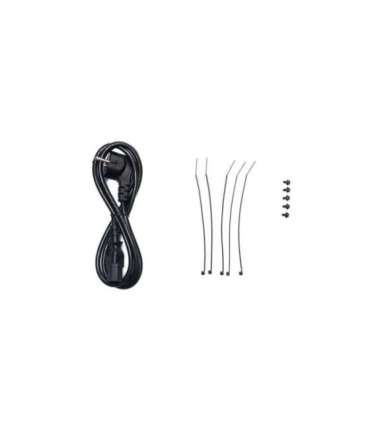

Cables included

AC

Package width

133 mm

Package depth

320 mm

Package height

210 mm

Compliance certificates

CB
CE
Federal Communications Commission (FCC)
RoHS
UKCA
WEEE
cTUVus

Sustainability certificates

ENERGY STAR
ErP
Triman

AC input frequency

50/60 Hz

AC input voltage

110 - 240 V

Mean time between failures (MTBF)

100000 h

Warranty period

10 year(s)

Products per shipping (inner) case

4 pc(s)

Cooling type

Active

Screws included

Yes

Peripheral (Molex) power connectors (4-pin)

1

Noise level

31.6 dB

Efficiency

90.6%

Purpose

PC

Shipping (inner) case length

56 cm

Shipping (inner) case width

24 cm

Shipping (inner) case height

34 cm

Number of fans

1 fan(s)

Fan diameter

12 cm

Peak power

1050 W

80 PLUS certification

80 PLUS Gold

Total power

1000 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

Rifle

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Combined power (+5V)

120 W

Hold time

17.82 ms

Combined power (+12V)

1000 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

SATA power cable length

500 mm
650
800 mm
950 mm

Peripheral (Molex) power cable length

800

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Non-Modular

Motherboard power cable length

55 cm

PCI Express power cable length

60 cm

Power factor

0.98

Maximum input current (@220V)

6 A

Maximum input current (@110V)

12 A

Max output current (+12V1)

83.4 A

EPS version

2.92

Number of +12V rail(s)

1

PCI Express power connectors (12-pin)

1

Shipping (inner) case net weight

13.9 kg
