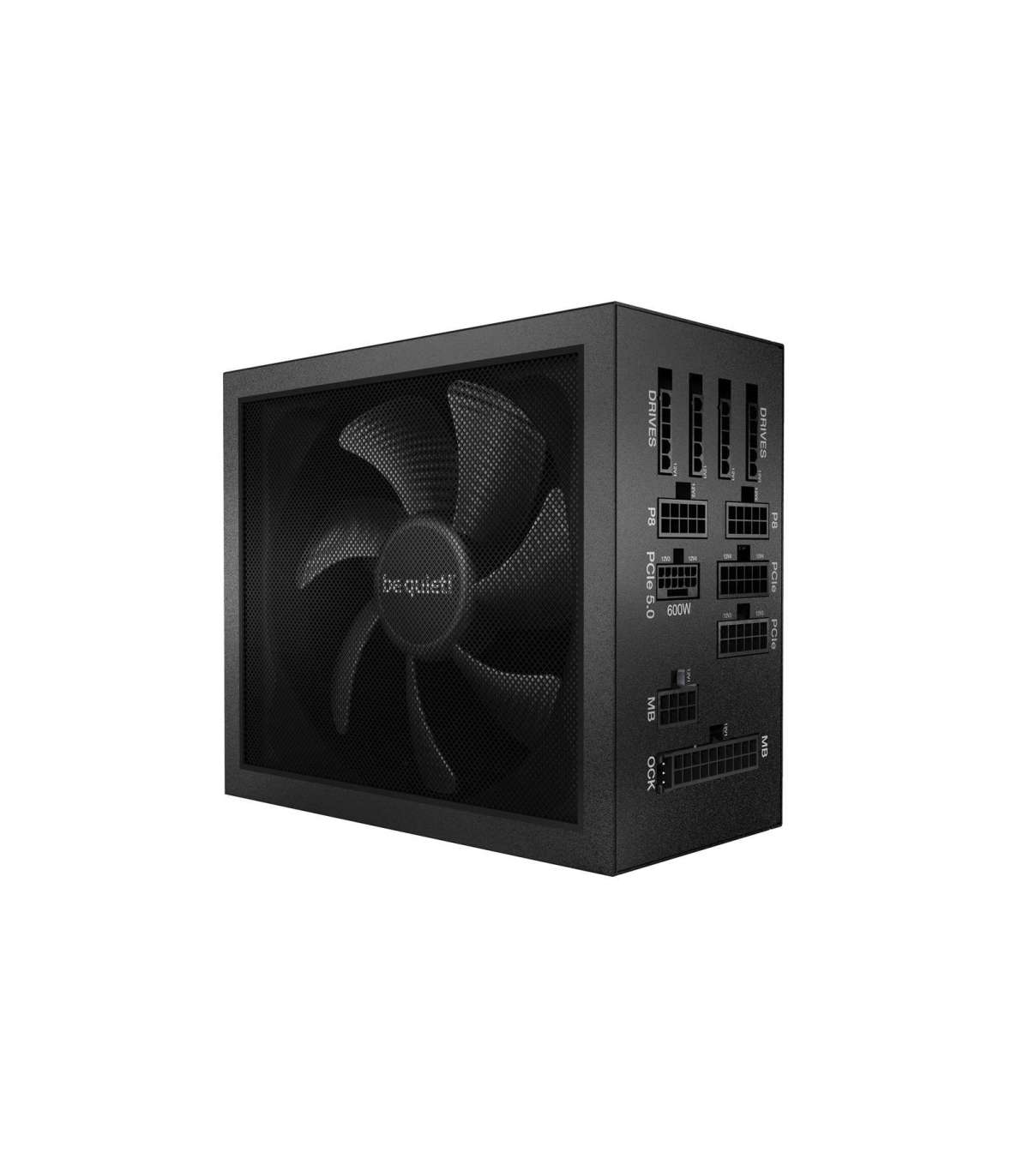

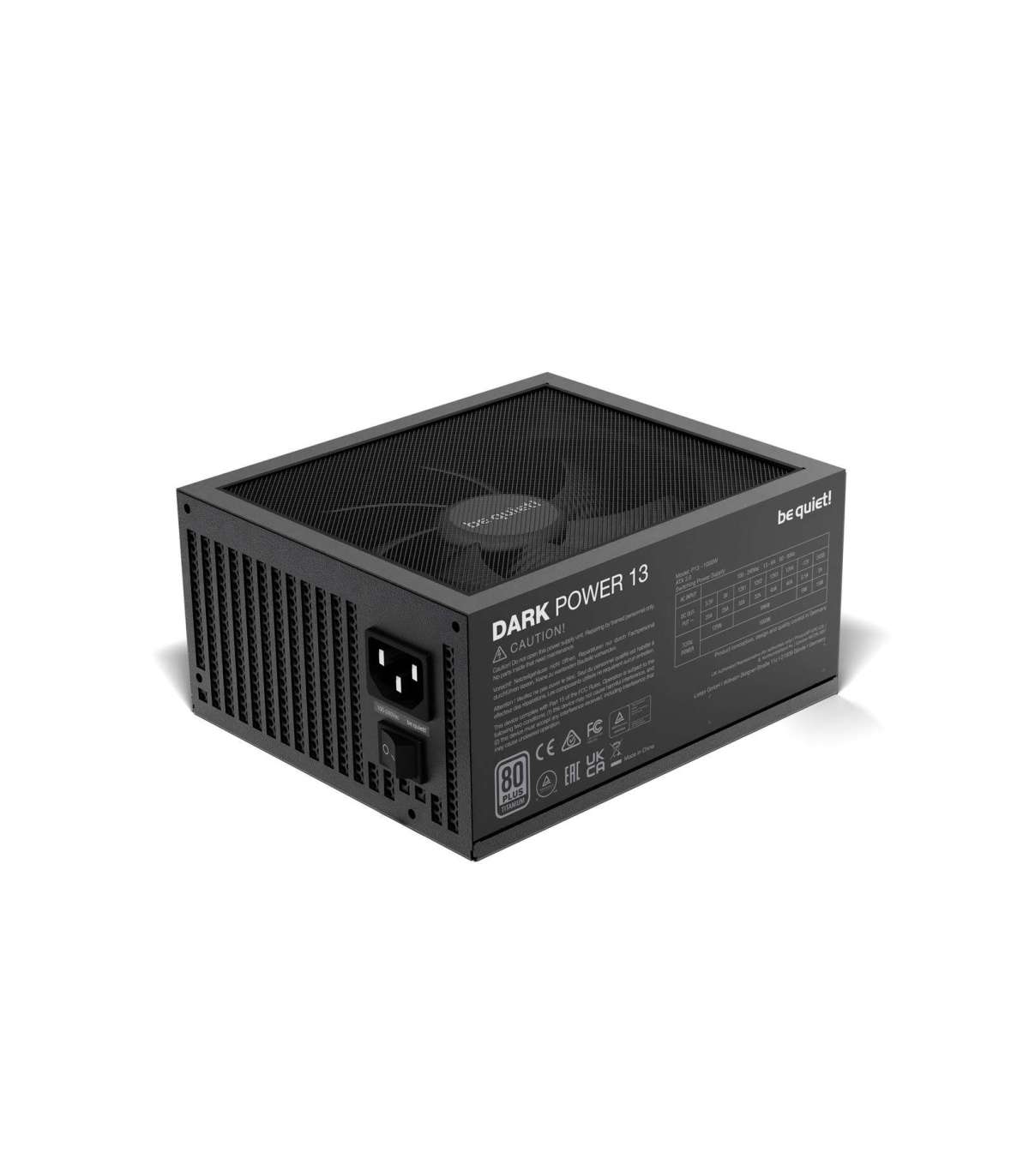

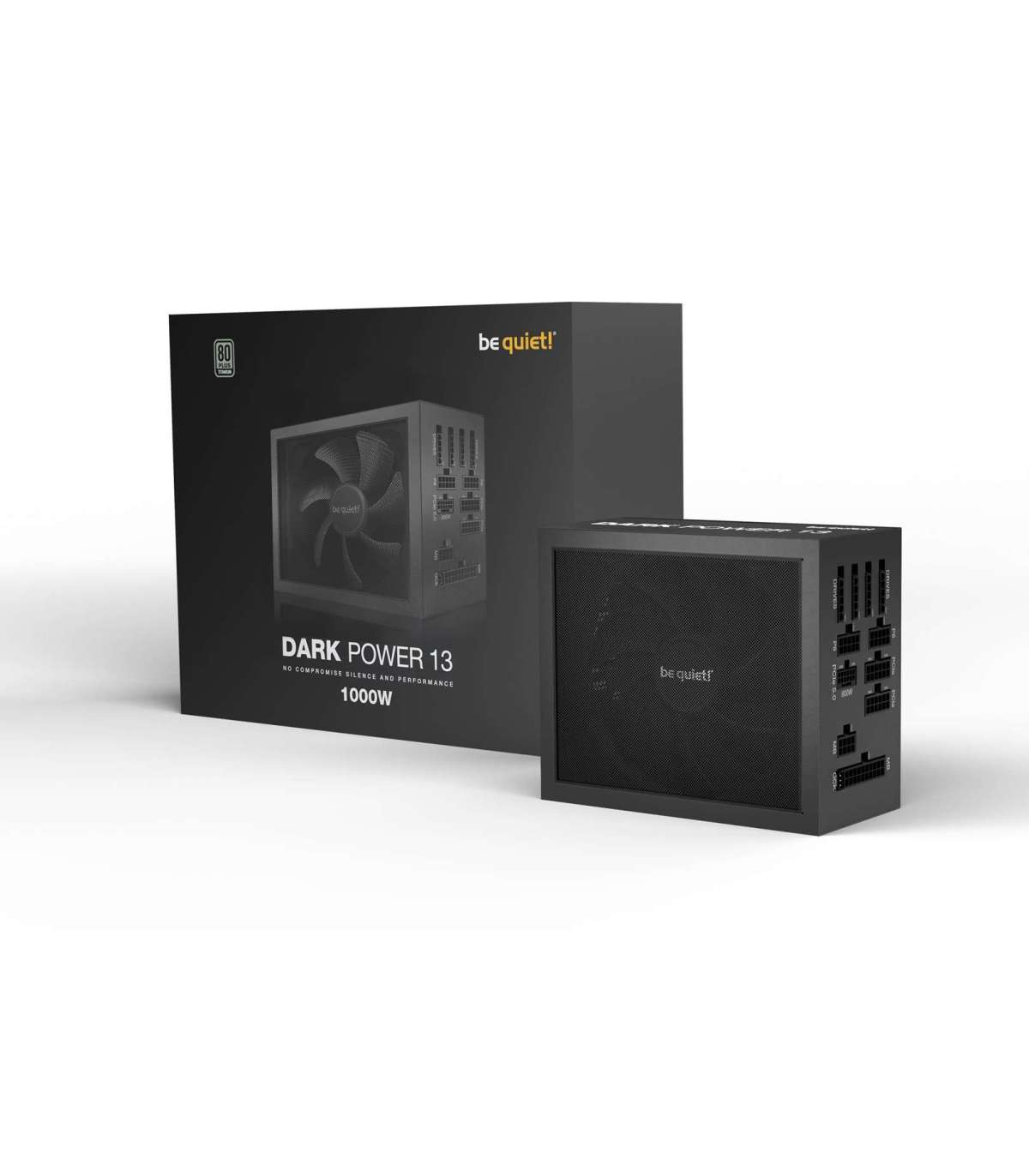

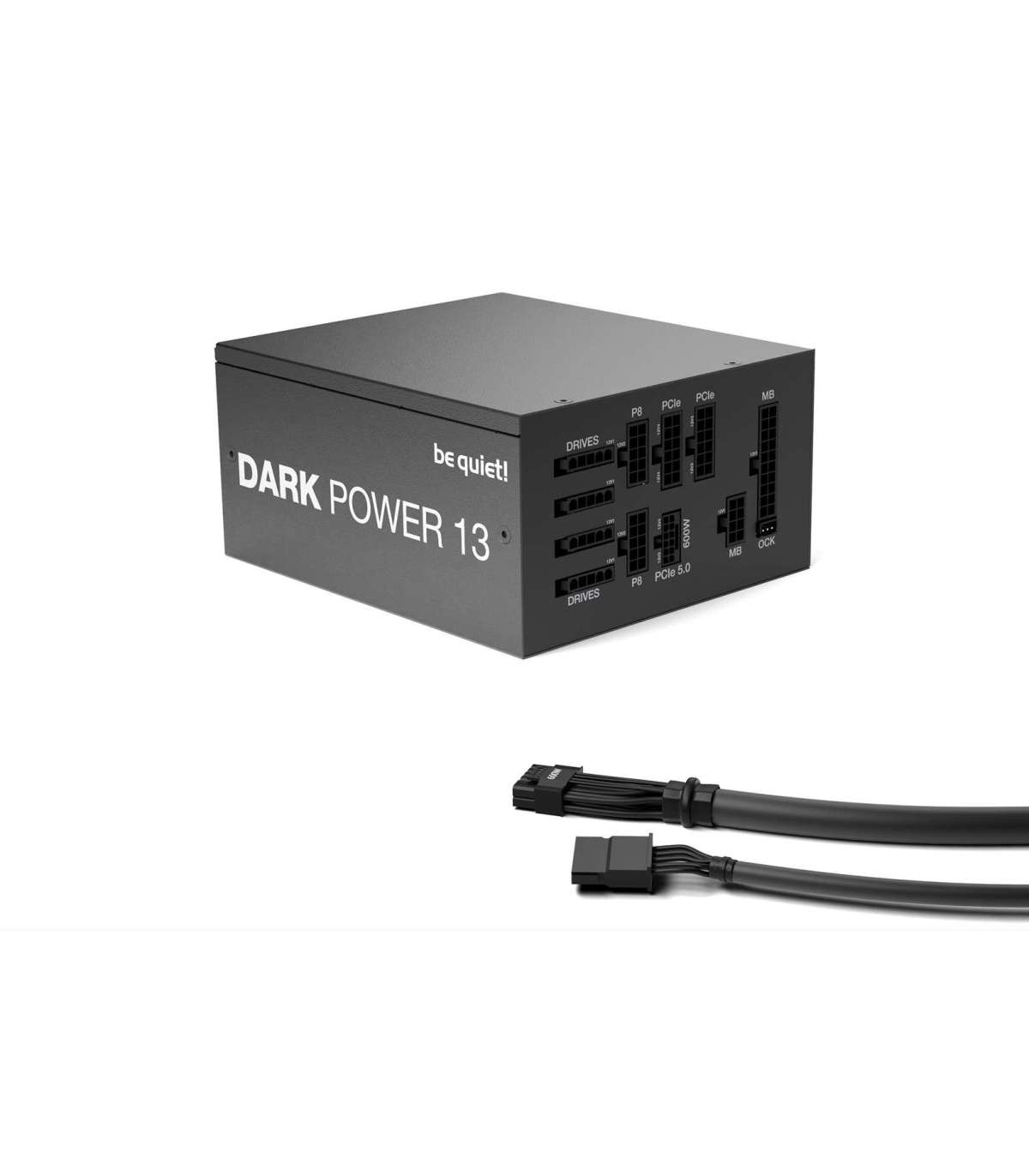

be quiet! Dark Power 13 power supply unit 1000 W 20+4 pin ATX ATX Black

Характеристики

Depth

86 mm

Weight

2.03 kg

Height

175 mm

Width

150 mm

Package weight

4.48 kg

Product colour

Black

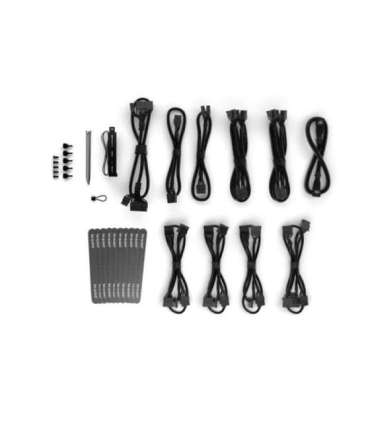

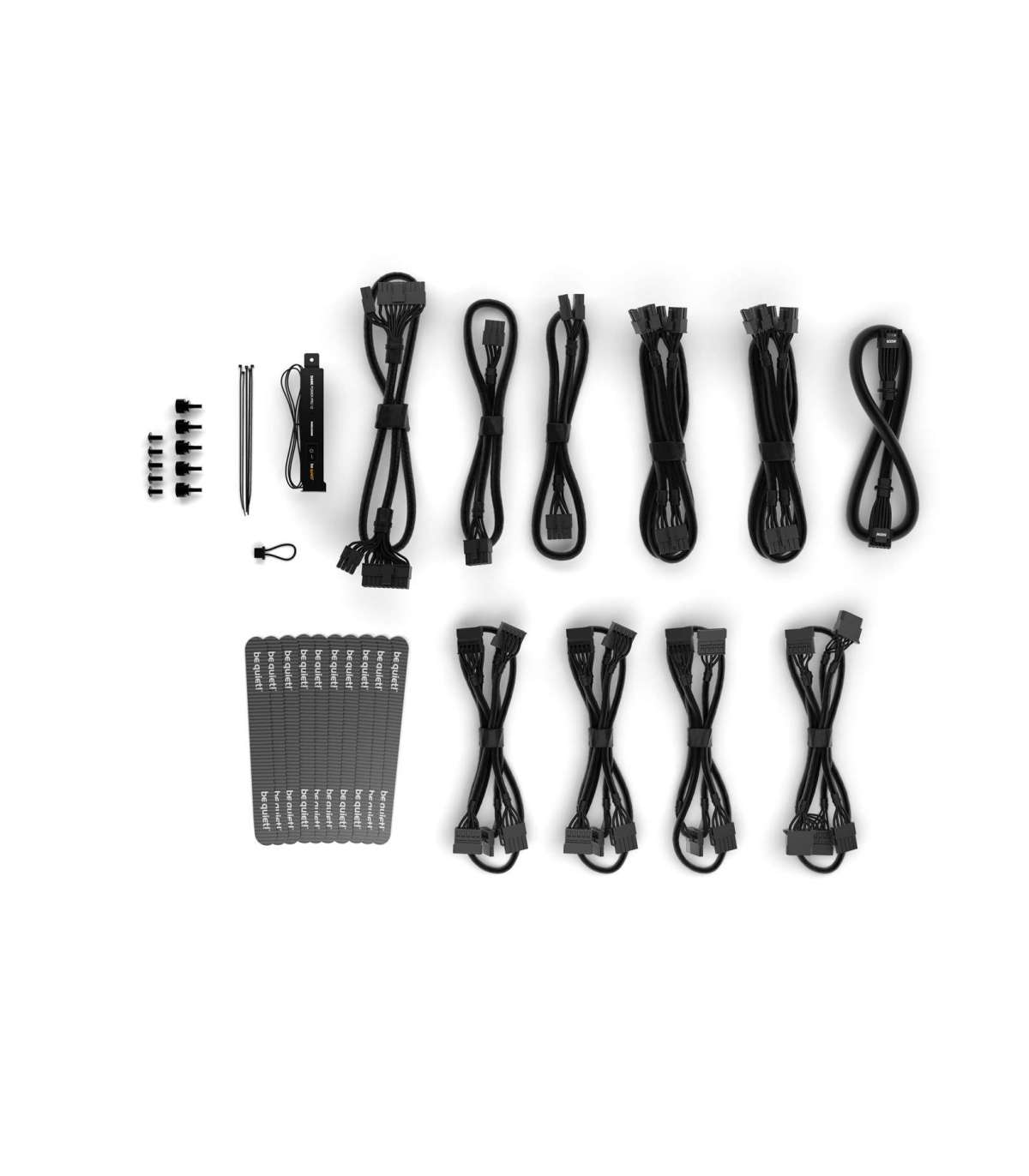

Cables included

DC, SATA

LED indicators

No

Package width

120 mm

Package depth

350 mm

Package height

270 mm

Compliance certificates

CCC
CE
RoHS
WEEE

Warnings

Do not open the case - risk of electric shock.

Sustainability certificates

ENERGY STAR
ErP

Certification

BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

13/6 A

Package type

Box

Built-in display

No

ECC

Yes

Warranty period

10 year(s)

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Noise level

25.8 dB

Efficiency

93.3%

Silent mode

Yes

Purpose

PC

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Shipping (inner) case length

50.4 cm

Shipping (inner) case width

30.5 cm

Shipping (inner) case height

36.8 cm

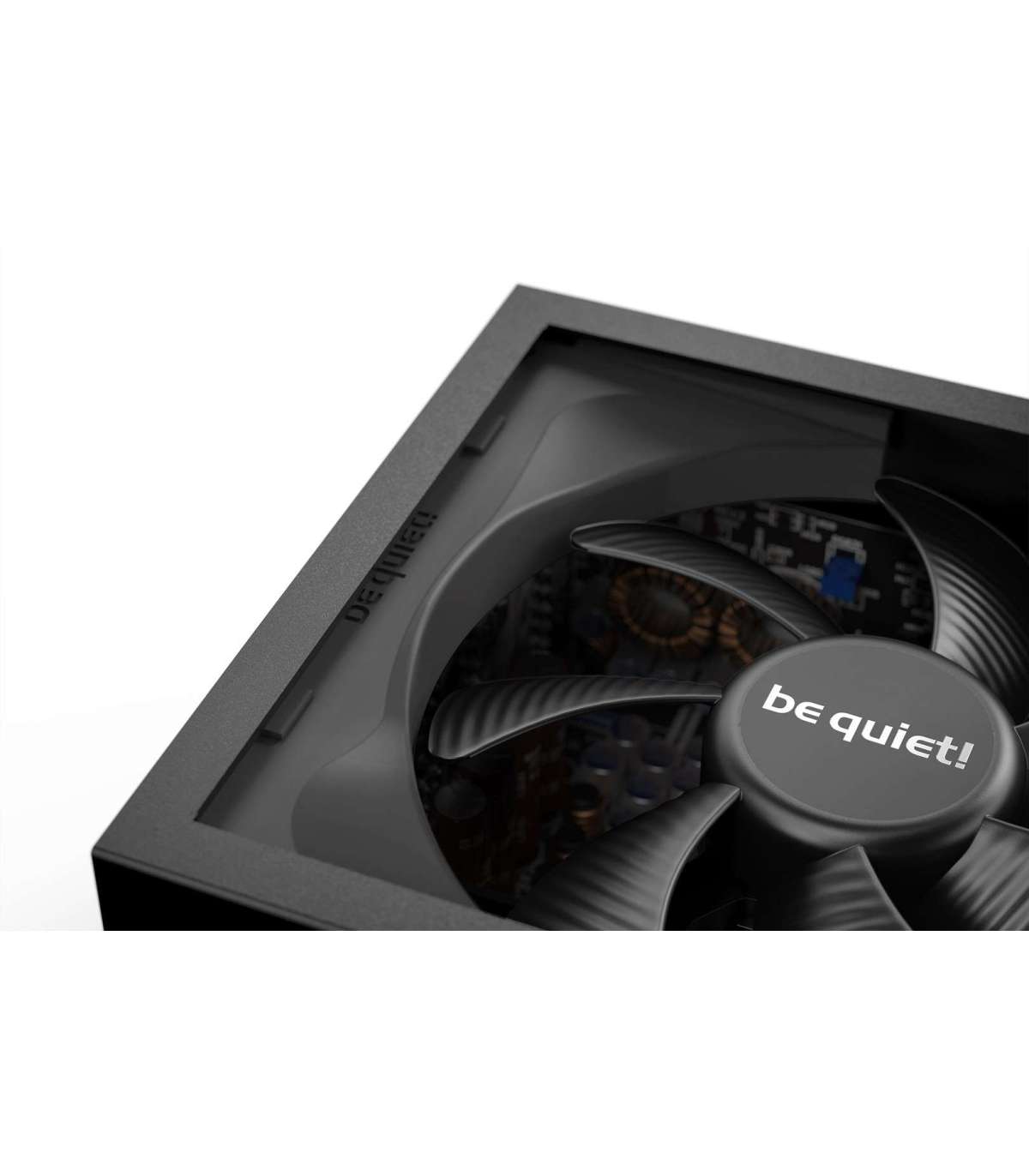

Number of fans

1 fan(s)

Illumination

No

Fan diameter

13.5 cm

Peak power

1100 W

80 PLUS certification

80 PLUS Titanium

Total power

1000 W

Power protection features

Over current
Overheating
Over voltage
Short circuit
Under voltage

Bearing technology

FDB

Power Factor Correction (PFC) type

Active

Supported motherboard form factors

ATX

Fan speed

0 - 1800 RPM

Fan location

Top

Combined power (-12V)

6 W

Combined power (+3.3V)

125 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Combined power (+5V)

125 W

Hold time

23.2 ms

Combined power (+12V)

996 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.5 A

ATX version

3.0

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

13

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

1050

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

60 cm

Power factor

3

Maximum input current (@220V)

13 A

Maximum input current (@110V)

6 A

Floppy disk drive connector

No

Number of PATA power connectors

3

Max output current (+12V2)

32 A

Max output current (+12V1)

32 A

EPS version

2.92

CPU P4 connector (4-pin)

1

Max output current (+12V3)

40 A

Max output current (+12V4)

40 A

Pallet gross weight (air)

19.3 kg
