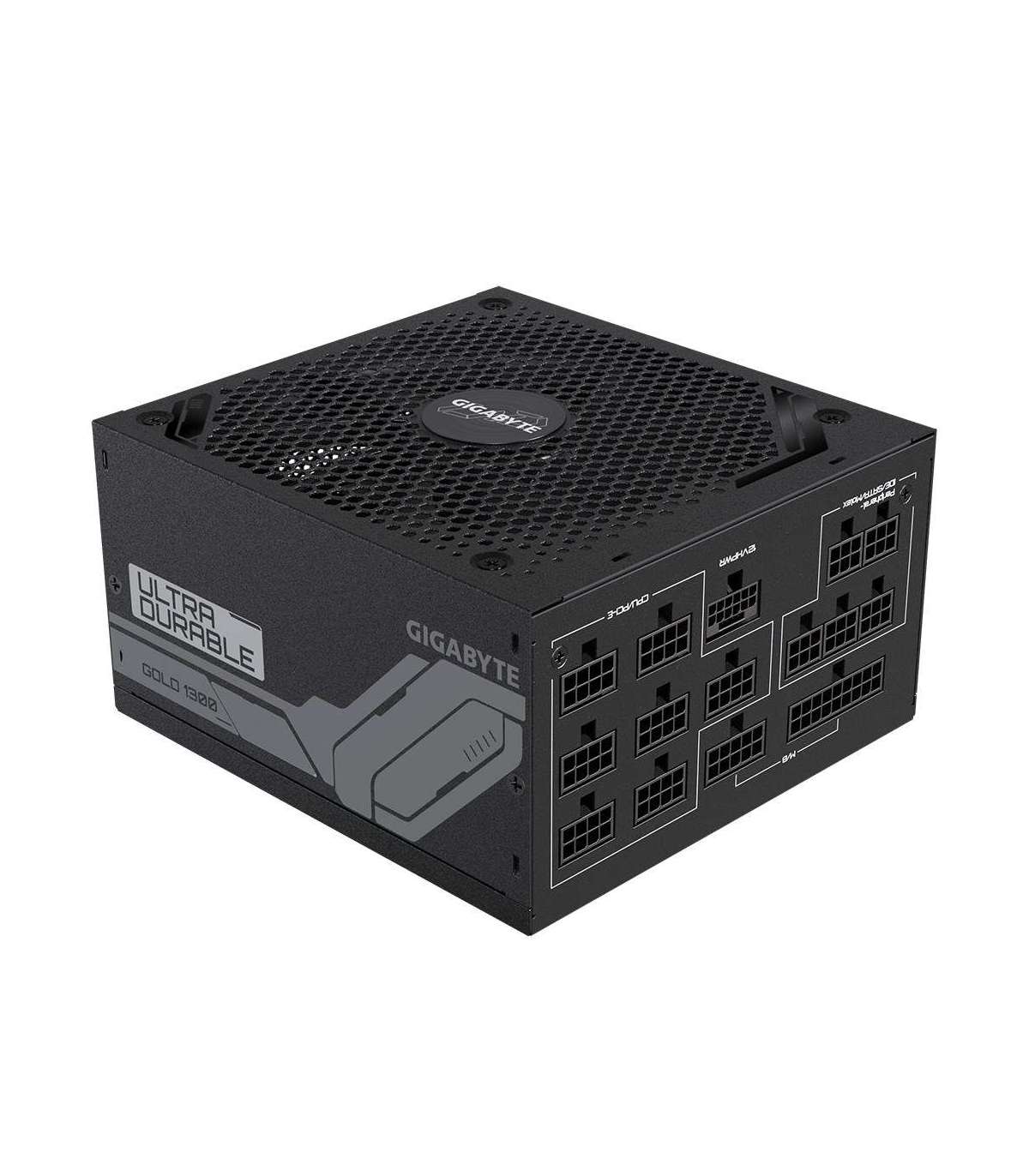

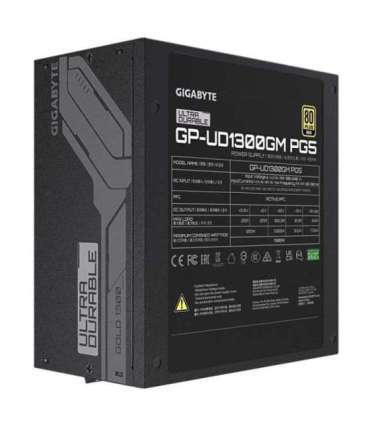

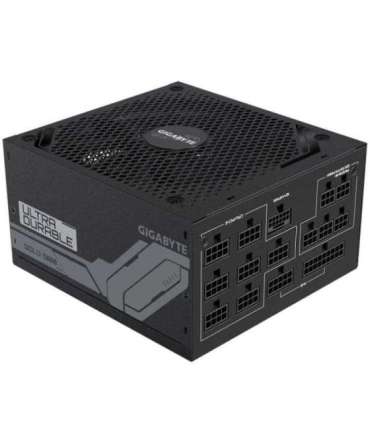

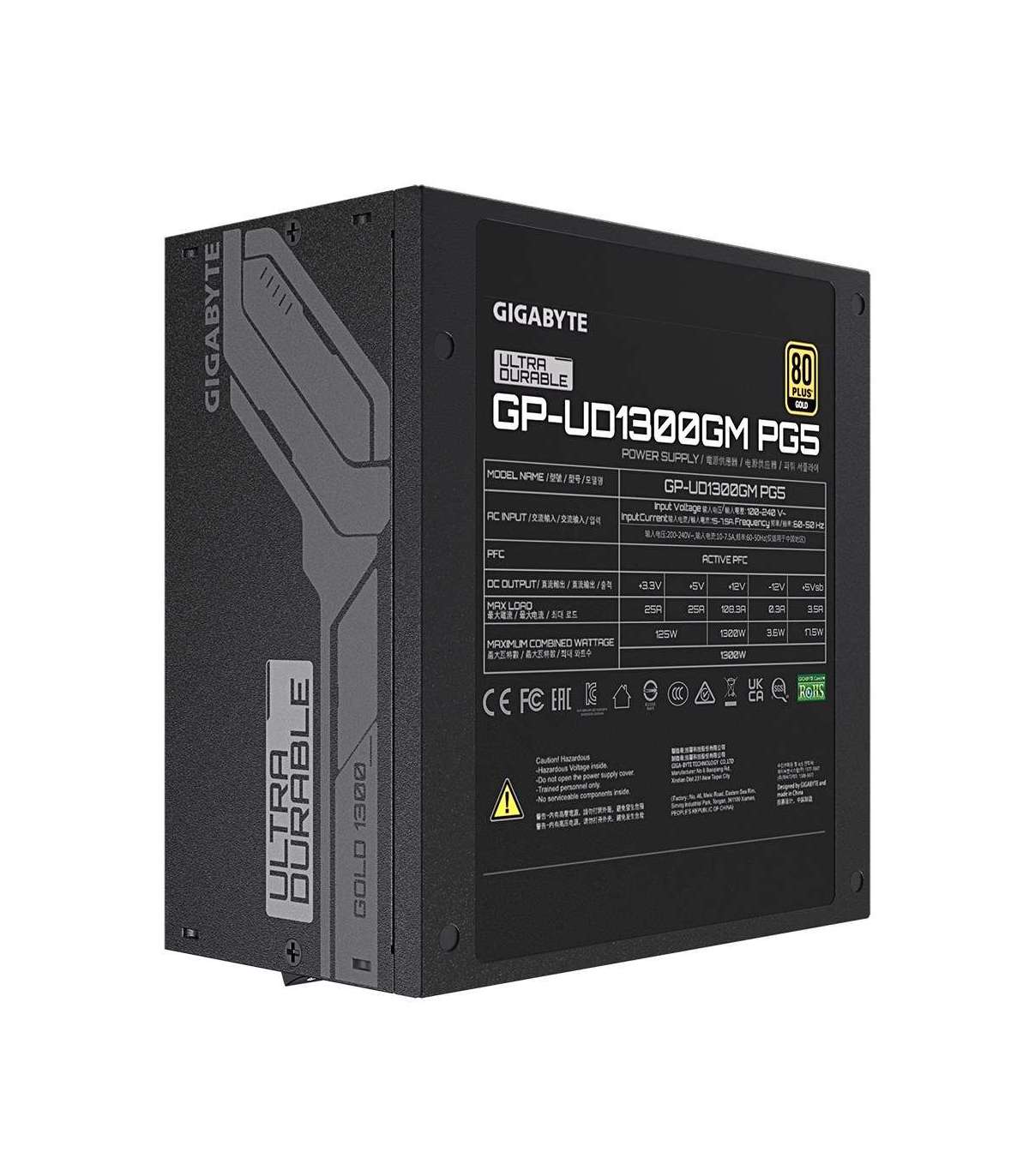

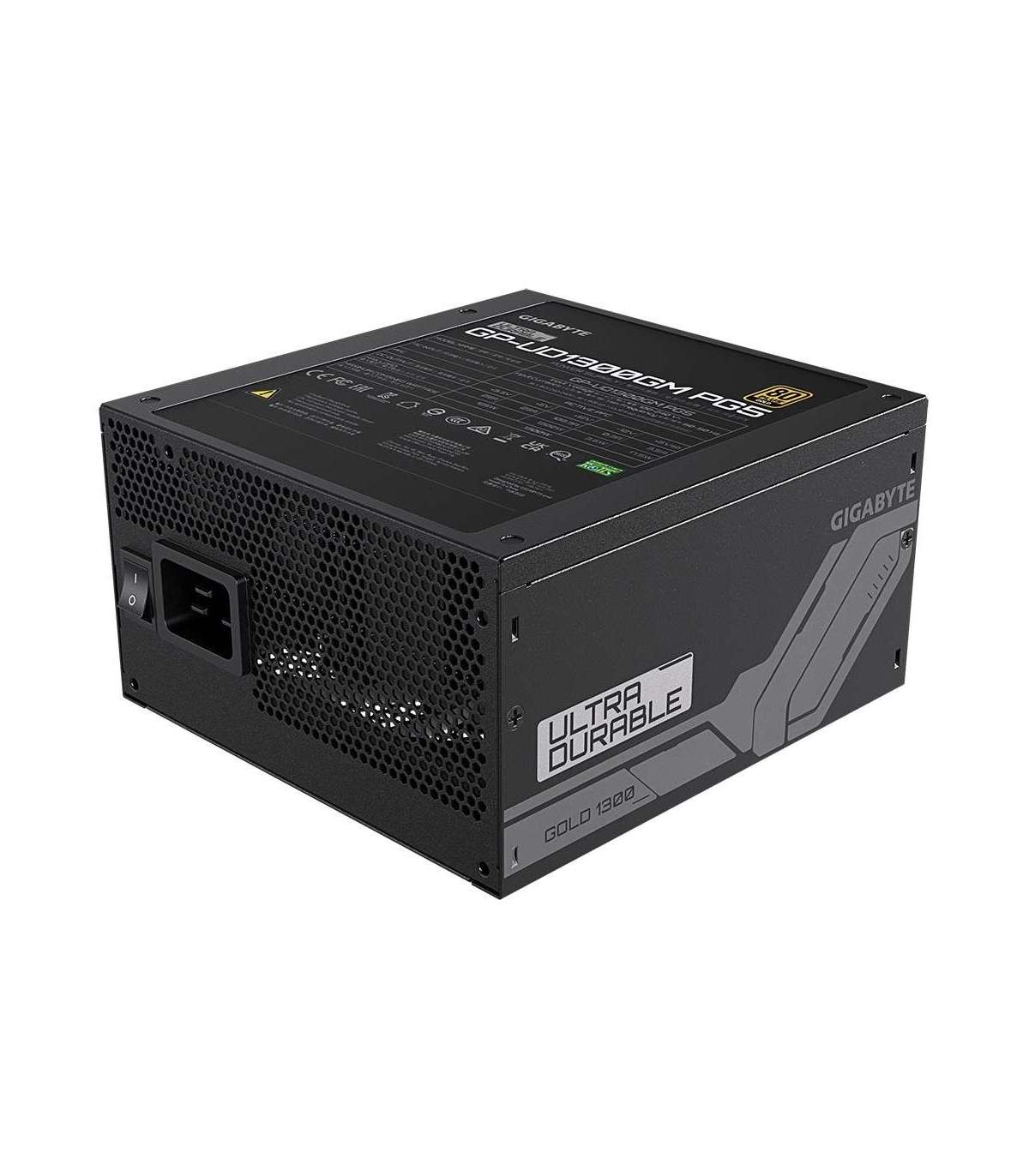

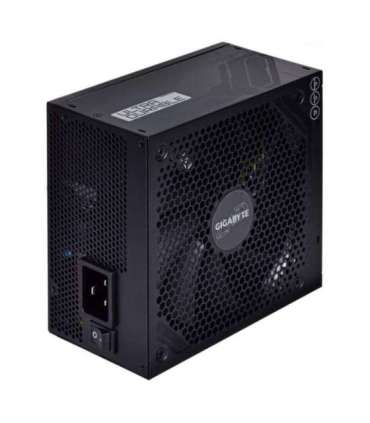

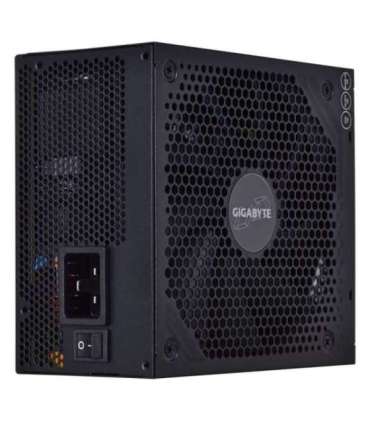

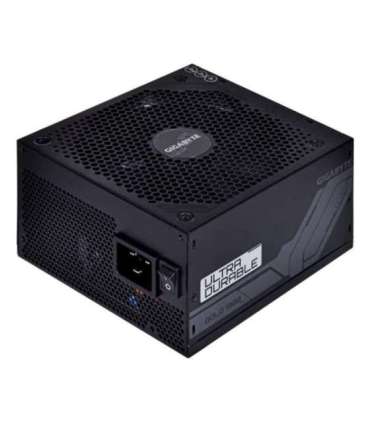

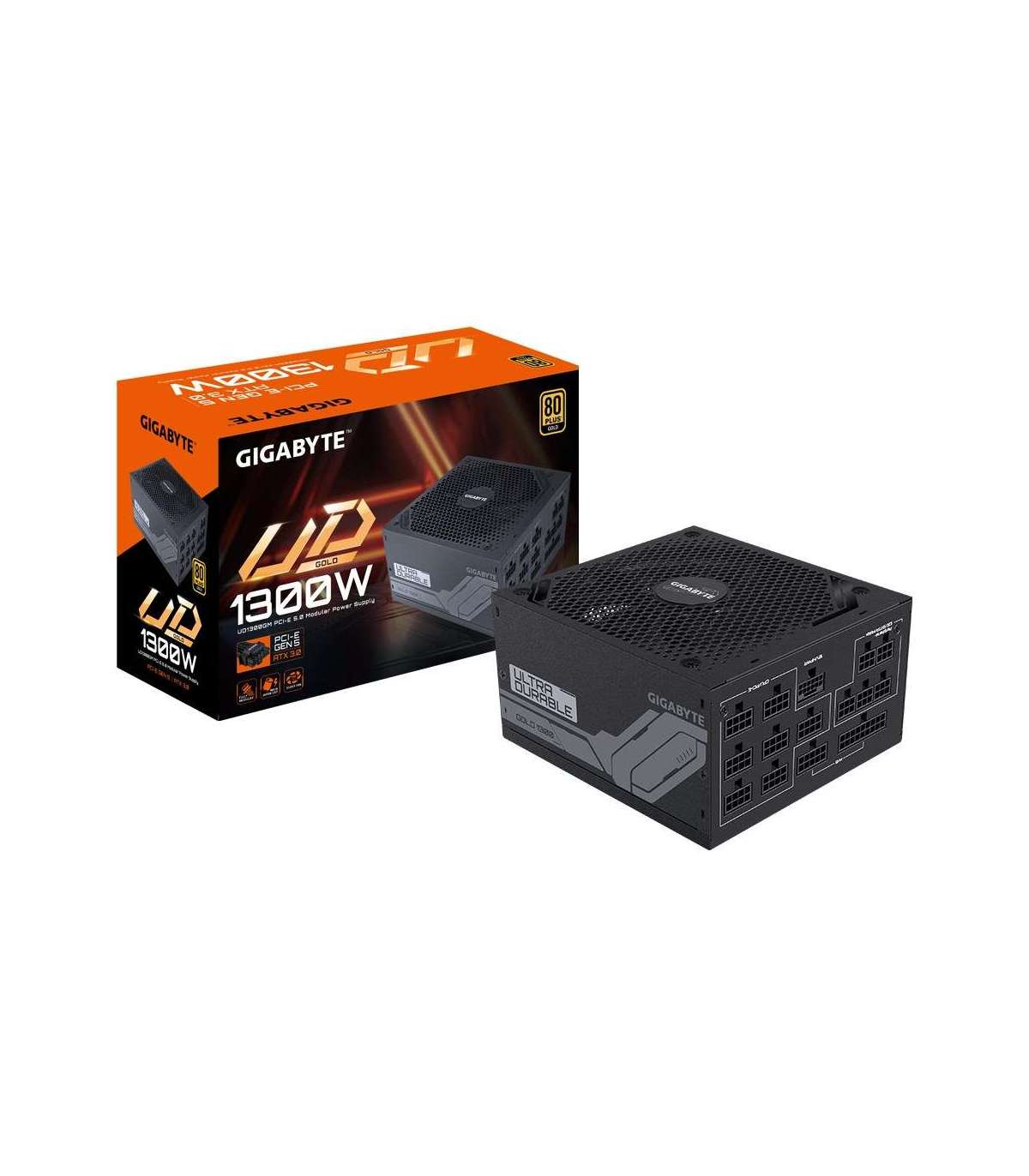

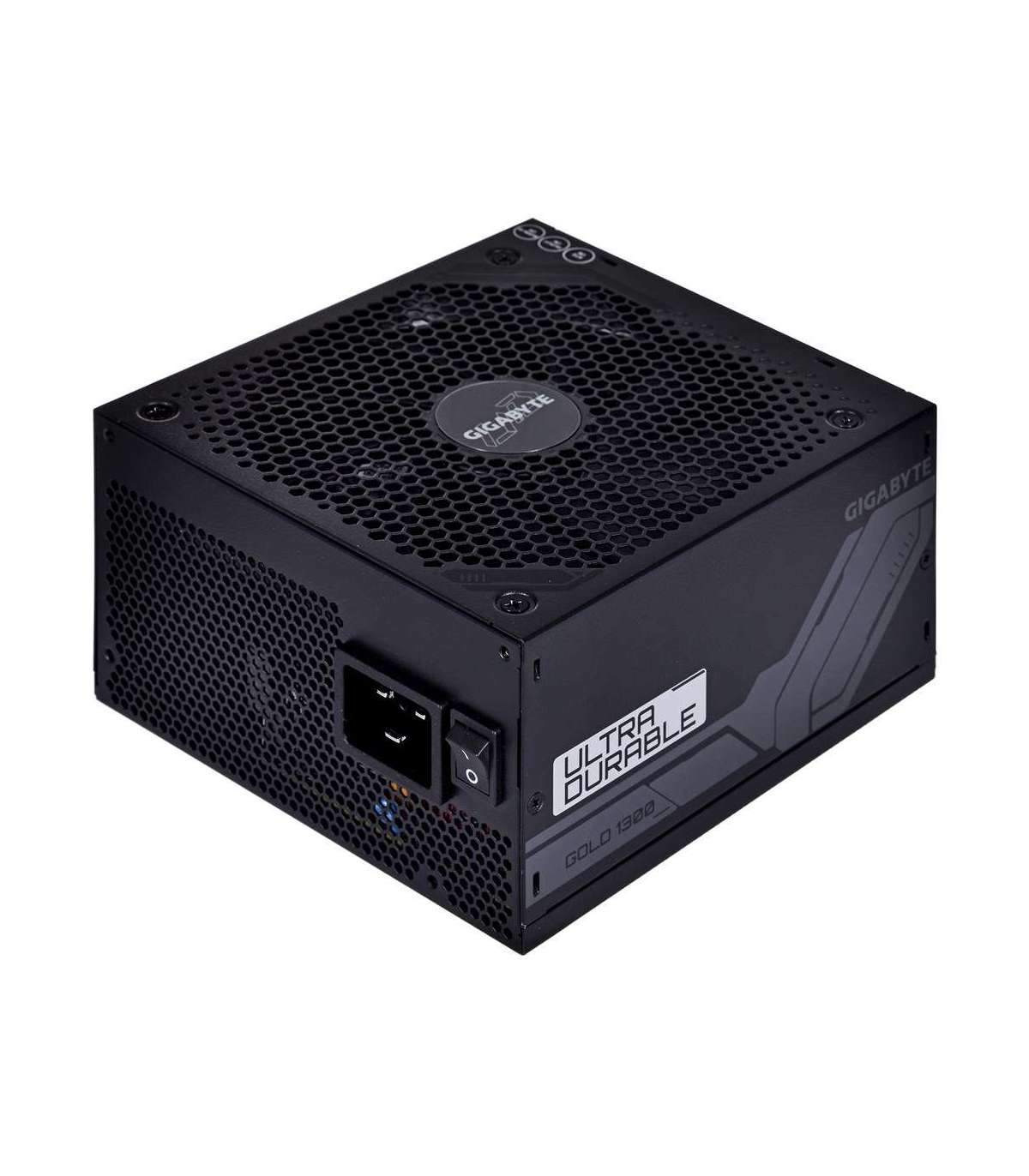

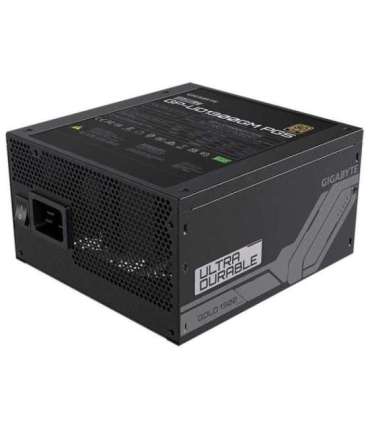

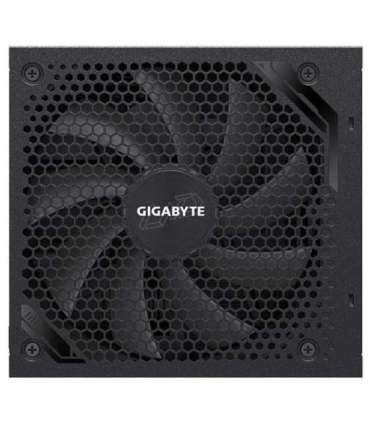

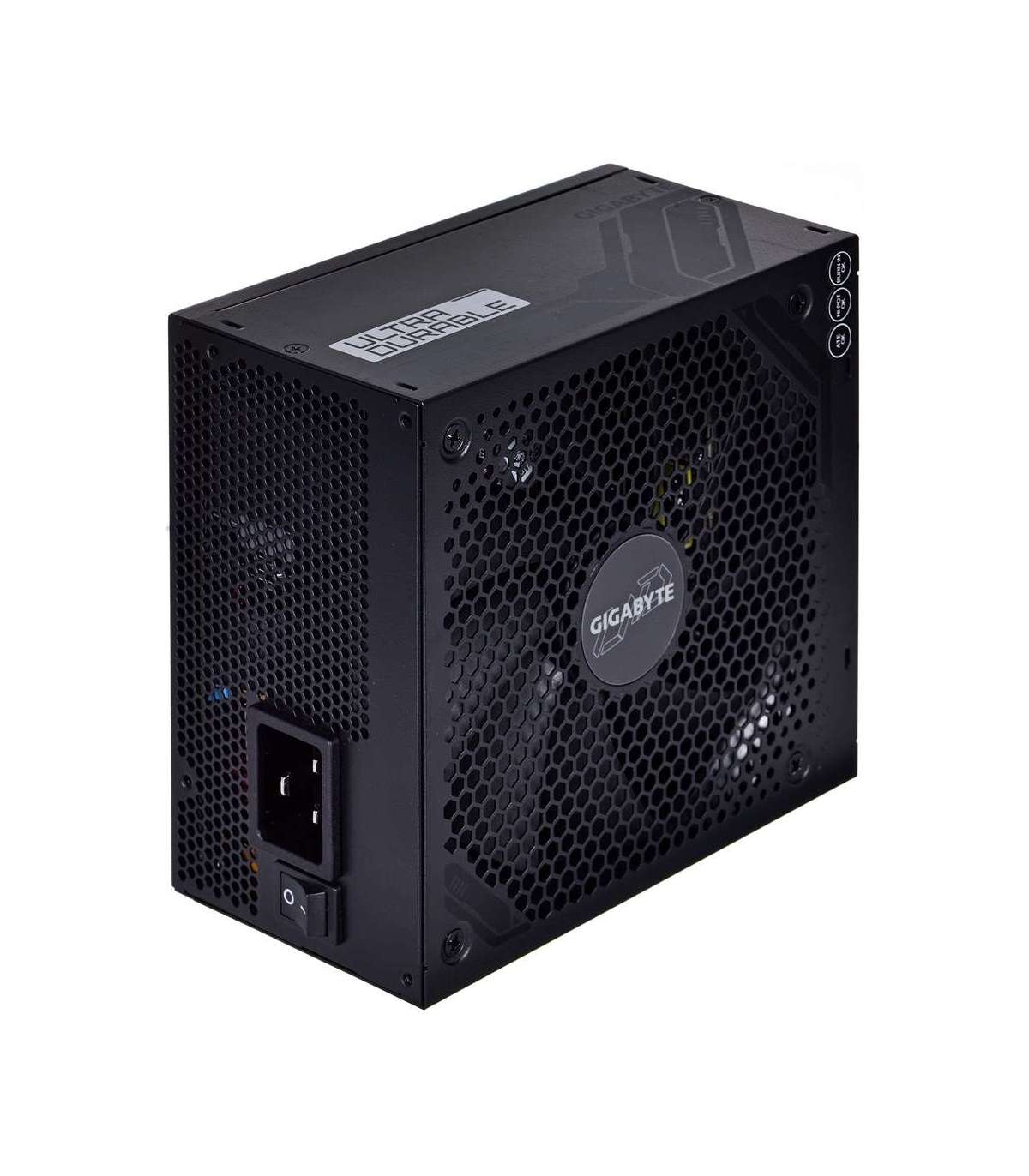

GIGABYTE UD1300GM PG5 power supply unit 1300 W 20+4 pin ATX ATX Black

Характеристики

Depth

160 mm

Height

86 mm

Width

150 mm

Product colour

Black

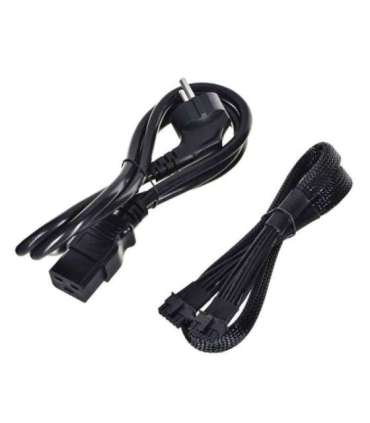

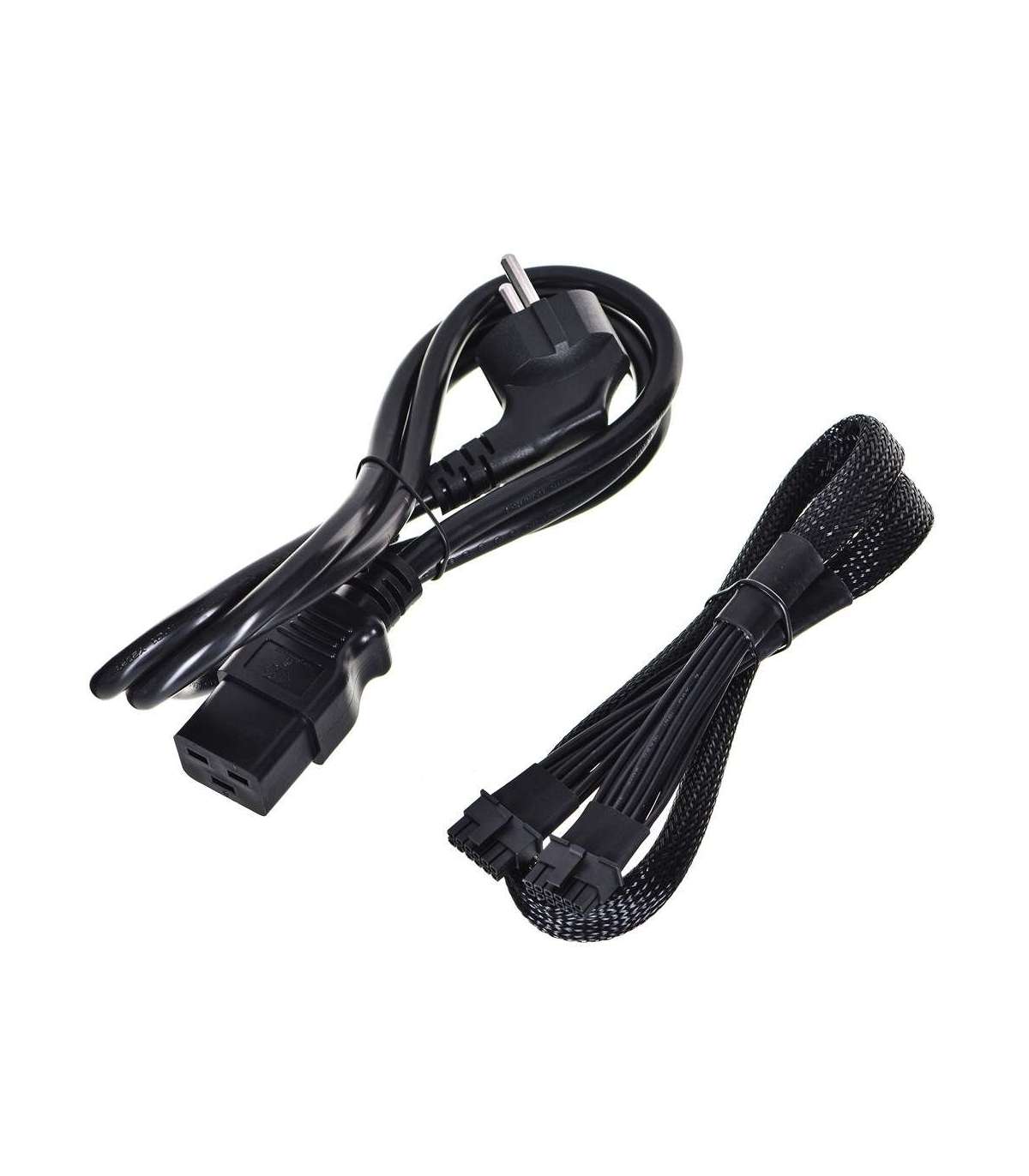

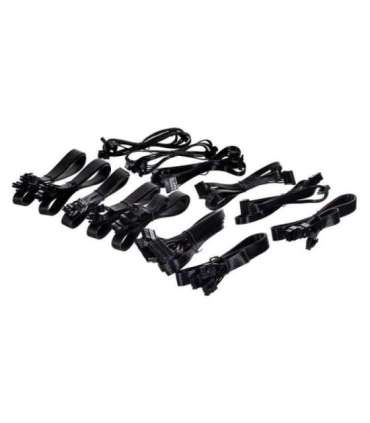

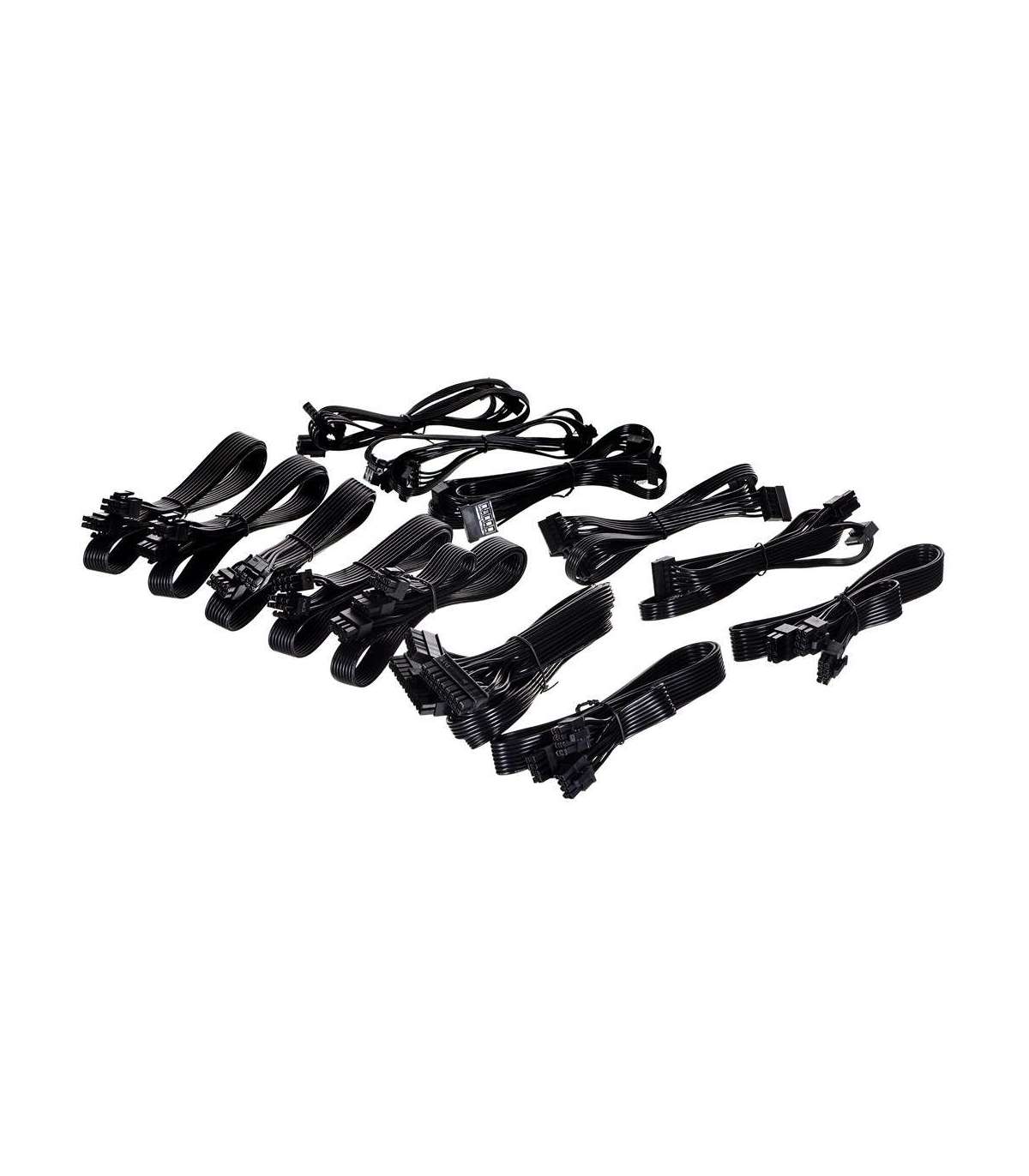

Cables included

CPU, PCIe, Peripheral (Molex), SATA

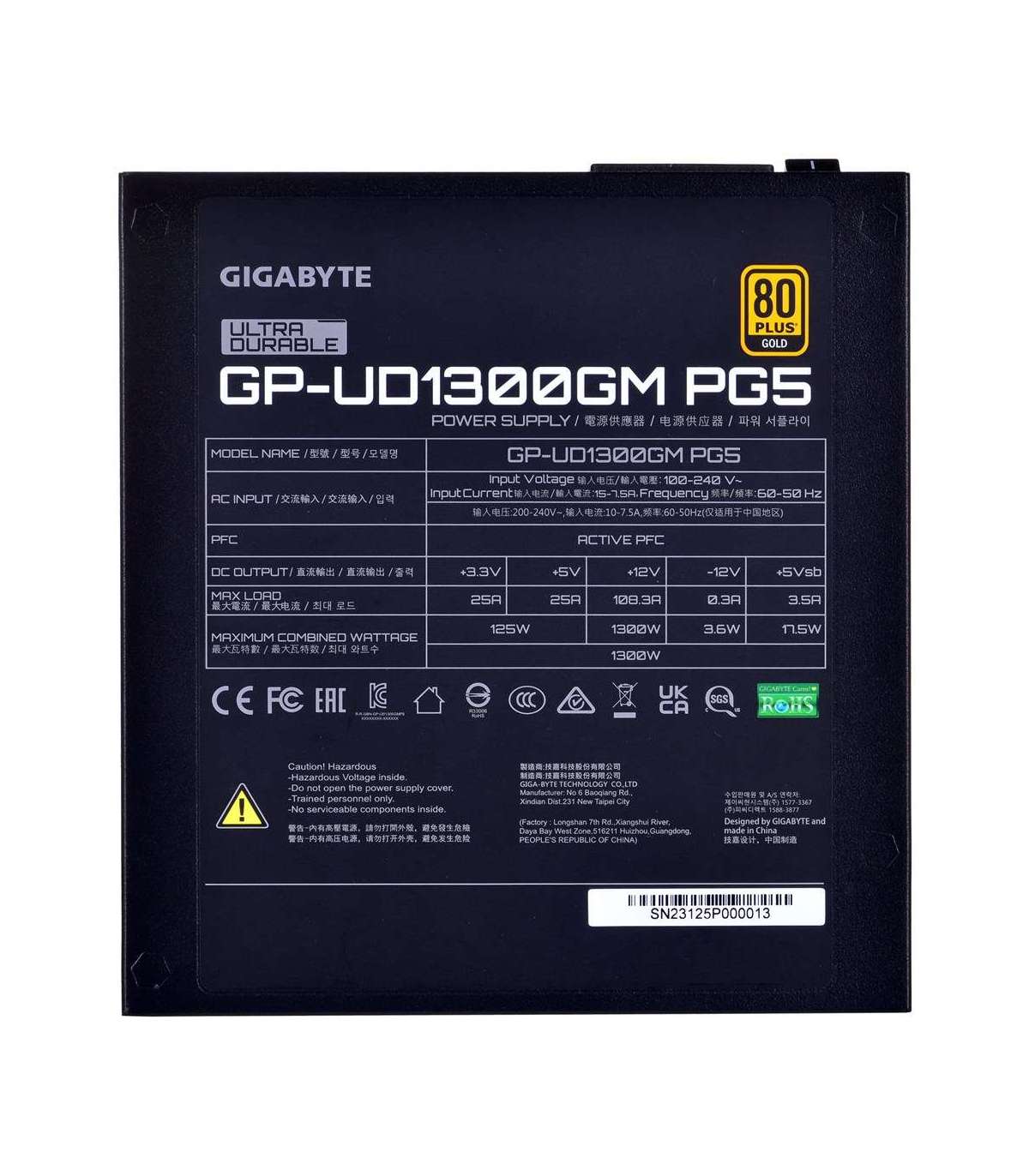

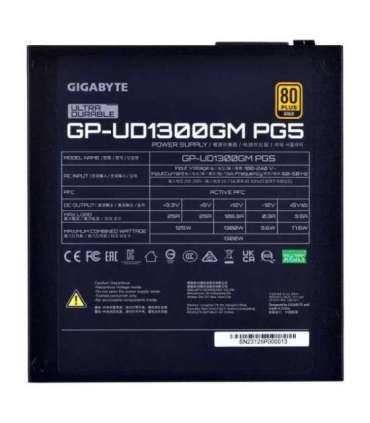

Compliance certificates

CCC
CE
Federal Communications Commission (FCC)
RoHS

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

15 - 6.5 A

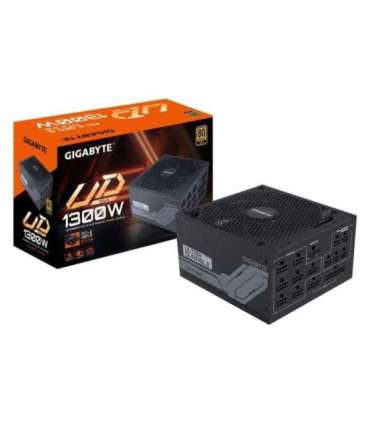

Package type

Box

Mean time between failures (MTBF)

100000 h

Warranty period

5 year(s)

Cooling type

Active

Efficiency

90%

Purpose

PC

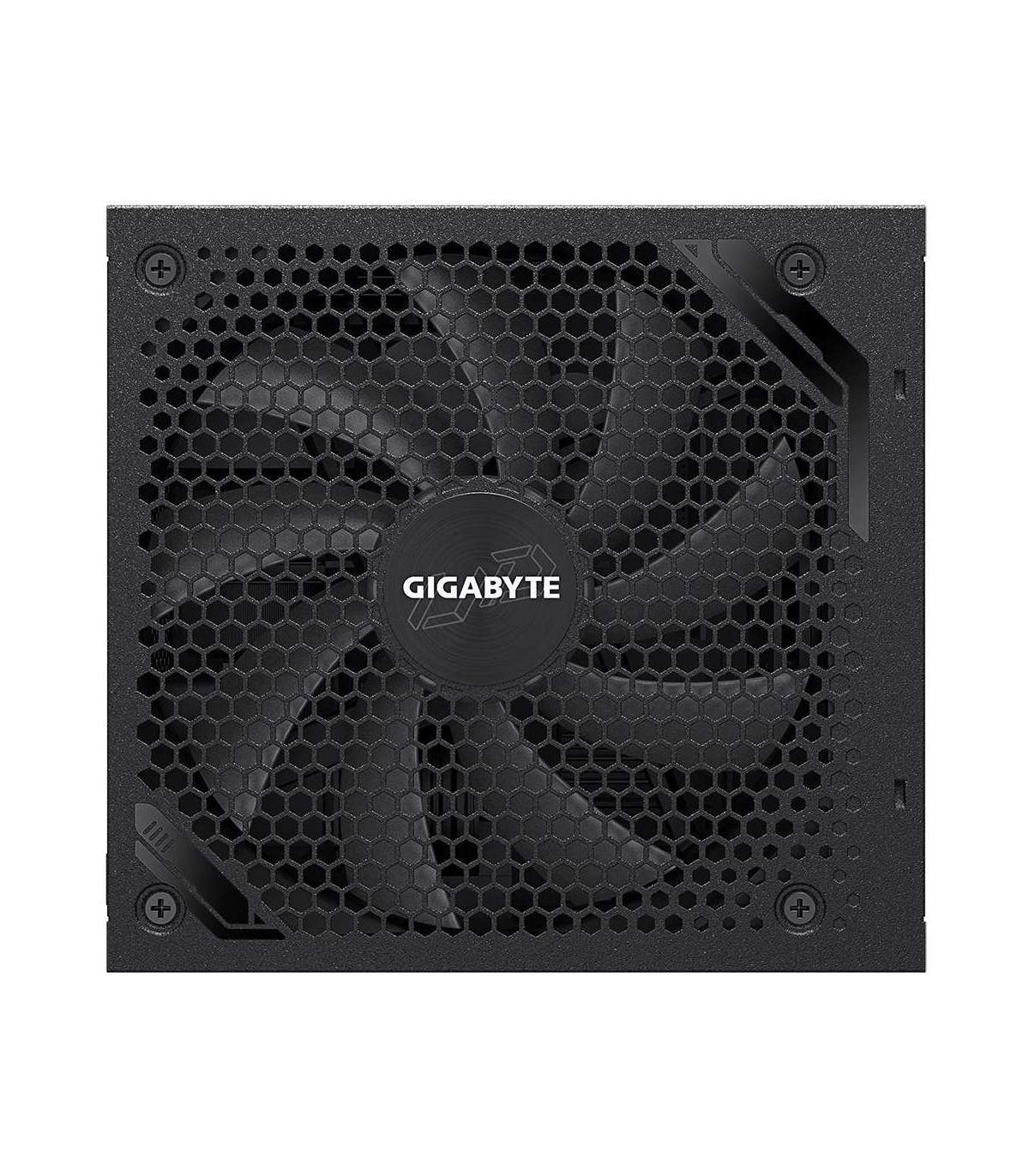

Number of fans

1 fan(s)

Fan diameter

14 cm

80 PLUS certification

80 PLUS Gold

Total power

1300 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Hold time

16 ms

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

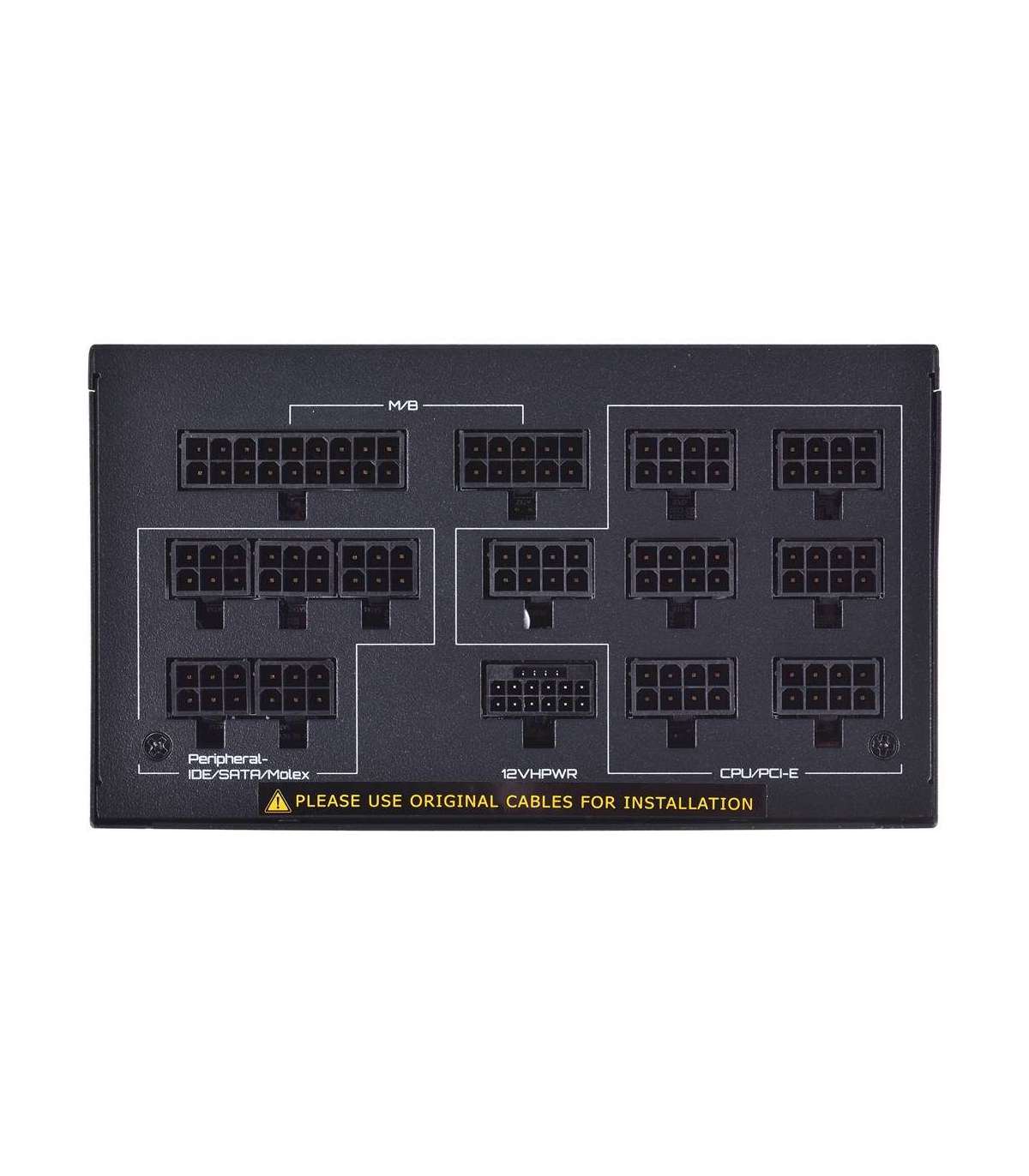

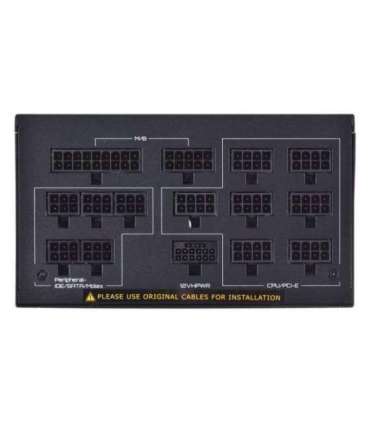

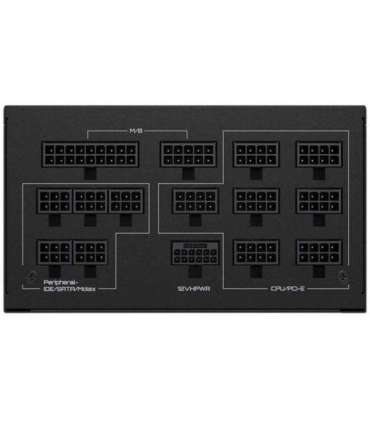

Number of SATA power connectors

12

PCI Express power connectors (6+2 pin)

8

Motherboard power connector

20+4 pin ATX

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

61 cm

PCI Express power connectors (16-pin)

1

PCI Express power cable length

70 cm

PCI Express connector

Yes
