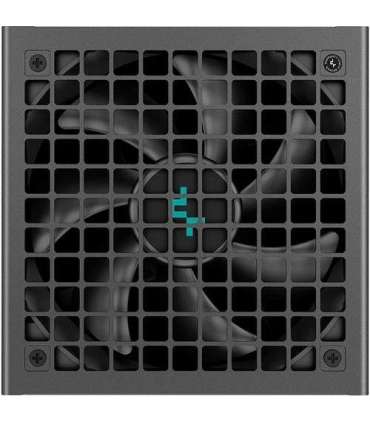

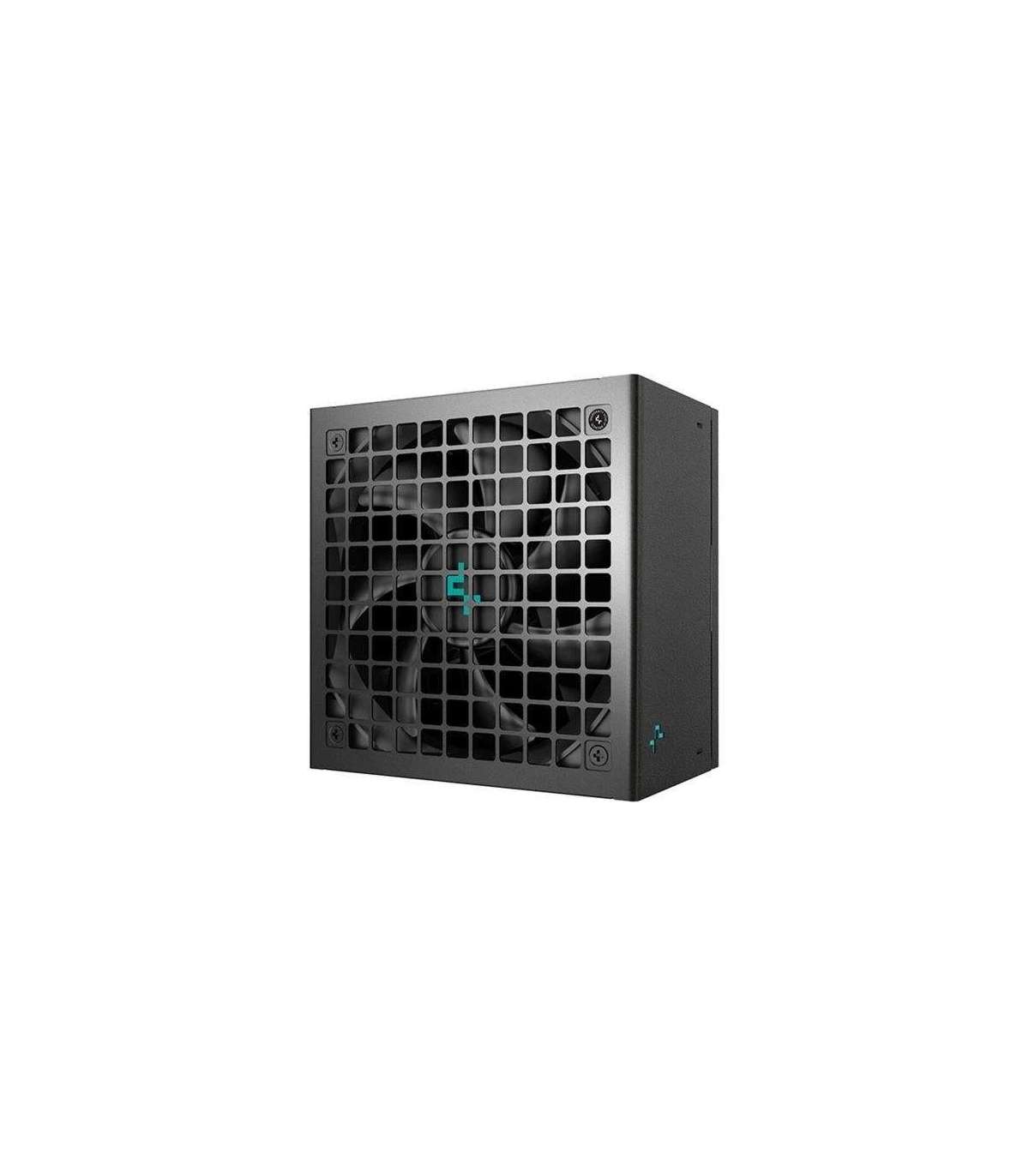

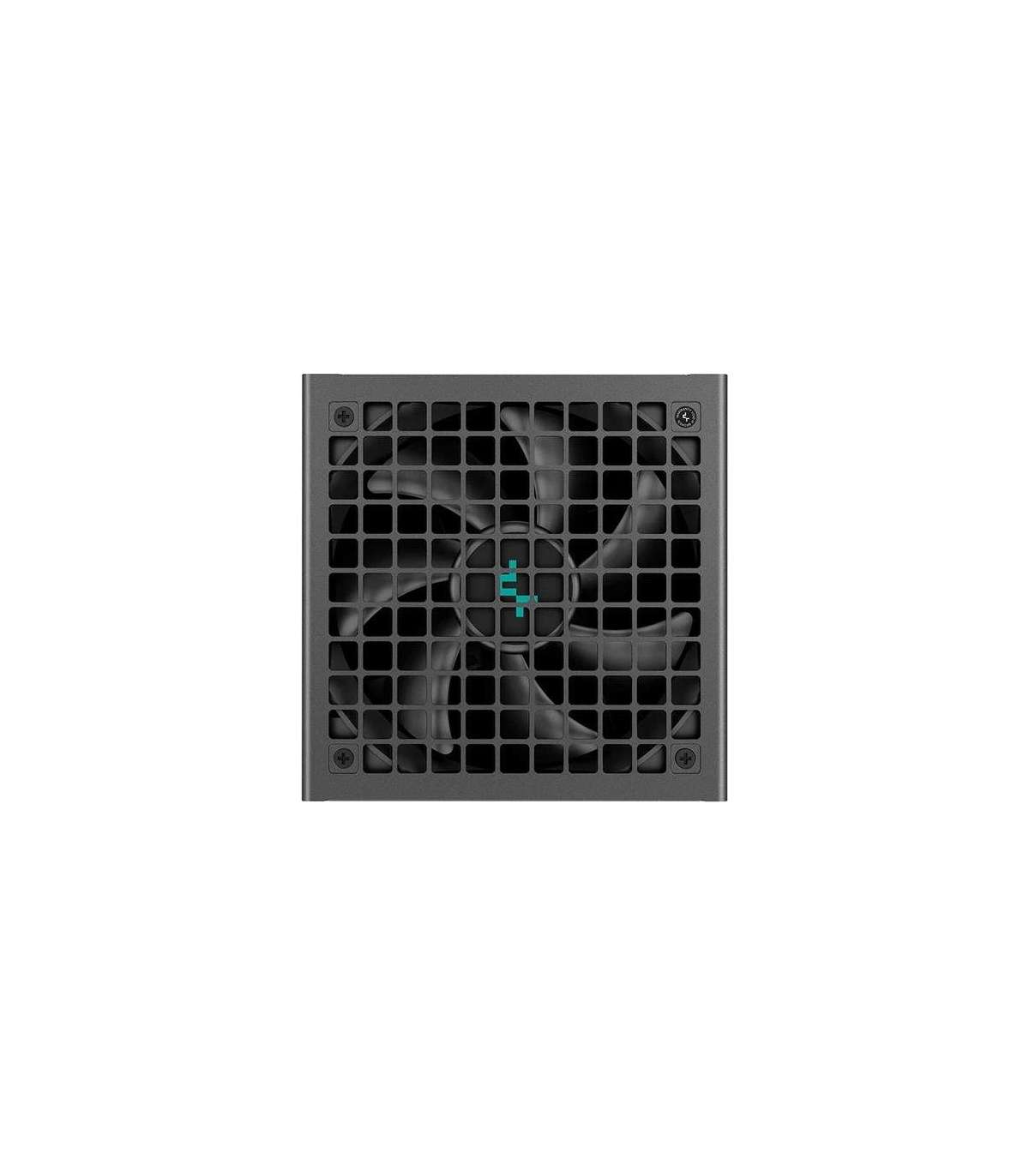

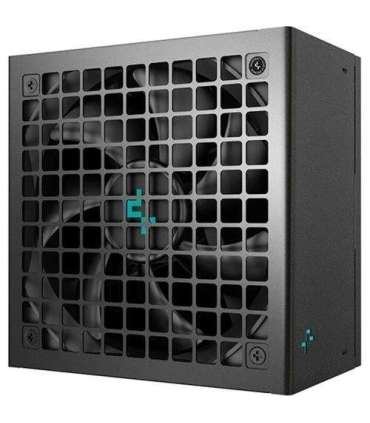

DeepCool PN1200-M (R-PNC00M-FC0B-JGEU)

Характеристики

Depth

150 mm

Height

86 mm

Width

150 mm

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Cables included

AC

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

4

Efficiency

90%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Gold

Total power

1200 W

Power protection features

No load operation
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Surge protection
Under voltage

Bearing technology

FDB

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

15 W

Combined power (+5V)

120 W

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+12V)

1200 W

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

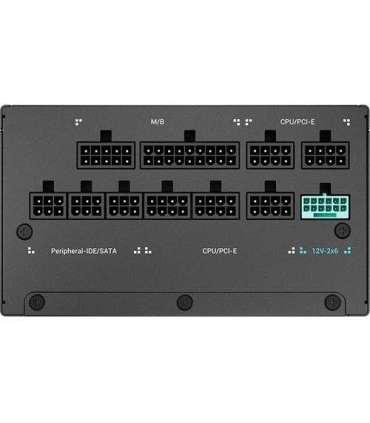

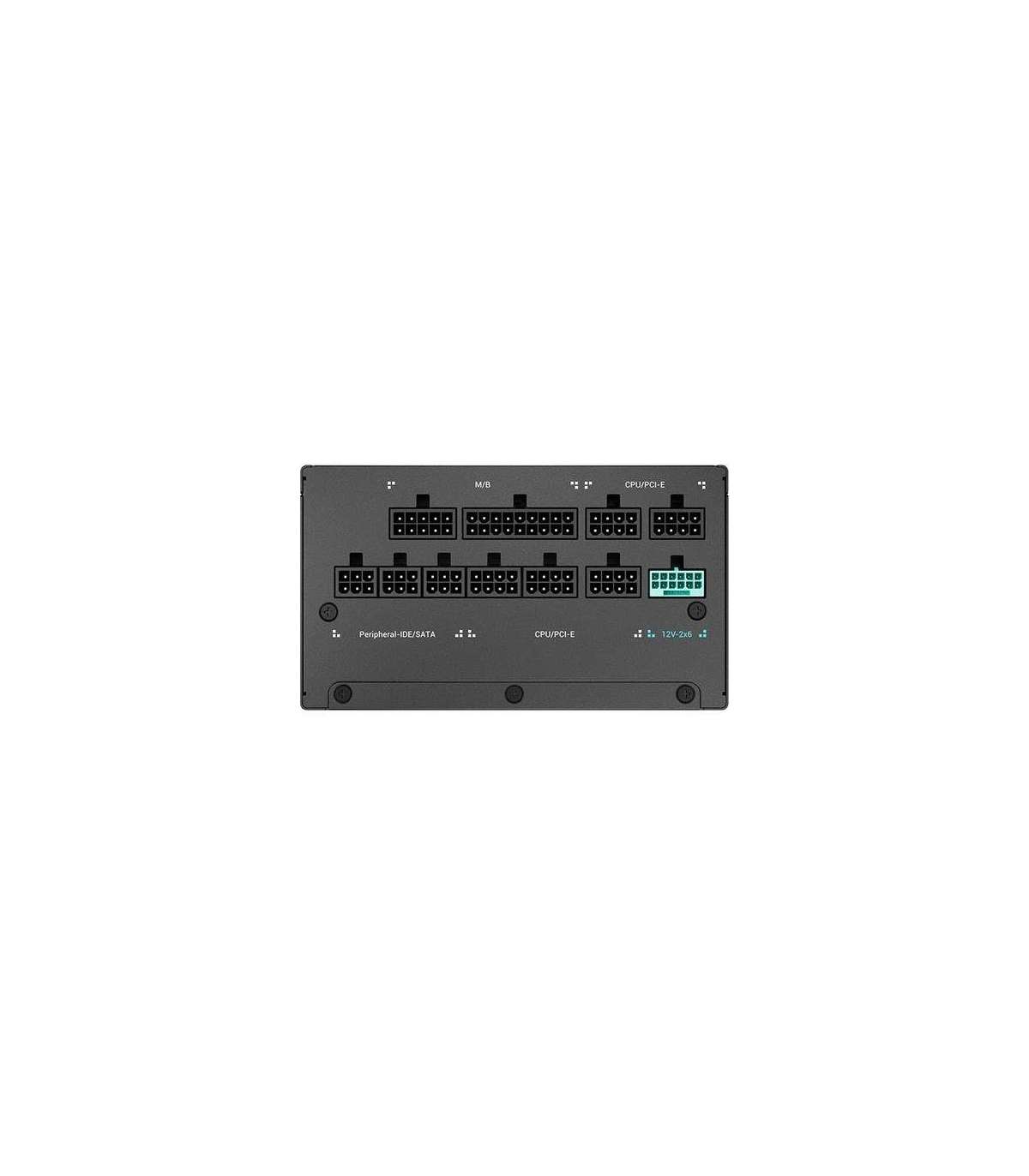

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

CPU power cable length

70 cm

CPU power connector (4+4 pin)

2

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

PCI Express power connectors (16-pin)

1
