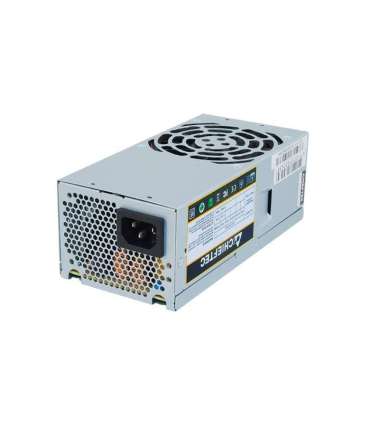

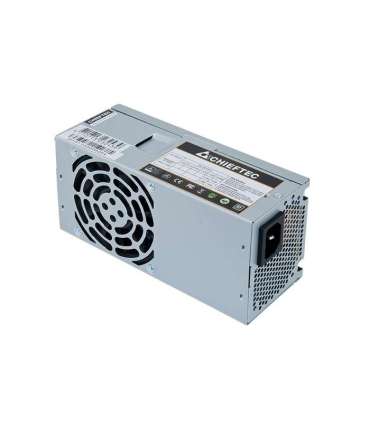

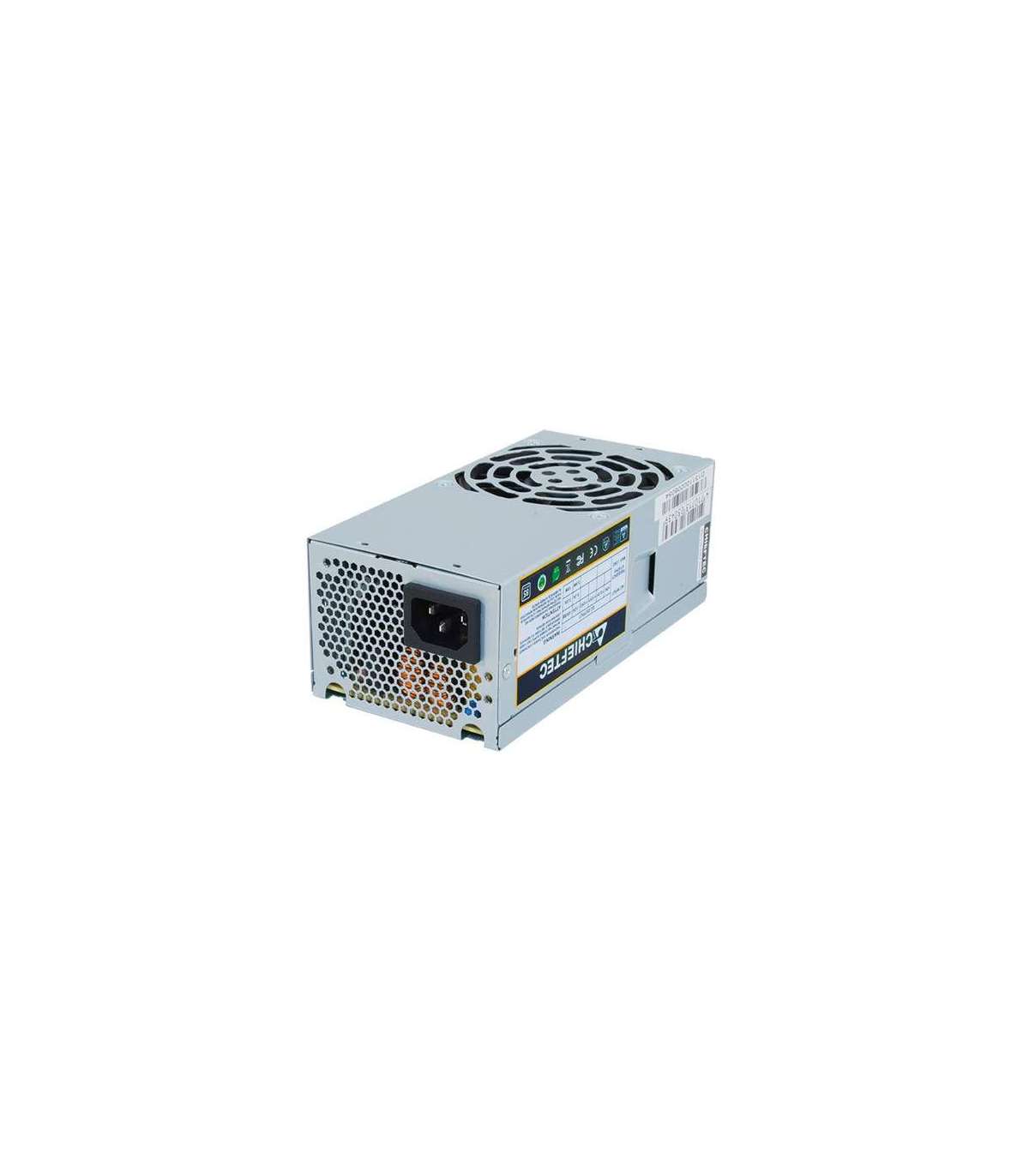

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey

Характеристики

Depth

175 mm

Weight

1.07 kg

Height

65 mm

Width

85 mm

Package weight

1.13 kg

Product colour

Grey

Harmonized System (HS) code

84733020

Sustainability certificates

RoHS

AC input frequency

47 - 63 Hz

AC input voltage

115 - 230 V

Input current

6.3 A

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Purpose

PC/Server

Number of fans

1 fan(s)

Fan diameter

8 cm

80 PLUS certification

80 PLUS Bronze

Total power

300 W

Power protection features

Overheating
Overload
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+3.3V)

95 W

Combined power (+5Vsb)

10 W

Max output current (+5V)

15 A

Max output current (+3.3V)

16 A

Combined power (+5V)

95 W

Max output current (+5Vsb)

2 A

Max output current (-12V)

0.3 A

ATX version

2.3

Power supply unit (PSU) form factor

TFX

Number of SATA power connectors

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

150
350 mm

Peripheral (Molex) power cable length

150
350 mm

CPU power cable length

35 cm

Cabling type

Non-Modular

Motherboard power cable length

30 cm

EPS power connector (4+4 pin)

Yes

Power factor

0.9

Floppy drive power connector

1

Max output current (+12V2)

15 A

Max output current (+12V1)

14 A

Floppy disk drive cable length

15 cm
