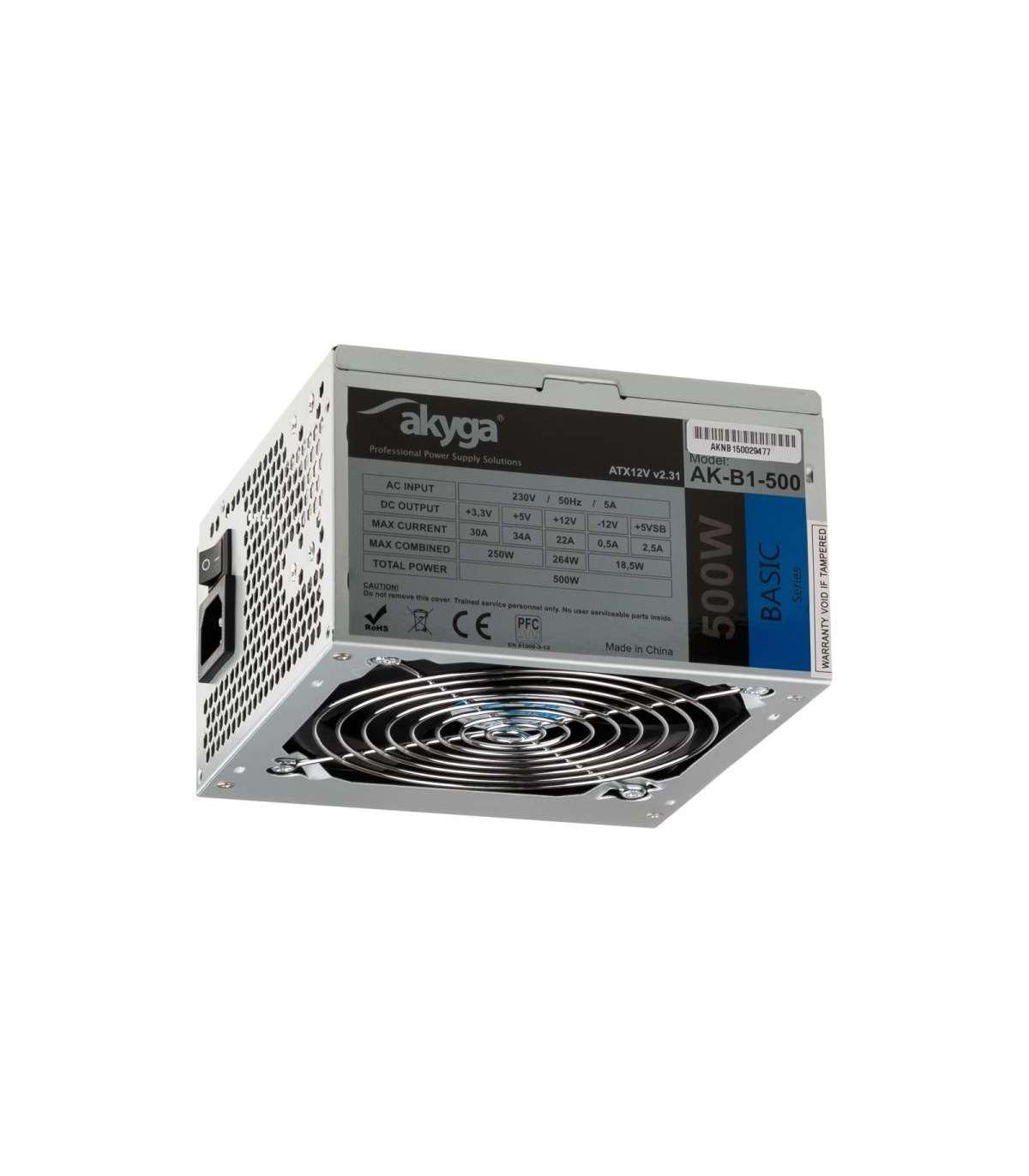

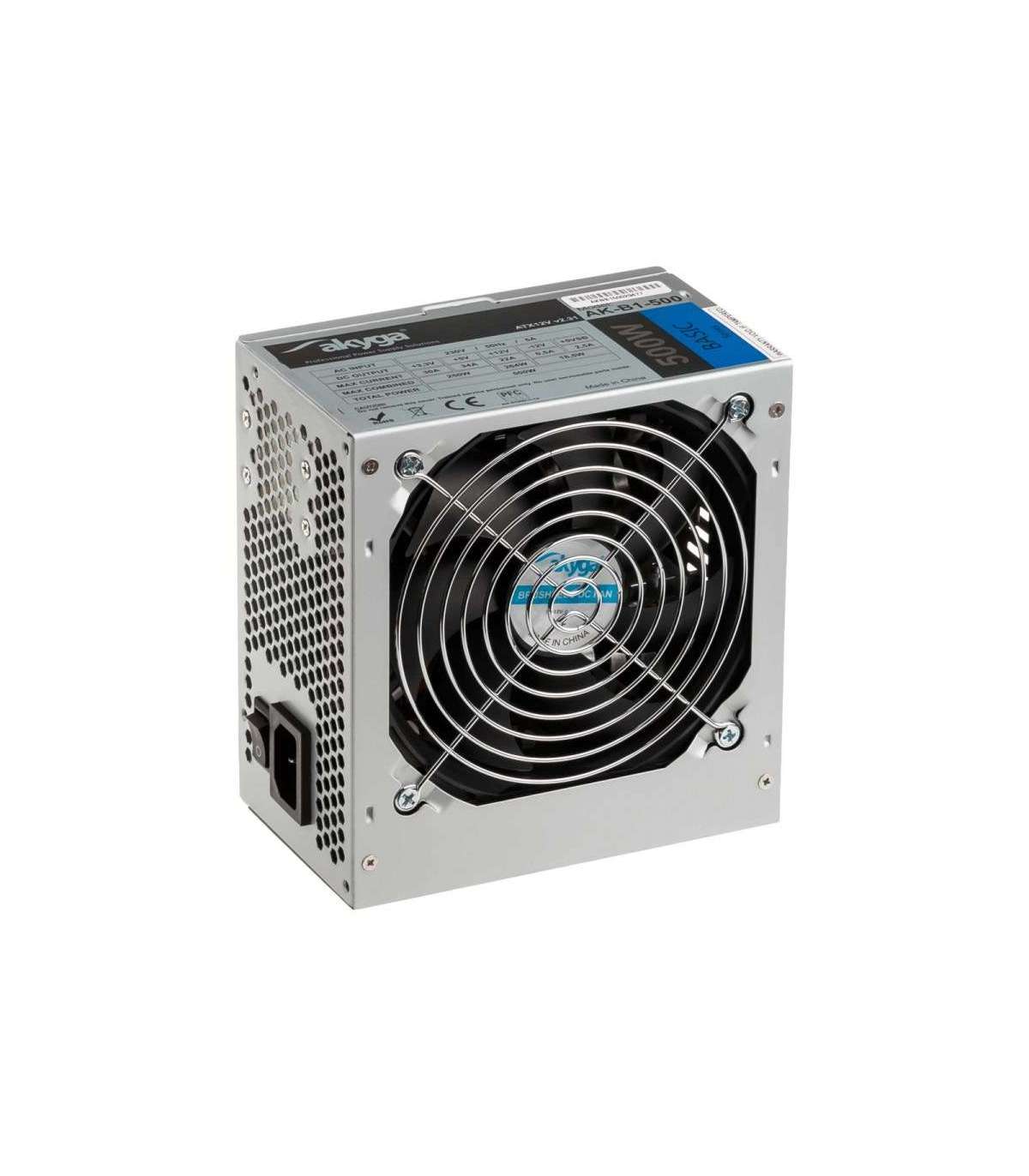

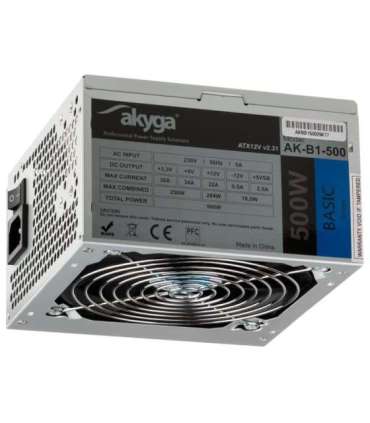

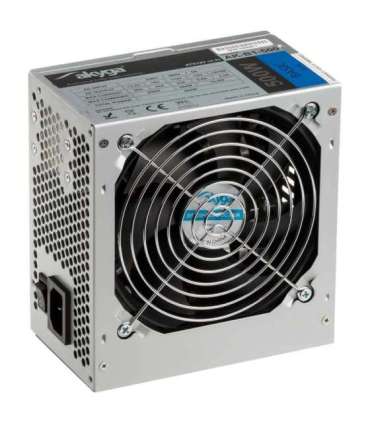

Akyga AK-B1-500 power supply unit 500 W 20+4 pin ATX ATX Grey

Характеристики

Depth

140 mm

Weight

1.03 kg

Height

85 mm

Width

150 mm

Package weight

1.1 kg

On/off switch

Yes

Product colour

Grey

Operating temperature (T-T)

5 - 50 °C

Package width

160 mm

Package depth

220 mm

Package height

95 mm

Sustainability certificates

RoHS

Manual

Yes

Certification

CE

AC input voltage

230 V

Warranty card

Yes

Input current

5 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Efficiency

70%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

Peak power

500 W

Total power

500 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit

Fan location

Top

Combined power (-12V)

18.5 W

Max output current (+12V)

22 A

Combined power (+3.3V)

250 W

Combined power (+5Vsb)

18.5 W

Max output current (+5V)

34 A

Max output current (+3.3V)

30 A

Combined power (+5V)

250 W

Combined power (+12V)

264 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.5 A

ATX version

2.31

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

3

PCI Express power connectors (6+2 pin)

1

Motherboard power connector

20+4 pin ATX

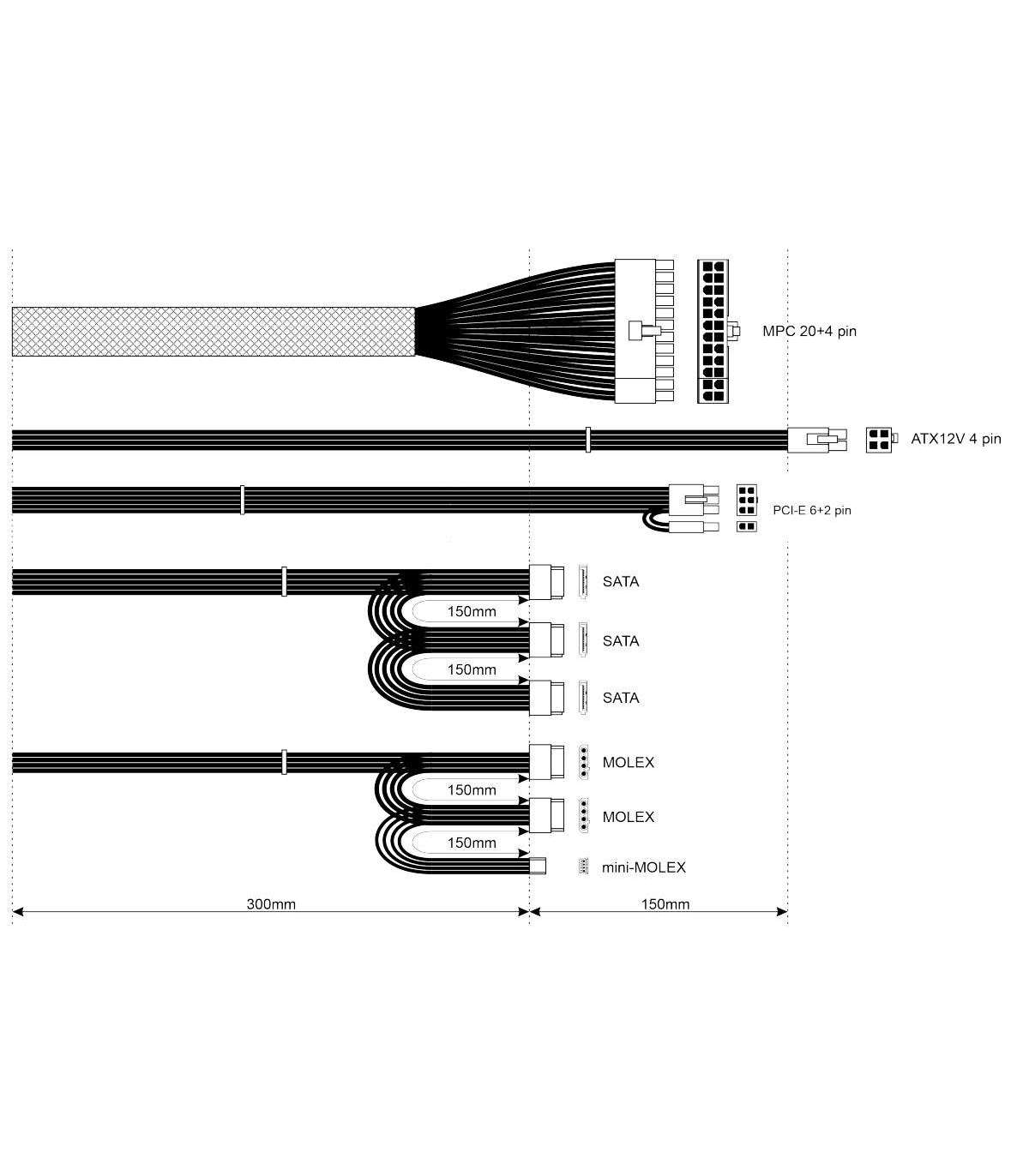

SATA power cable length

300 mm

Peripheral (Molex) power cable length

300 mm

CPU power cable length

45 cm

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

CPU P4 connector (4-pin)

1
