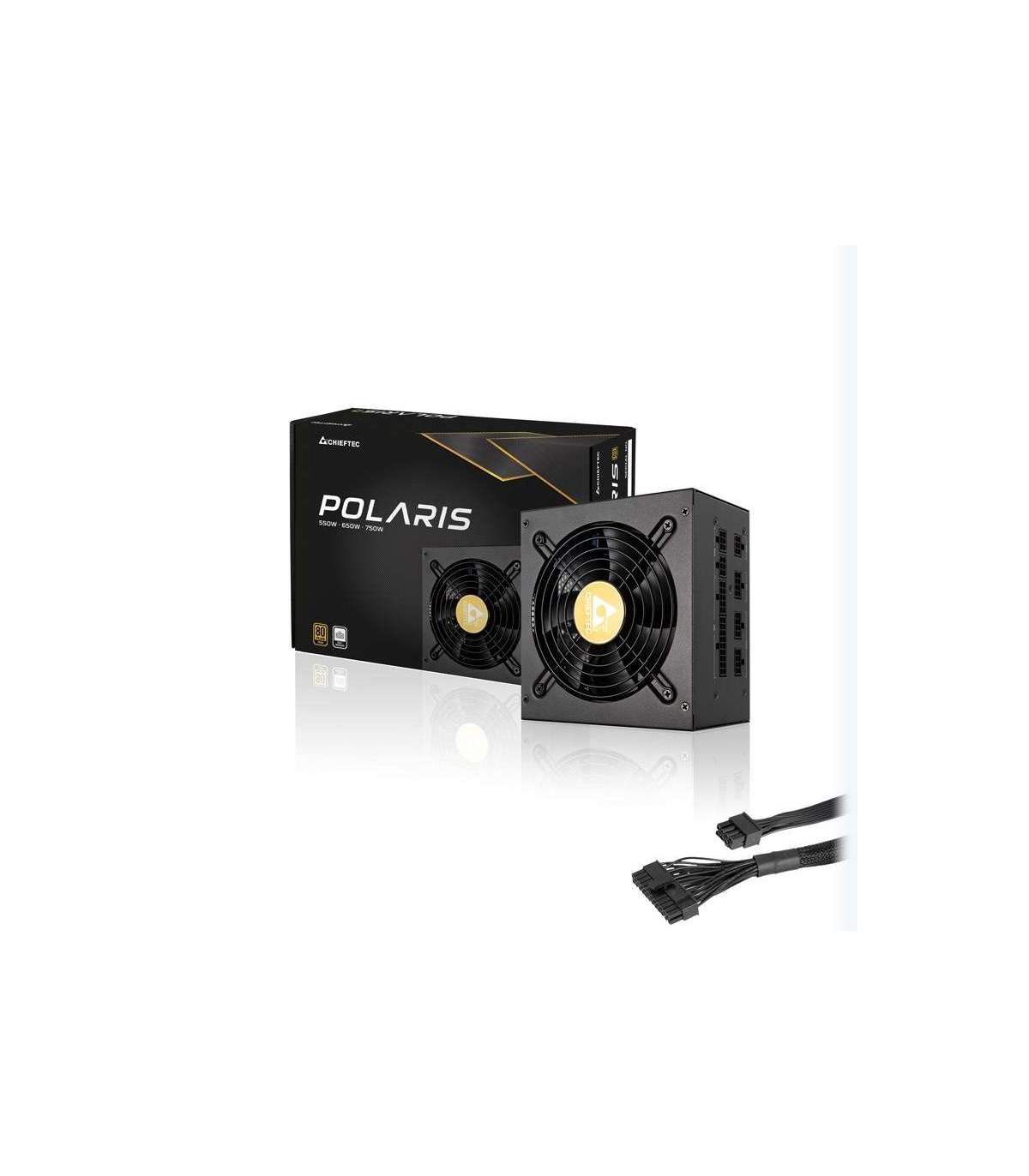

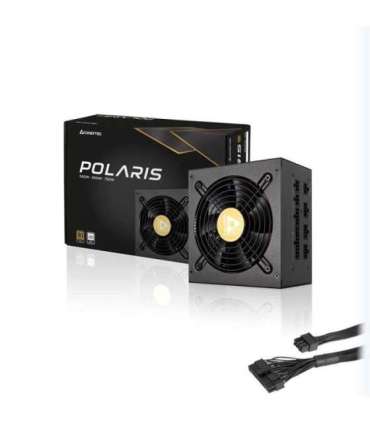

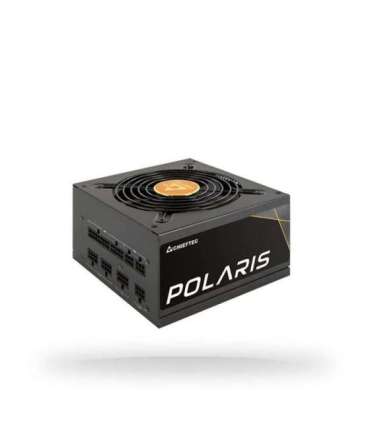

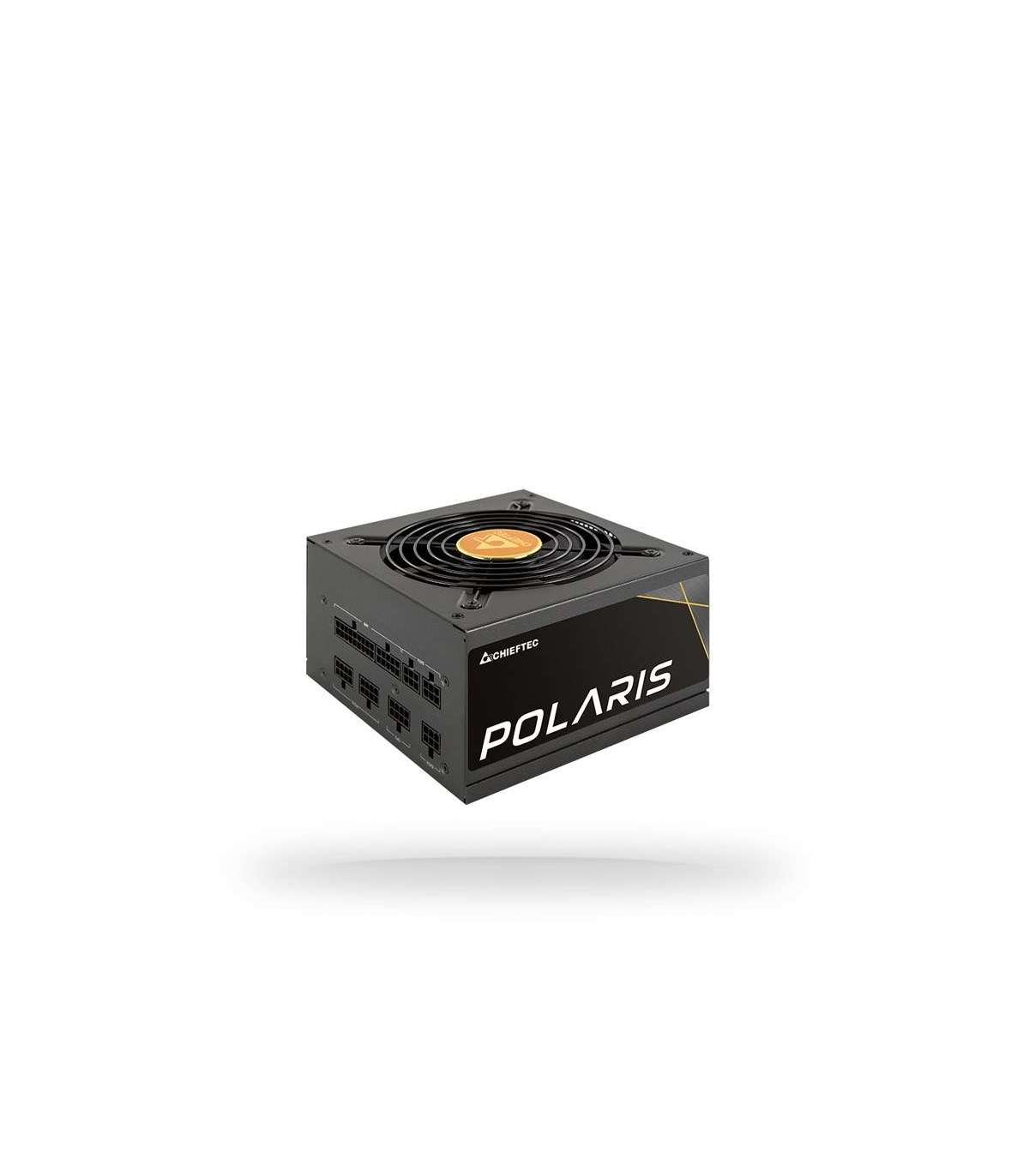

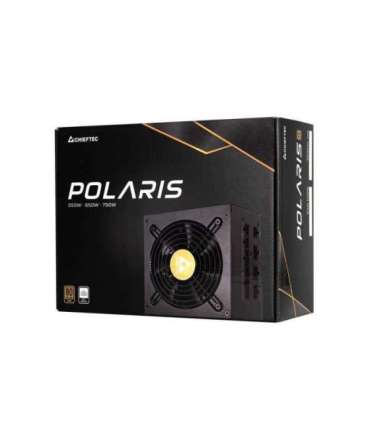

Chieftec Polaris power supply unit 550 W 20+4 pin ATX PS/2 Black

Характеристики

Depth

140 mm

Weight

2.02 kg

Height

87 mm

Width

150 mm

Package weight

2.33 kg

Product colour

Black

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

8 A

Package type

Box

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

550 W

Power protection features

Over current
Overheating
Overload
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

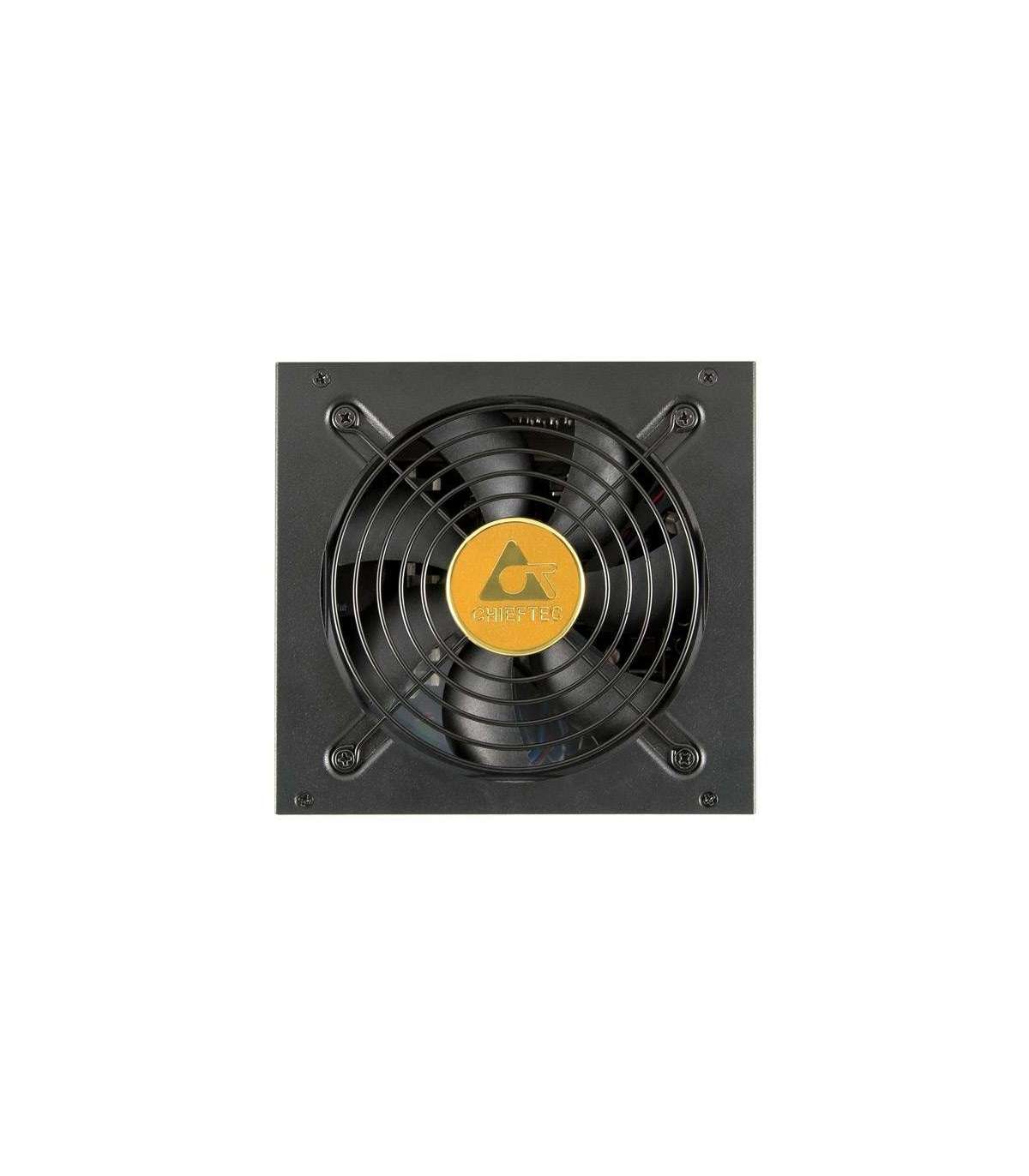

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

45.8 A

Combined power (+3.3V)

105 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

105 W

Combined power (+12V)

550 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

PS/2

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

150
450 mm

Peripheral (Molex) power cable length

150
450 mm

CPU power cable length

65 cm

CPU power connector (4+4 pin)

Yes

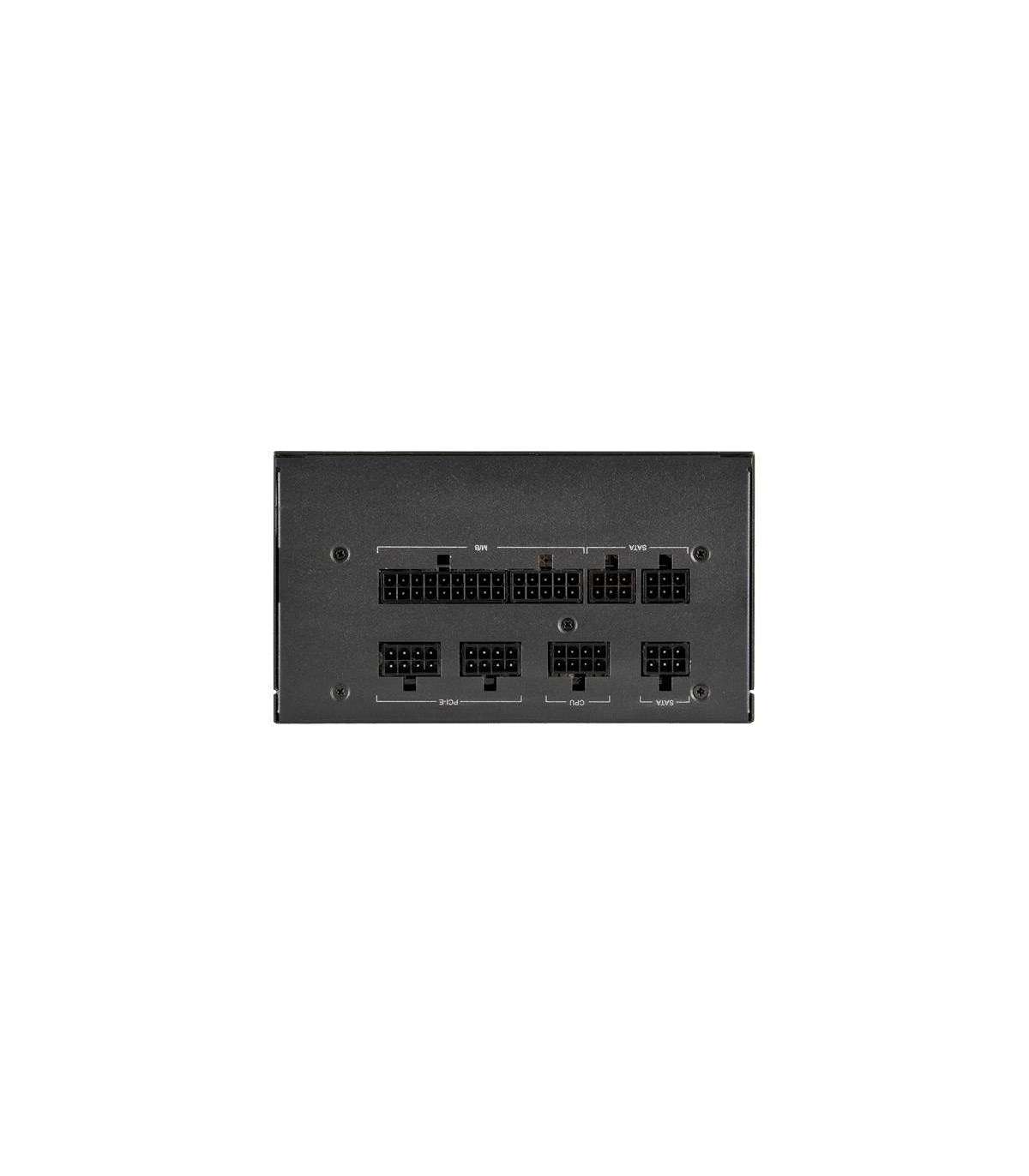

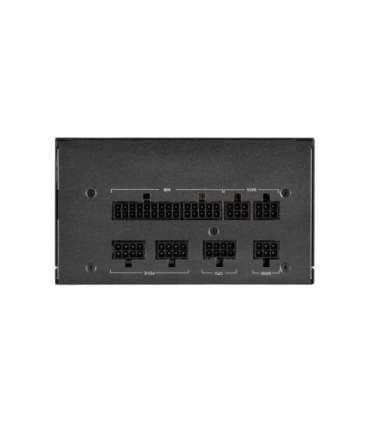

Cabling type

Fully-Modular

Motherboard power cable length

65 cm

PCI Express power cable length

50 cm

Floppy disk drive connector

Yes

Floppy drive power connector

1
