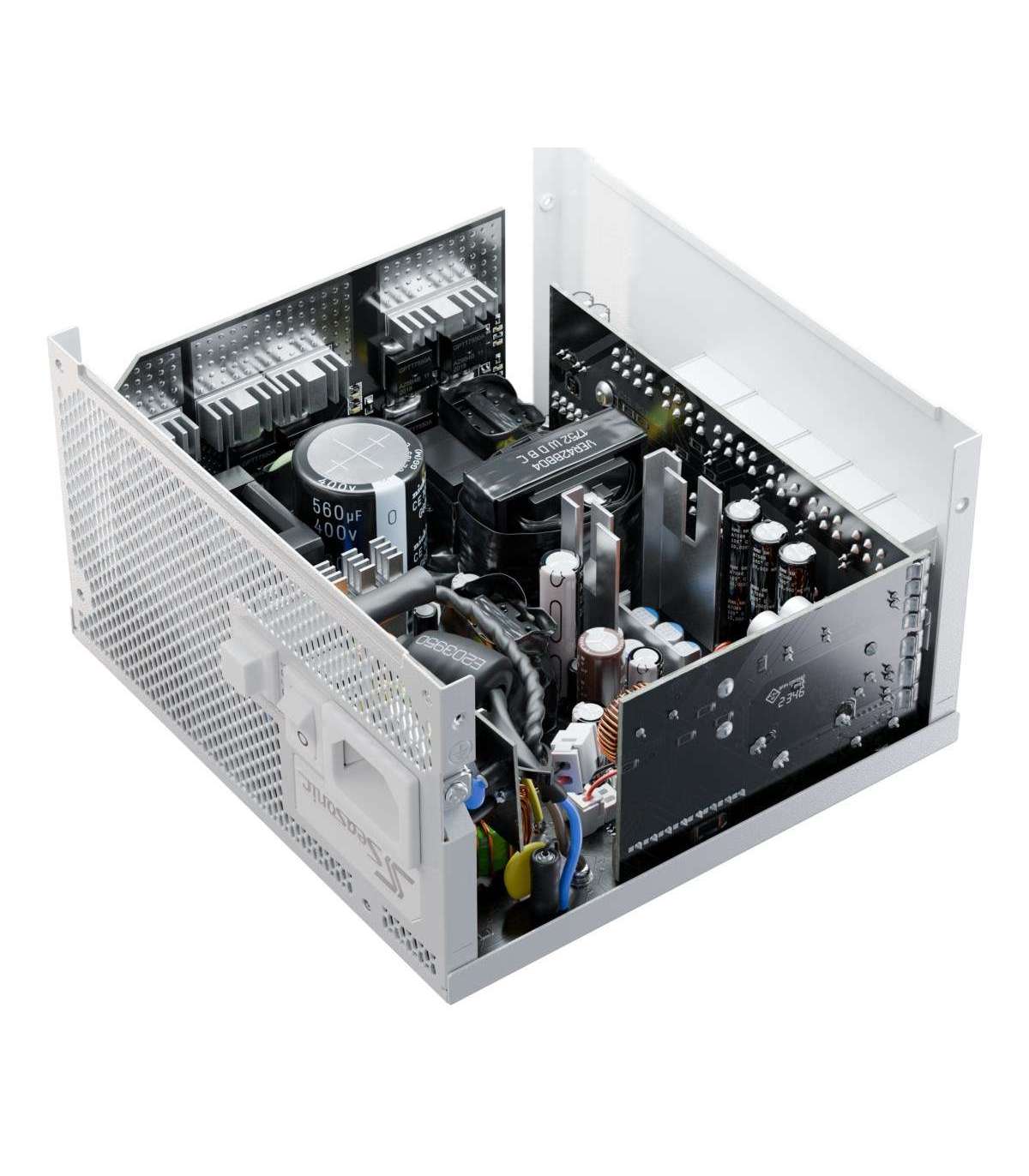

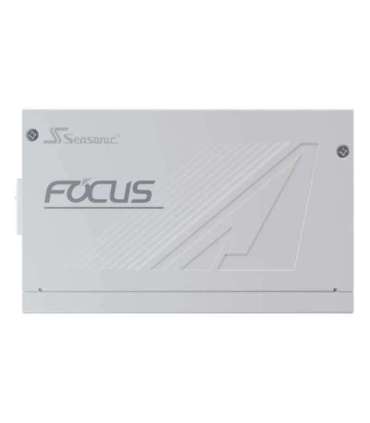

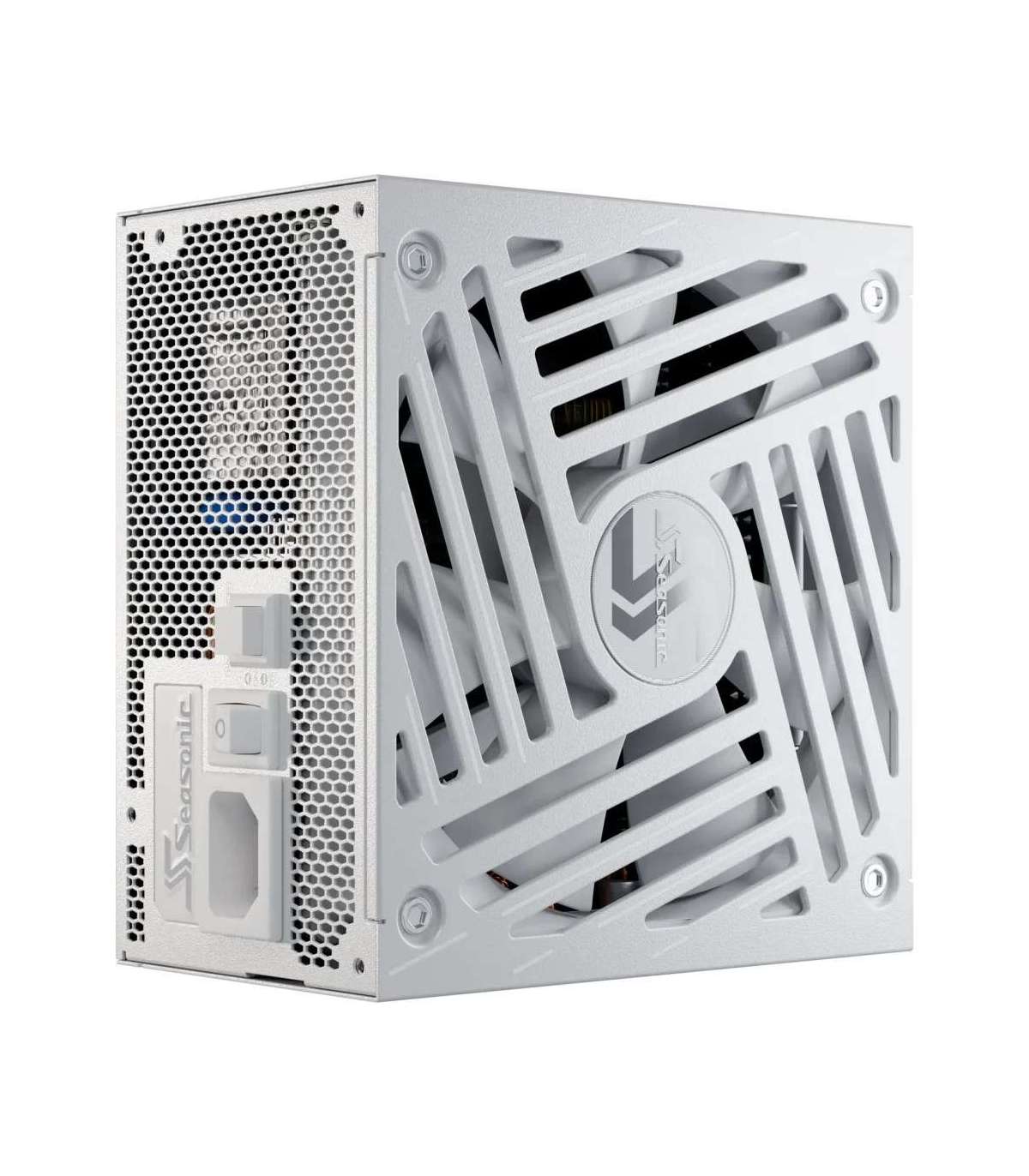

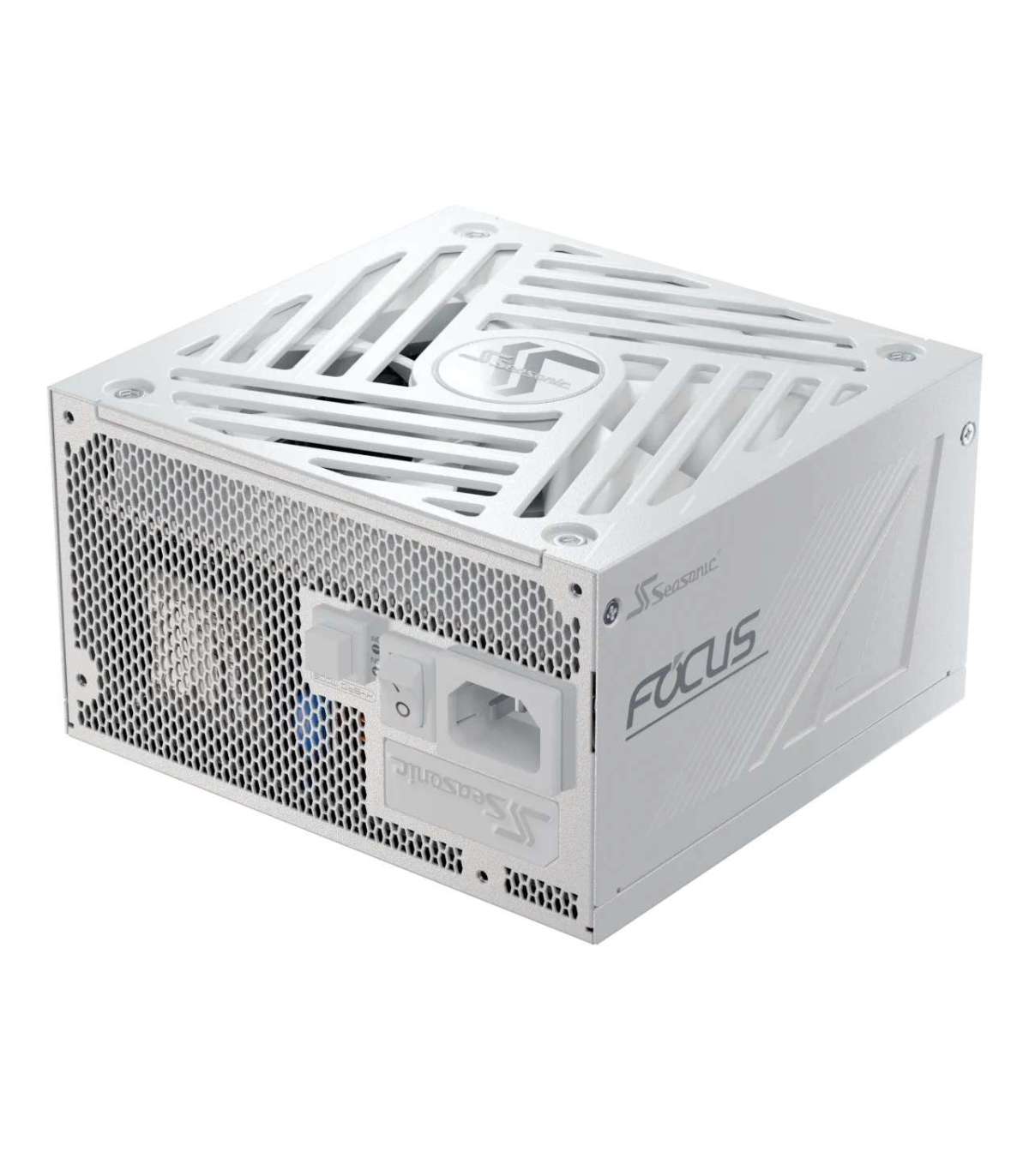

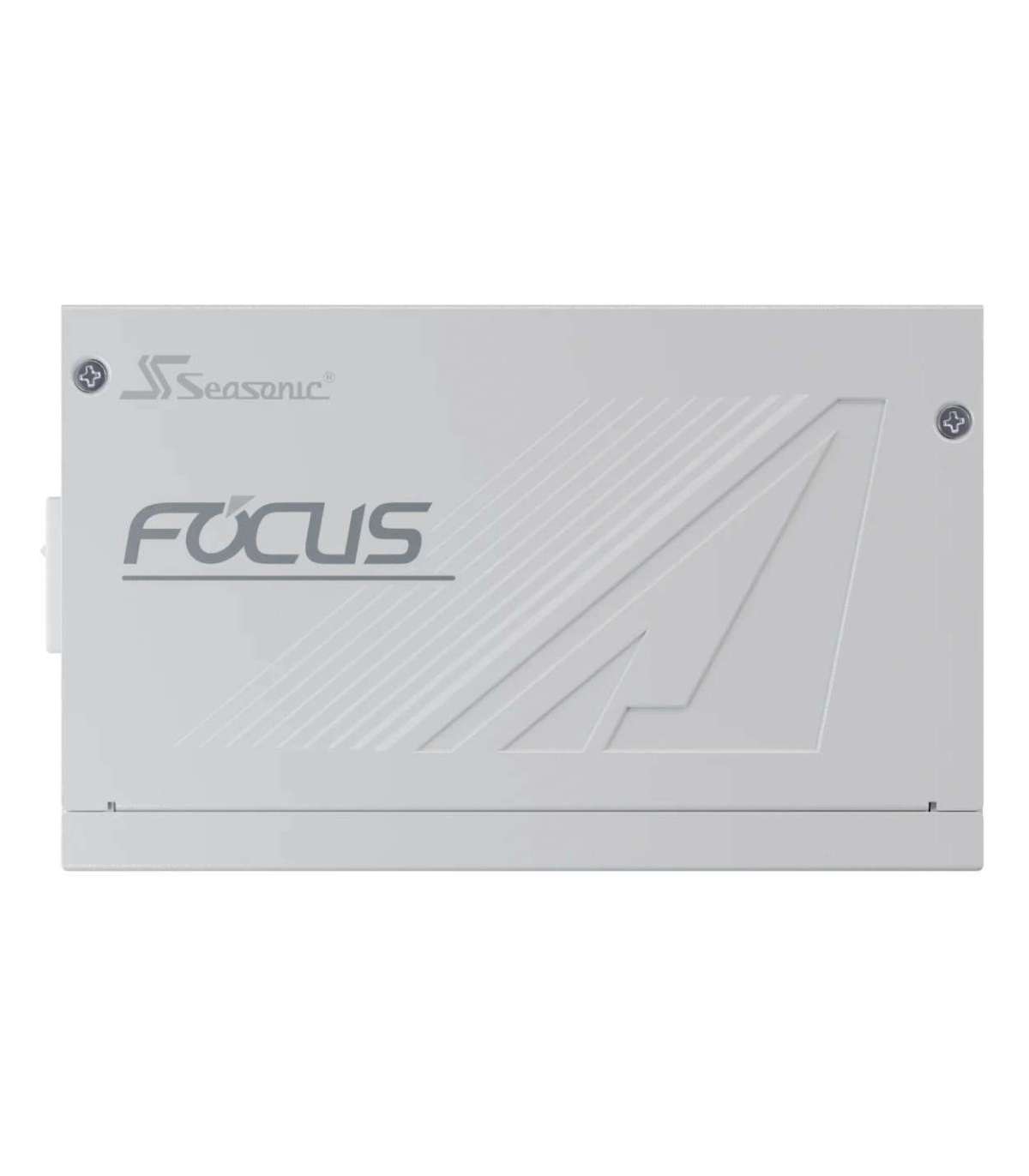

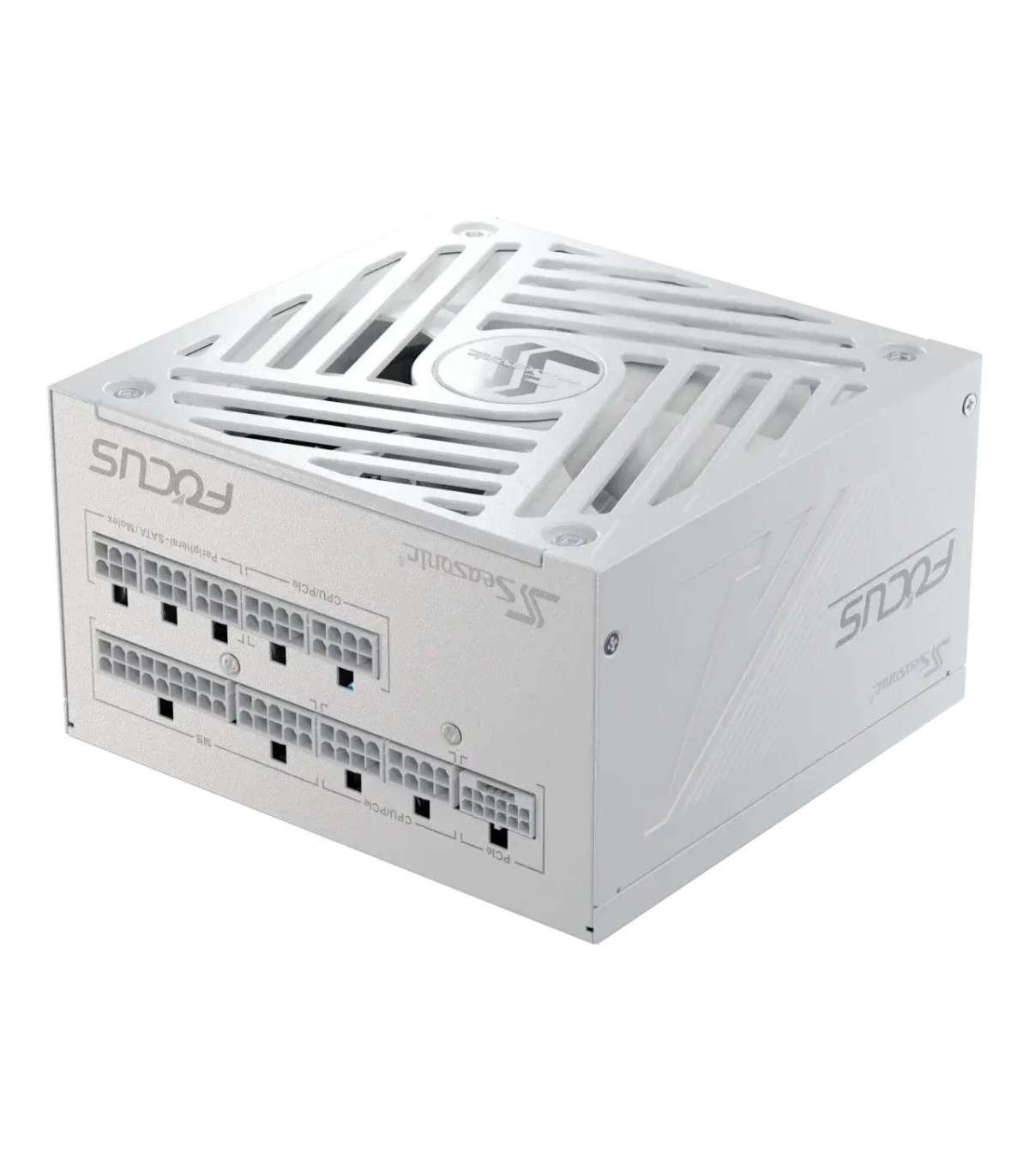

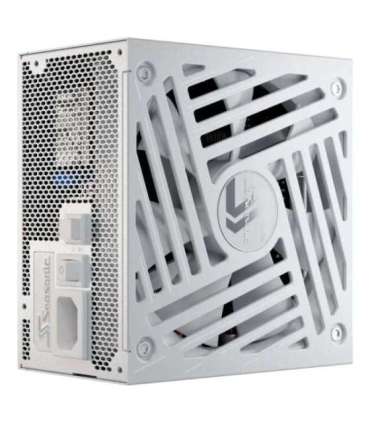

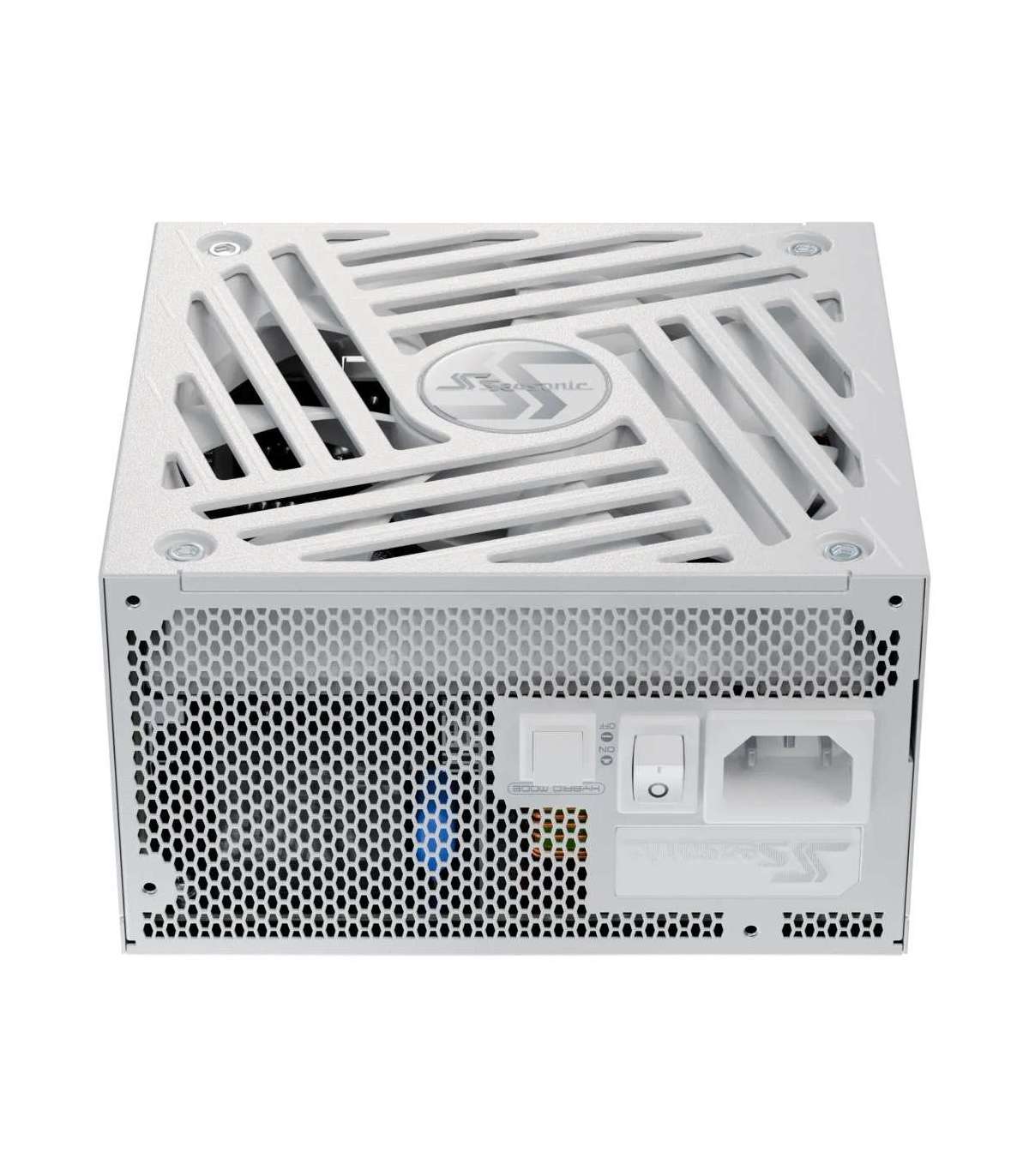

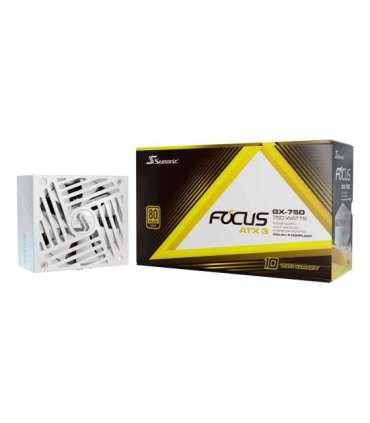

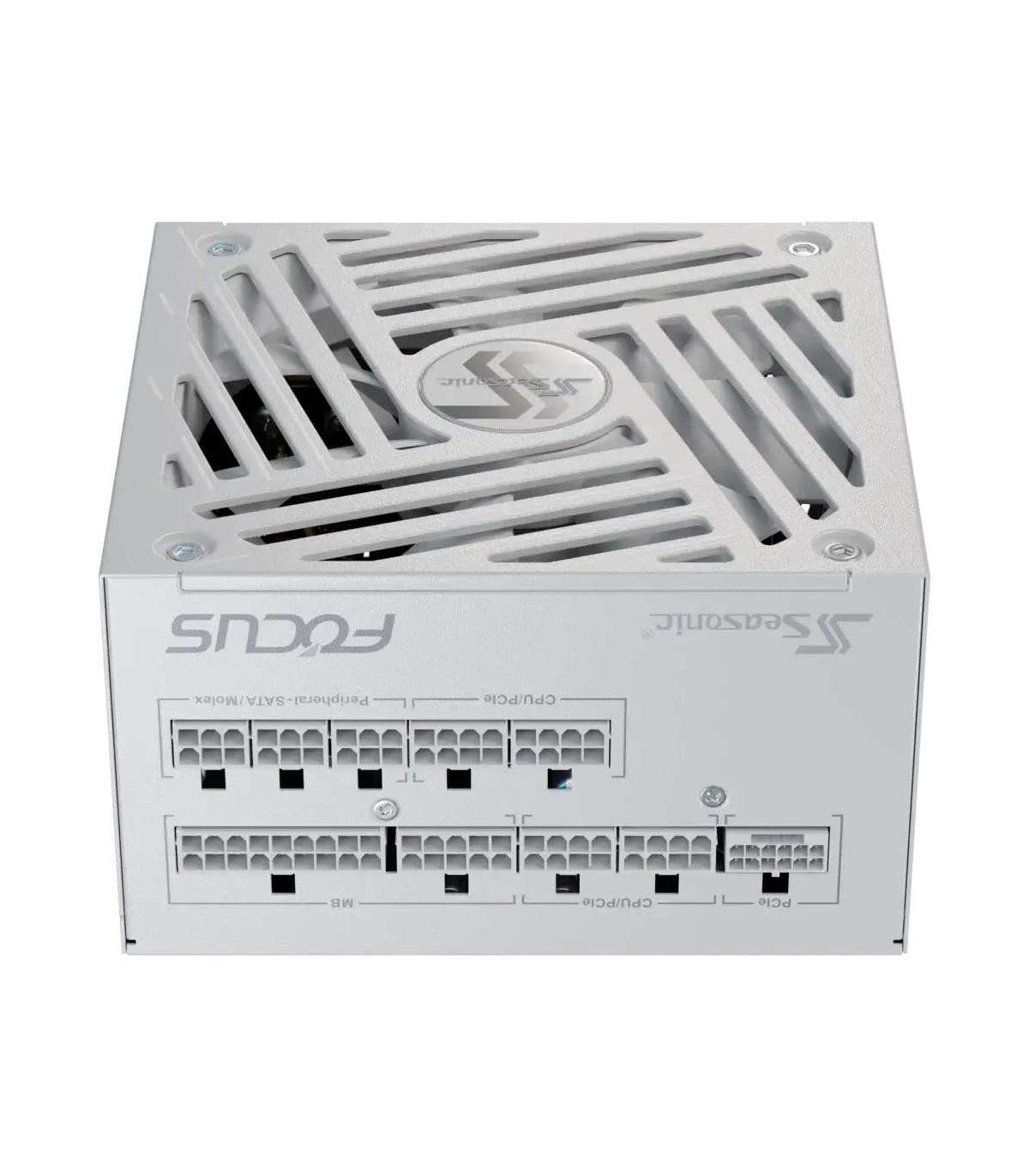

Seasonic Focus GX power supply unit 750 W

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

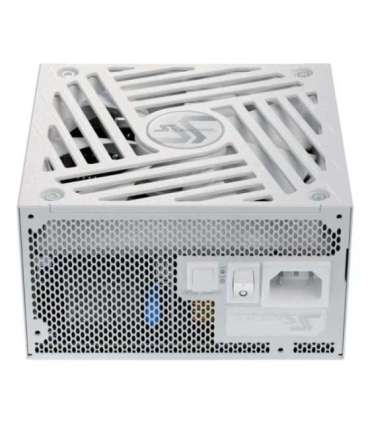

On/off switch

Yes

Product colour

White

Operating temperature (T-T)

0 - 50 °C

Compliance certificates

BSMI
CB
CCC
CE
EAC
Federal Communications Commission (FCC)
REACH
RoHS
TÜV mark
cTUVus

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR
ErP

Certification

BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

10 - 5 A

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Silent mode

Yes

Purpose

PC

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

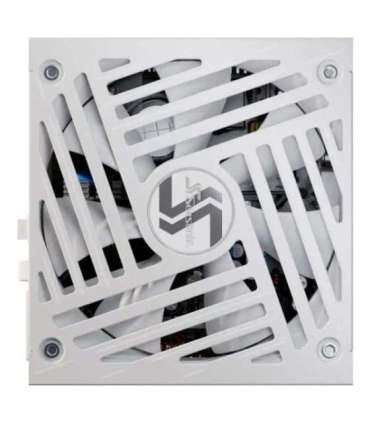

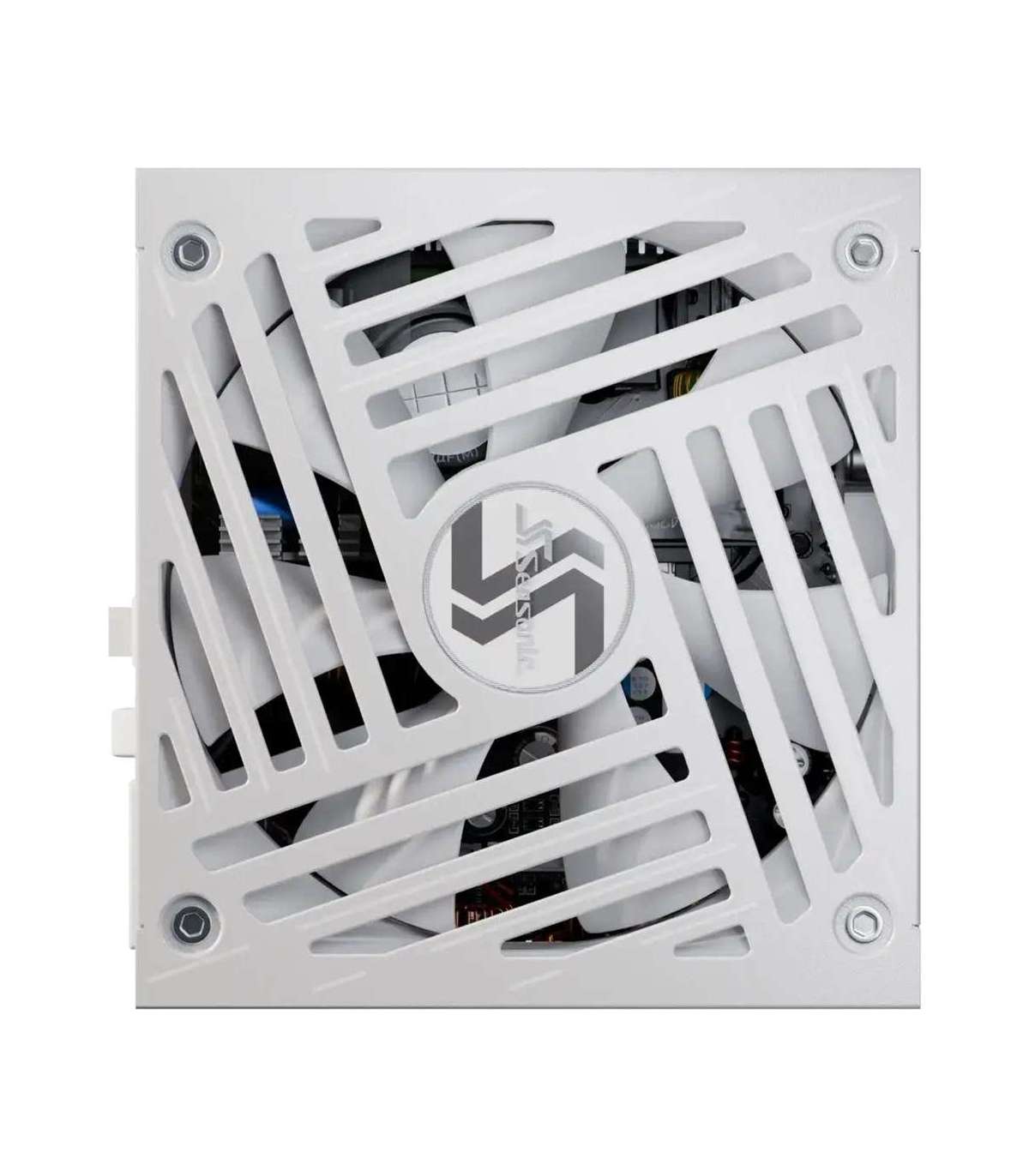

Number of fans

1 fan(s)

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Gold

Total power

750 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

FDB

Combined power (-12V)

3.6 W

Max output current (+12V)

62 A

Combined power (+3.3V)

100 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

100 W

Combined power (+12V)

744 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

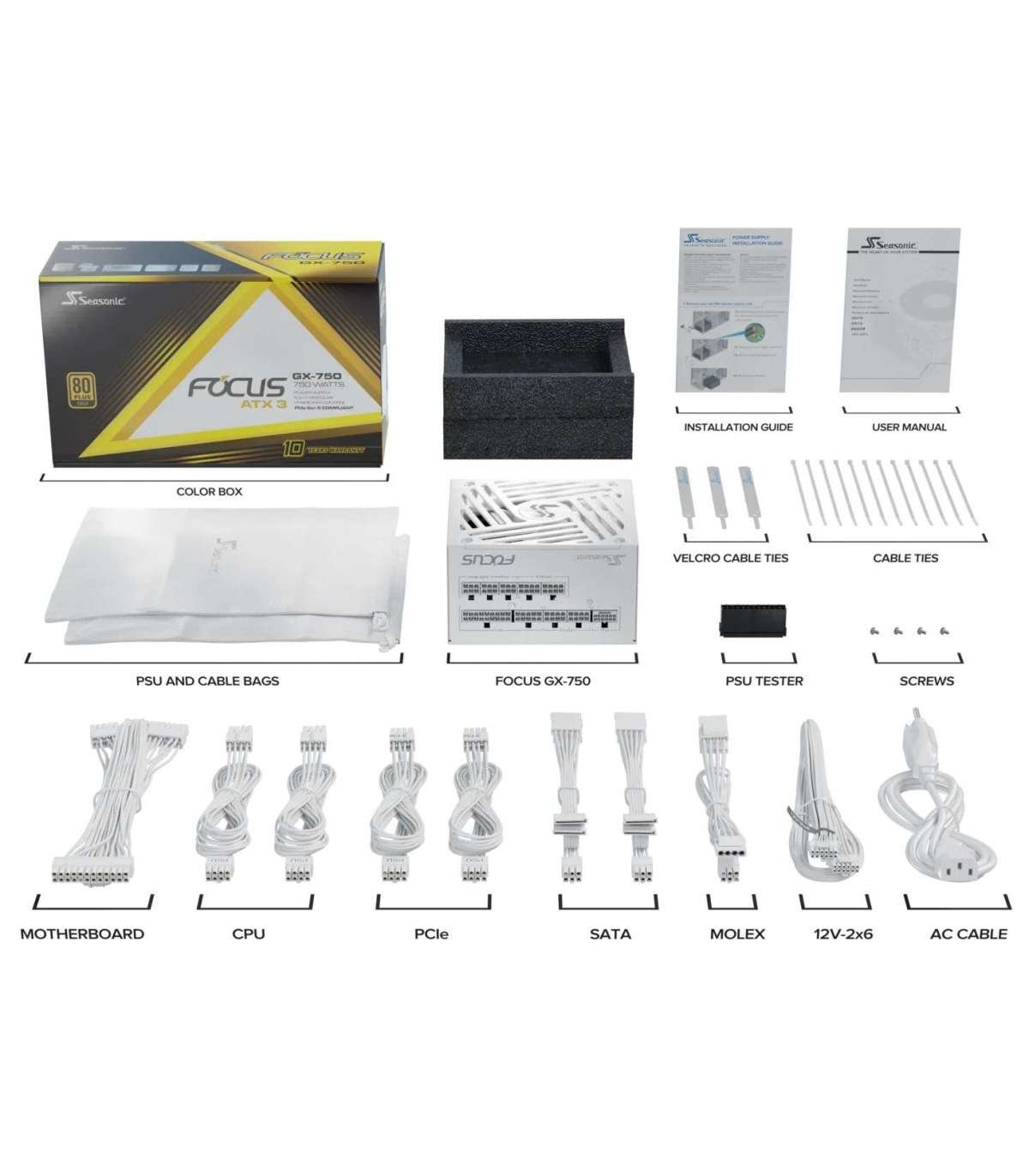

Cable tie(s) included

Yes

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

24-pin ATX

SATA power cable length

950 mm

Peripheral (Molex) power cable length

690 mm

CPU power cable length

70 cm

CPU power connector (4+4 pin)

Yes

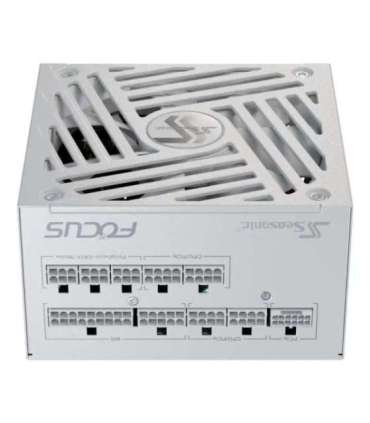

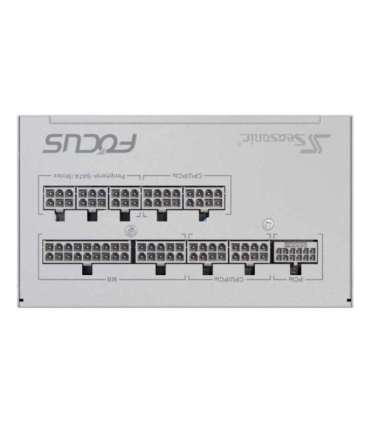

Cabling type

Fully-Modular

Motherboard power cable length

61 cm

PCI Express power cable length

75 cm

PCI Express connector

Yes

PCI Express power connectors (12+4 pin) cable length

700 mm
