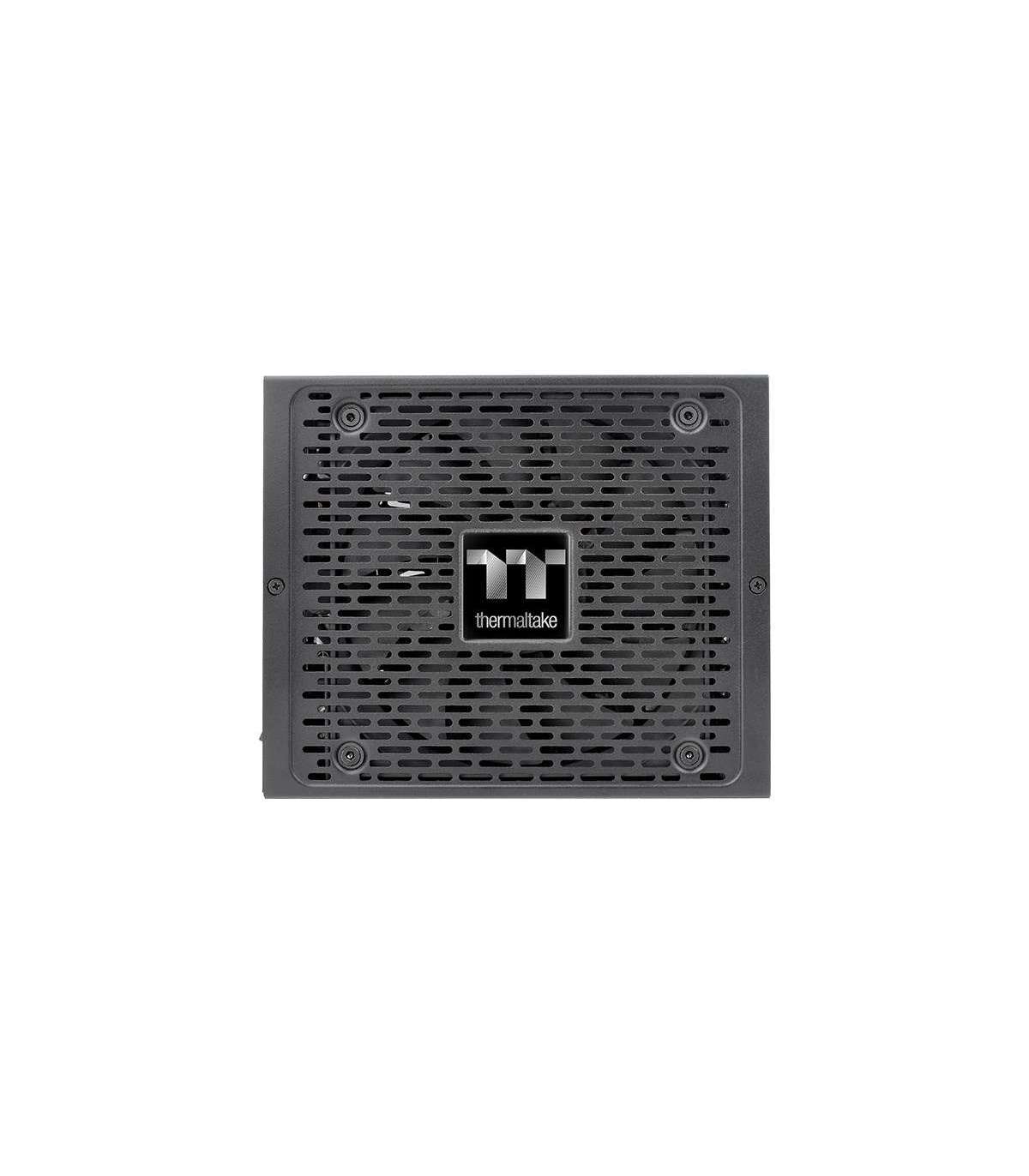

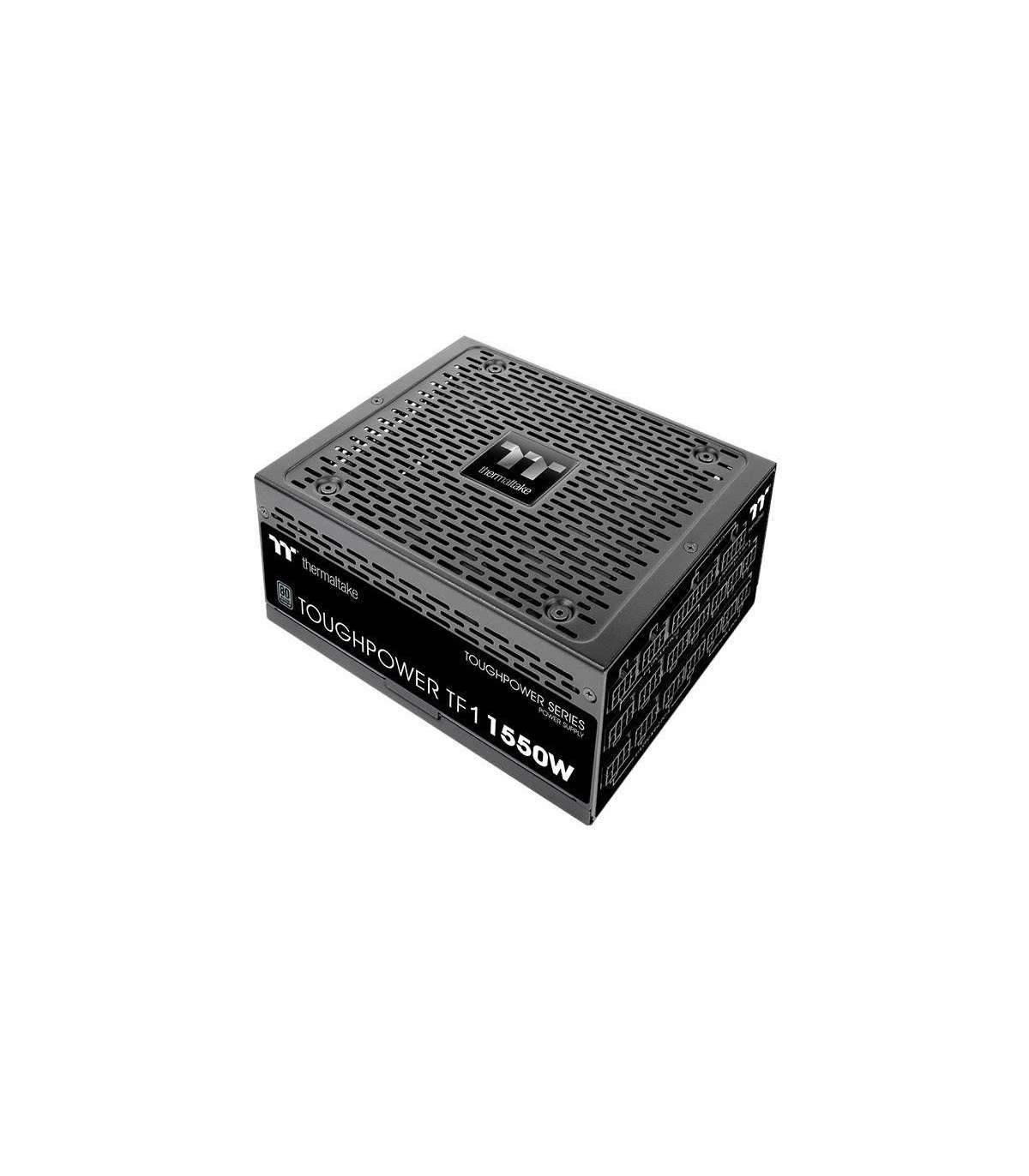

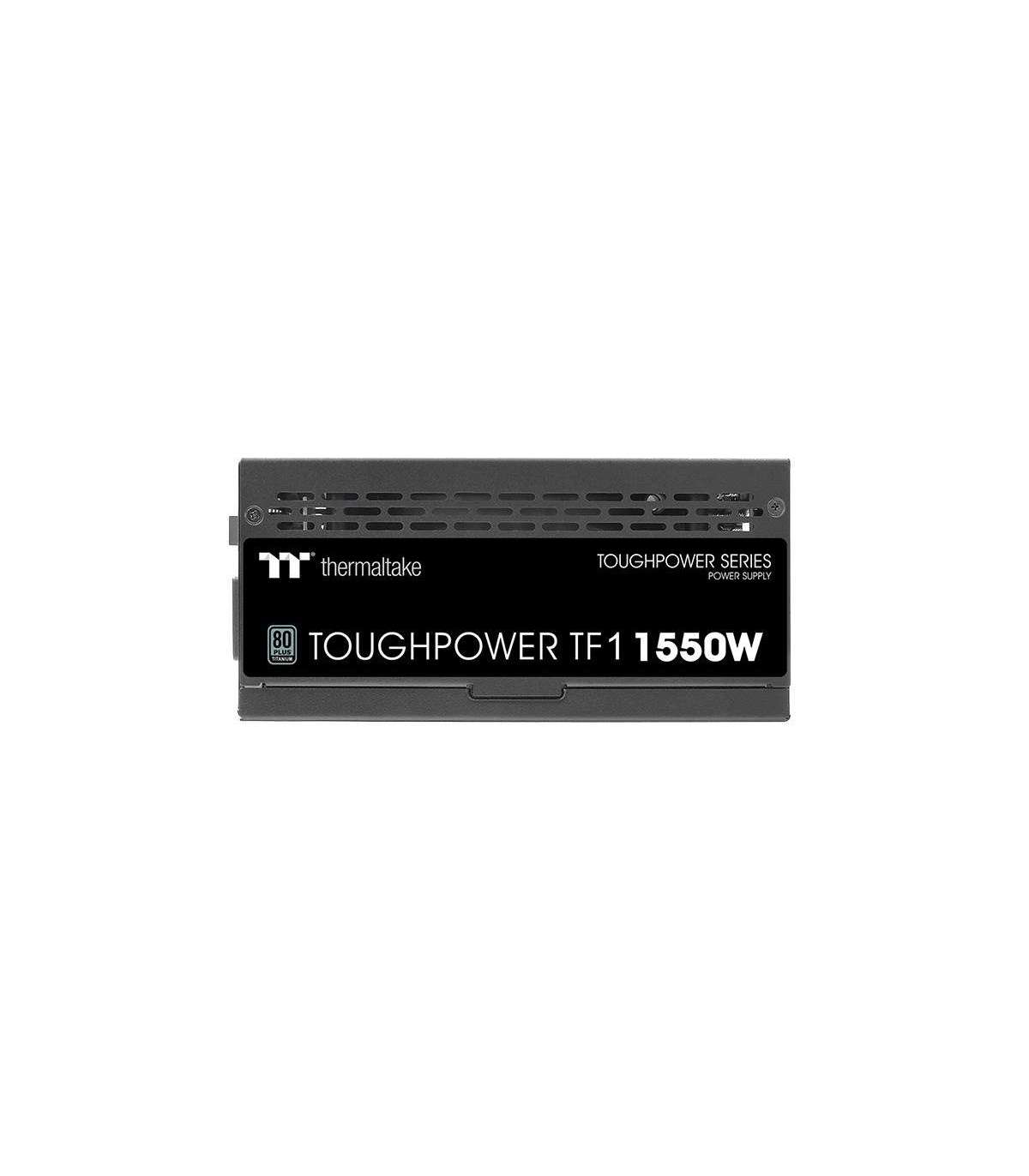

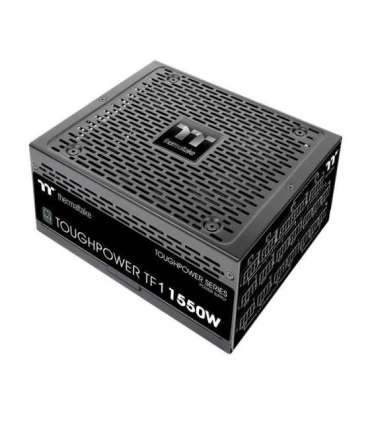

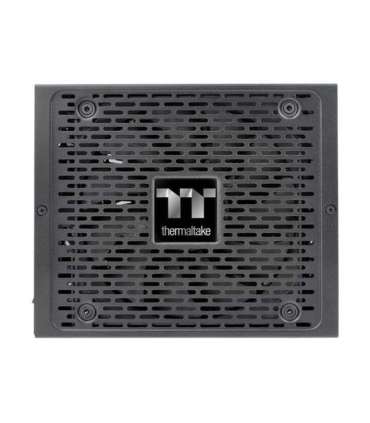

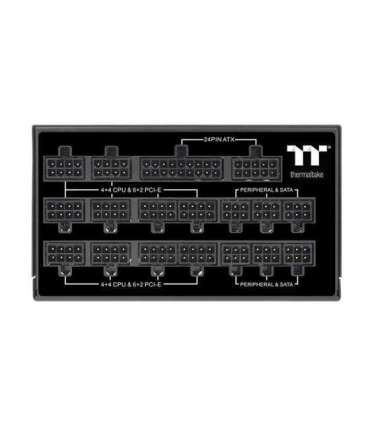

Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black

Характеристики

Depth

180 mm

Weight

2.4 kg

Height

86 mm

Width

150 mm

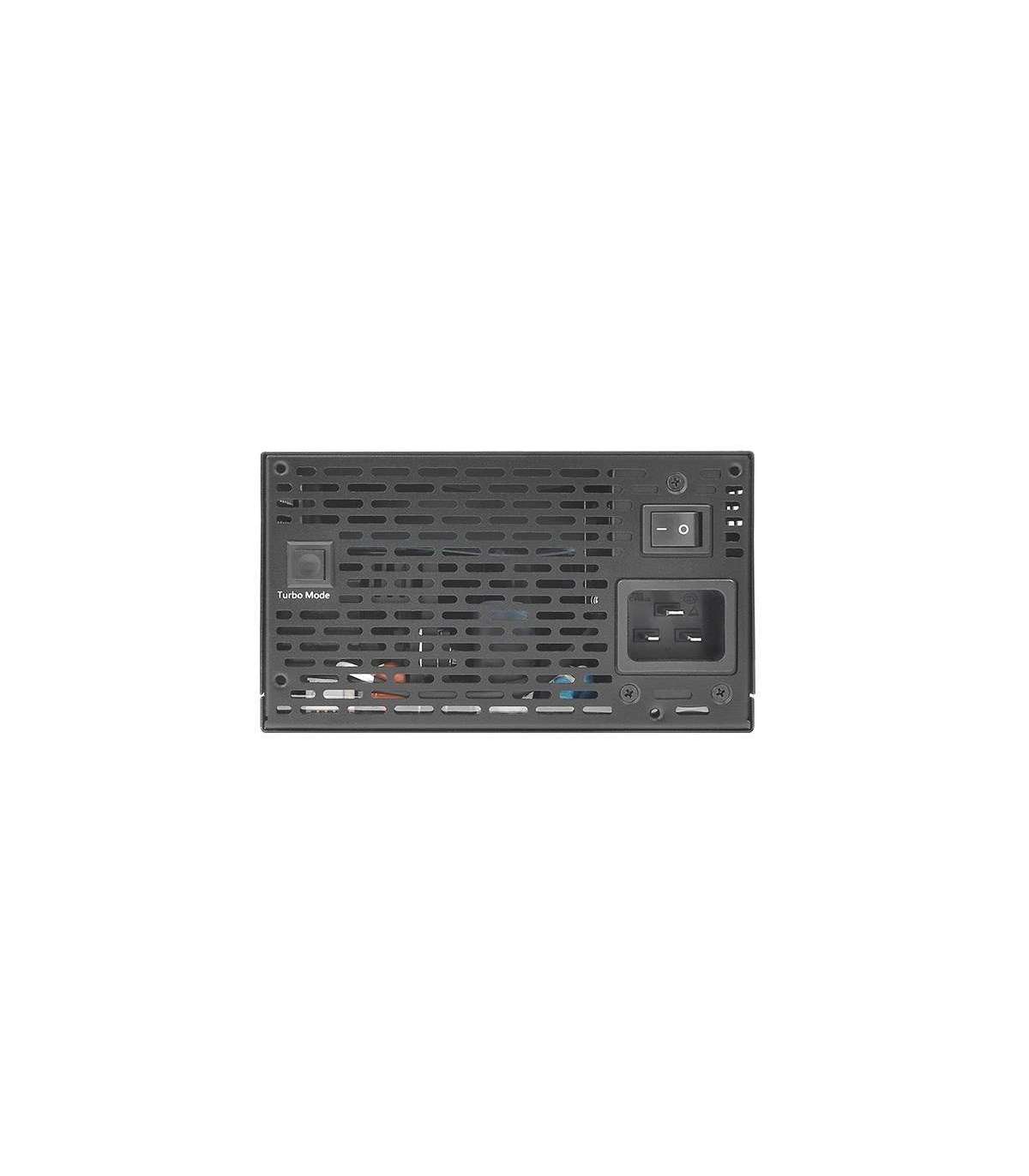

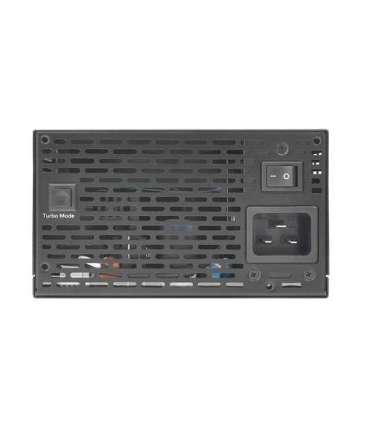

On/off switch

Yes

Product colour

Black

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

5 - 95%

Harmonized System (HS) code

84733020

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

18 A

Mean time between failures (MTBF)

120000 h

Peripheral (Molex) power connectors (4-pin)

2

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

14 cm

Peak power

1860 W

80 PLUS certification

80 PLUS Platinum

Total power

1550 W

Power Factor Correction (PFC) type

Active

Supported motherboard form factors

ATX

Fan location

Top

Combined power (-12V)

6 W

Max output current (+12V)

129.16 A

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Combined power (+5V)

120 W

Hold time

16 ms

Combined power (+12V)

1549.92 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.5 A

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

4

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

24-pin ATX

SATA power cable length

150
500 mm

Peripheral (Molex) power cable length

150
500 mm

CPU power cable length

7 m

CPU power connector (4+4 pin)

Yes

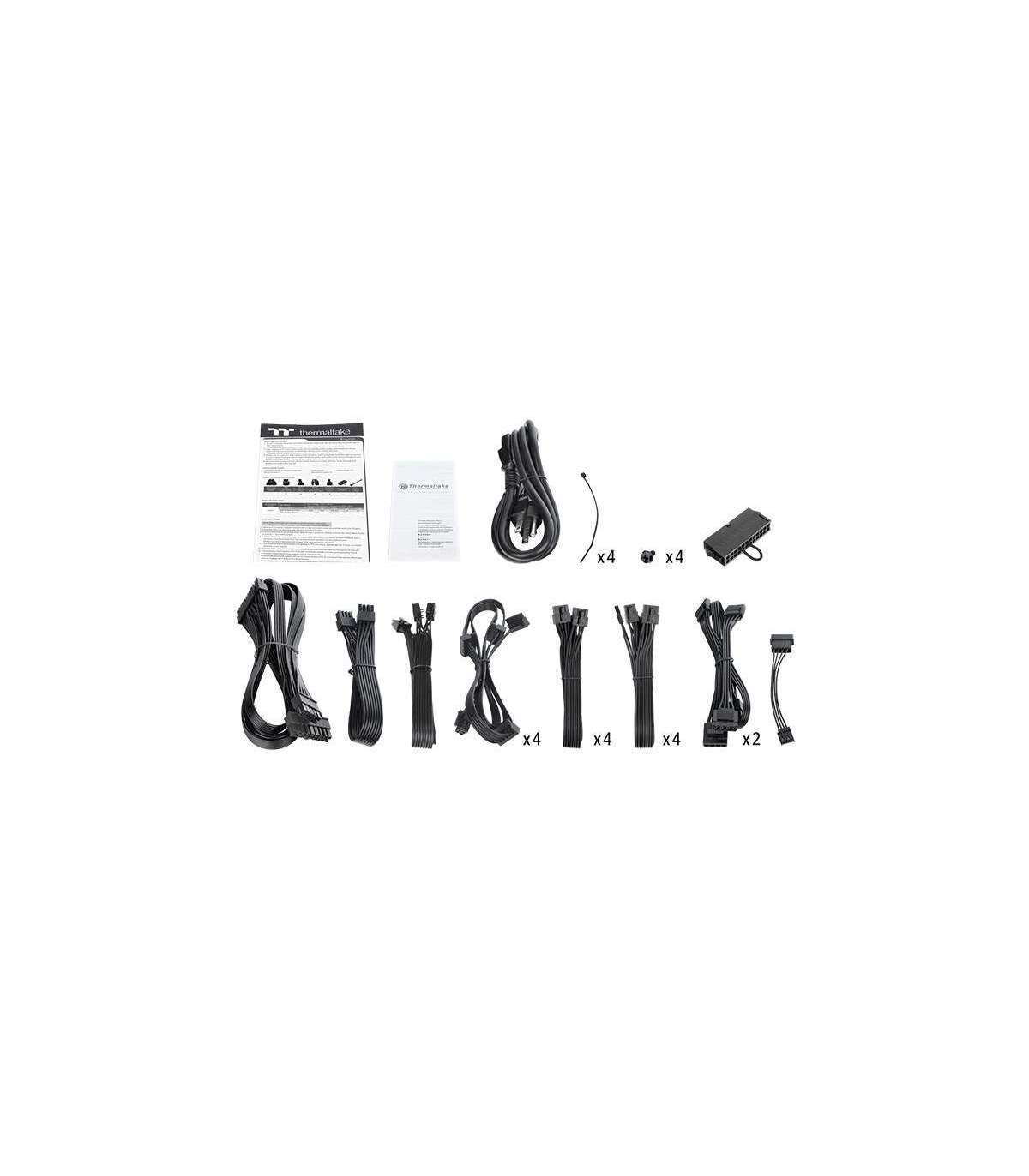

Cabling type

Fully-Modular

Motherboard power cable length

60 cm

PCI Express power cable length

50 cm

PCI Express power connectors (8-pin)

4

Floppy disk drive connector

Yes

Floppy disk drive cable length

15 cm
