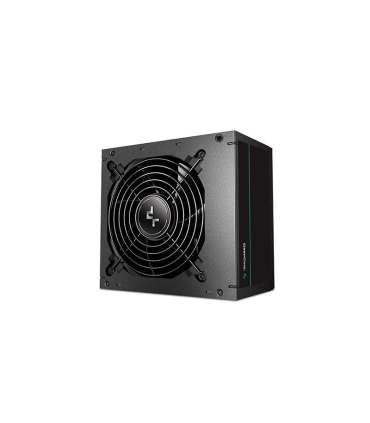

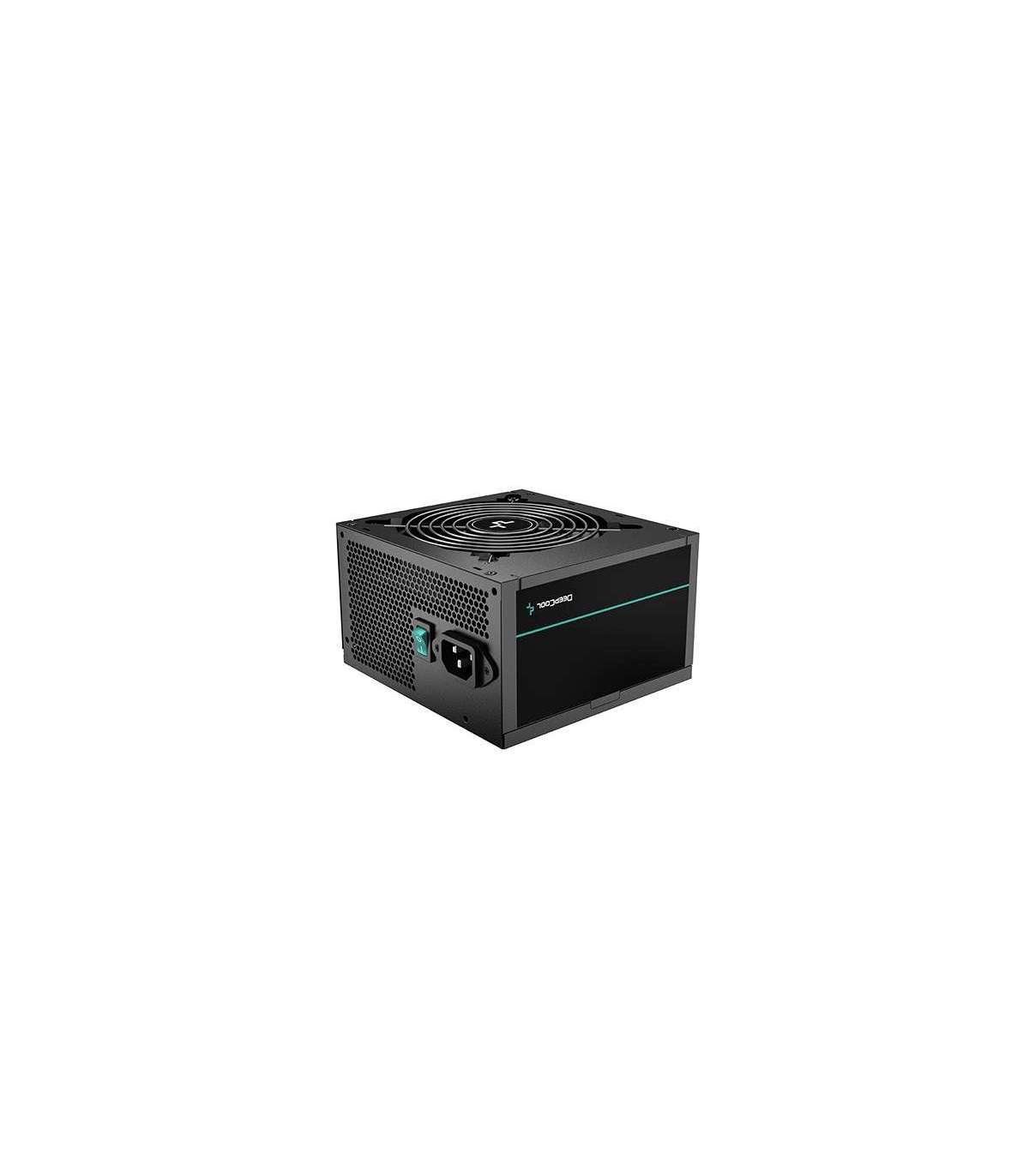

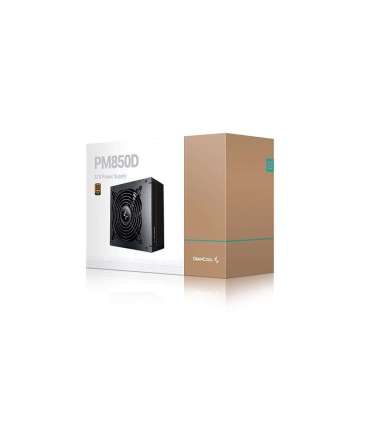

DeepCool PM850D power supply unit 850 W 20+4 pin ATX ATX Black

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Cables included

AC

Harmonized System (HS) code

84733020

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

10 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Efficiency

90%

Purpose

PC

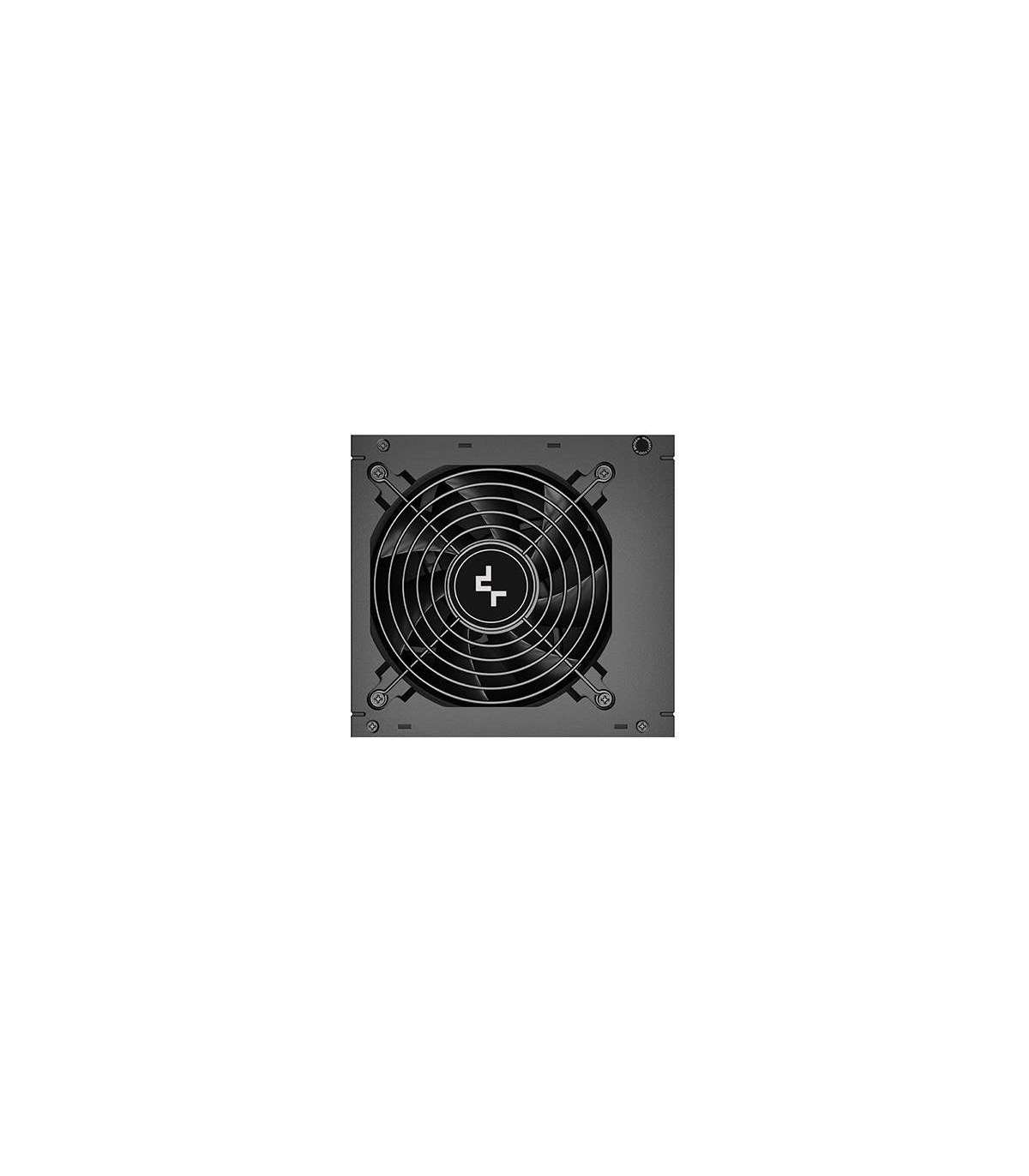

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

850 W

Power protection features

Over current
Over power
Over voltage
Short circuit

Bearing technology

Hypro Bearing

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Max output current (+12V)

70.5 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Hold time

16 ms

Combined power (+12V)

846 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

2

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

EPS power connector (4+4 pin)

Yes
