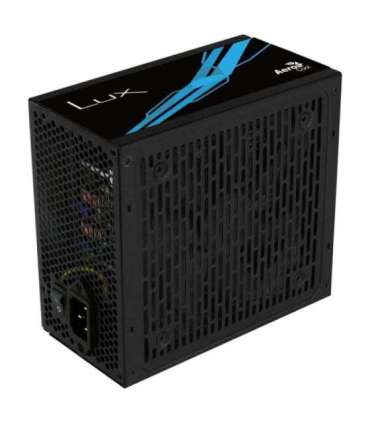

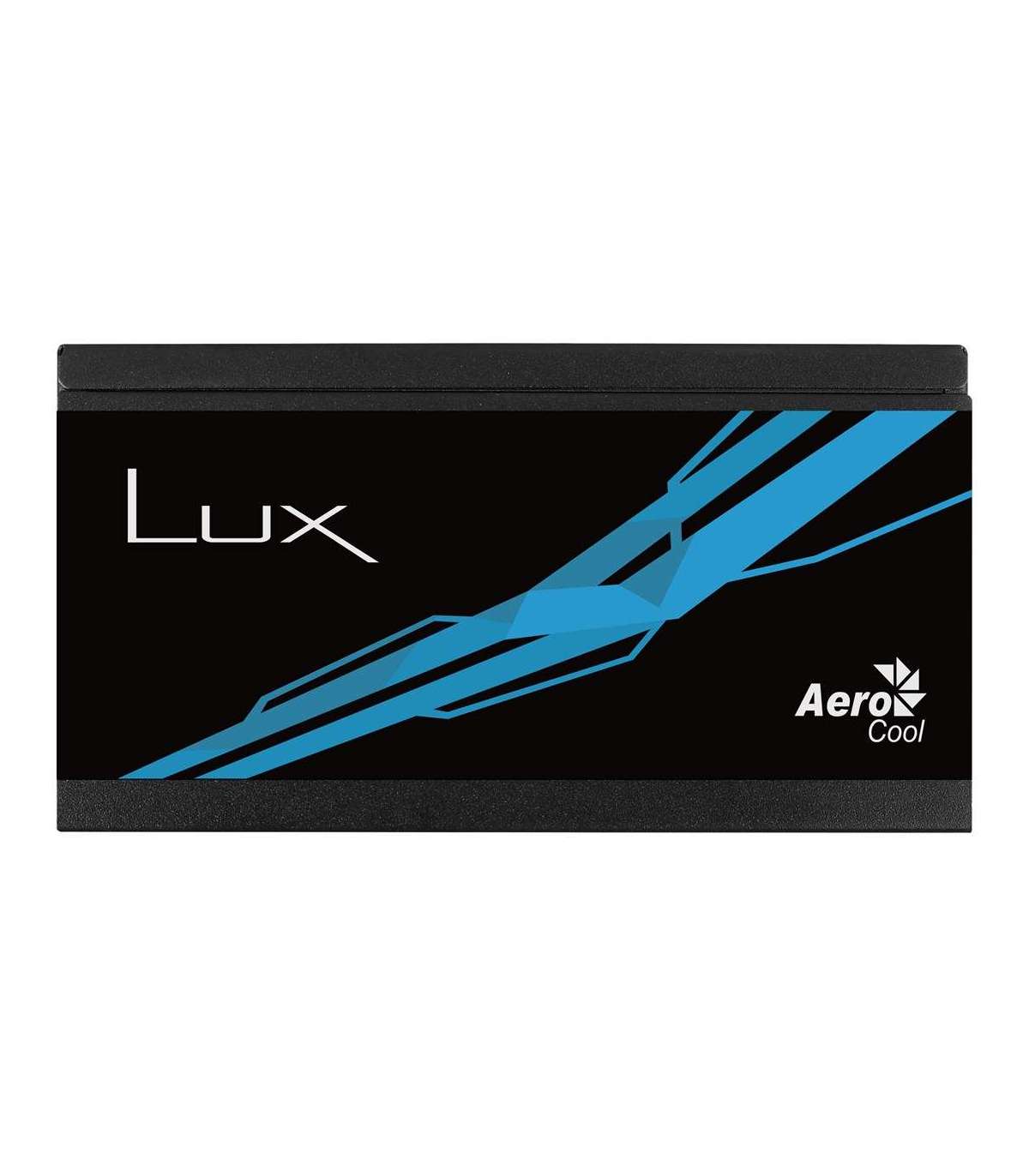

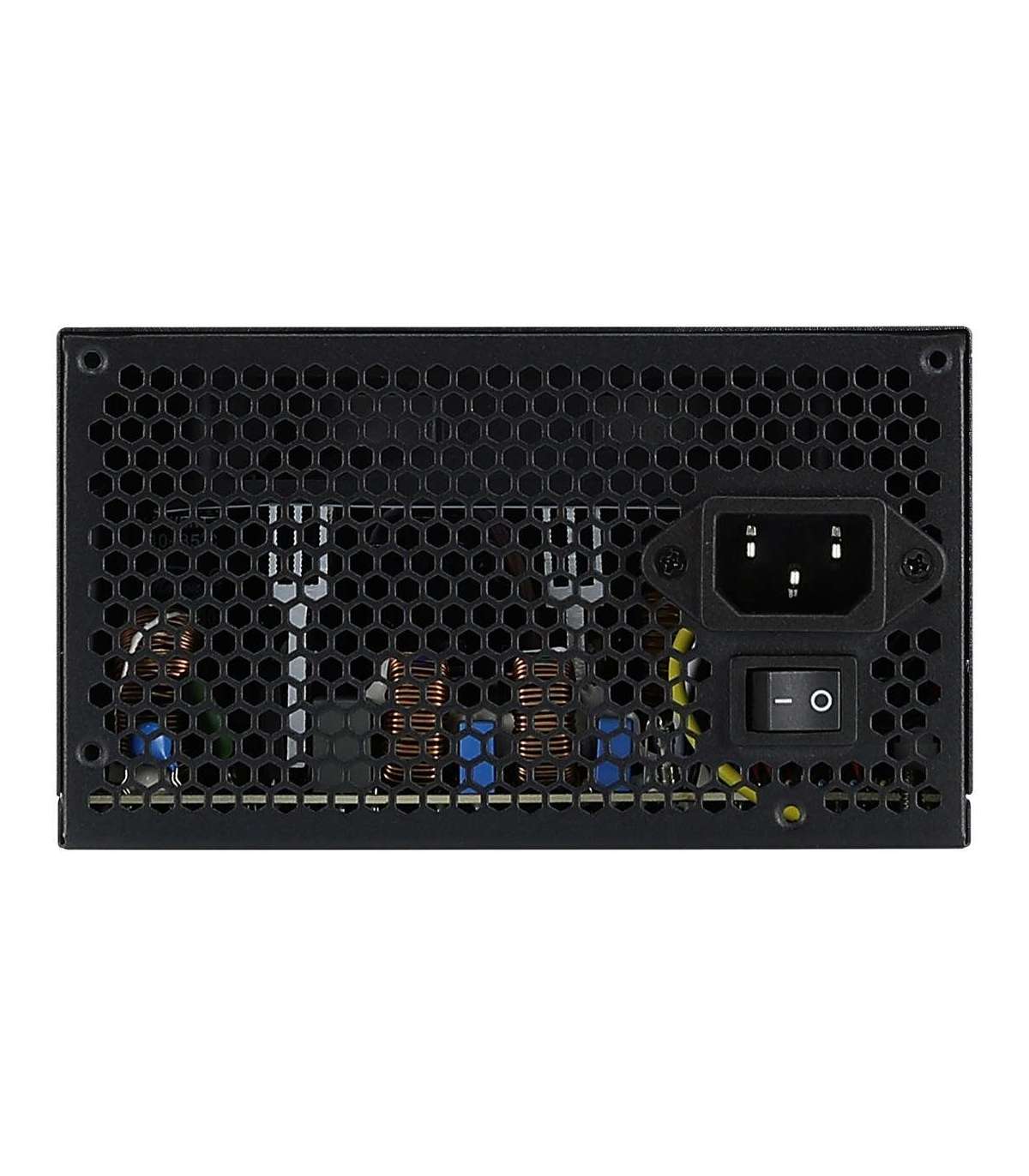

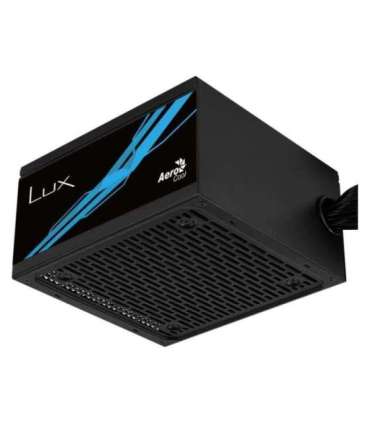

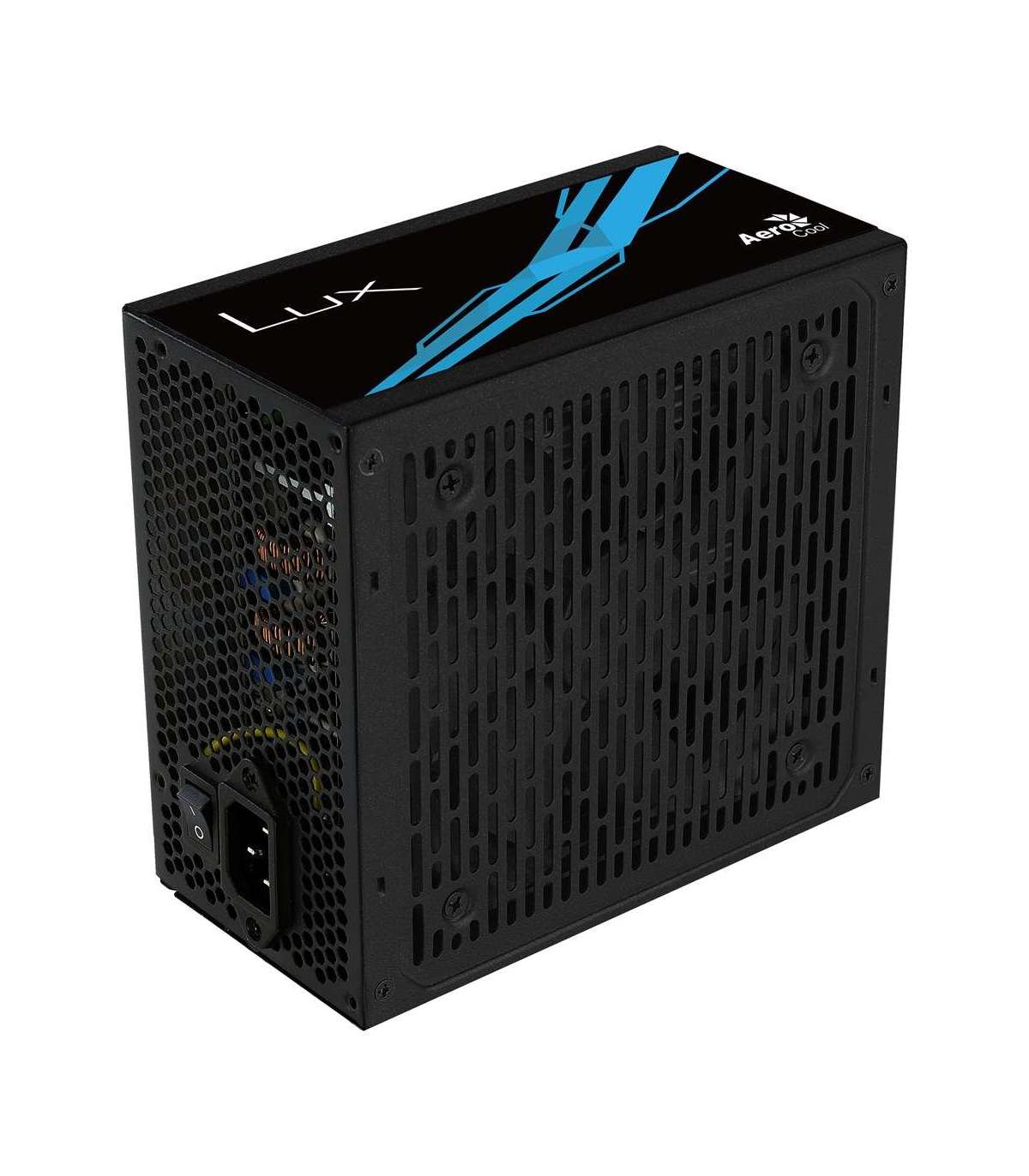

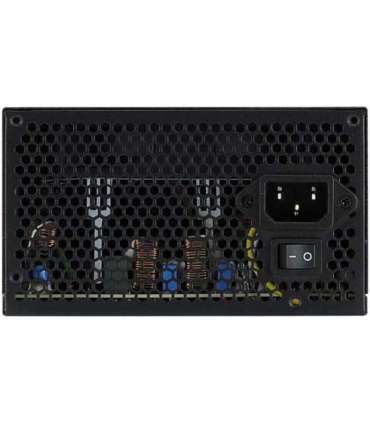

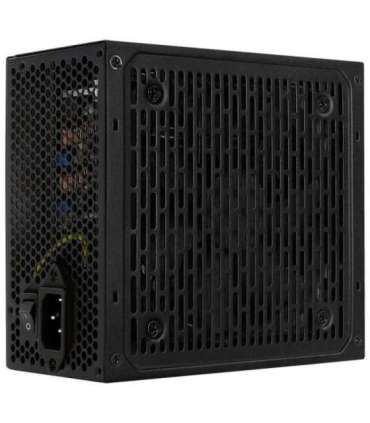

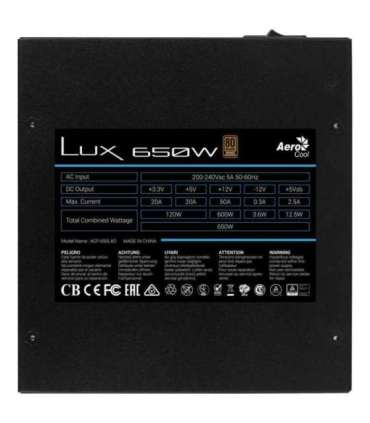

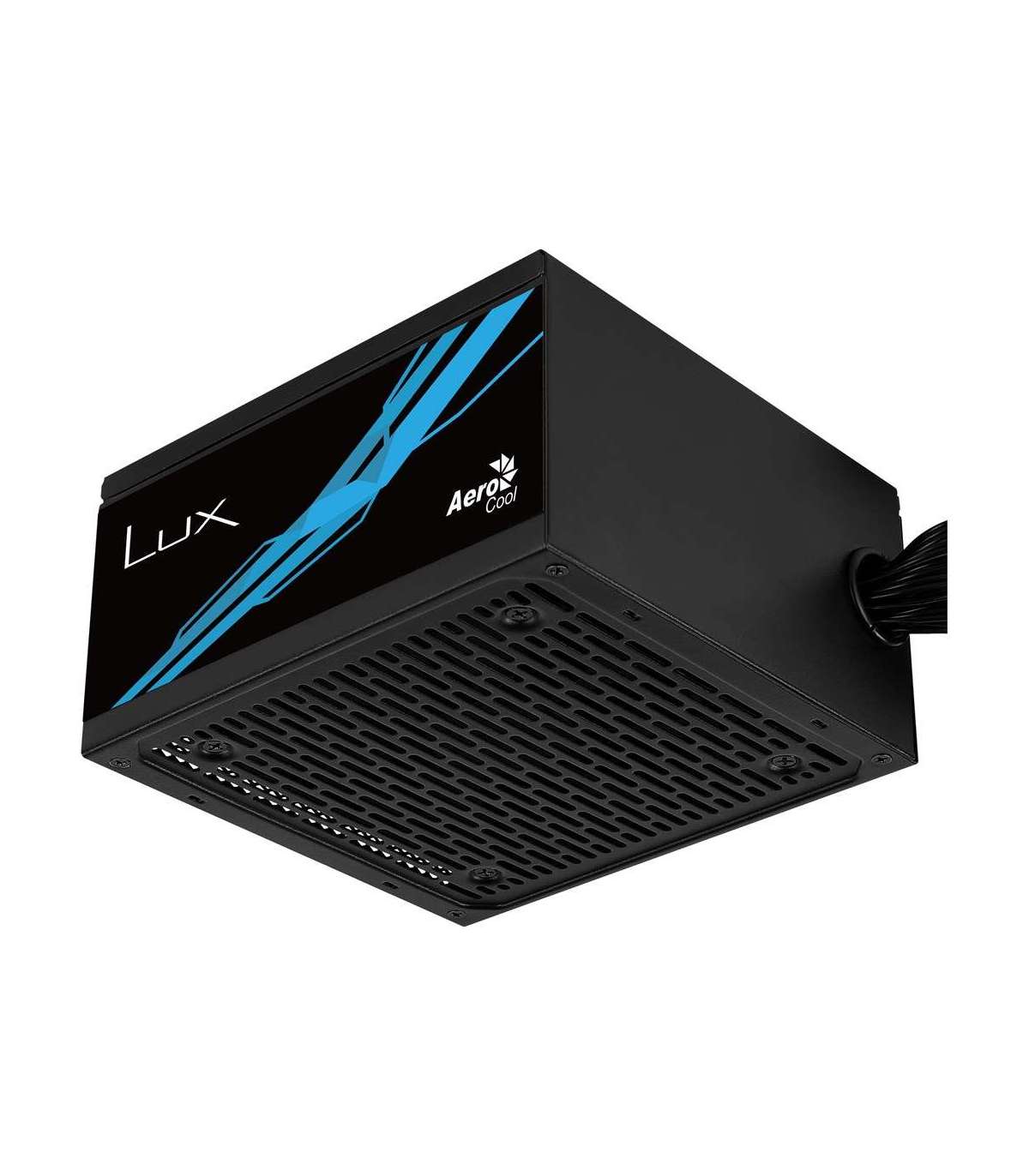

Aerocool LUX 650W power supply unit 20+4 pin ATX ATX Black

Характеристики

Product colour

Black

Cables included

AC

Package width

230 mm

Package depth

195 mm

Package height

95 mm

Manual

Yes

AC input frequency

50/60 Hz

AC input voltage

220 - 240 V

Input current

5 A

Package type

Box

Master (outer) case height

215 mm

Master (outer) case width

250 mm

Master (outer) case length

495 mm

Cooling type

Active

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

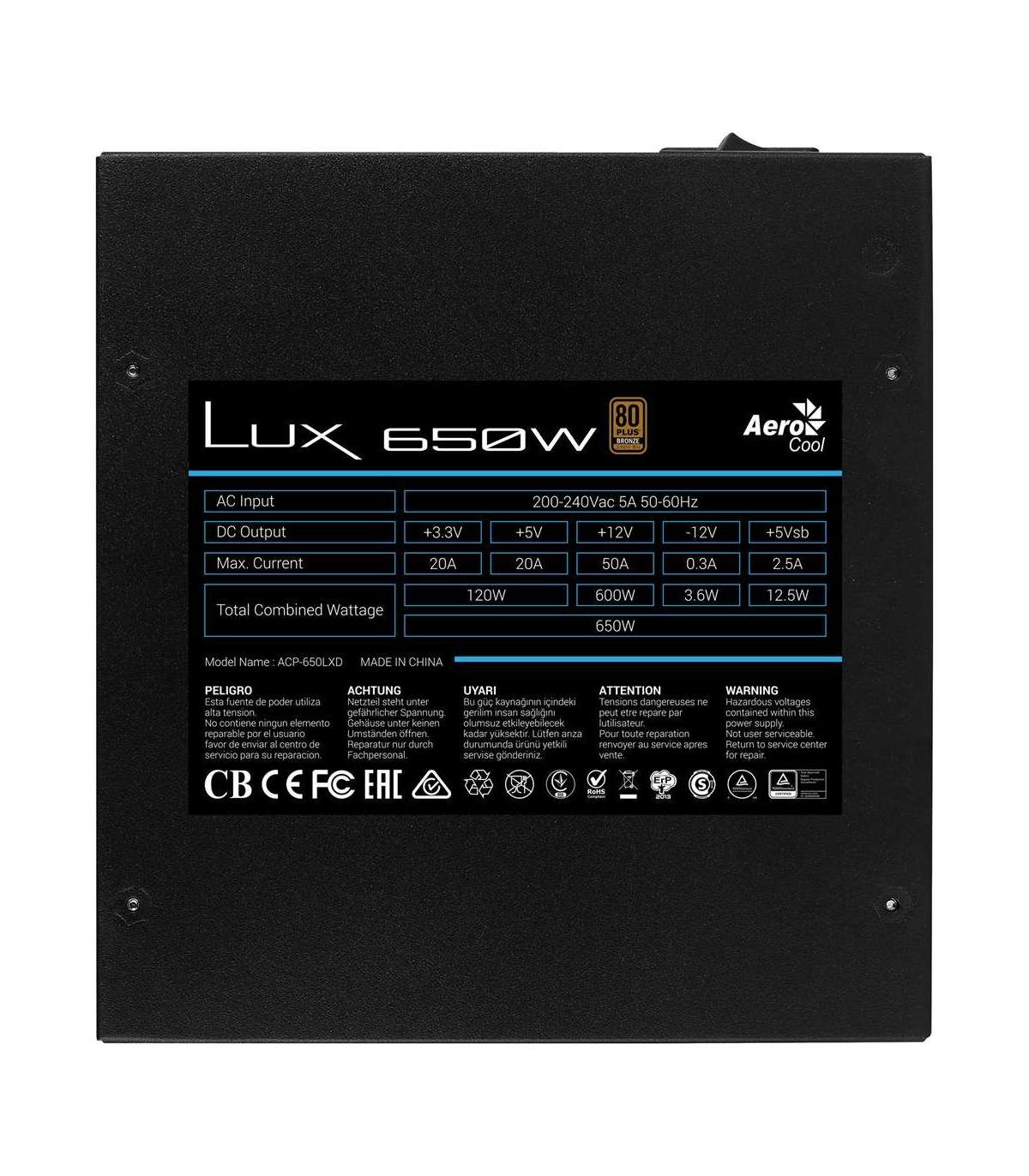

Total power

650 W

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Max output current (+12V)

50 A

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Combined power (+5V)

120 W

Combined power (+12V)

600 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

5

PCI Express power connectors (6+2 pin)

1

Motherboard power connector

20+4 pin ATX

SATA power cable length

550
700
850 mm

CPU power cable length

55 cm

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

50 cm

PCI Express power cable length

45 cm

Power factor

0.9

PCI Express connector

Yes

Number of PATA power connectors

3
