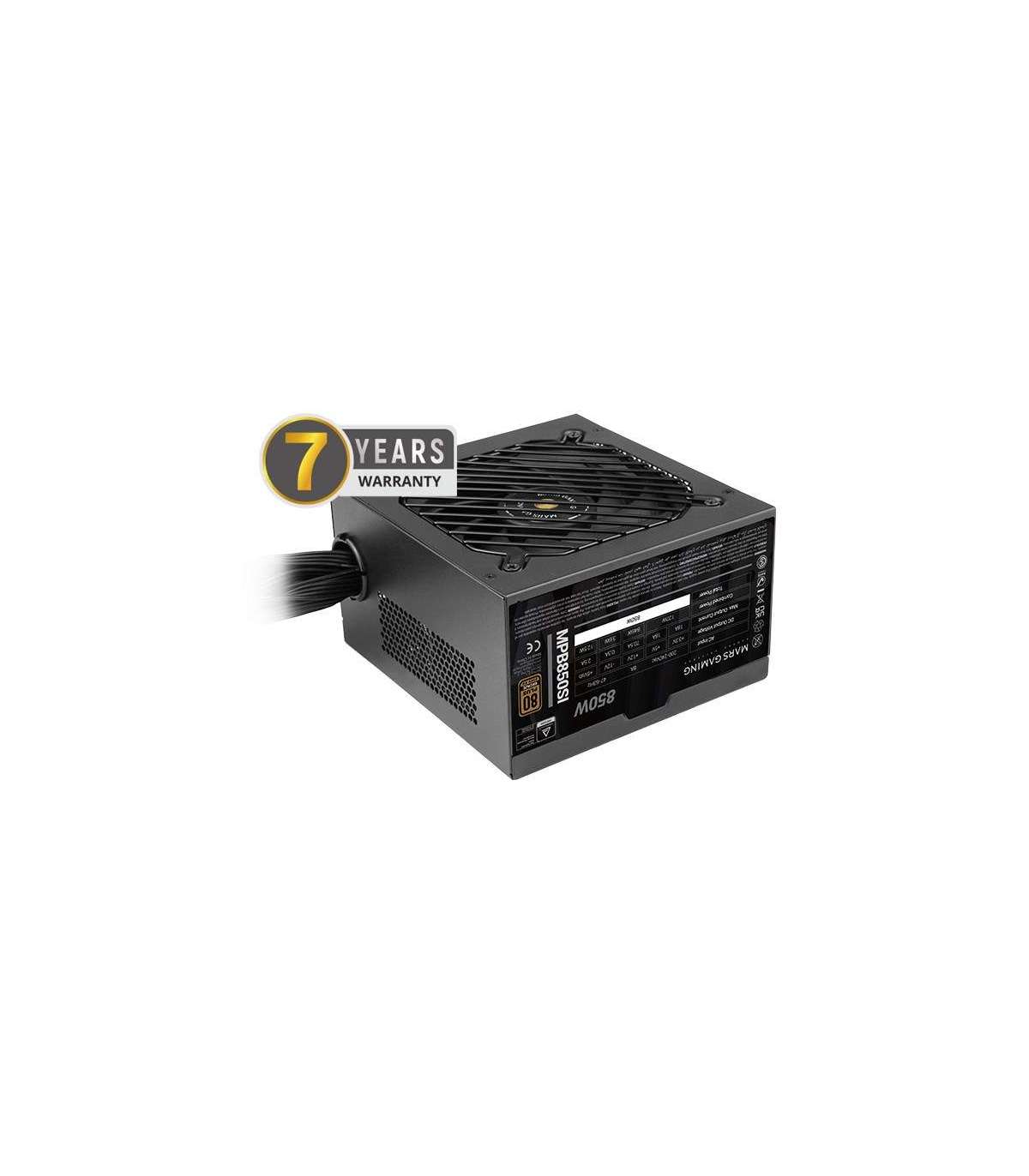

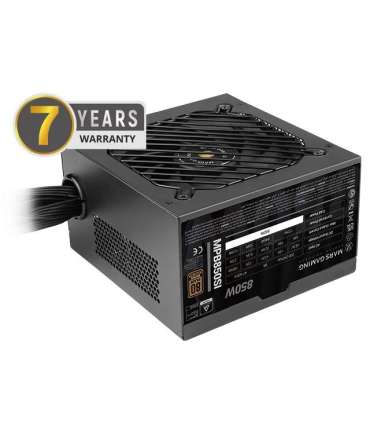

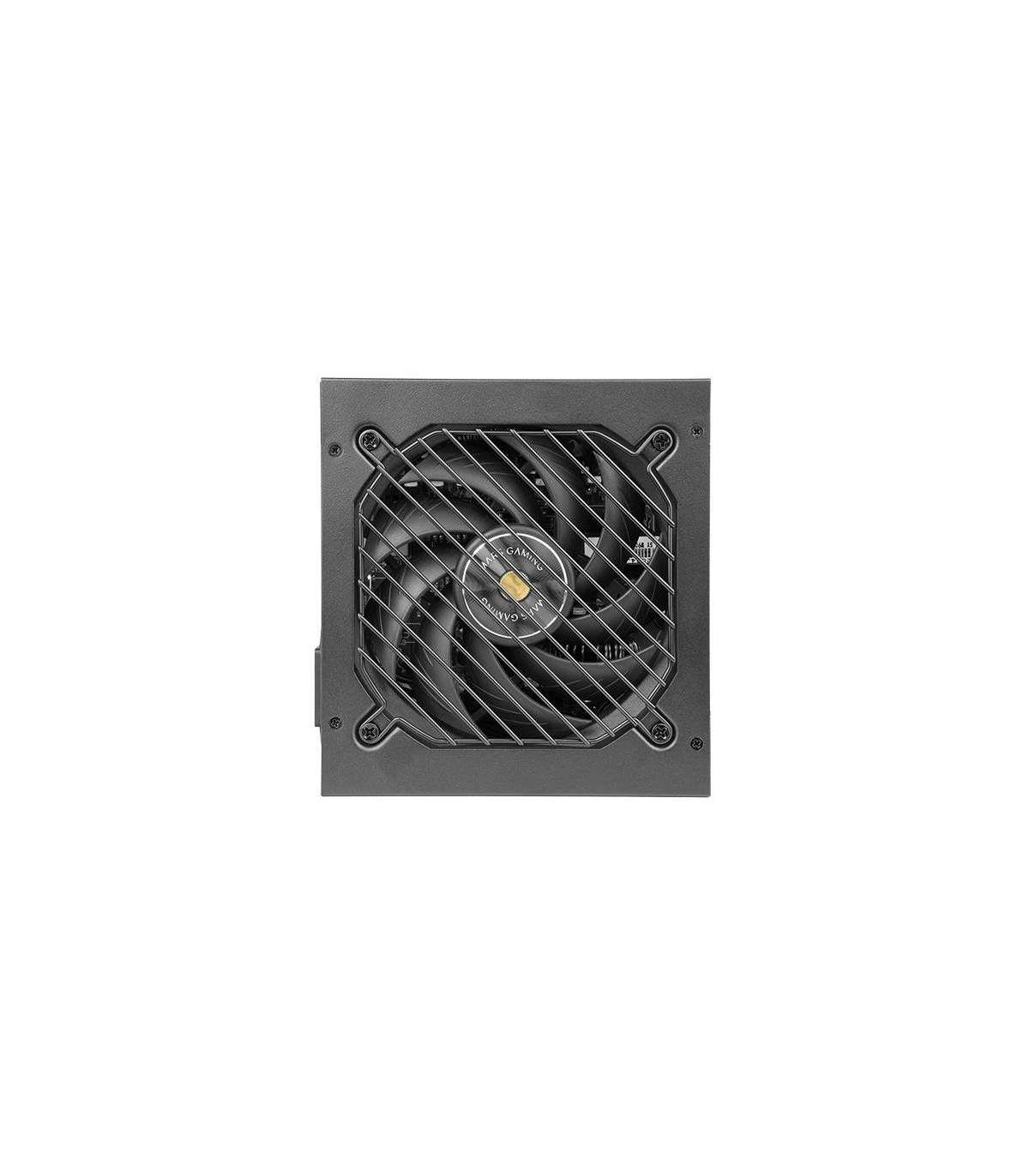

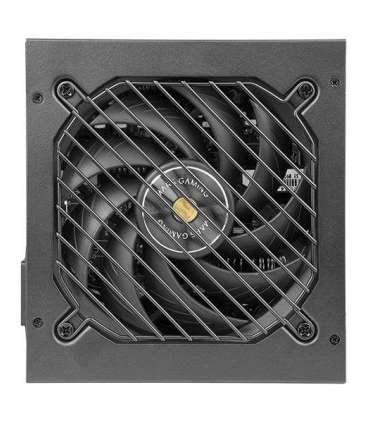

Mars Gaming MPB850SI power supply unit 850 W 24-pin ATX ATX Black

Характеристики

Depth

145 mm

Weight

1.6 kg

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Package width

238 mm

Package depth

125 mm

Package height

205 mm

Compliance certificates

CE
WEEE

AC input frequency

47 - 63 Hz

AC input voltage

200 - 240 V

Input current

8 A

Package type

Box

ATX Power connector (24-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

850 W

Power protection features

Overcharge
Over power
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

70.5 A

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

18 A

Max output current (+3.3V)

18 A

Combined power (+5V)

120 W

Combined power (+12V)

846 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

24-pin ATX

Cabling type

Non-Modular

EPS power connector (4+4 pin)

Yes

Power factor

0.9
