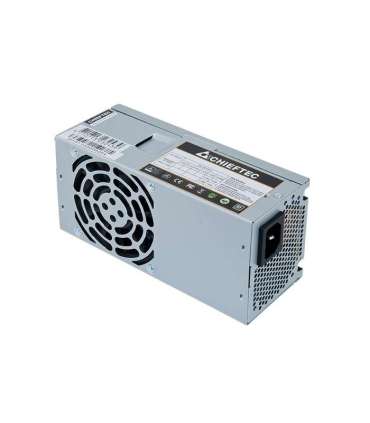

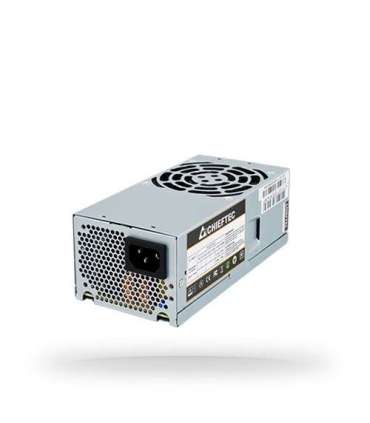

Chieftec GPF-350P power supply unit 350 W 20+4 pin ATX TFX Silver

Характеристики

Depth

175 mm

Height

65 mm

Width

86 mm

On/off switch

No

Product colour

Silver

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Sustainability certificates

RoHS

Certification

CE, CB, TUV

AC input frequency

47 - 63 Hz

AC input voltage

115 - 230 V

Input current

6.3 A

Peripheral (Molex) power connectors (4-pin)

2

Efficiency

85%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

8 cm

Total power

350 W

Power protection features

Overload
Over voltage
Short circuit

Bearing technology

Sleeve

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+3.3V)

100 W

Combined power (+5Vsb)

10 W

Max output current (+5V)

16 A

Max output current (+3.3V)

16 A

Combined power (+5V)

100 W

Combined power (+12V)

300 W

Max output current (+5Vsb)

2 A

Max output current (-12V)

0.3 A

ATX version

2.3

Power supply unit (PSU) form factor

TFX

Number of SATA power connectors

2

Motherboard power connector

20+4 pin ATX

Cabling type

Non-Modular

Power factor

0.9

Floppy disk drive connector

Yes

Max output current (+12V2)

15 A

Max output current (+12V1)

15 A

CPU P4 connector (4-pin)

1
