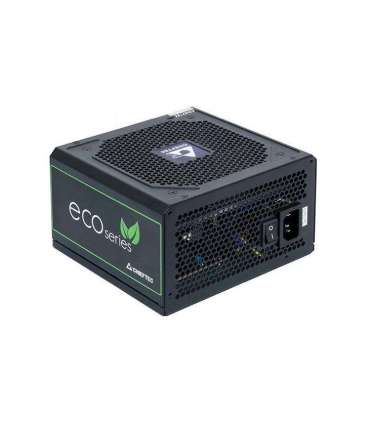

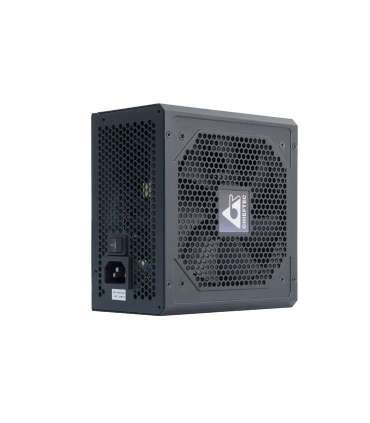

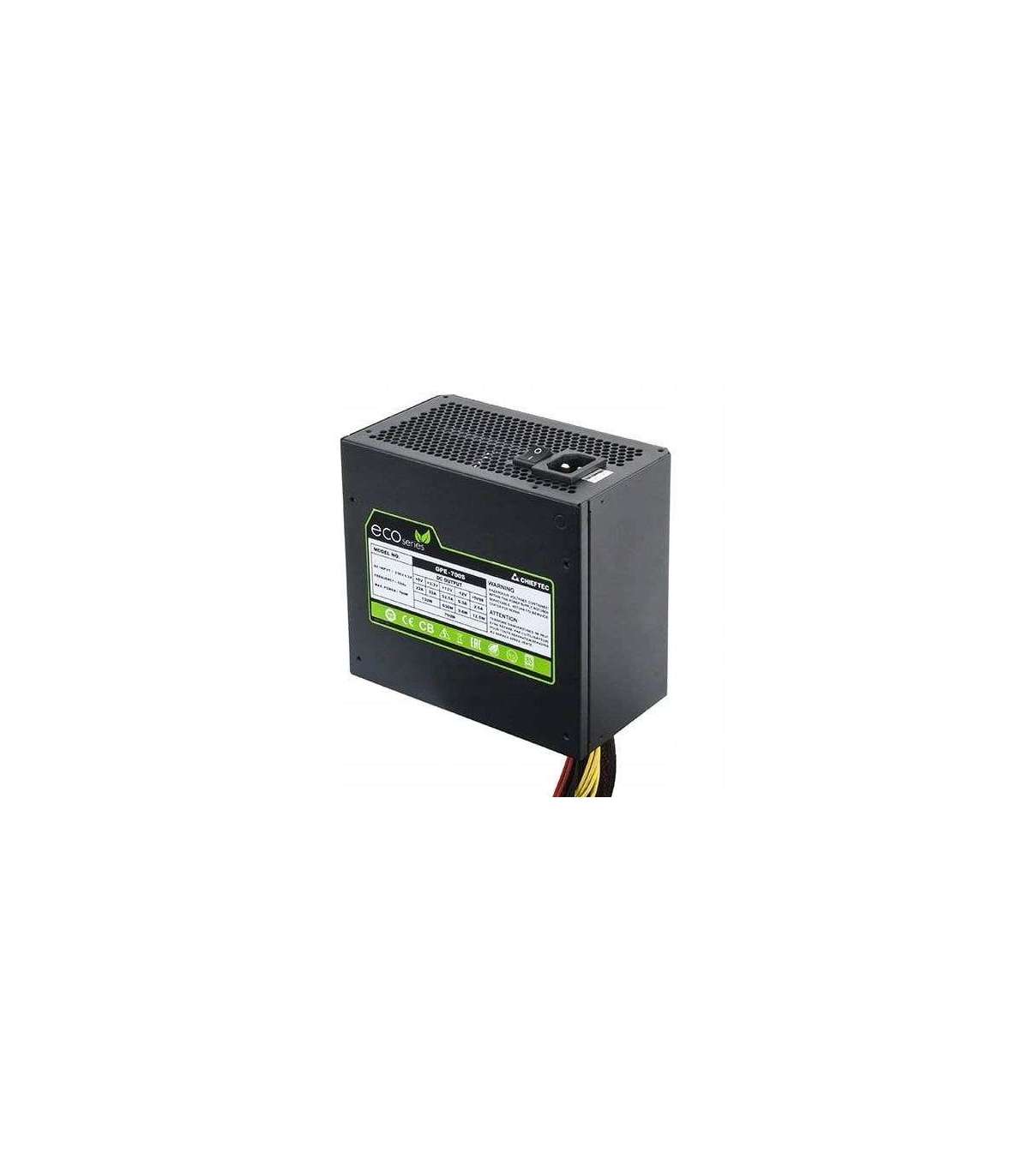

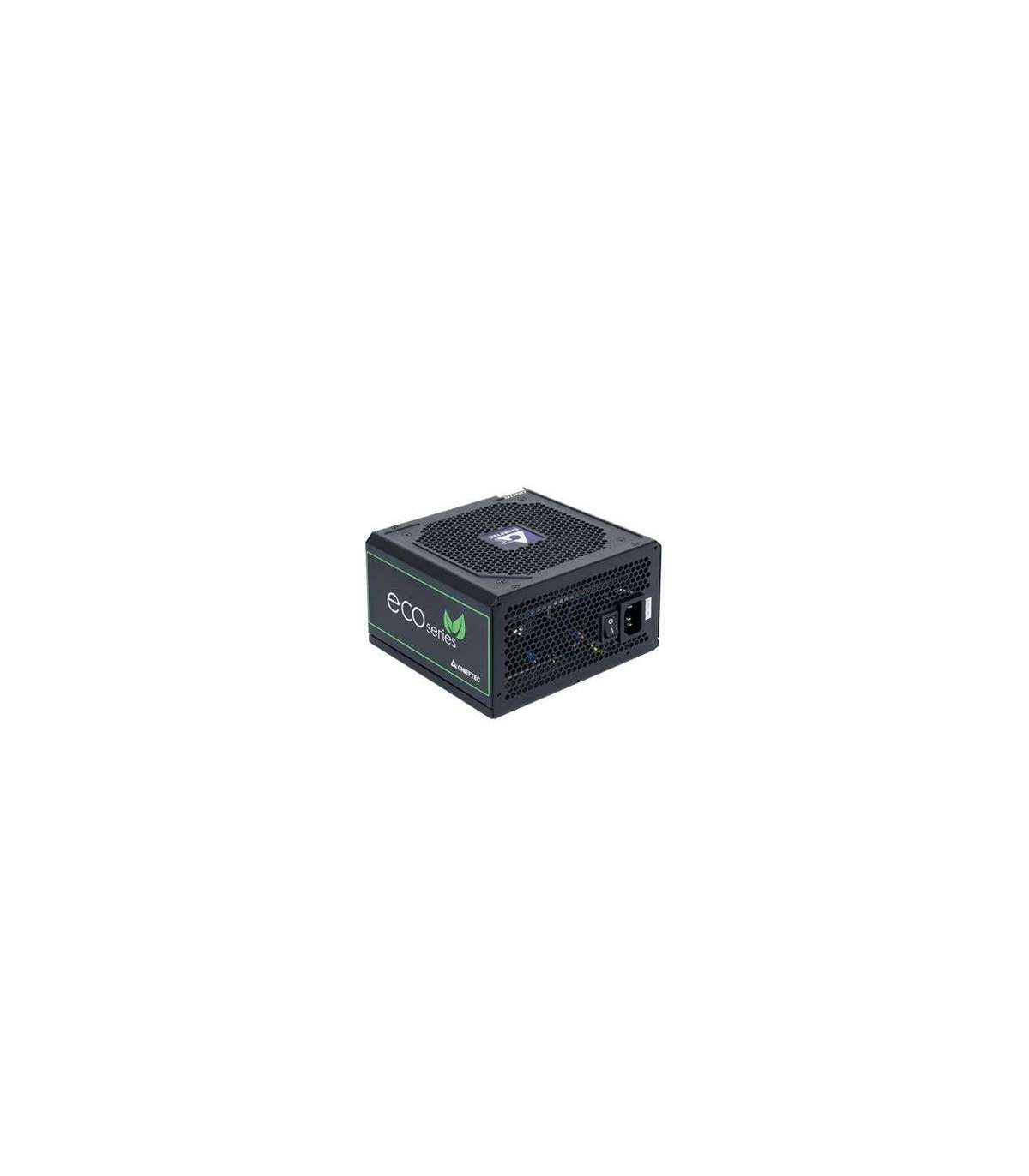

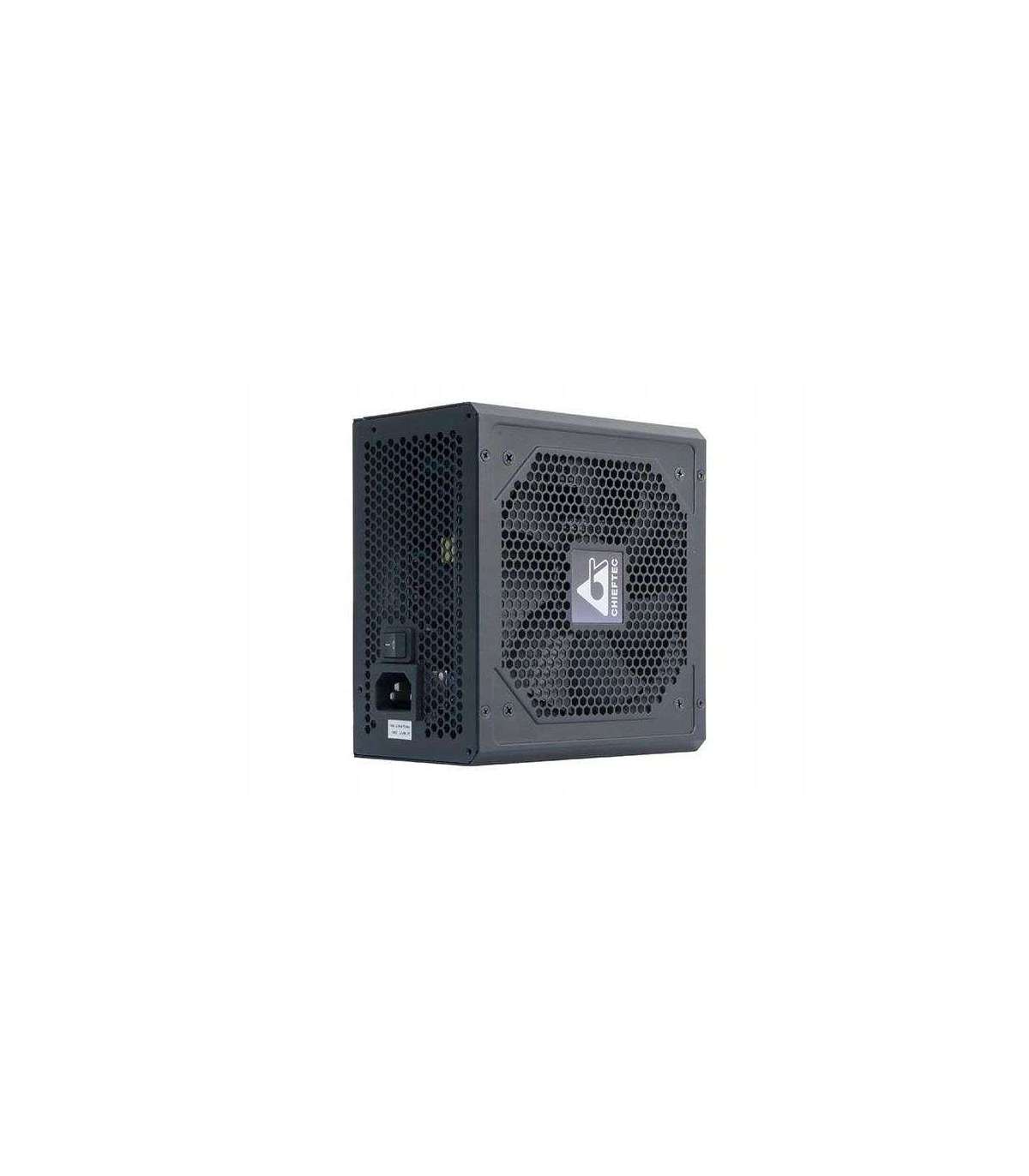

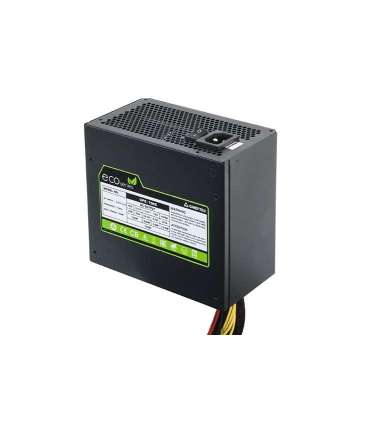

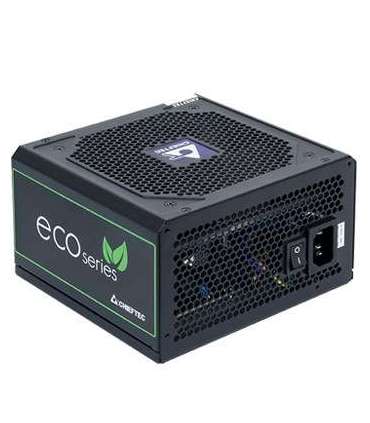

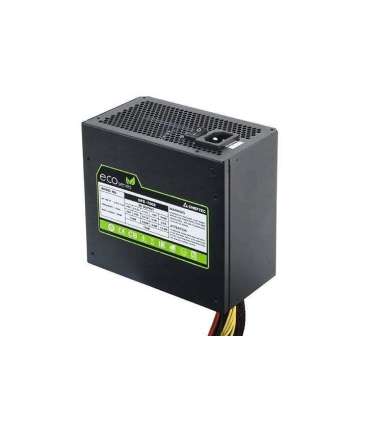

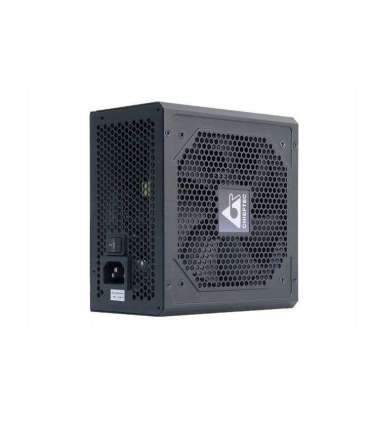

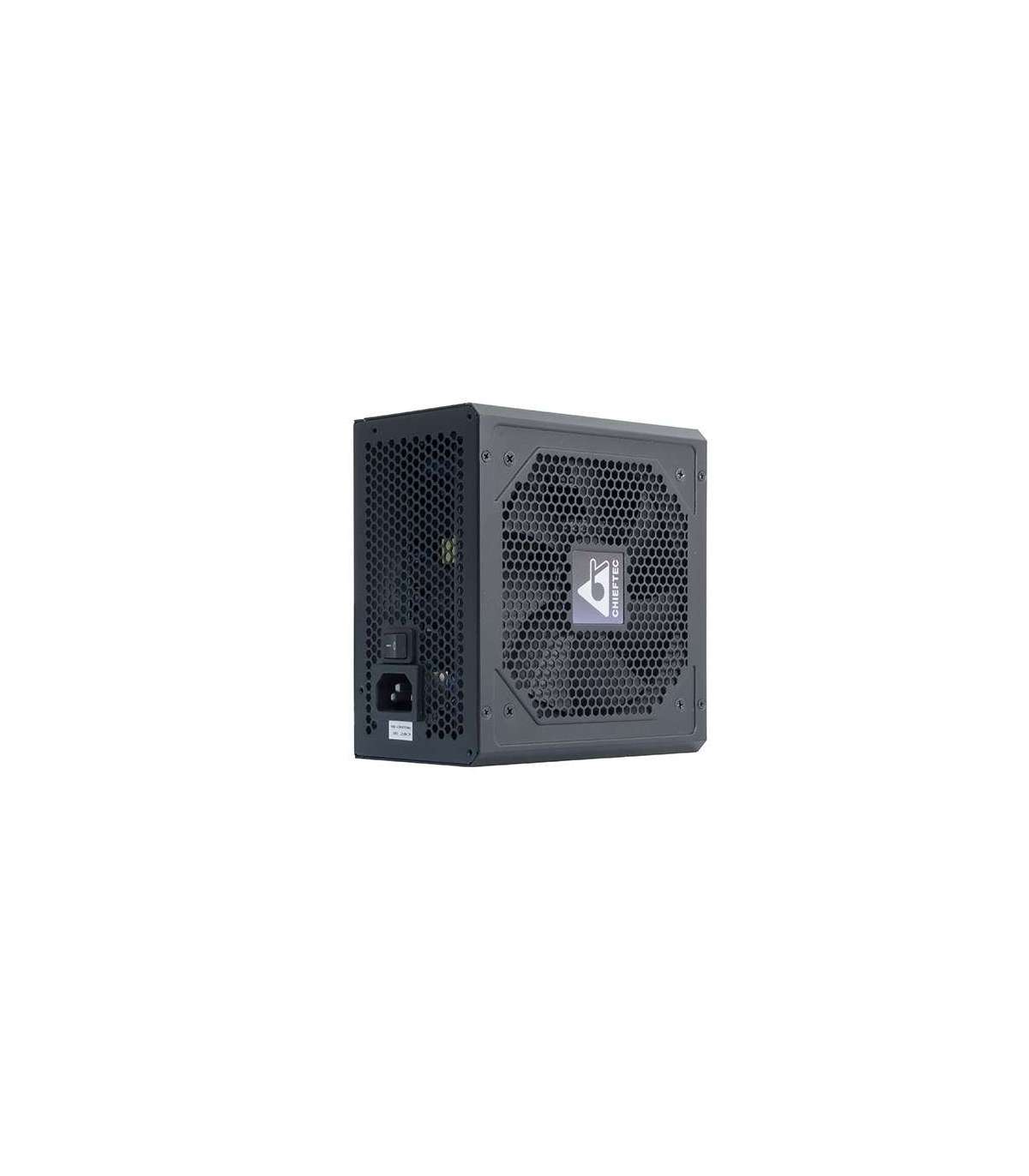

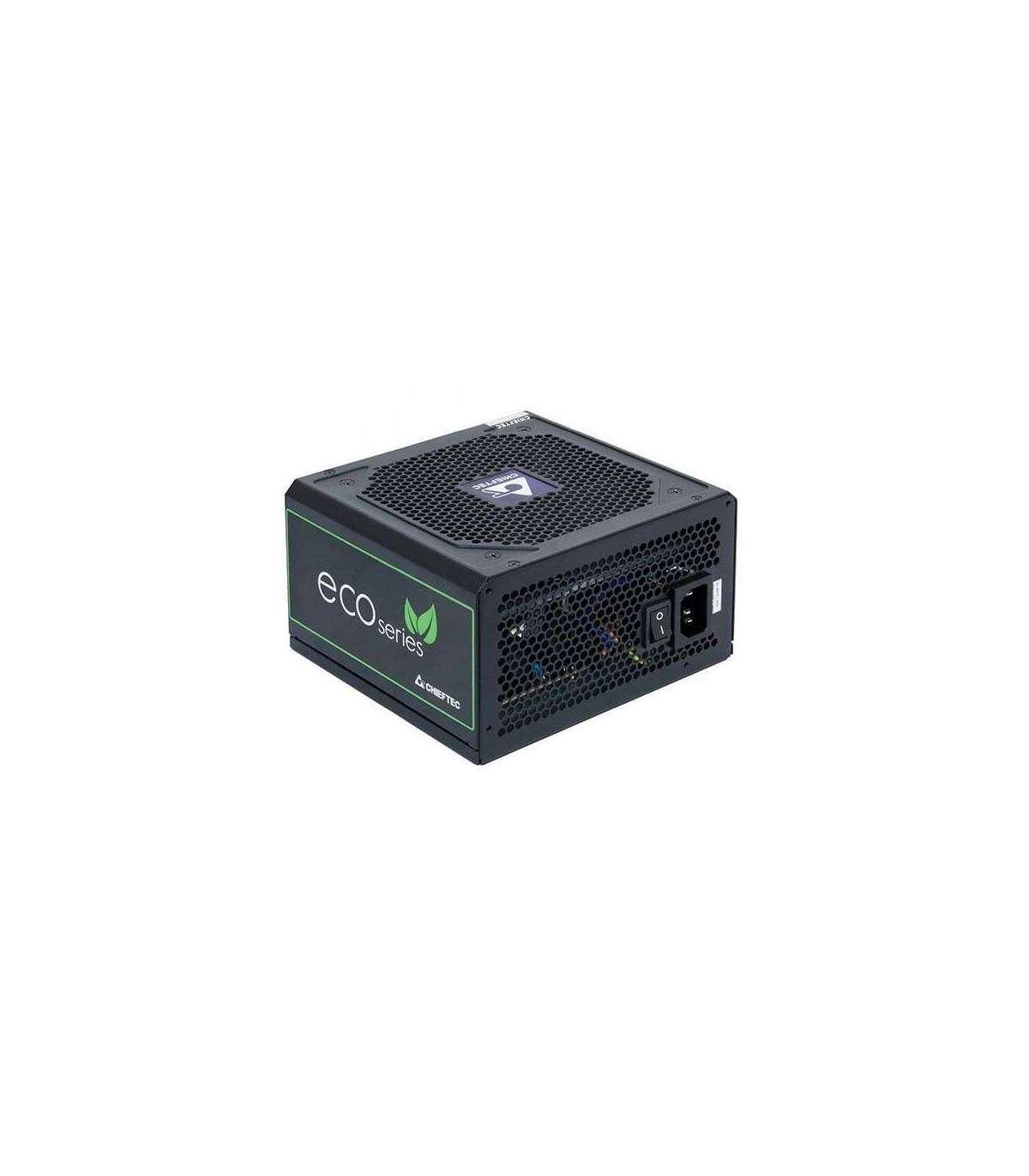

Chieftec GPE-700S power supply unit 700 W 24-pin ATX PS/2 Black

Характеристики

Depth

150 mm

Height

86 mm

Width

140 mm

On/off switch

Yes

Product colour

Black

Sustainability certificates

ENERGY STAR
RoHS

AC input frequency

50 Hz

AC input voltage

230 V

Input current

6.3 A

Package type

Box

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Efficiency

85%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

Housing colour

Black

80 PLUS certification

80 PLUS Bronze

Total power

700 W

Power protection features

Overload
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+3.3V)

130 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Combined power (+5V)

130 W

Combined power (+12V)

630 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.3

Power supply unit (PSU) form factor

PS/2

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

1

Motherboard power connector

24-pin ATX

Motherboard power cable length

40 cm

Power factor

0.9

PCI Express connector

Yes

Max output current (+12V1)

52.5 A
