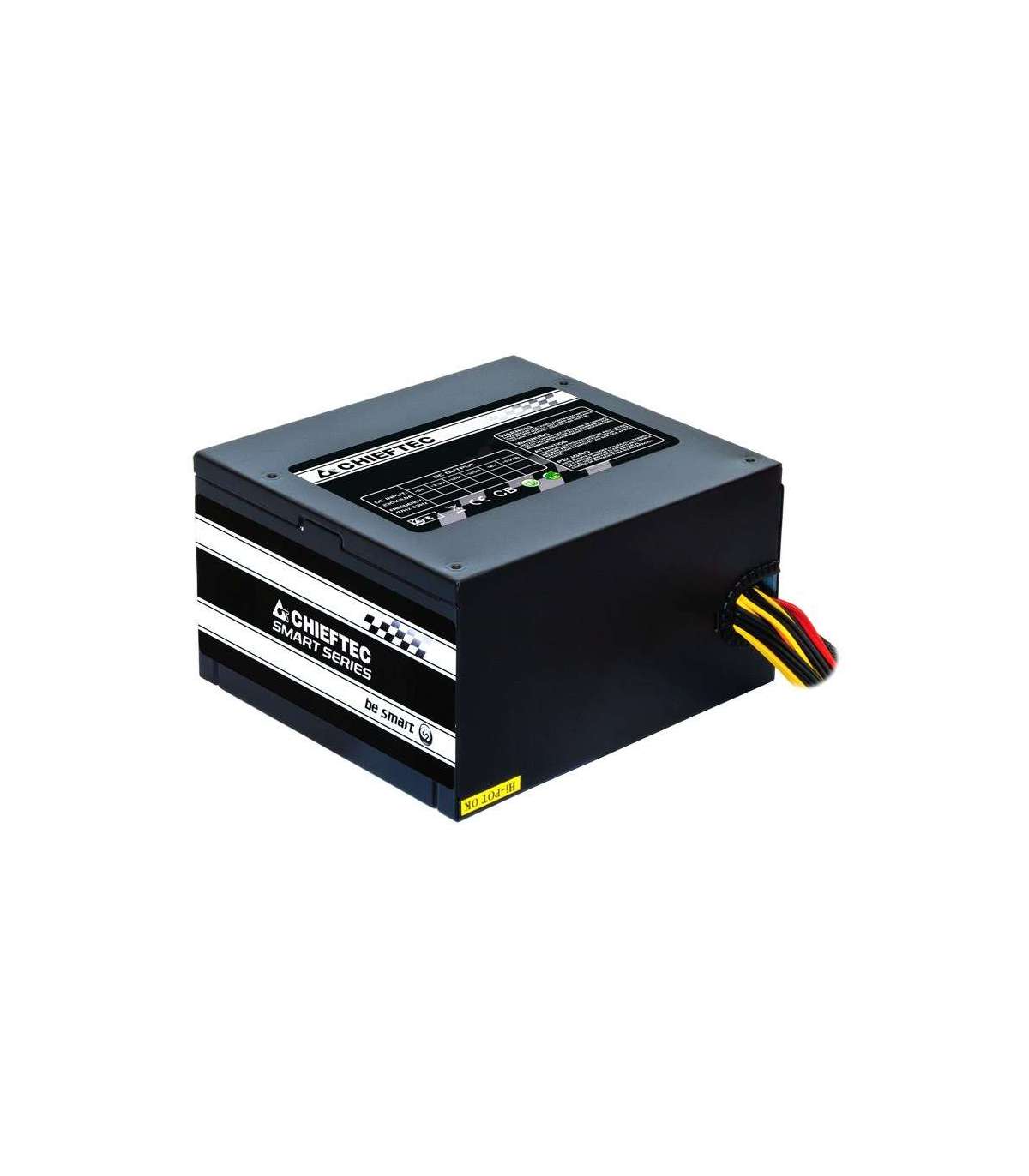

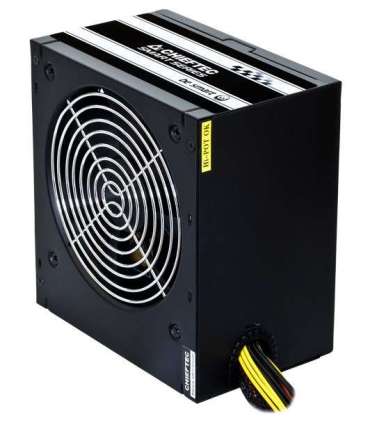

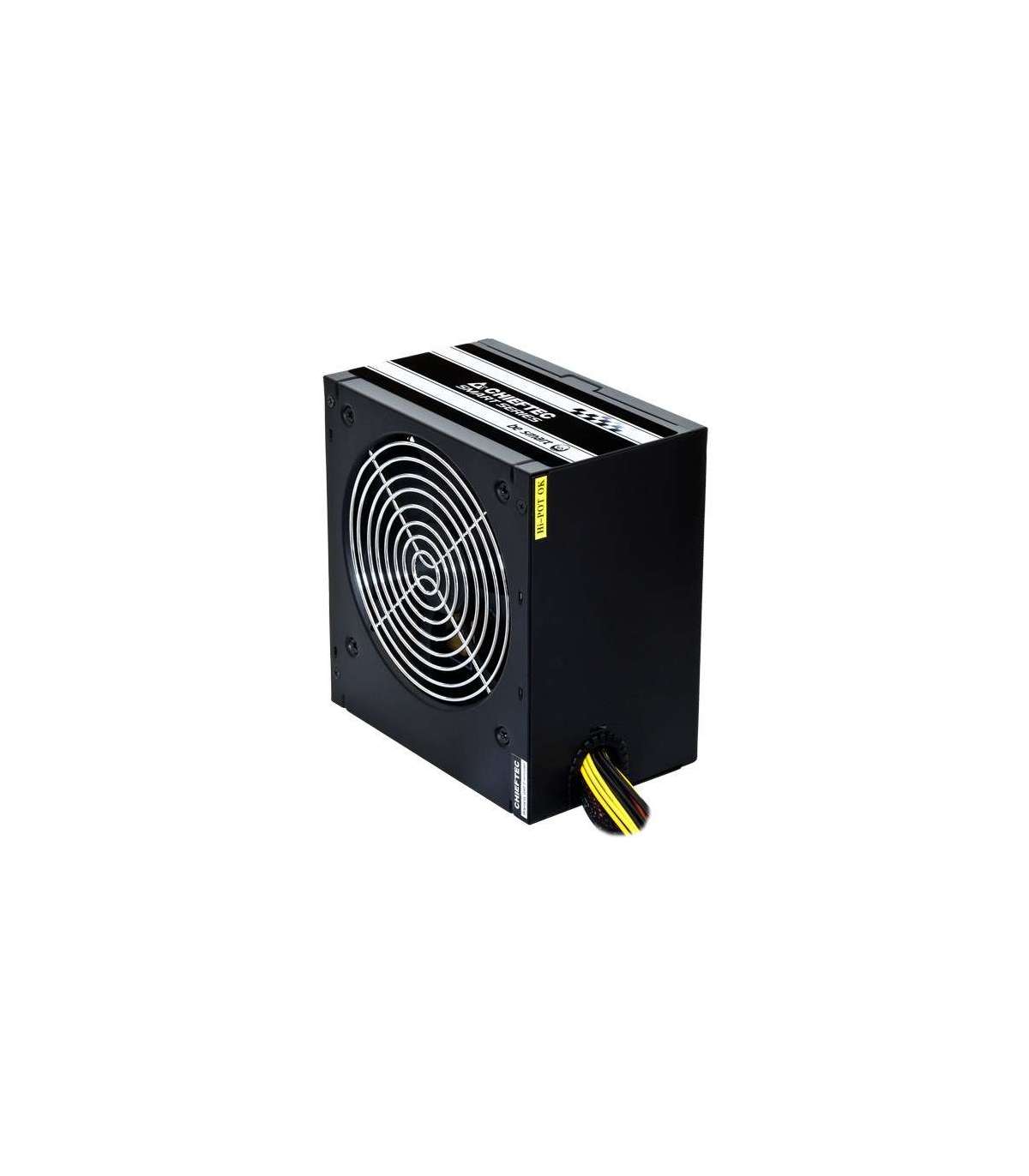

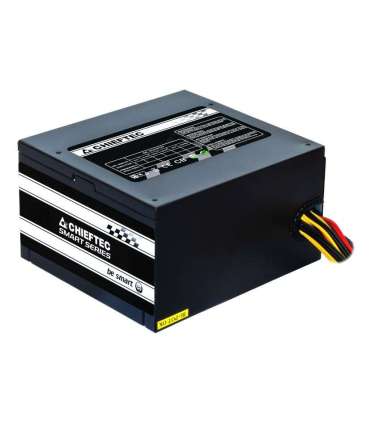

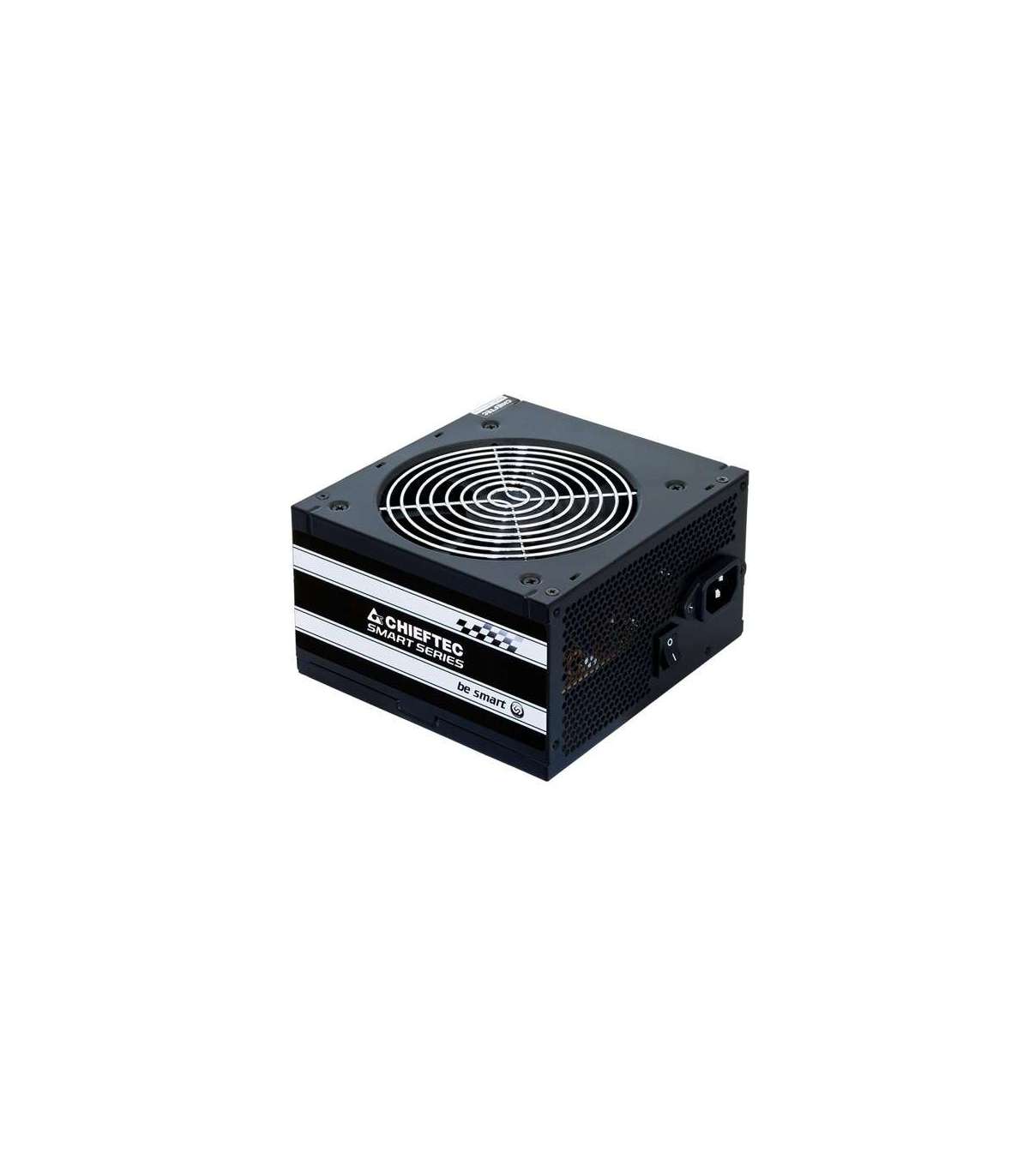

Chieftec Smart GPS-700A8 power supply unit 700 W 20+4 pin ATX PS/2 Black

Характеристики

Depth

140 mm

Weight

1.62 kg

Height

87 mm

Width

150 mm

Product colour

Black

Warnings

Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input voltage

230 V

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Efficiency

80%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

No

Total power

700 W

Power protection features

Overload
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.3

Power supply unit (PSU) form factor

PS/2

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

Cabling type

Non-Modular

Power factor

0.9

Floppy drive power connector

1

Max output current (+12V1)

54 A
