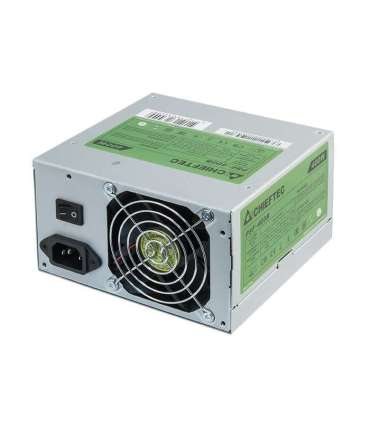

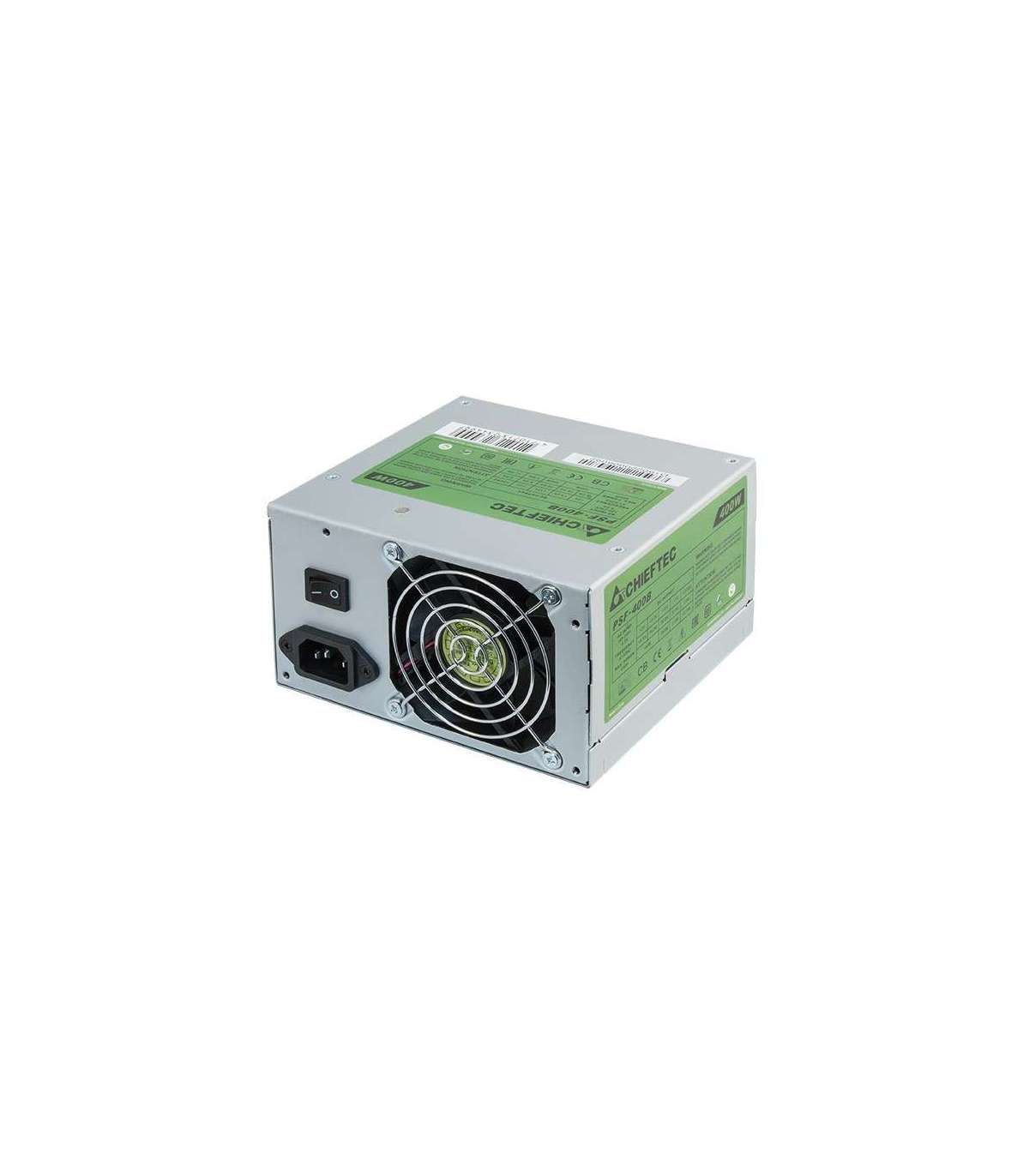

Chieftec PSF-400B power supply unit 400 W 24-pin ATX ATX Metallic

Характеристики

Depth

140 mm

Height

87 mm

Width

150 mm

Product colour

Metallic

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Sustainability certificates

ENERGY STAR

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Efficiency

87%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

8 cm

80 PLUS certification

80 PLUS Bronze

PCI Express power connectors (6-pin)

1

Total power

400 W

Power protection features

Overload
Short circuit

Power Factor Correction (PFC) type

Active

Fan location

Side

Combined power (-12V)

3.6 W

Combined power (+3.3V)

100 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

15 A

Max output current (+3.3V)

16 A

Combined power (+5V)

100 W

Combined power (+12V)

360 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.3

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

4

Motherboard power connector

24-pin ATX

Cabling type

Non-Modular

Motherboard power cable length

45 cm

Floppy drive power connector

1

Max output current (+12V1)

30 A
