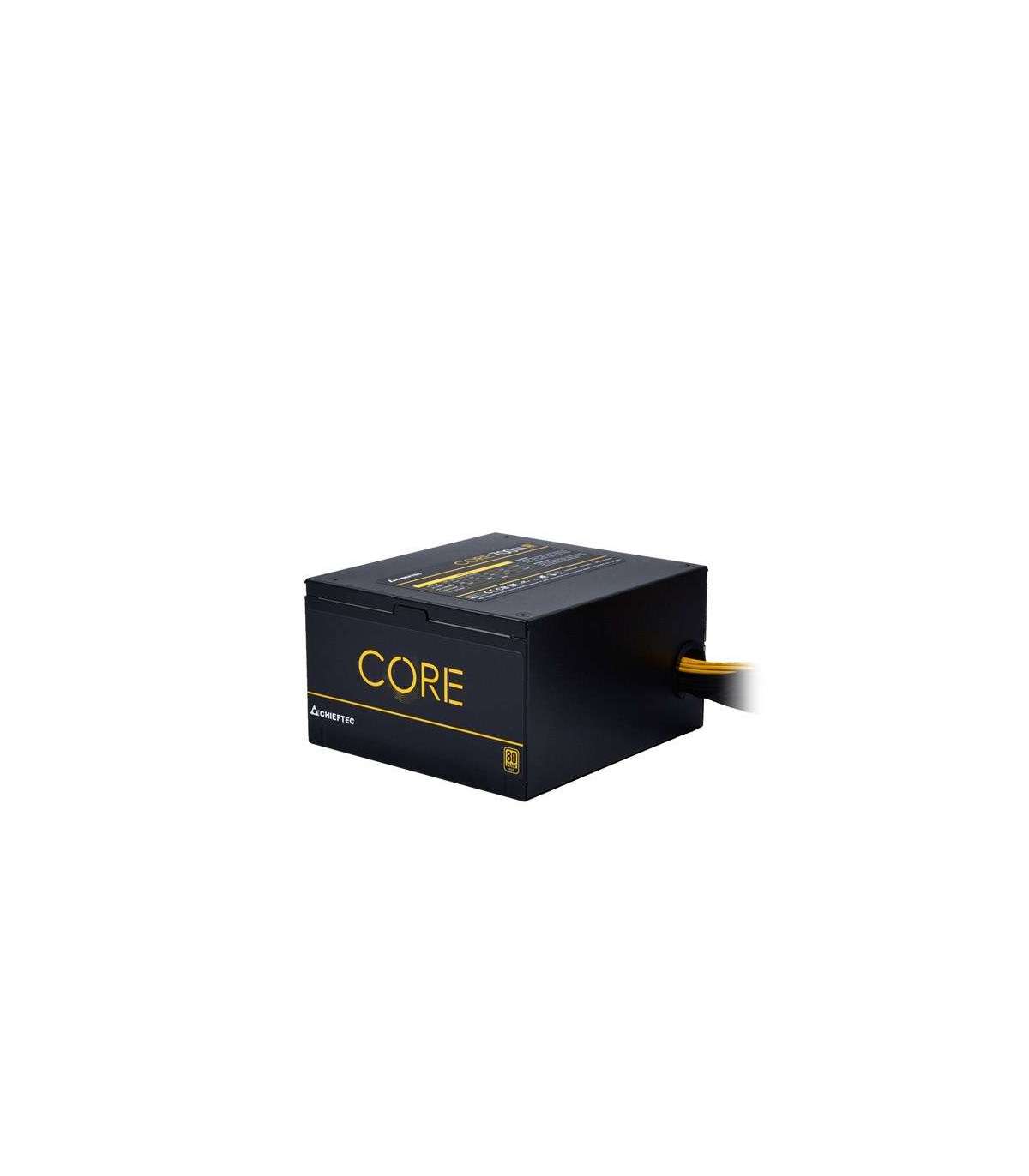

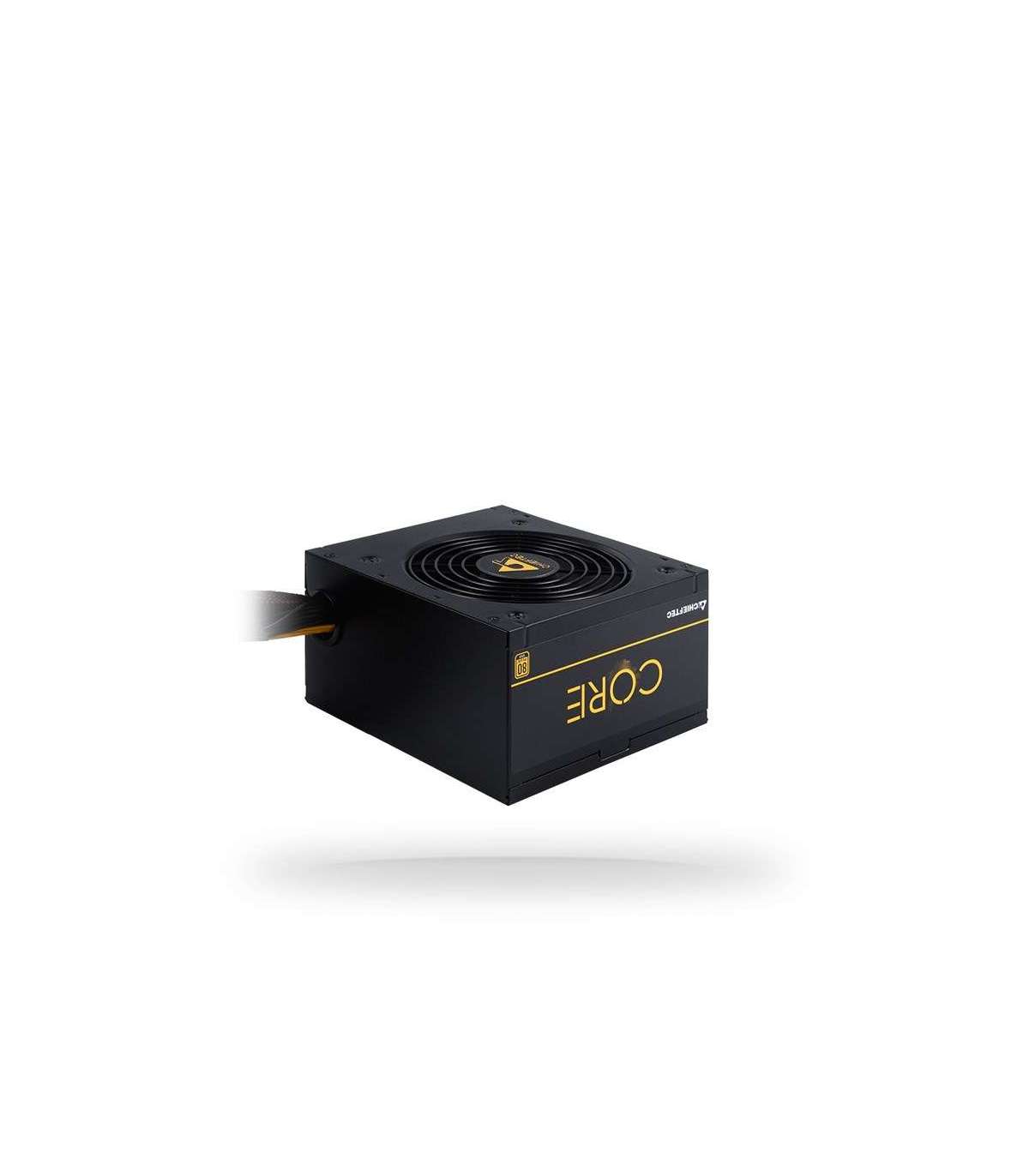

Chieftec Core BBS-700S power supply unit 700 W 24-pin ATX PS/2 Black

Характеристики

Depth

150 mm

Weight

1.72 kg

Height

86 mm

Width

140 mm

Package weight

2.13 kg

Product colour

Black

Harmonized System (HS) code

84733020

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

10 A

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

700 W

Power protection features

Overload
Over voltage
Short circuit

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

Power supply unit (PSU) form factor

PS/2

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

24-pin ATX

SATA power cable length

150
500 mm

Peripheral (Molex) power cable length

150
500 mm

CPU power cable length

65 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Non-Modular

PCI Express power cable length

50 cm

Floppy disk drive connector

Yes

Floppy drive power connector

1

Max output current (+12V1)

58 A
