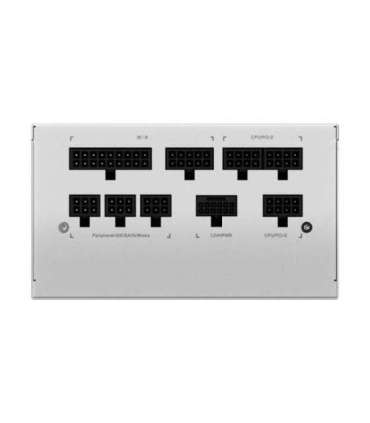

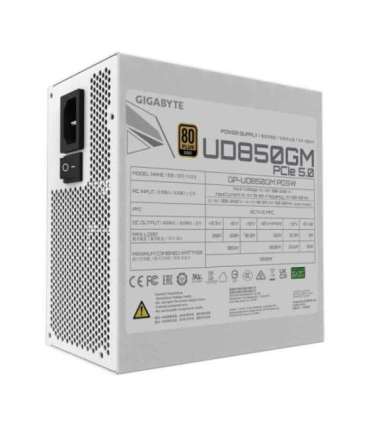

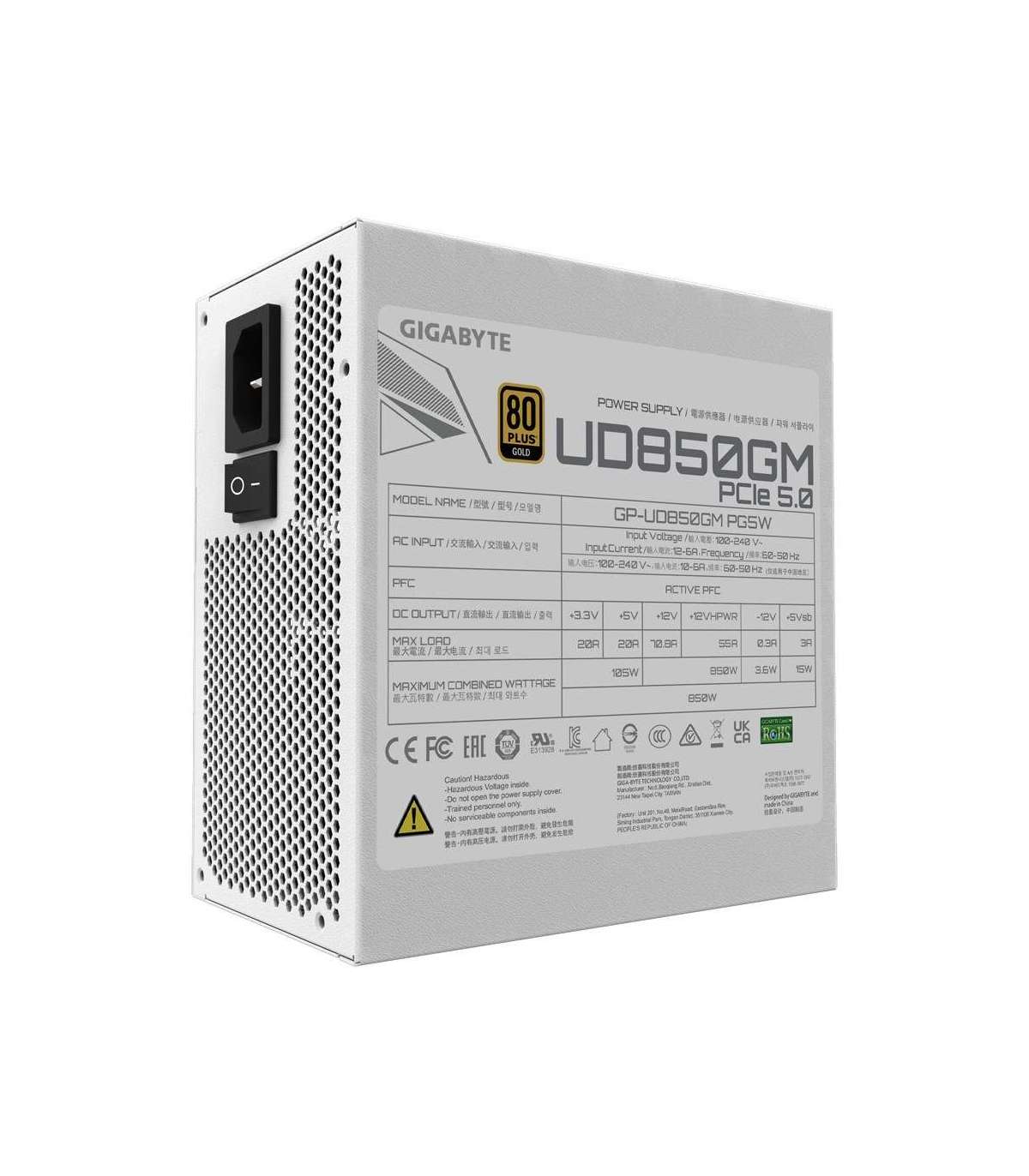

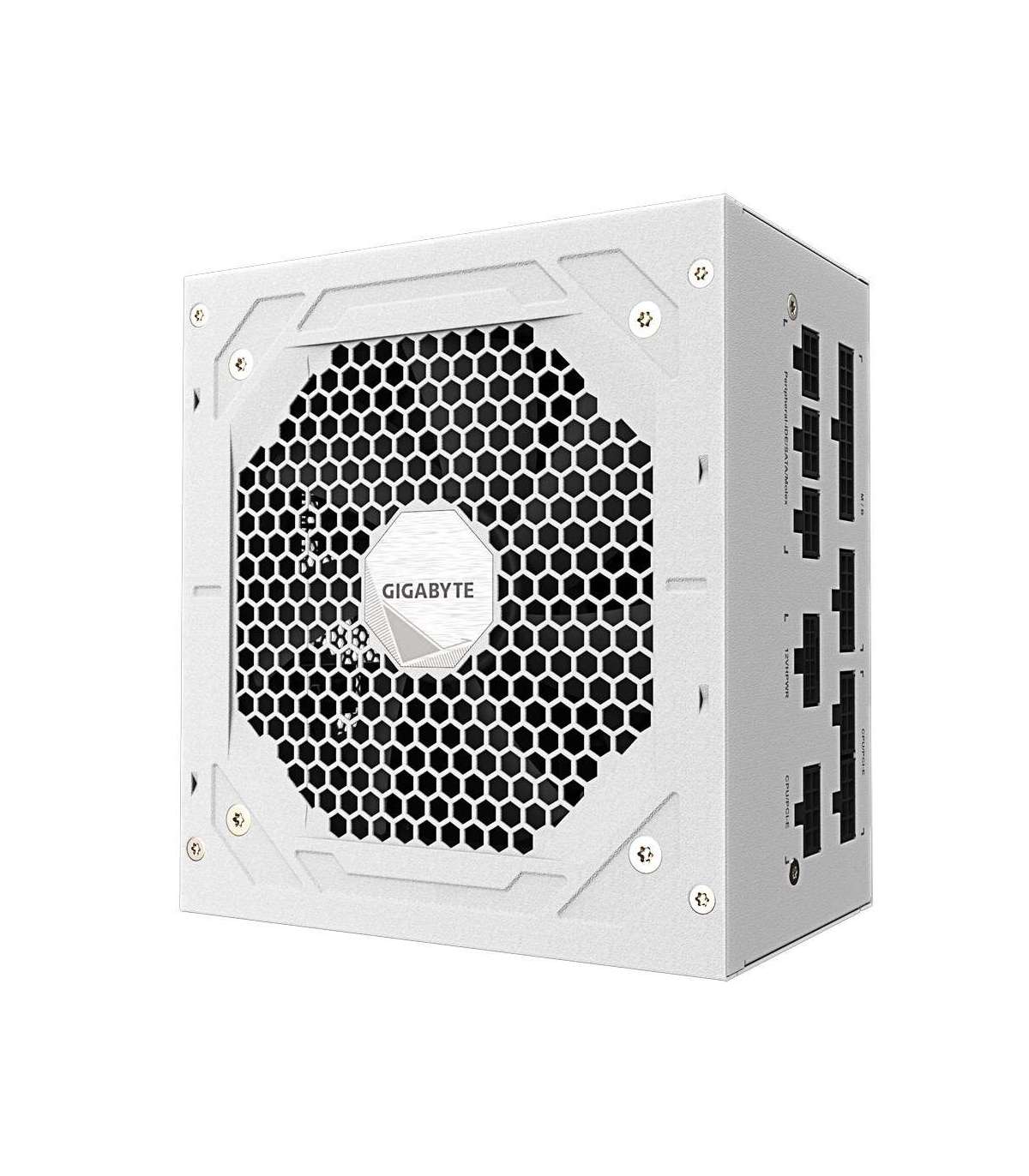

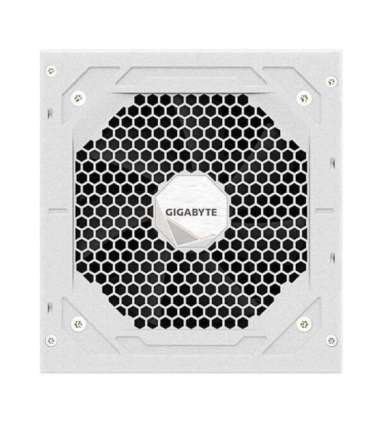

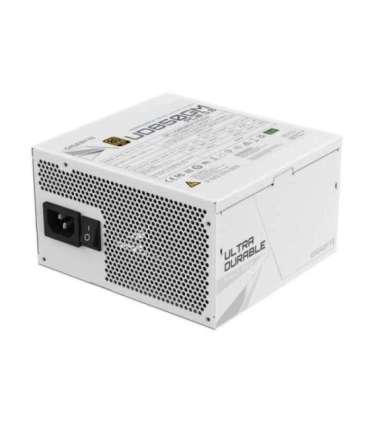

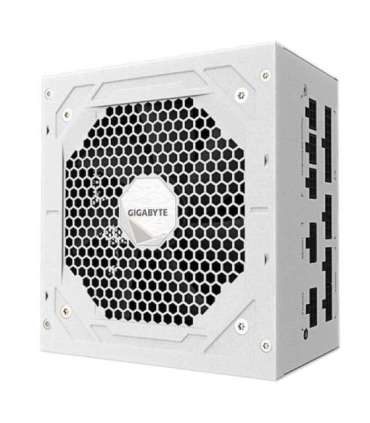

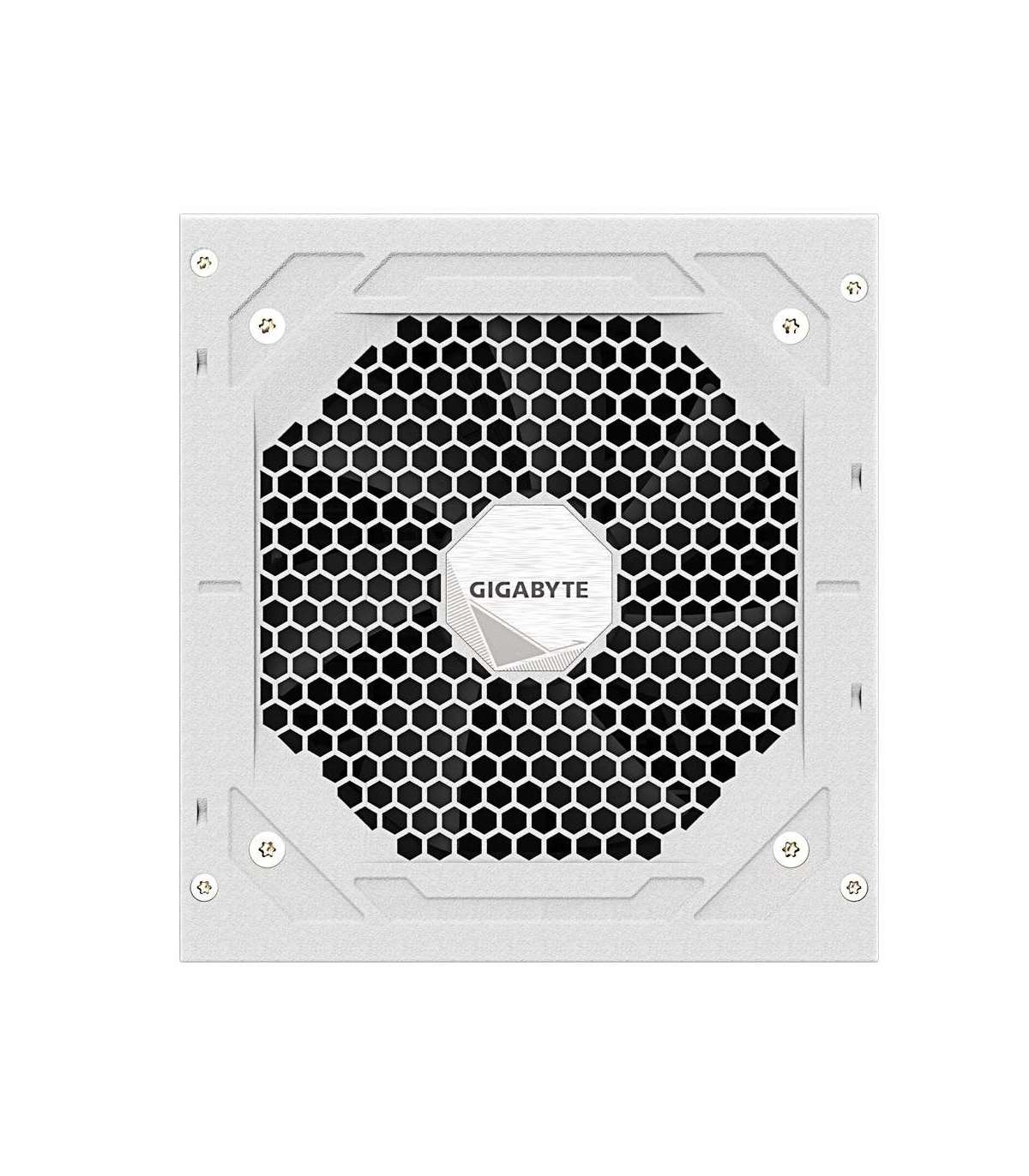

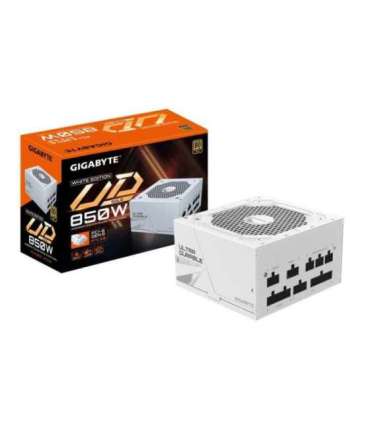

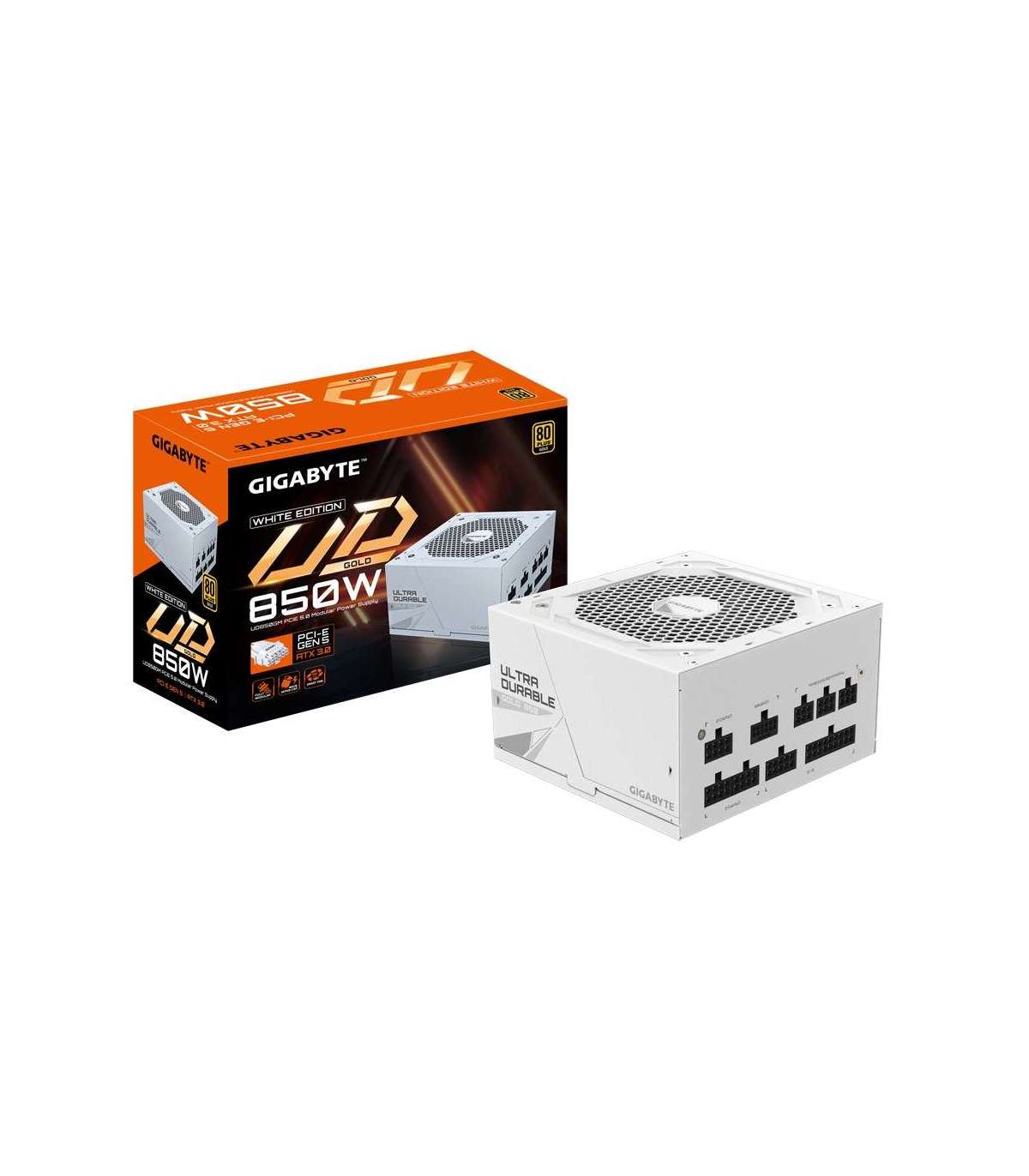

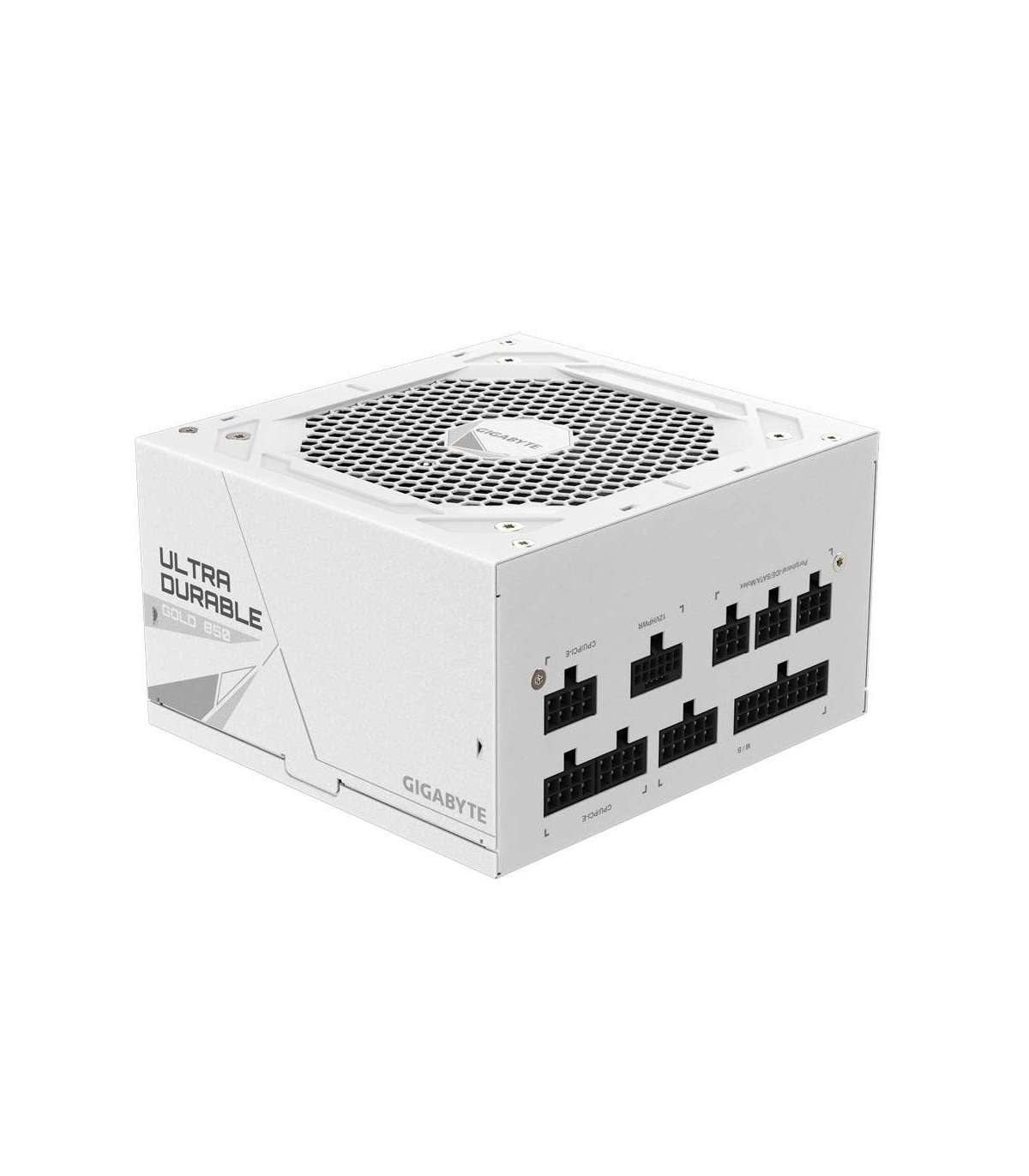

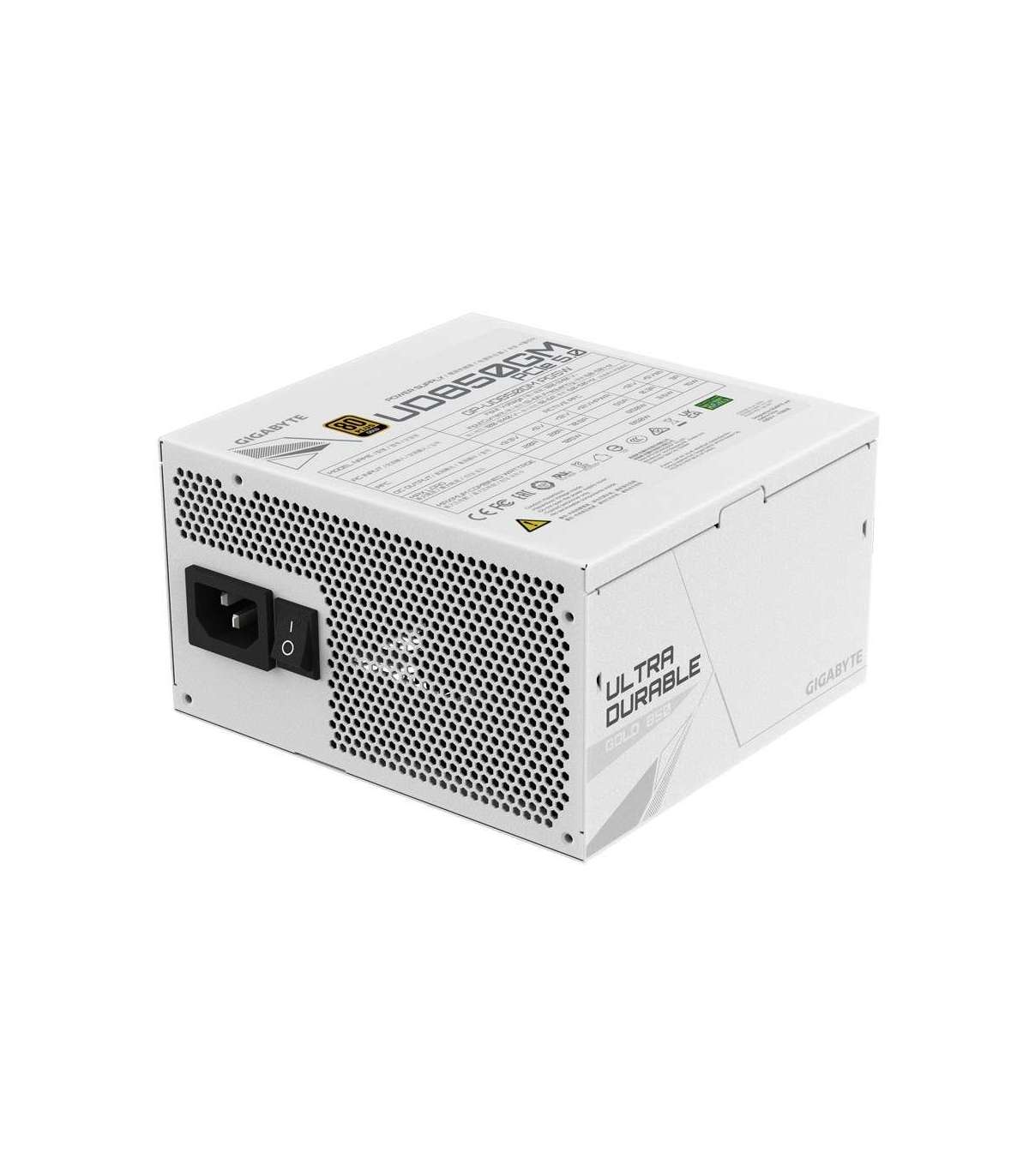

Gigabyte power supply GP-UD850GM PG5W 850W 80+ Gold

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

Product colour

White

Cables included

CPU, PATA, Peripheral (Molex), SATA

Sustainability certificates

CCC
CE
Federal Communications Commission (FCC)
RoHS

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

12 - 6 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Warranty period

5 year(s)

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Noise level

40 dB

Efficiency

90%

Purpose

PC

Number of fans

1 fan(s)

Illumination

No

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

850 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Power Factor Correction (PFC) type

Active

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

70.8 A

Combined power (+3.3V)

105 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

105 W

Hold time

16 ms

Combined power (+12V)

850 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

150
600 mm

Peripheral (Molex) power cable length

200
600 mm

CPU power connector (4+4 pin)

Yes

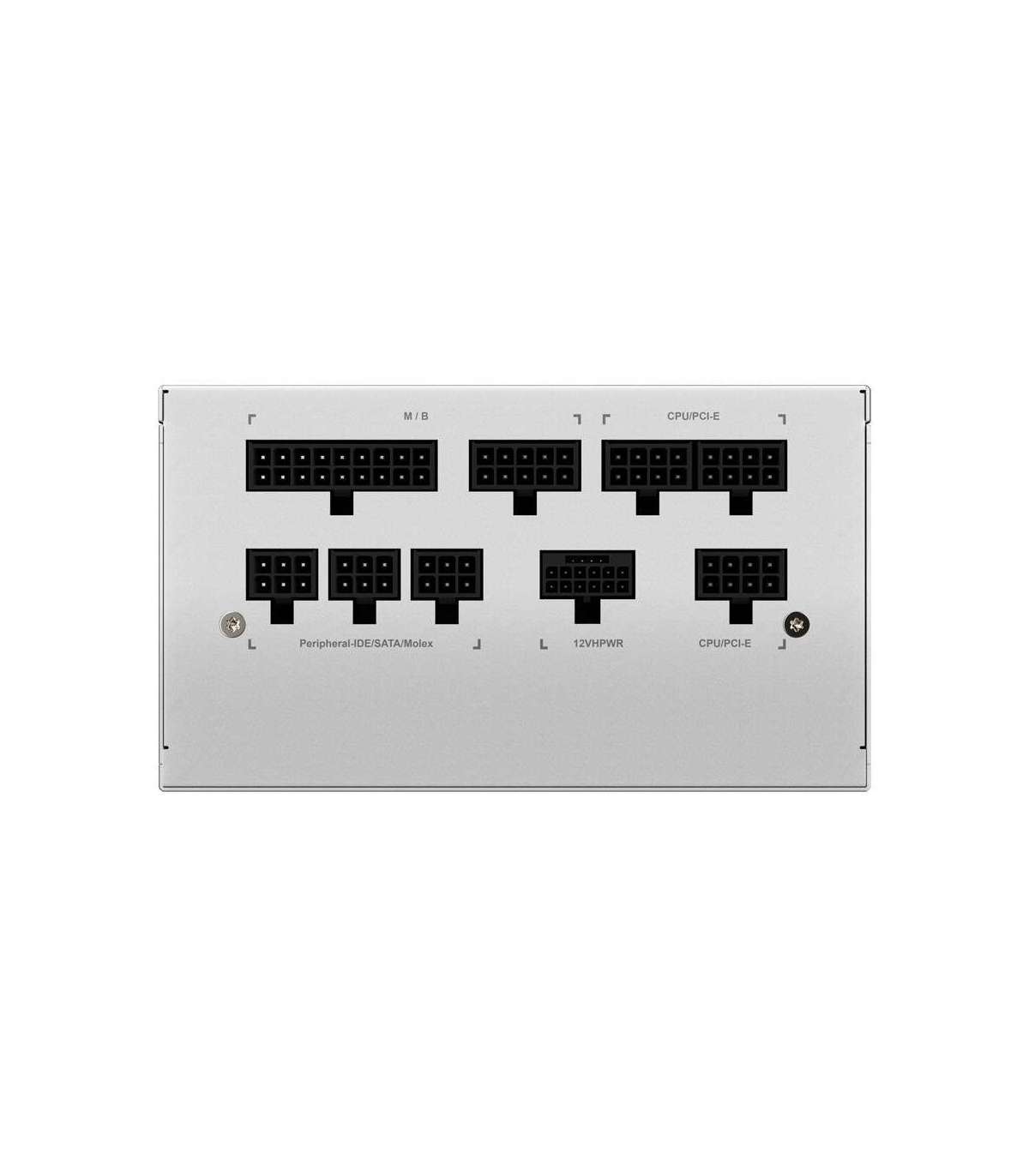

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

61 cm

PCI Express power connectors (16-pin)

1

PCI Express power cable length

70 cm

Maximum input current (@220V)

12 A

Maximum input current (@110V)

6 A

PCI Express connector

Yes

Number of PATA power connectors

3
