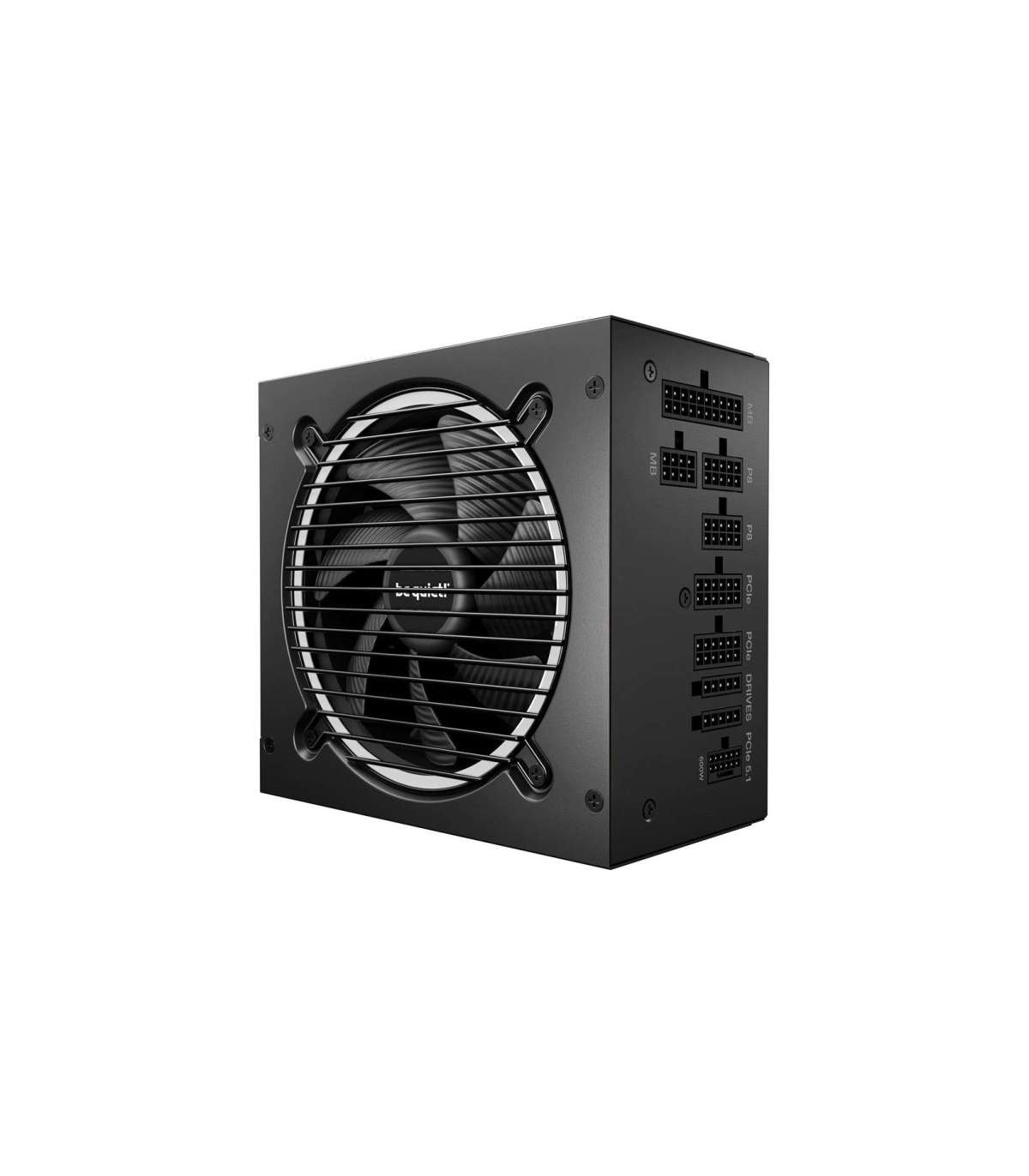

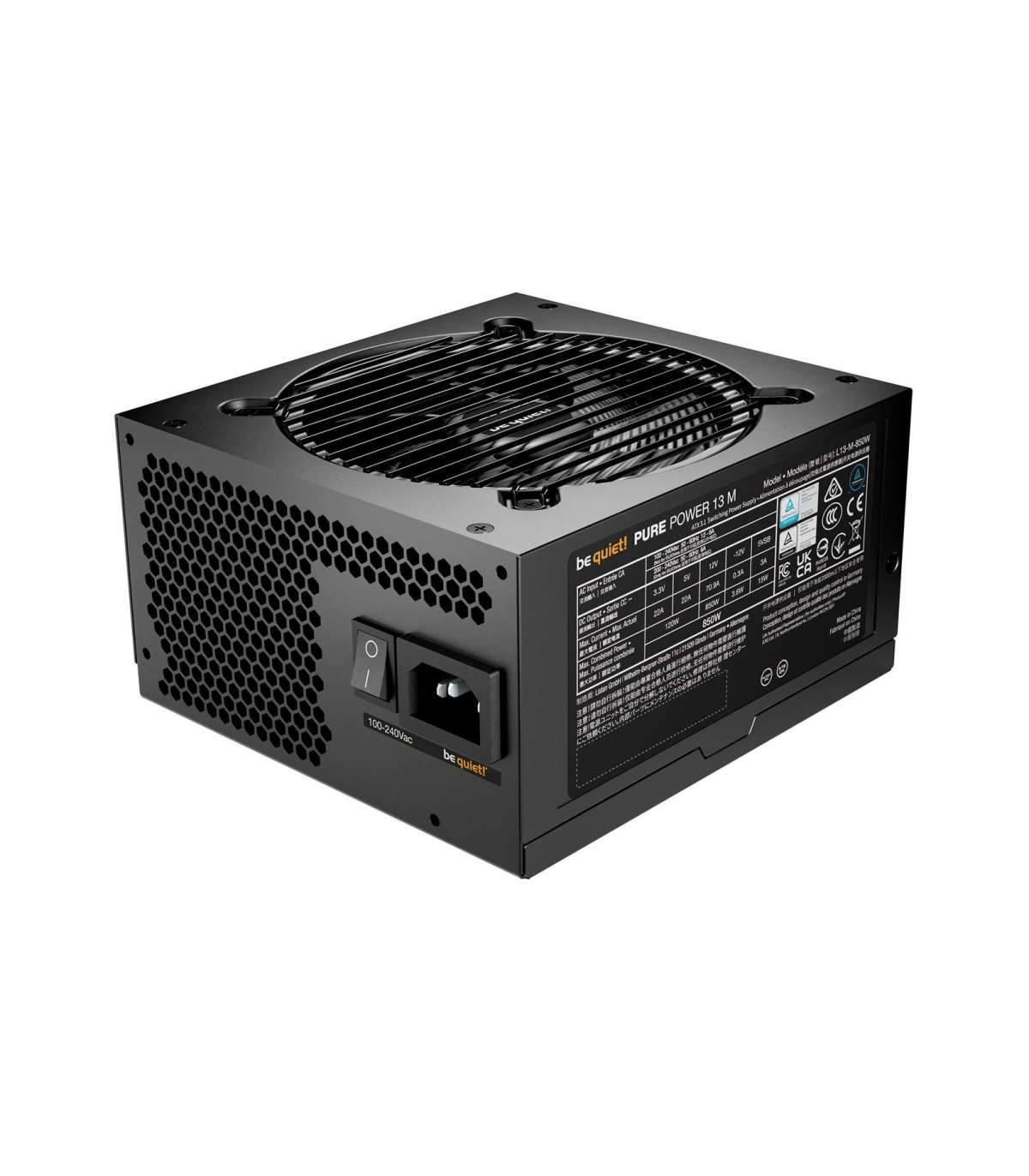

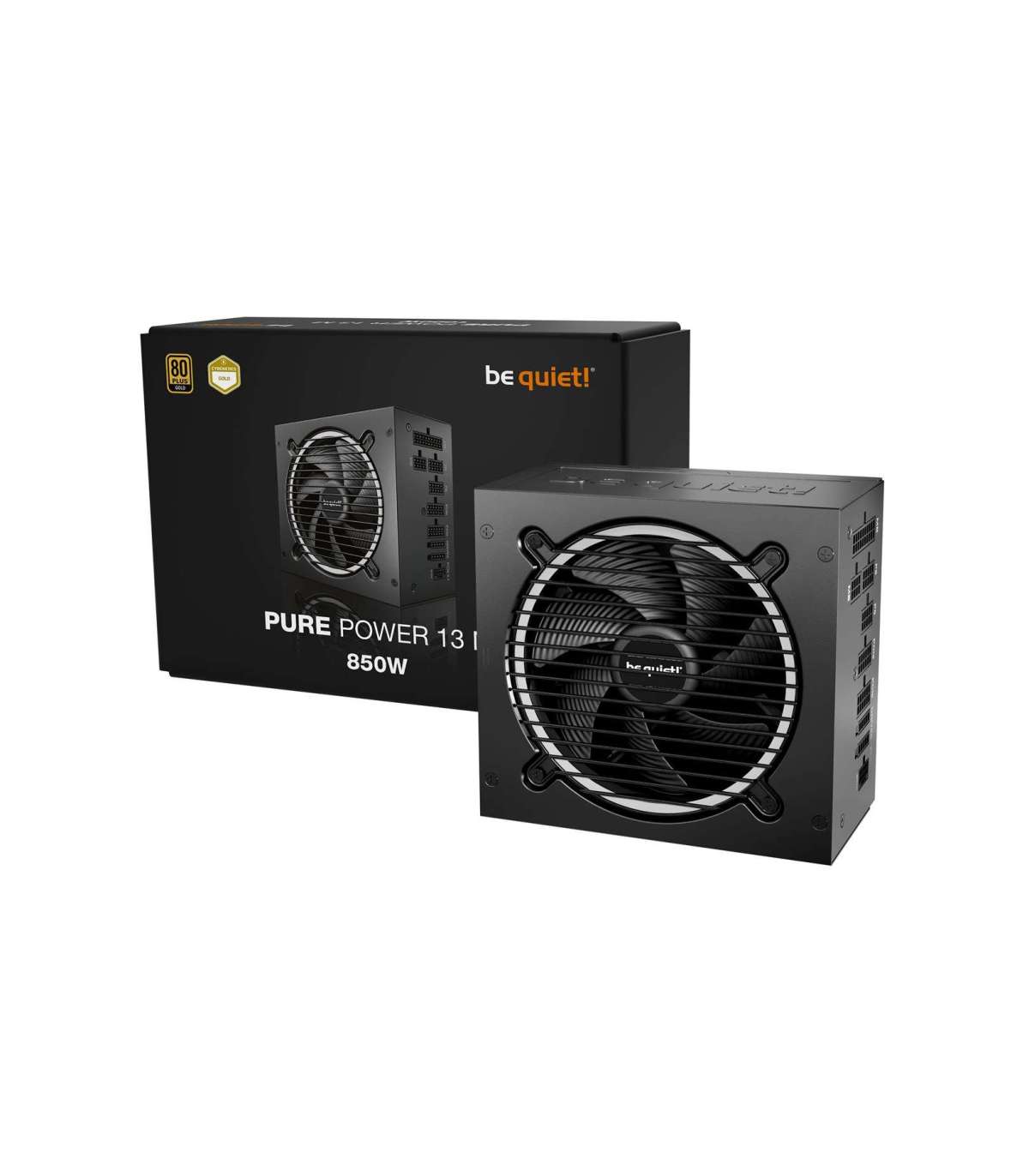

be quiet! Pure Power 13 M 850W power supply unit 20+4 pin ATX ATX Black

Характеристики

Depth

160 mm

Weight

2.62 kg

Height

86 mm

Width

150 mm

Package weight

3.4 kg

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

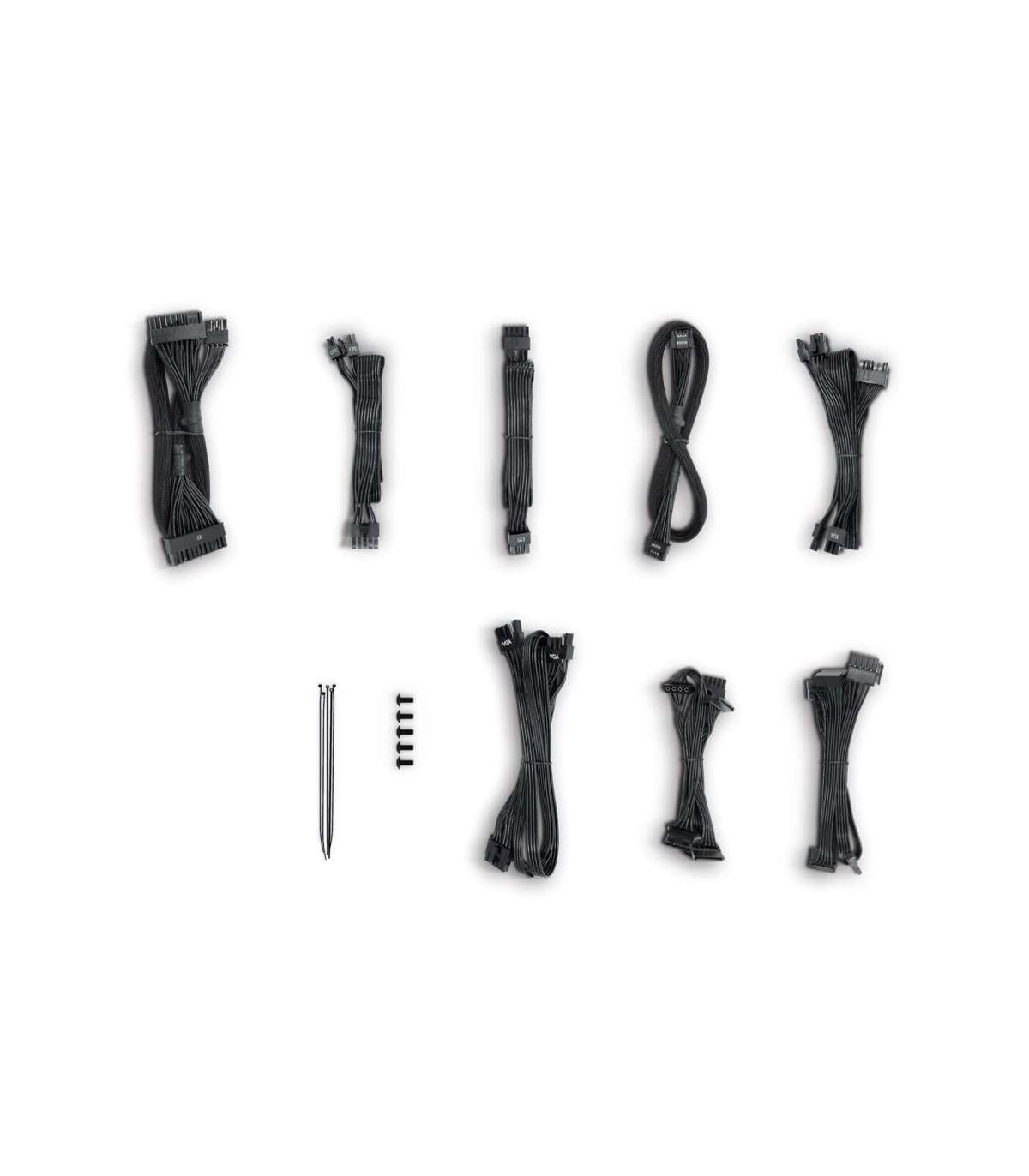

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Package width

210 mm

Package depth

320 mm

Package height

133 mm

Compliance certificates

BSMI
CB
CCC
CE
Federal Communications Commission (FCC)
IRAM
RCM
RoHS
TÜV mark
UKCA
WEEE
cTUVus

Sustainability certificates

ENERGY STAR
ErP

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Mean time between failures (MTBF)

100000 h

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

6 pc(s)

Cooling type

Active

Screws included

Yes

Peripheral (Molex) power connectors (4-pin)

2

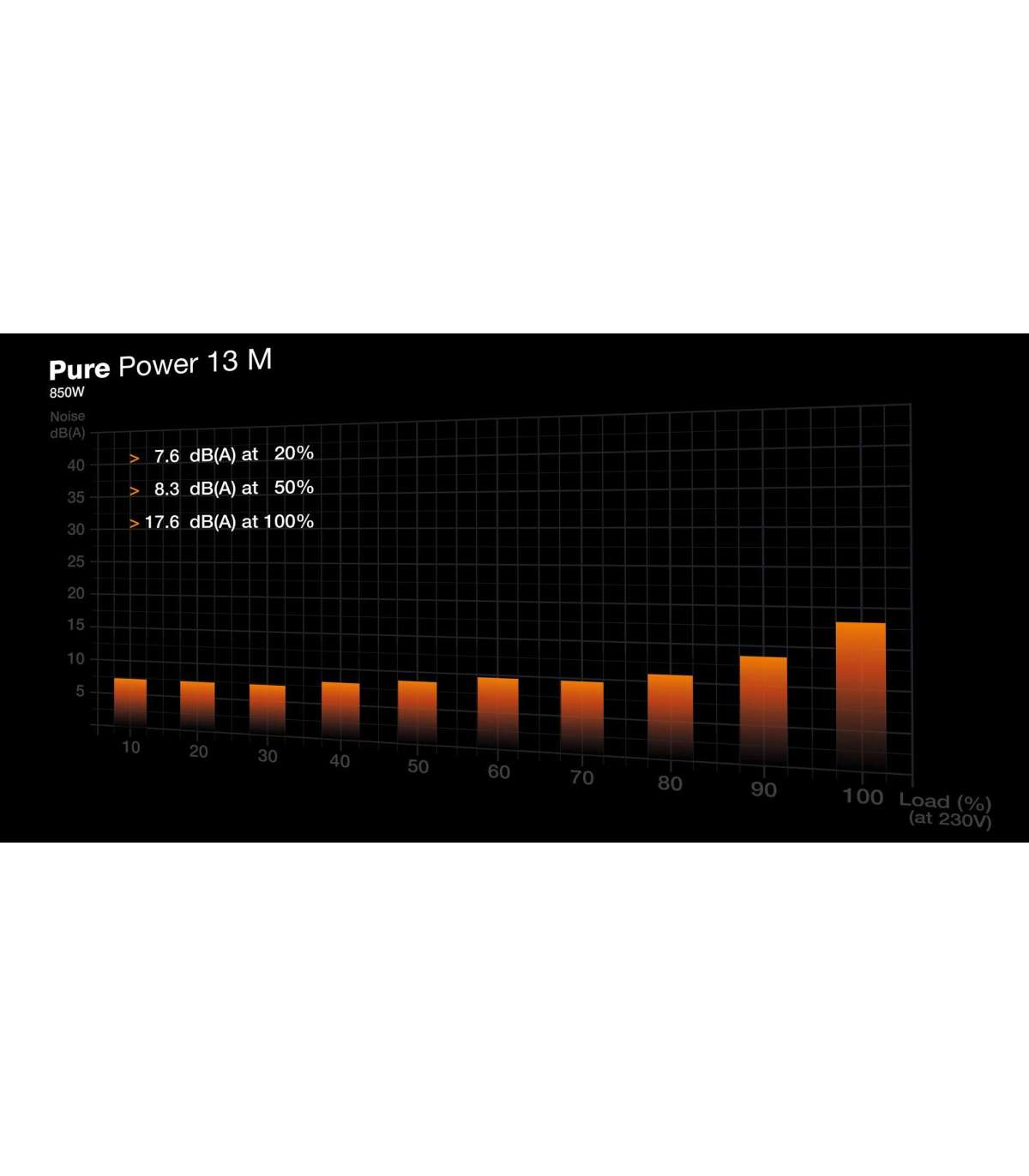

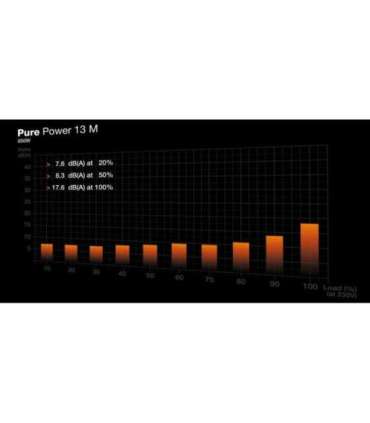

Noise level

30.2 dB

Efficiency

92.8%

Purpose

PC

Shipping (inner) case length

58 cm

Shipping (inner) case width

32.5 cm

Shipping (inner) case height

23.3 cm

Number of fans

1 fan(s)

Fan diameter

12 cm

Peak power

900 W

80 PLUS certification

80 PLUS Gold

Shipping (inner) case gross weight

22.7 kg

Total power

850 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

Rifle

Power Factor Correction (PFC) type

Active

Fan speed

0 - 2000 RPM

Combined power (-12V)

3.6 W

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Combined power (+5V)

120 W

Hold time

25.09 ms

Combined power (+12V)

850 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

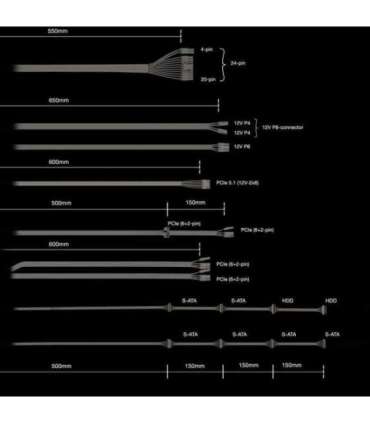

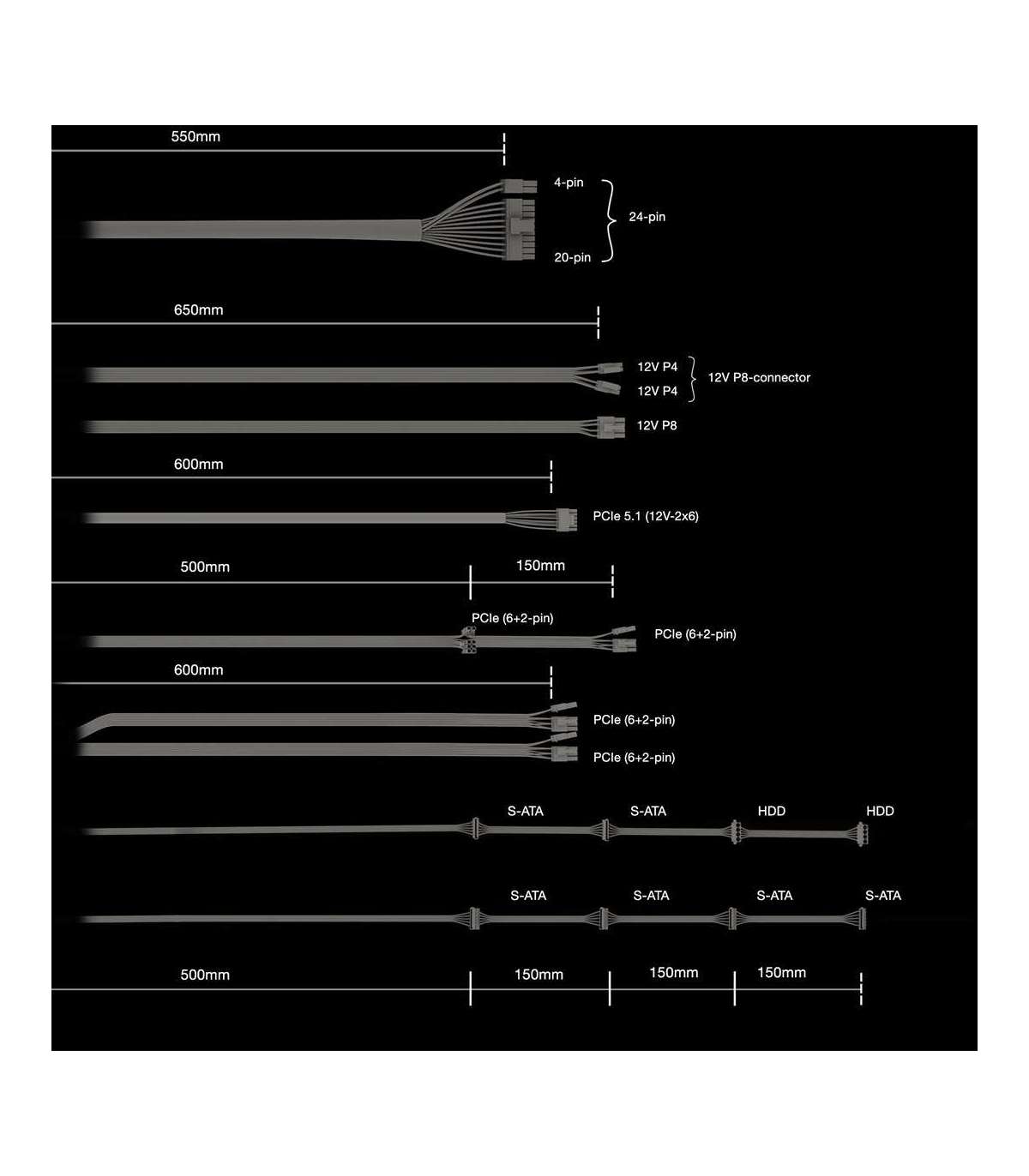

SATA power cable length

500 mm
650
800 mm
950 mm

Peripheral (Molex) power cable length

800
950 mm

CPU power cable length

65 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

Motherboard power cable length

55 cm

Power factor

0.98

Maximum input current (@220V)

6 A

Maximum input current (@110V)

12 A

Max output current (+12V1)

70.9 A

EPS version

2.92

Cable ties included

Yes

Number of +12V rail(s)

1

CPU P4 connector (4-pin)

2

PCI Express power connectors (12-pin)

1
