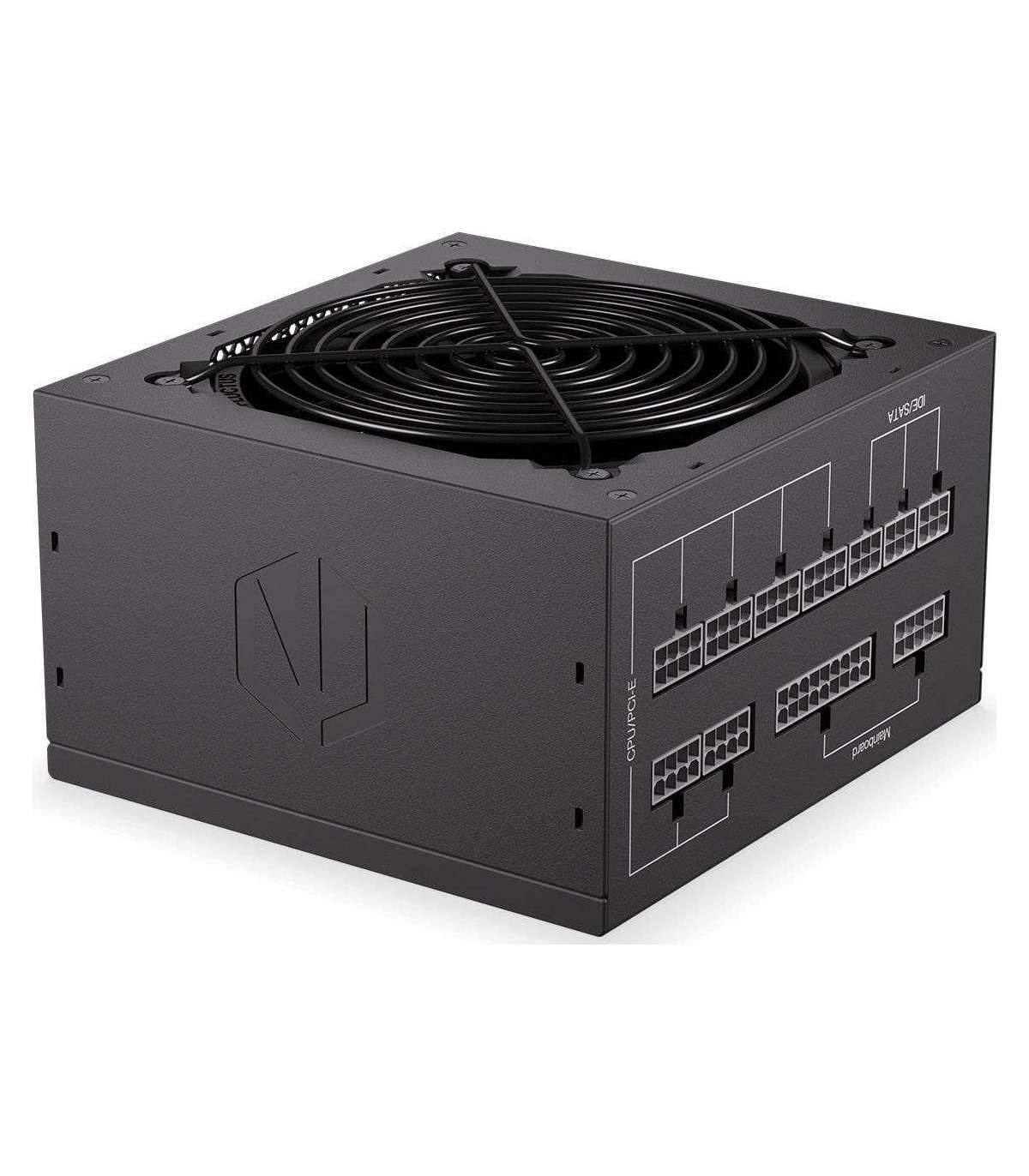

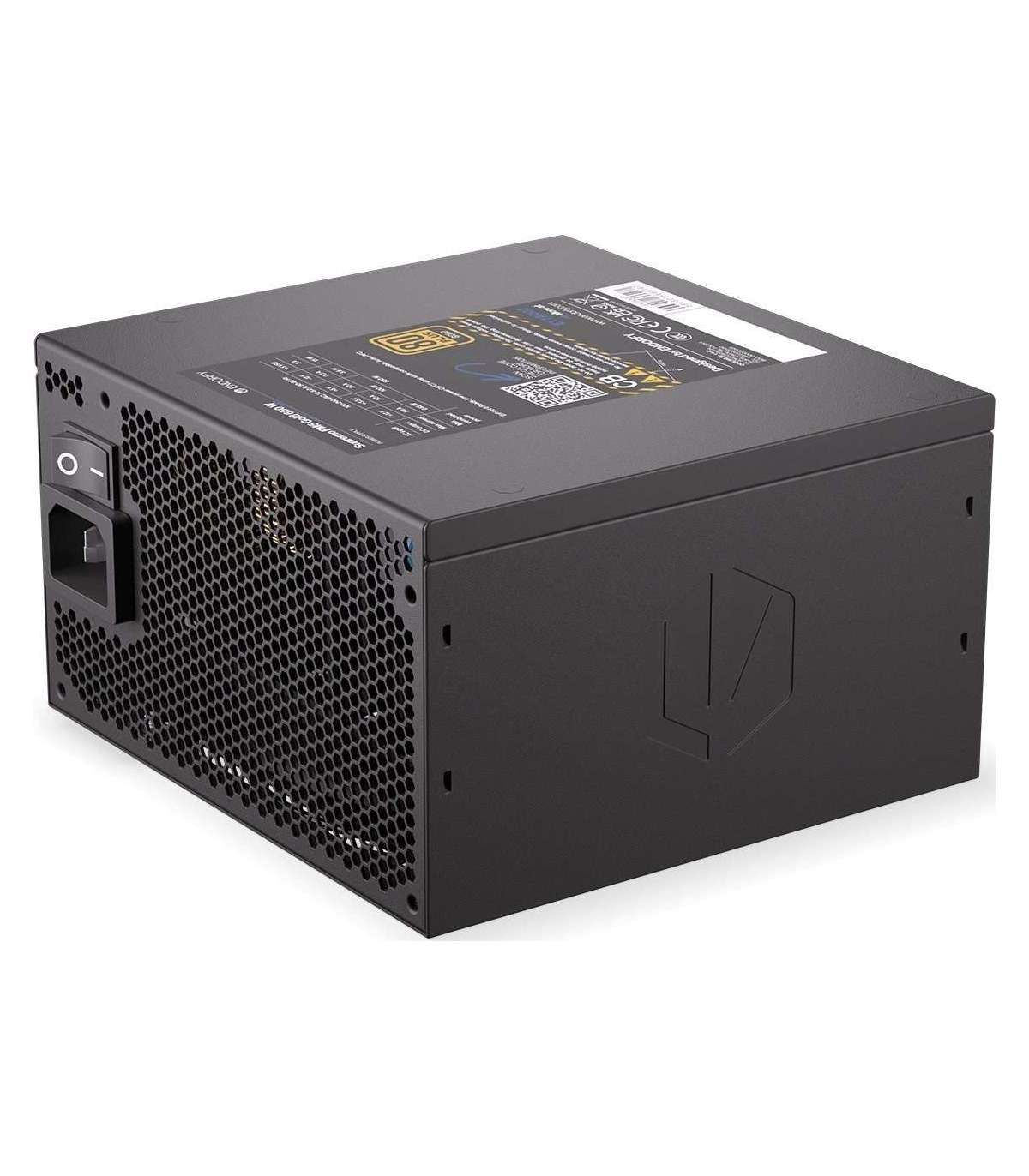

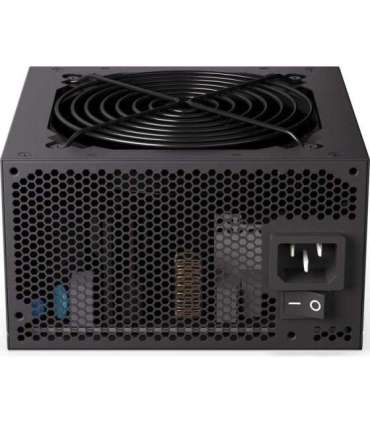

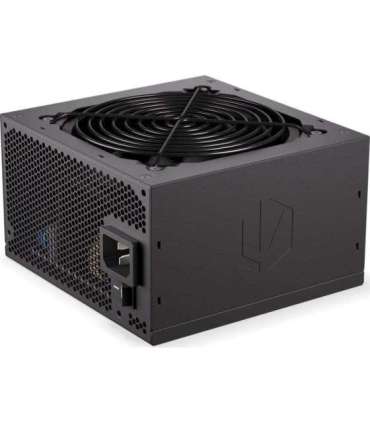

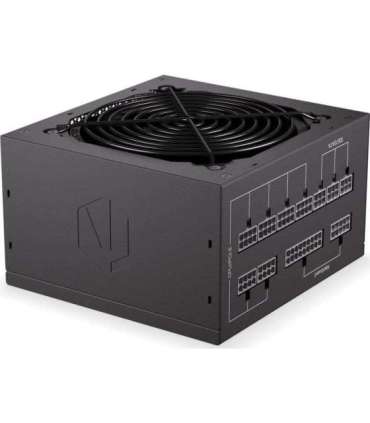

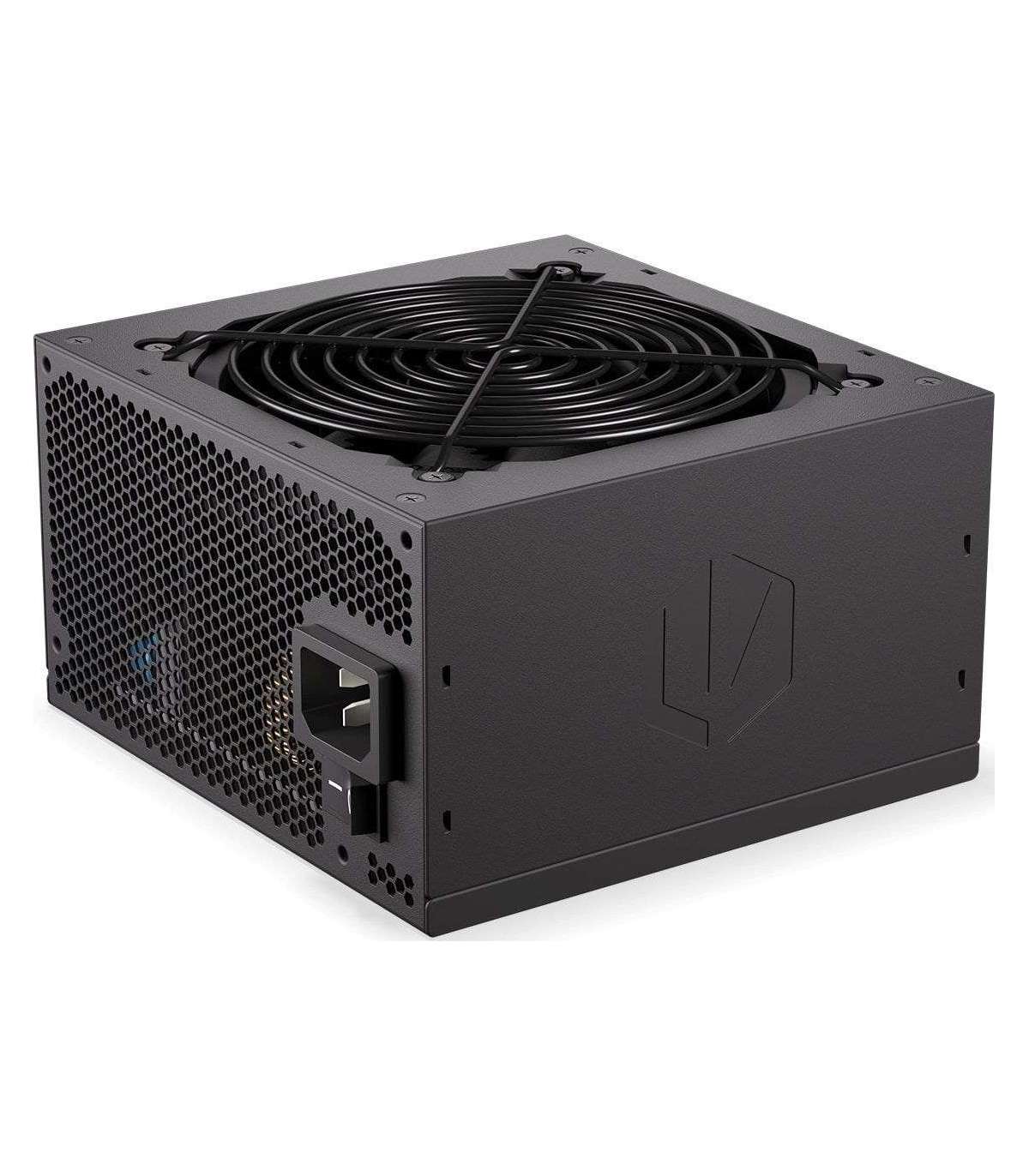

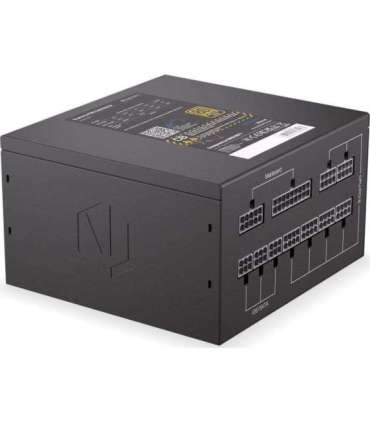

Power supply Endorfy Supremo FM5 Gold 650W (EY7A007)

Характеристики

Depth

140 mm

Weight

1.44 kg

Height

87 mm

Width

150 mm

Package weight

2.42 kg

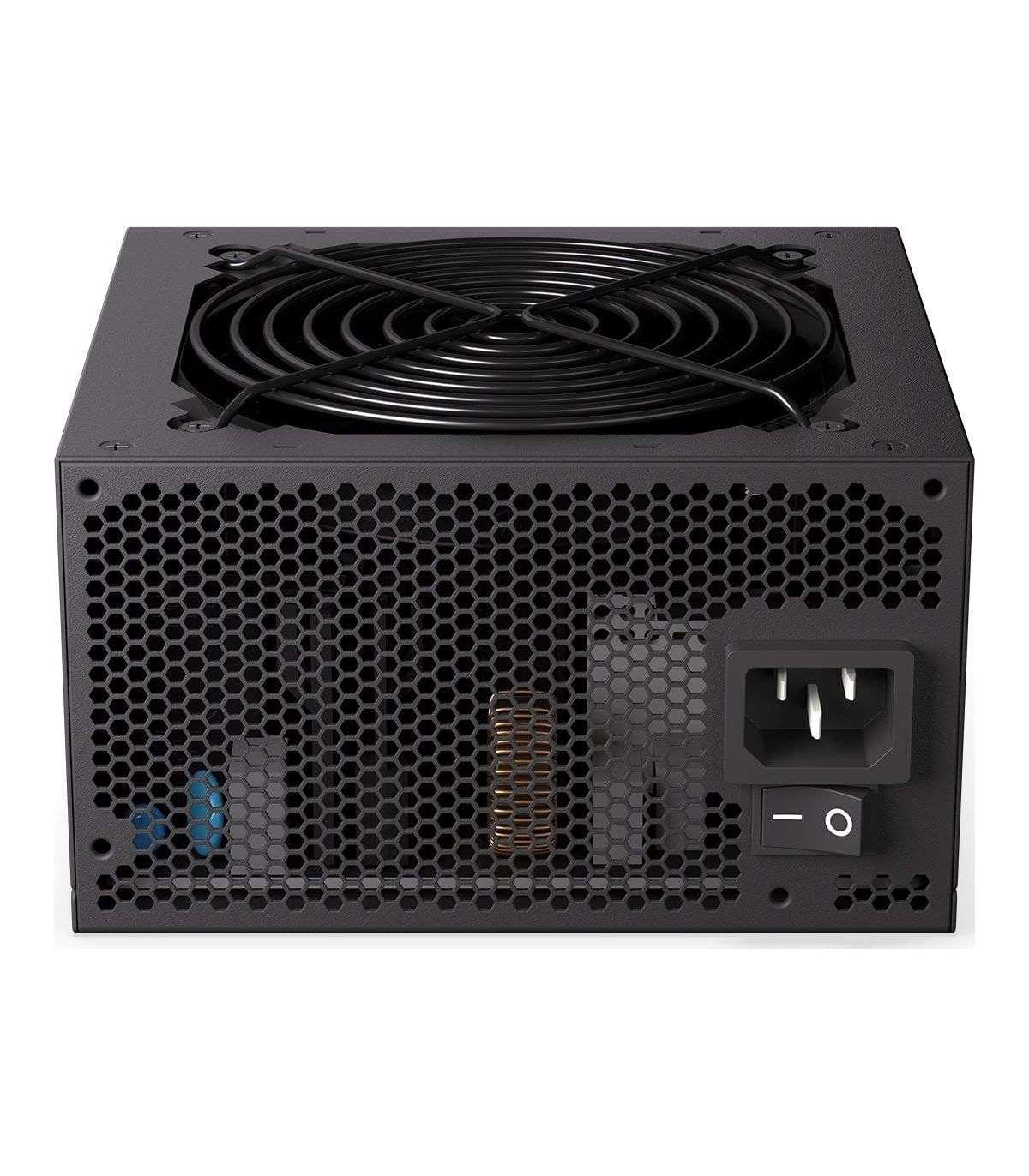

On/off switch

Yes

Product colour

Black

AC input frequency

50 - 60 Hz

AC input voltage

115 - 240 V

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

650 W

Power protection features

OCP (overcurrent protection)
OPP (overload protection)
OTP (overheat protection)
OVP (overvoltage protection)
SCP (short circuit protection)
SIP (surge and shock protection)
UVP (undervoltage protection)

Power Factor Correction (PFC) type

Active

Fan location

Top

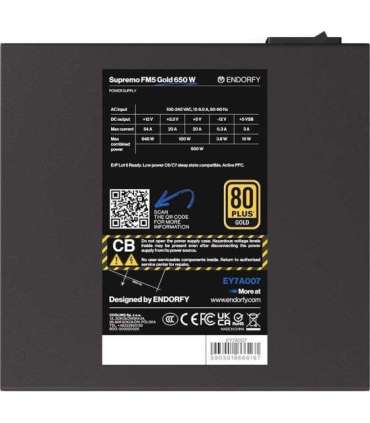

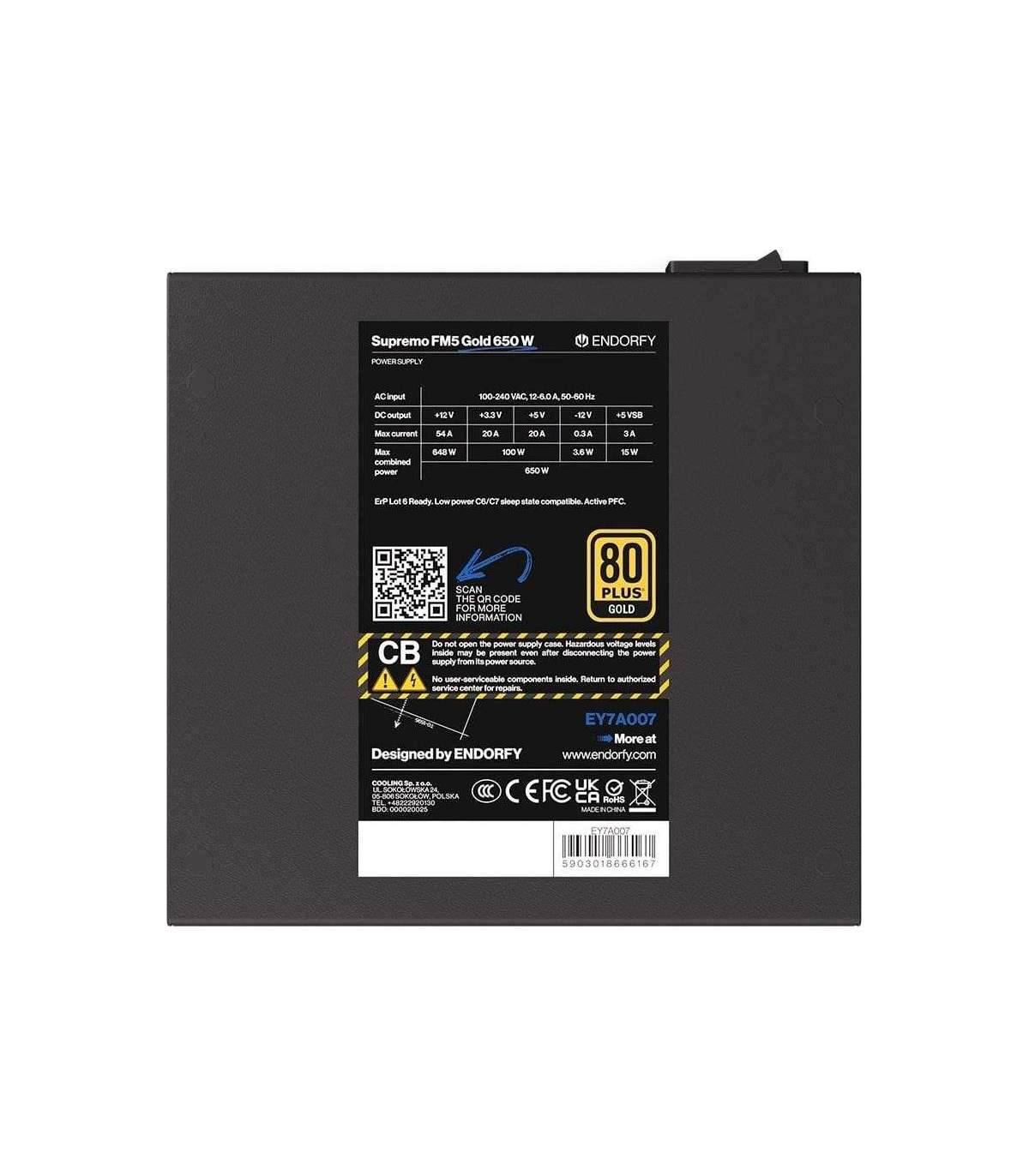

Max output current (+12V)

54 A

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.31

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

5

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

560 mm
880 mm

Peripheral (Molex) power cable length

880 mm

Motherboard power cable length

60 cm

EPS power connector (4+4 pin)

2

PCI Express power cable length

56 cm

Length of EPS power connectors (4+4 pin)

705 mm

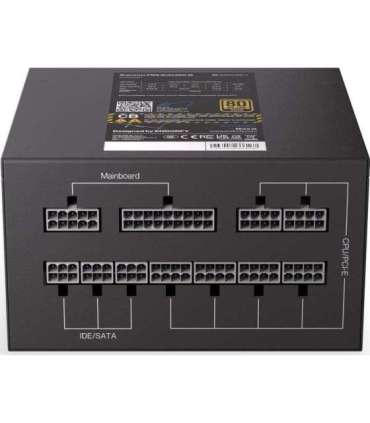

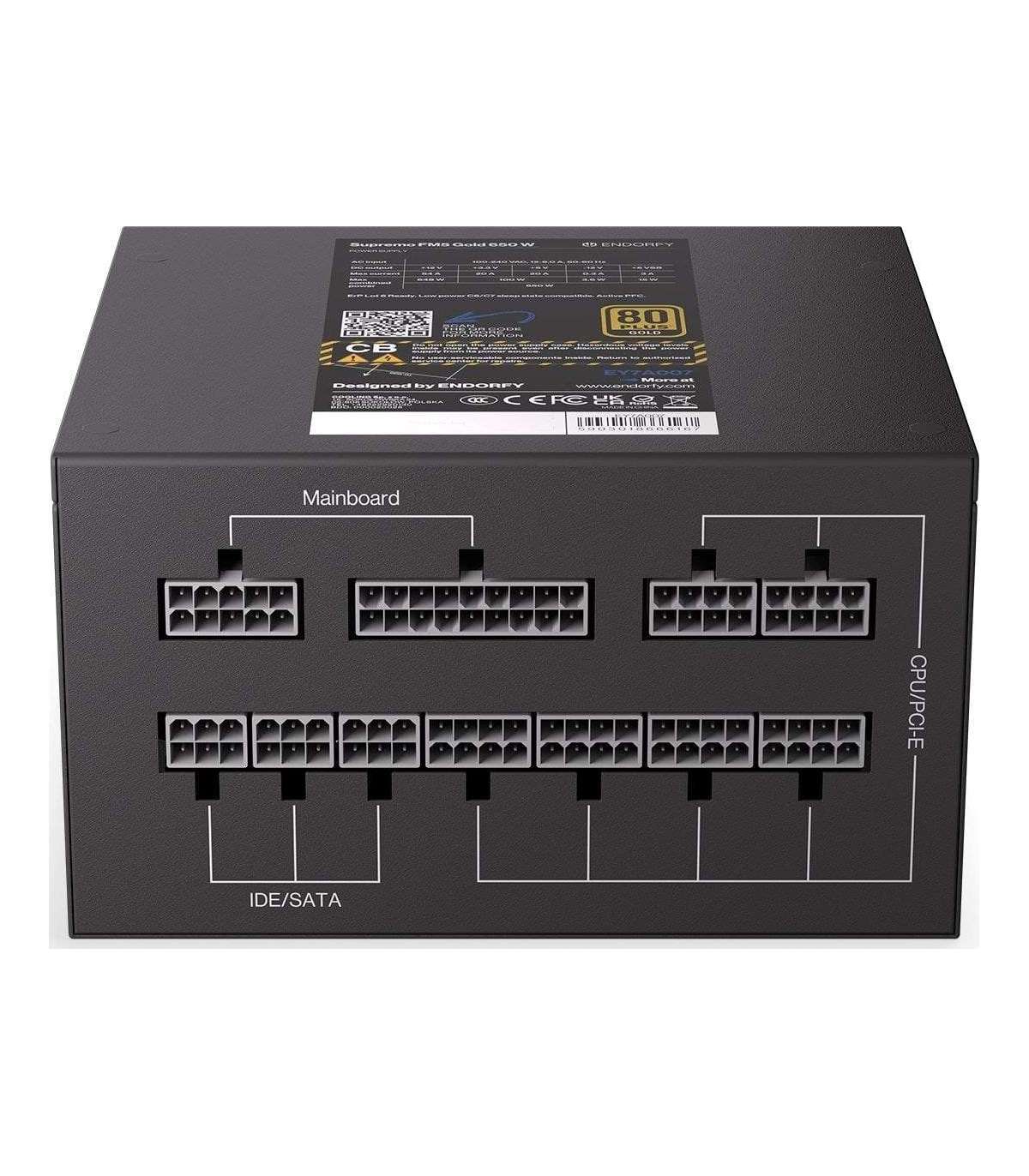

Modular cabling

Y
