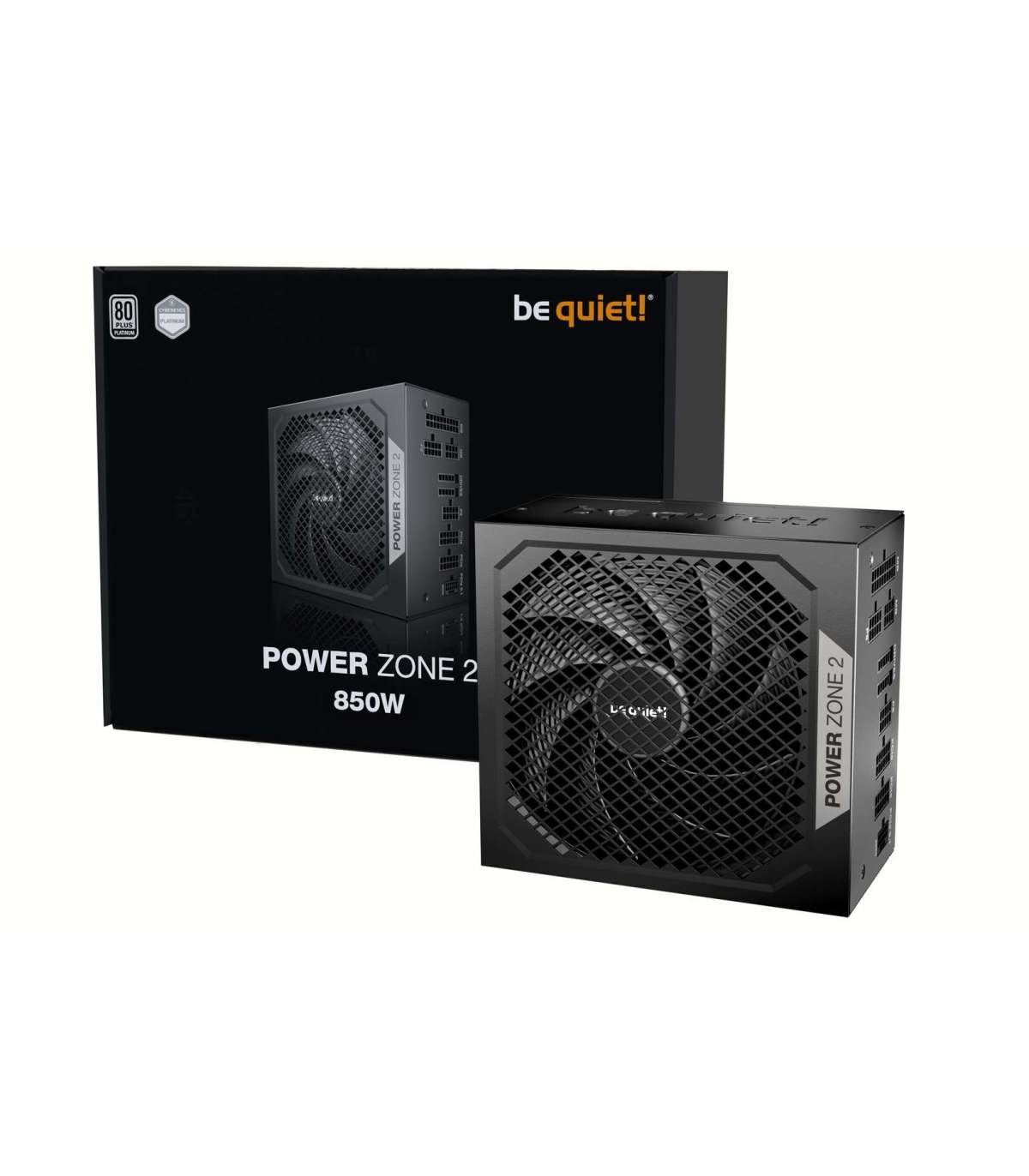

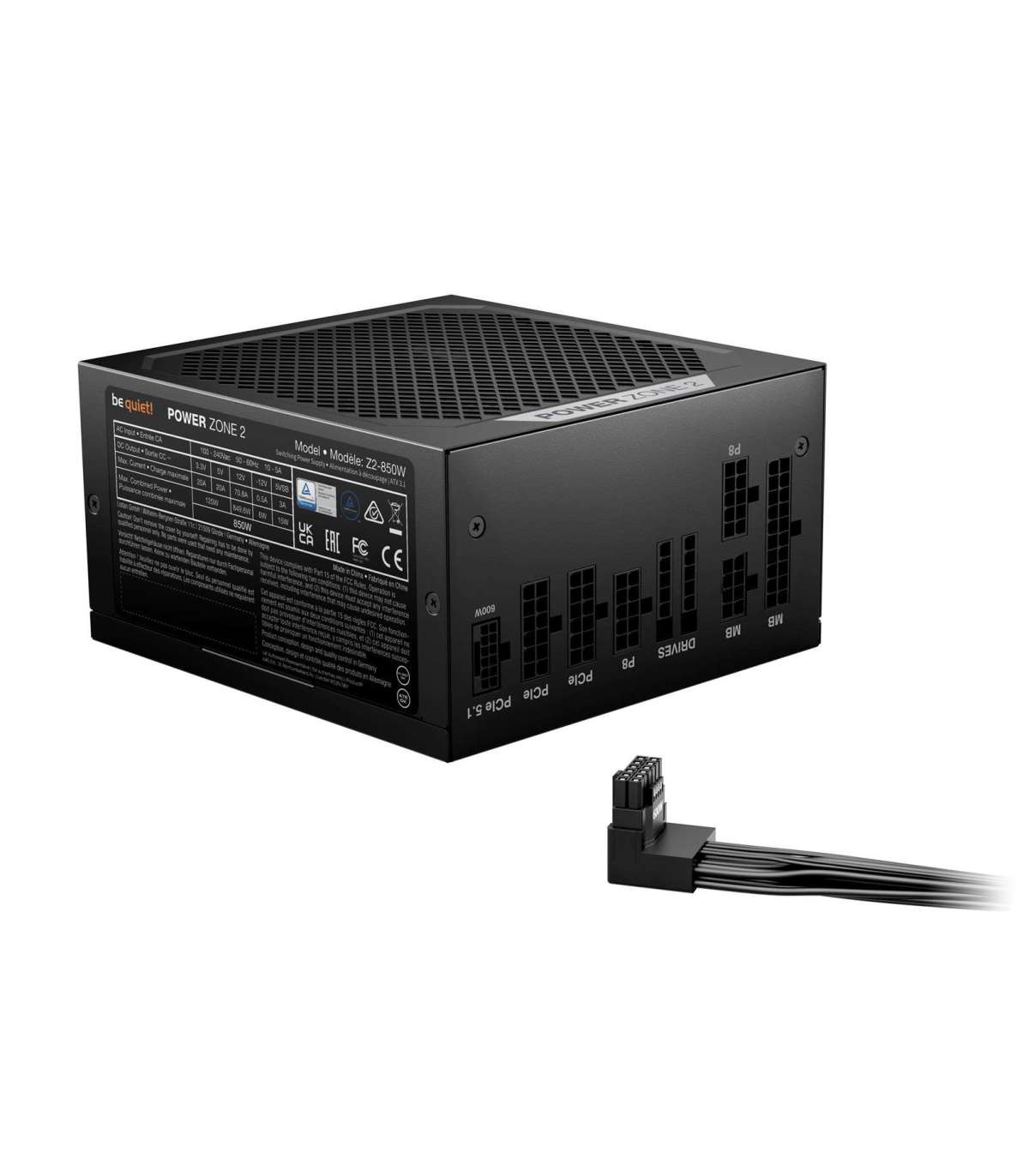

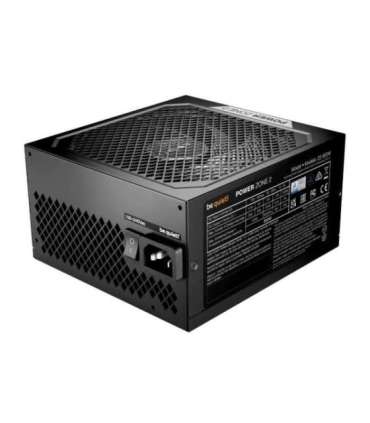

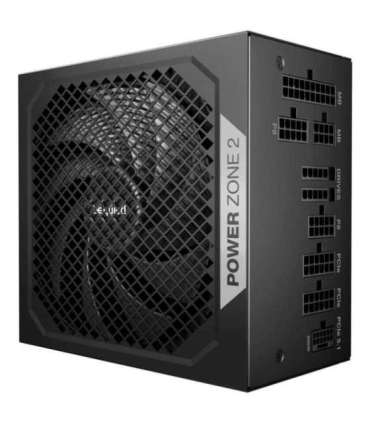

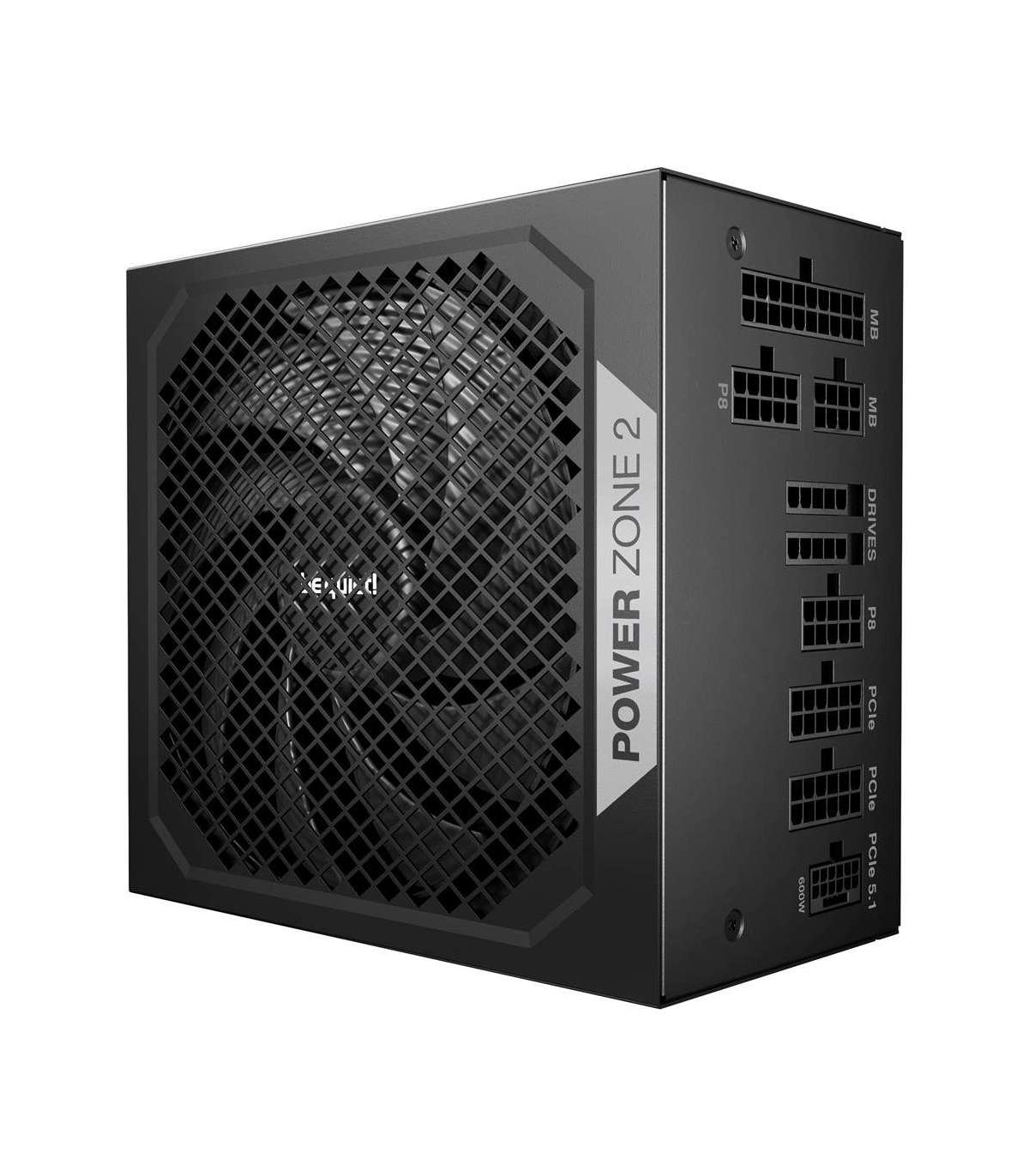

be quiet! POWER ZONE 2 850W power supply unit 20+4 pin ATX ATX Black

Характеристики

Depth

160 mm

Height

86 mm

Width

150 mm

Package weight

3.21 kg

On/off switch

Yes

Product colour

Black

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 95%

Package width

248 mm

Package depth

328 mm

Package height

102 mm

Compliance certificates

BSMI
CB
CCC
CE
Federal Communications Commission (FCC)
RCM
RoHS
TÜV mark
UKCA
WEEE

Sustainability certificates

ENERGY STAR
ErP
Triman

Manual

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package type

Box

Mean time between failures (MTBF)

100000 h

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

6 pc(s)

Cooling type

Active

Screws included

Yes

Peripheral (Molex) power connectors (4-pin)

1

Noise level

24.9 dB

Efficiency

92.3%

Purpose

PC

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Shipping (inner) case length

65.1 cm

Shipping (inner) case width

28.2 cm

Shipping (inner) case height

34.6 cm

Number of fans

1 fan(s)

Fan diameter

14 cm

Peak power

920 W

Manual languages

English
French
German
Polish
Russian
Spanish
Ukrainian

80 PLUS certification

80 PLUS Platinum

Shipping (inner) case gross weight

19.3 kg

Total power

850 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Surge & inrush
Under voltage

Bearing technology

Rifle

Combined power (-12V)

6 W

Max output current (+12V)

70.8 A

Combined power (+3.3V)

120 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

120 W

Hold time

21.1 ms

Combined power (+12V)

849.6 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.5 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

7

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

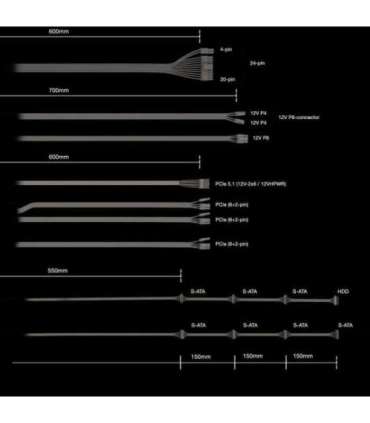

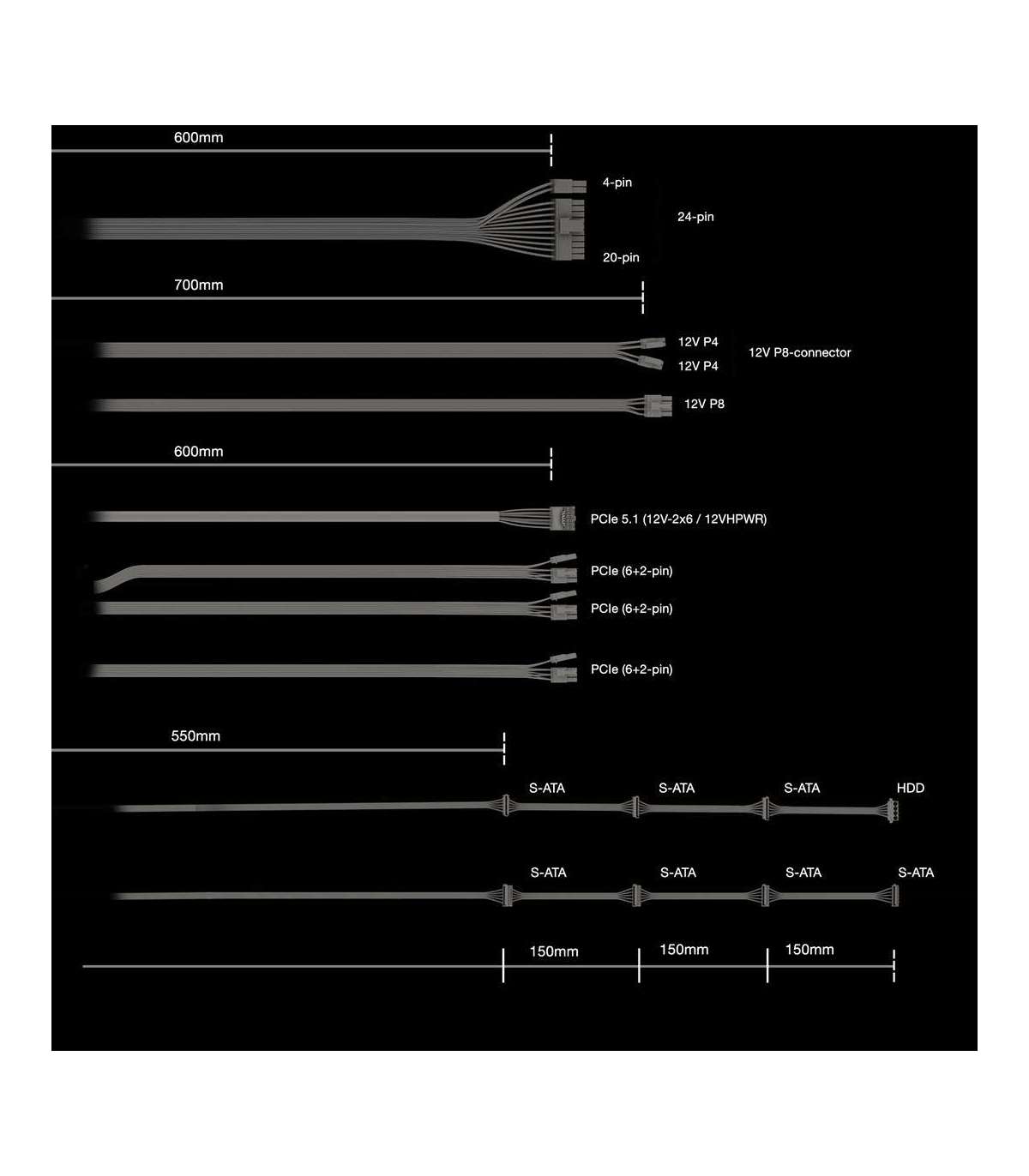

SATA power cable length

550
700
850 mm
1000 mm

Peripheral (Molex) power cable length

1000 mm

CPU power cable length

70 cm

CPU power connector (4+4 pin)

Yes

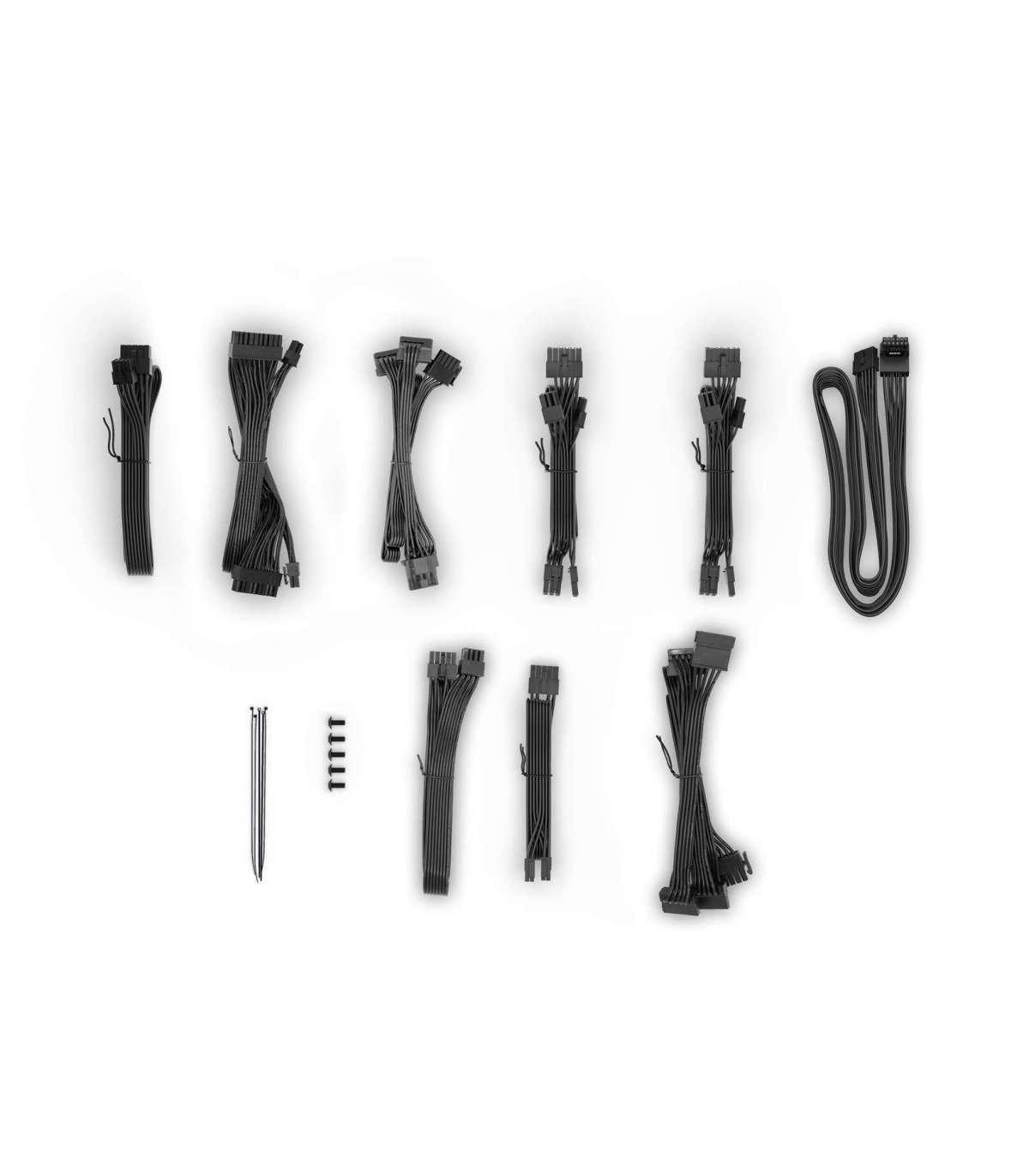

Cabling type

Fully-Modular

Motherboard power cable length

60 cm

PCI Express power connectors (16-pin)

1

PCI Express power cable length

60 cm

Power factor

0.98

Maximum input current (@220V)

5 A

Maximum input current (@110V)

10 A

EPS version

2.92

Cable ties included

Yes

Number of +12V rail(s)

1

CPU P4 connector (4-pin)

1
