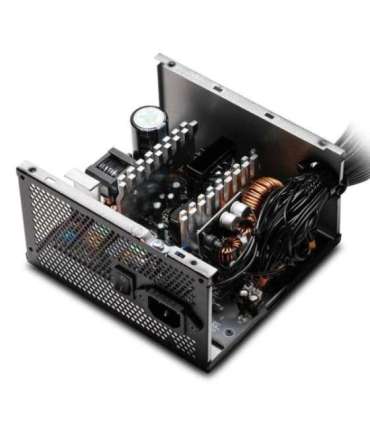

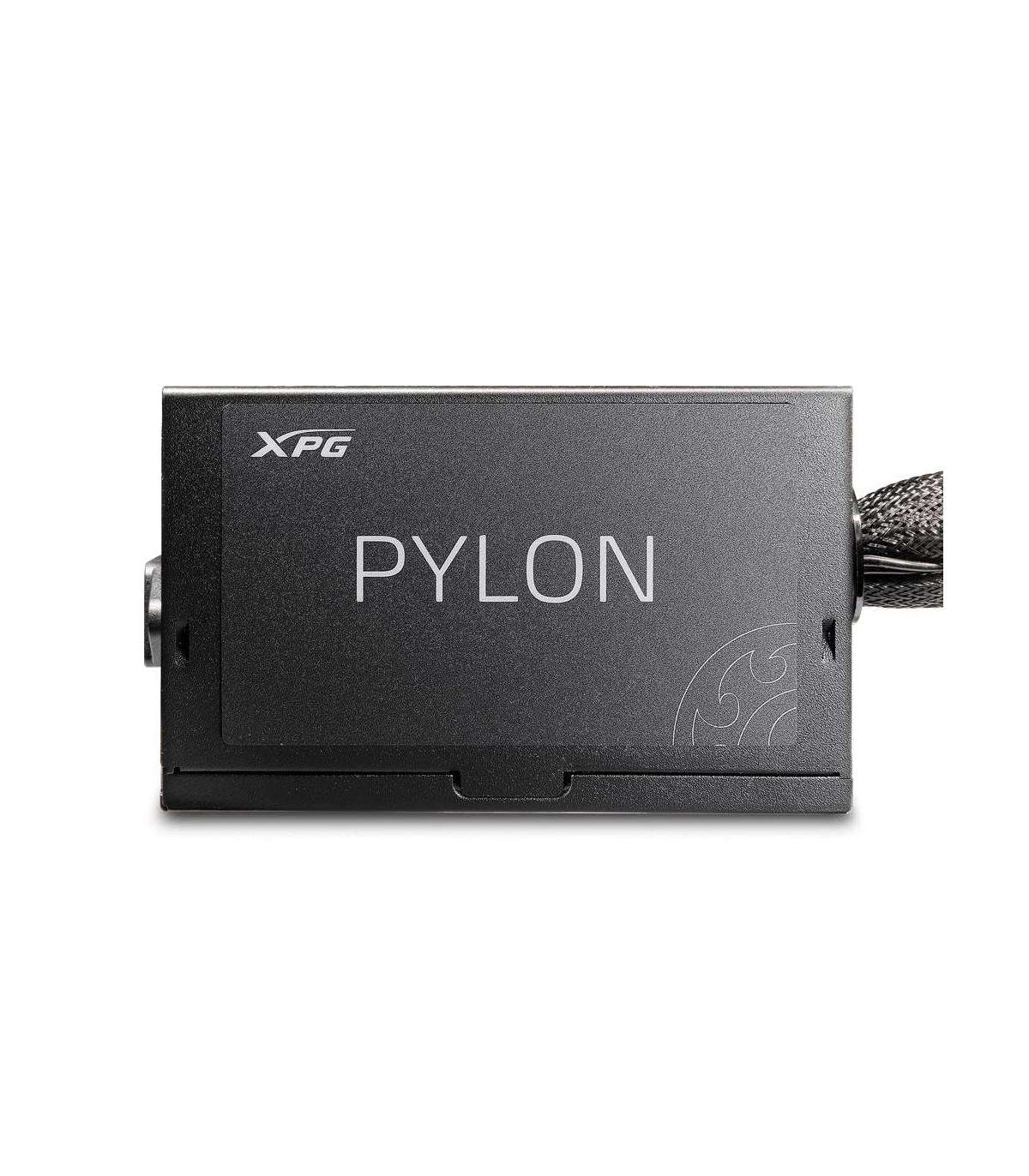

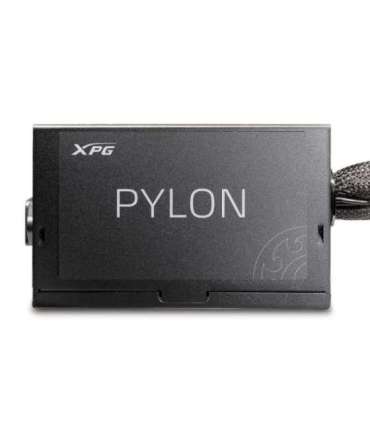

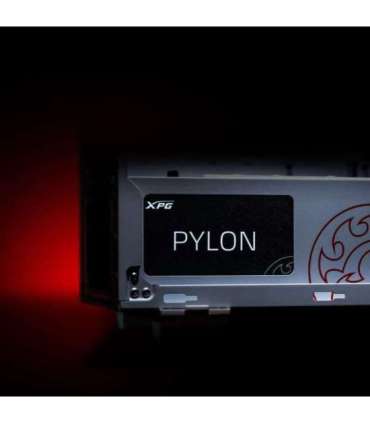

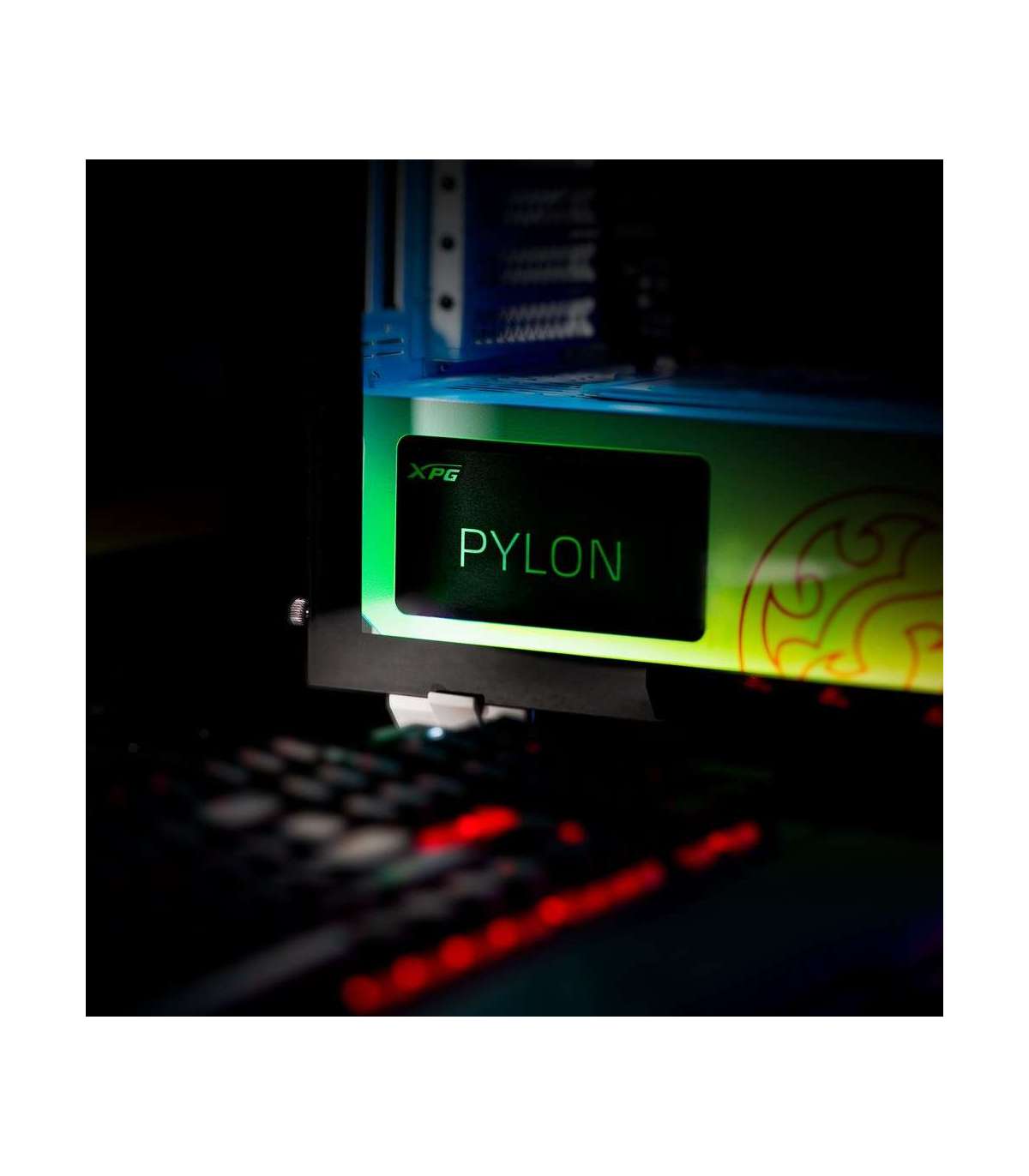

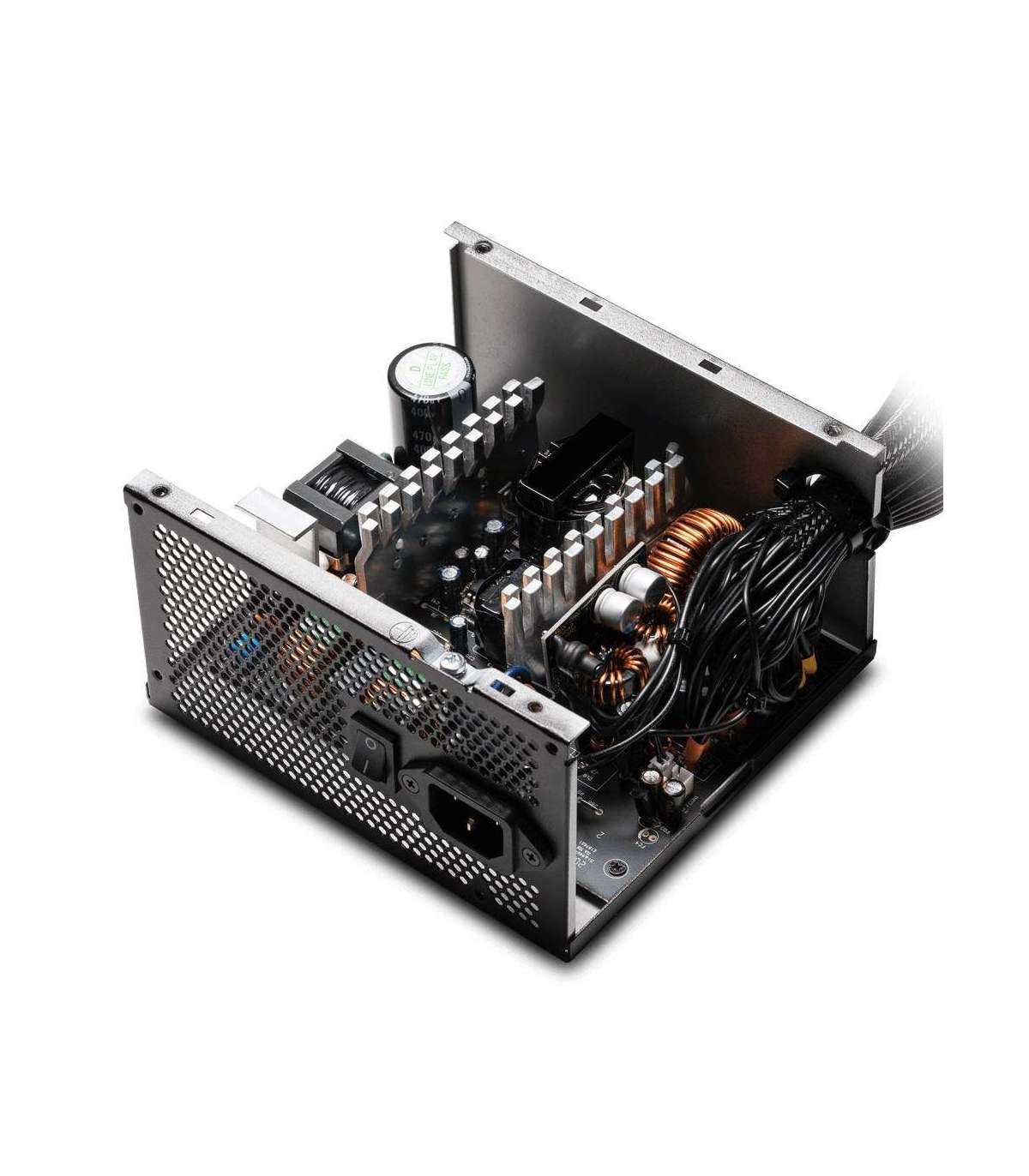

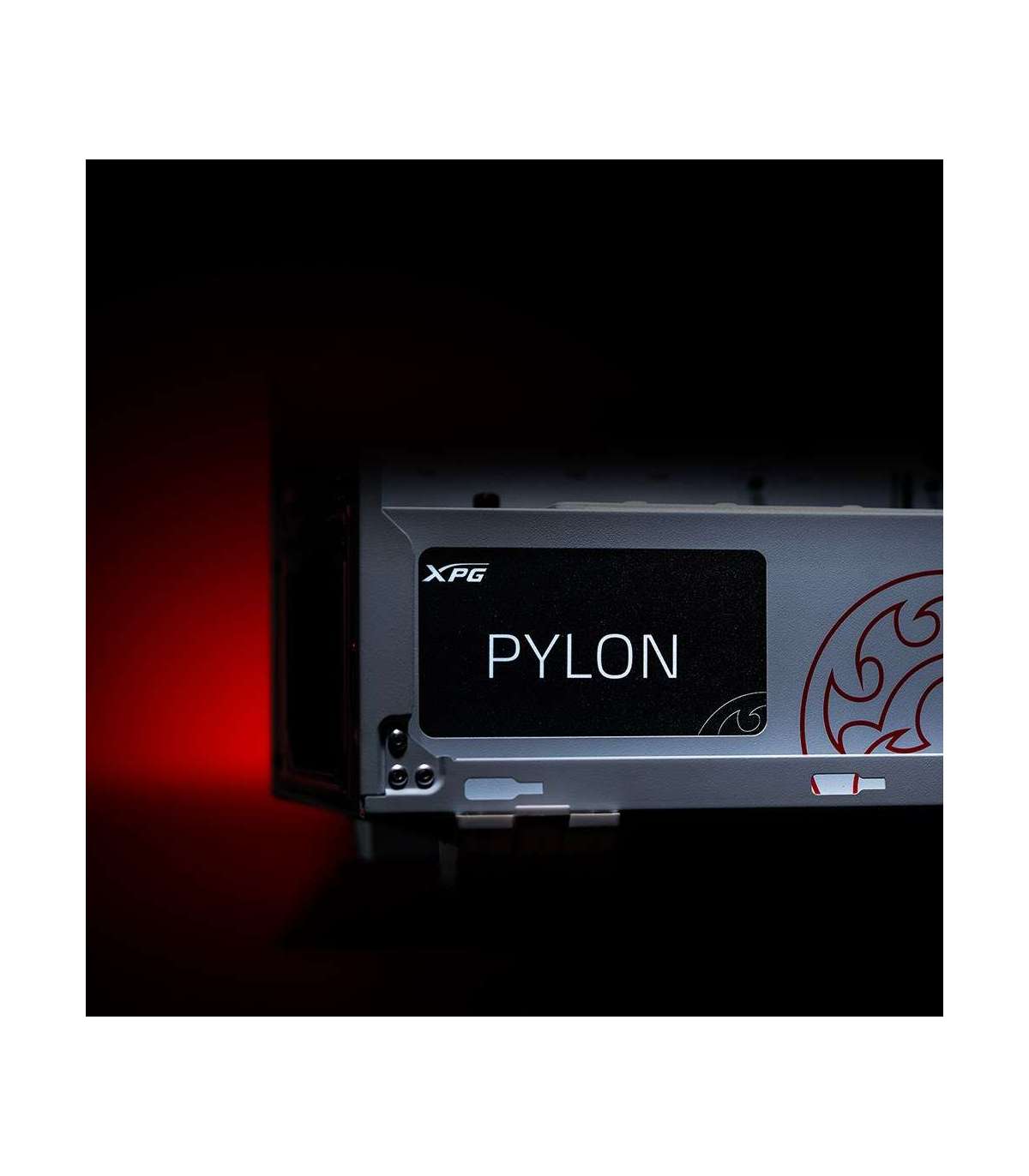

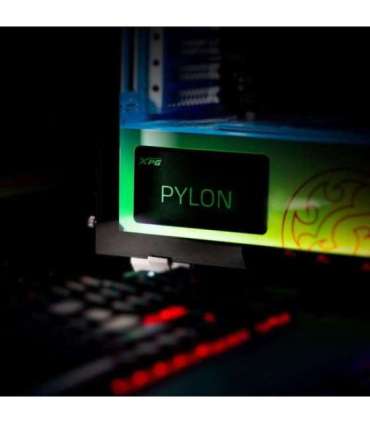

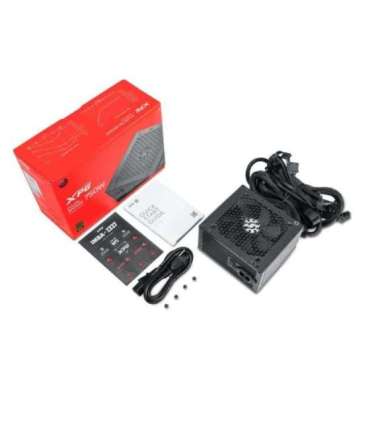

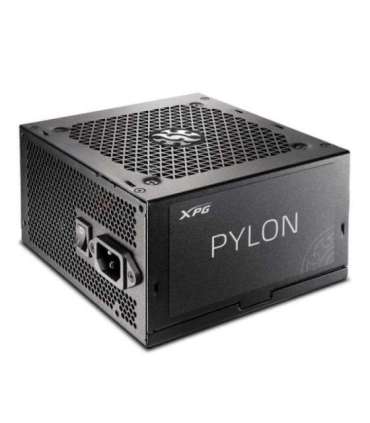

XPG PYLON 550W Power Supply

Характеристики

Depth

150 mm

Height

86 mm

Width

140 mm

Product colour

Black

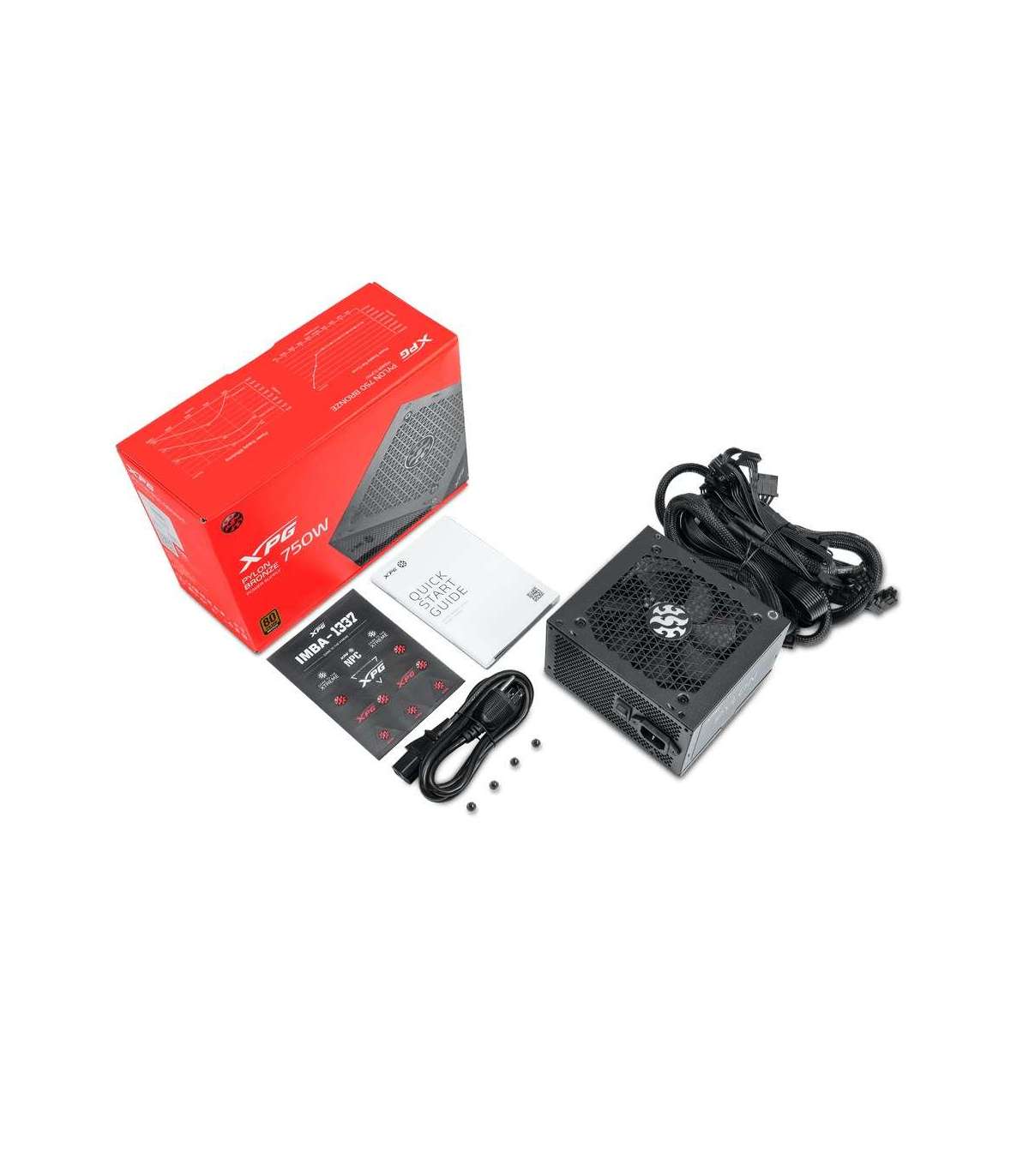

Cables included

AC

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

Sustainability compliance

Yes

Sustainability certificates

ErP

Certification

CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

8/4 A

Mean time between failures (MTBF)

100000 h

ATX Power connector (24-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

550 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

FDB

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Max output current (+12V)

45.5 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Combined power (+12V)

546 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

5

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

24-pin ATX

Cabling type

Non-Modular

EPS power connector (4+4 pin)

Yes

Power factor

0.99
