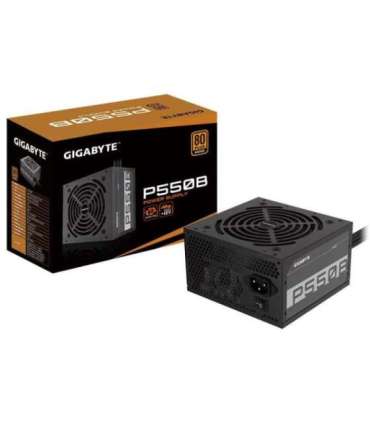

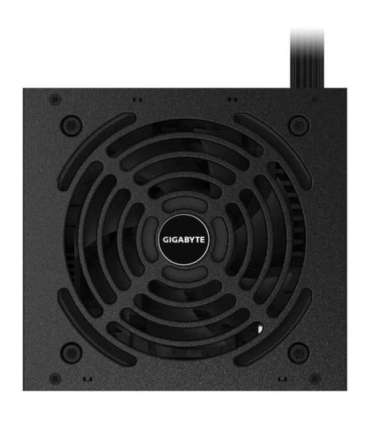

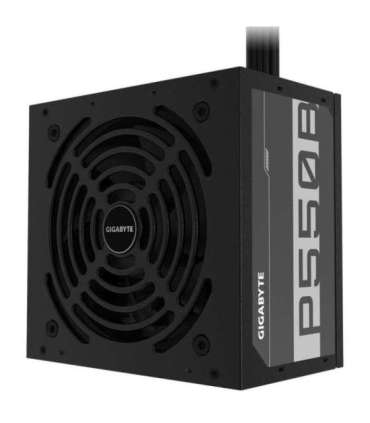

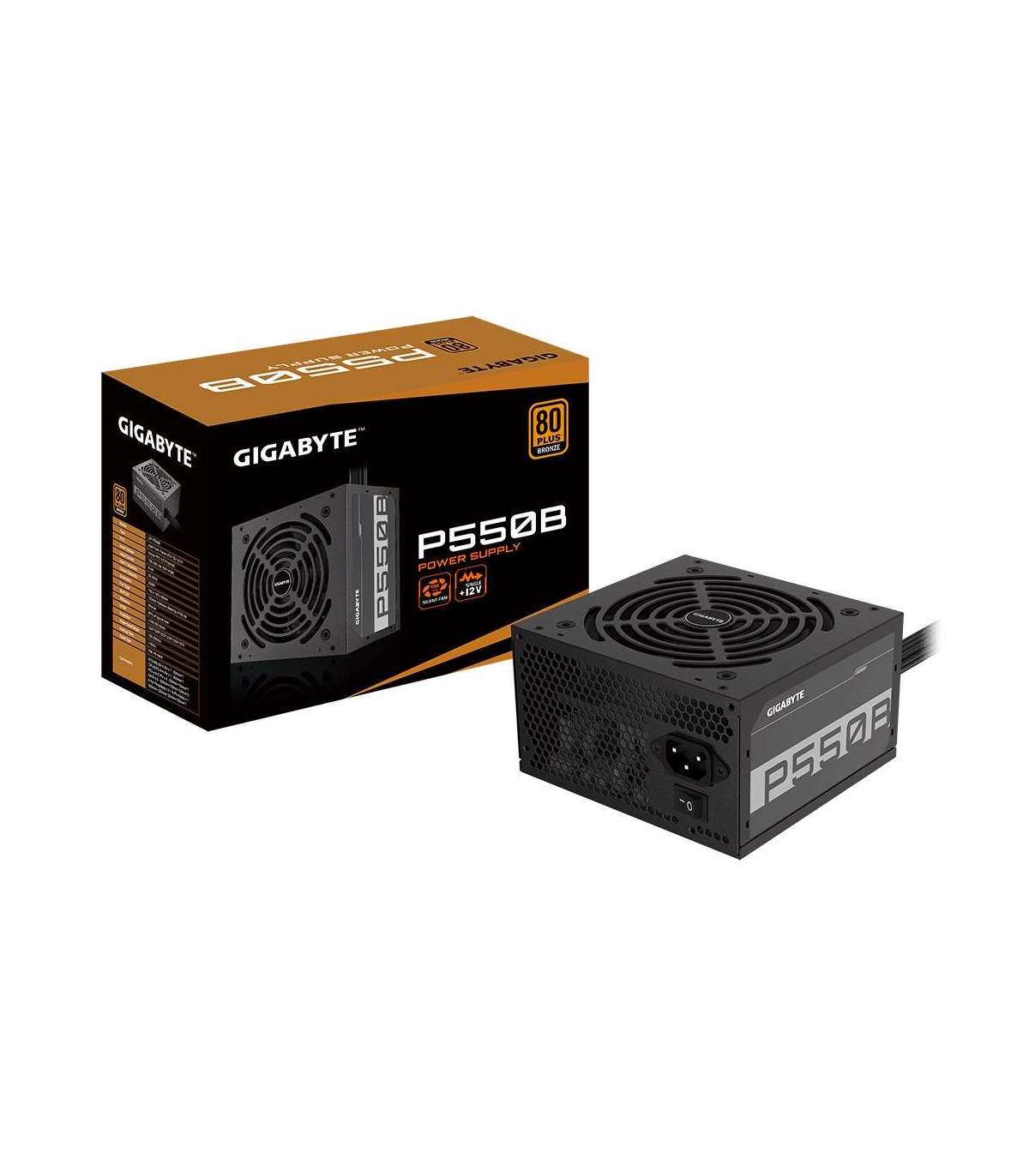

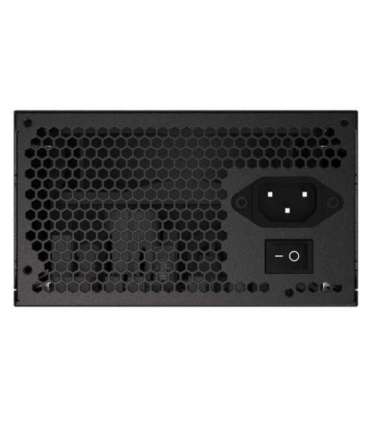

Gigabyte P550B power supply unit 550 W 20+4 pin ATX ATX Black

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Harmonized System (HS) code

84733020

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

8 - 4 A

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Efficiency

85%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

550 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

HDB

Power Factor Correction (PFC) type

Active

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

43.5 A

Combined power (+3.3V)

108 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

15 A

Max output current (+3.3V)

18 A

Combined power (+5V)

108 W

Hold time

16 ms

Combined power (+12V)

522 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

2.31

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

500 mm

Peripheral (Molex) power cable length

500 mm

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

55 cm

PCI Express power cable length

55 cm

Power factor

0.9

Floppy disk drive connector

Yes

Floppy drive power connector

1

PCI Express connector

Yes
