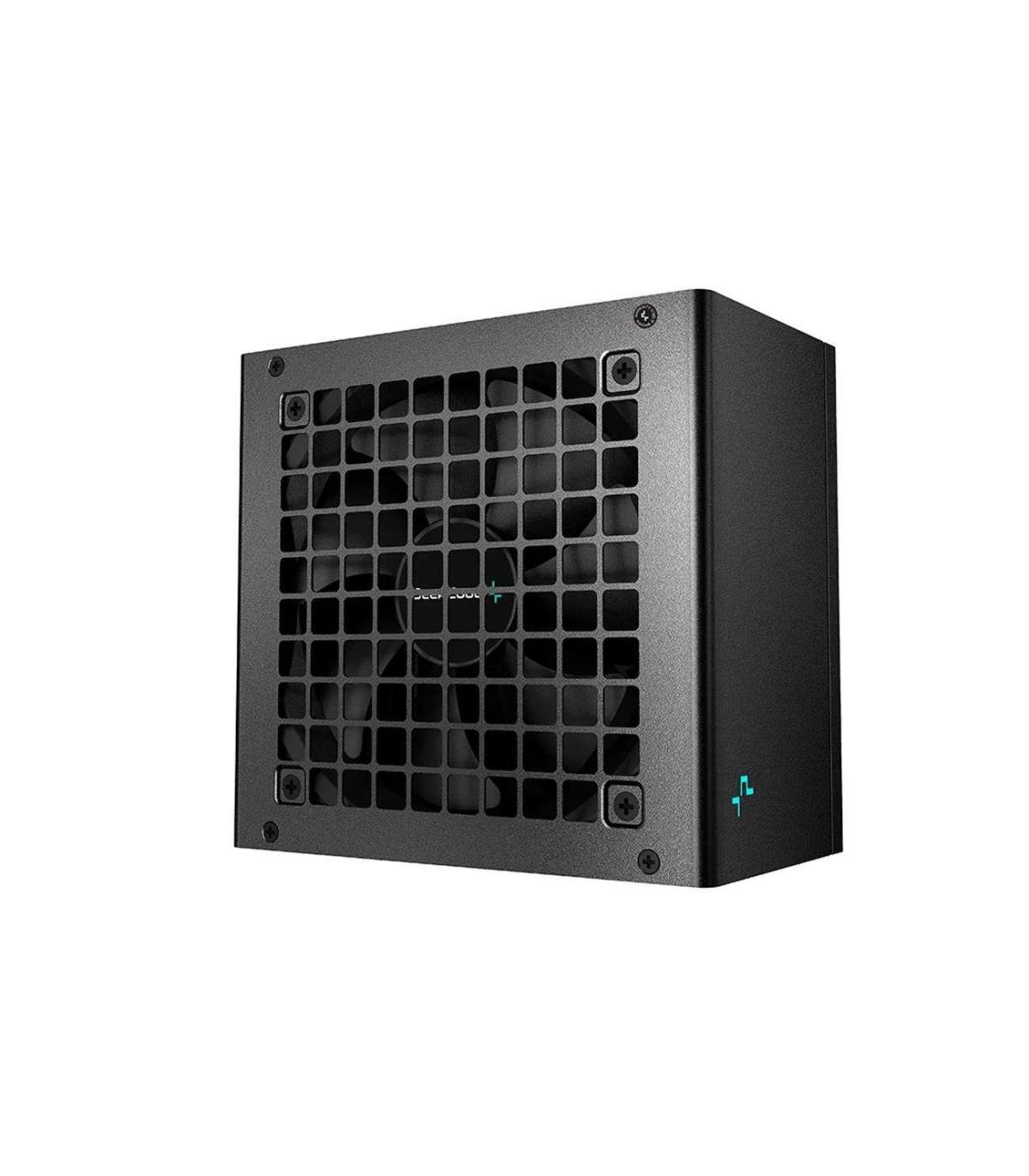

Deepcool PK750D 750W Bronze Power Supply

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Compliance certificates

RoHS
WEEE

Certification

CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

10 - 5 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

4

Efficiency

85%

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

800 W

Power protection features

No load operation
Over current
Overheating
Over power
Over voltage
Surge & inrush protection (SIP)
Surge protection
Under voltage

Bearing technology

HDB

Power Factor Correction (PFC) type

Active

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

62.5 A

Combined power (+3.3V)

120 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

120 W

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+12V)

750 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

400 mm
500 mm
600 mm
700

CPU power connector (4+4 pin)

2

Cabling type

Non-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

50 cm
