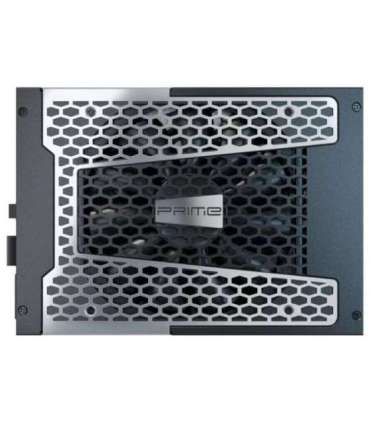

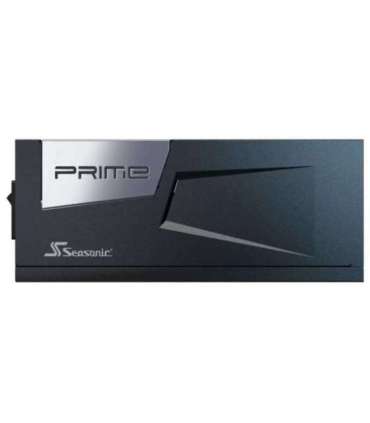

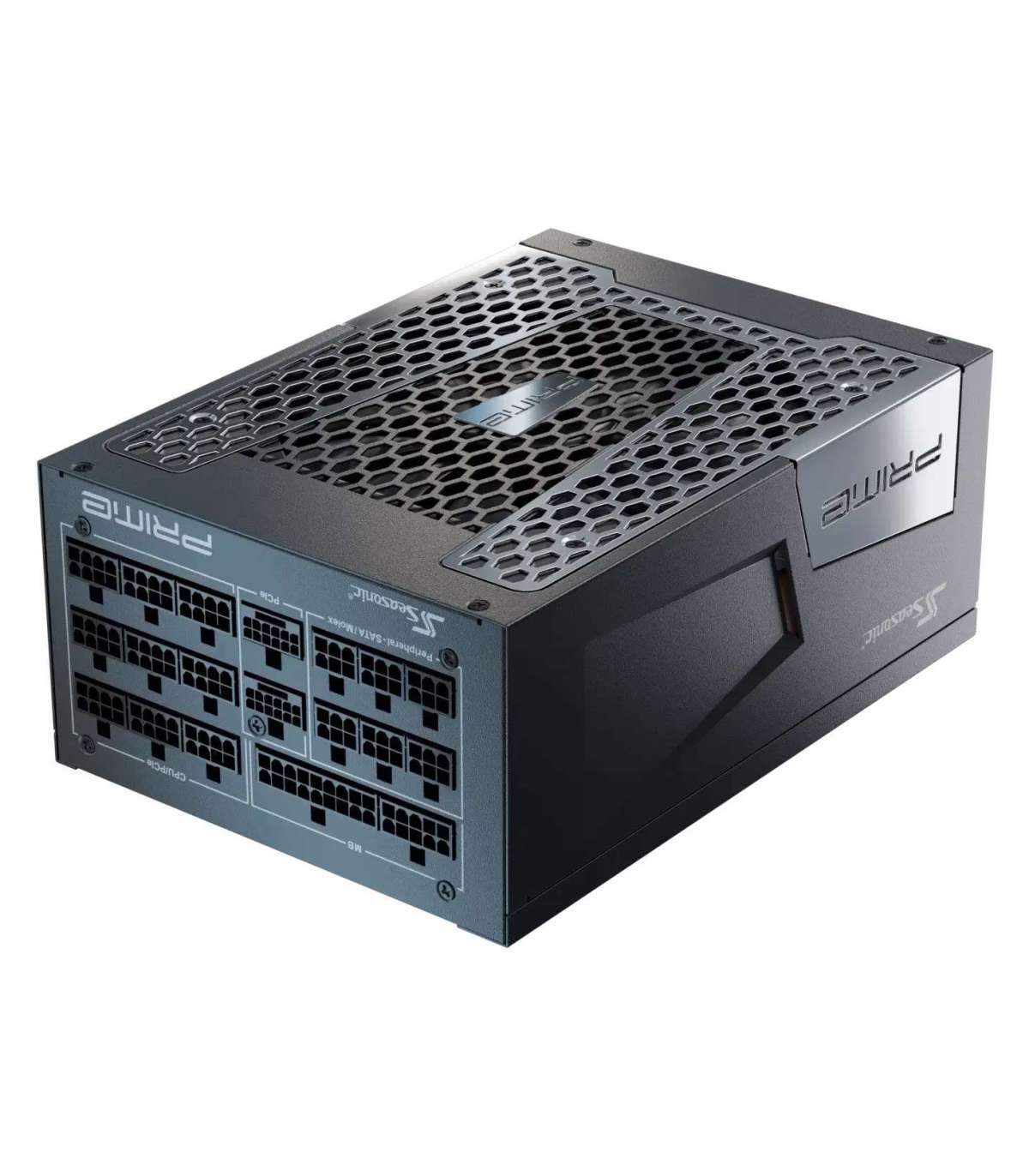

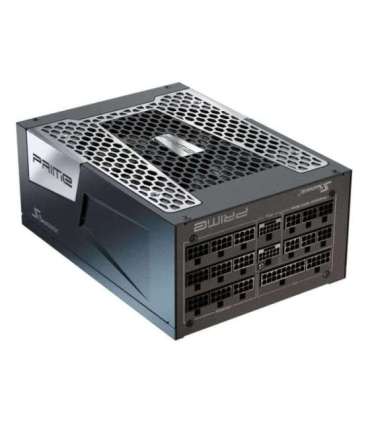

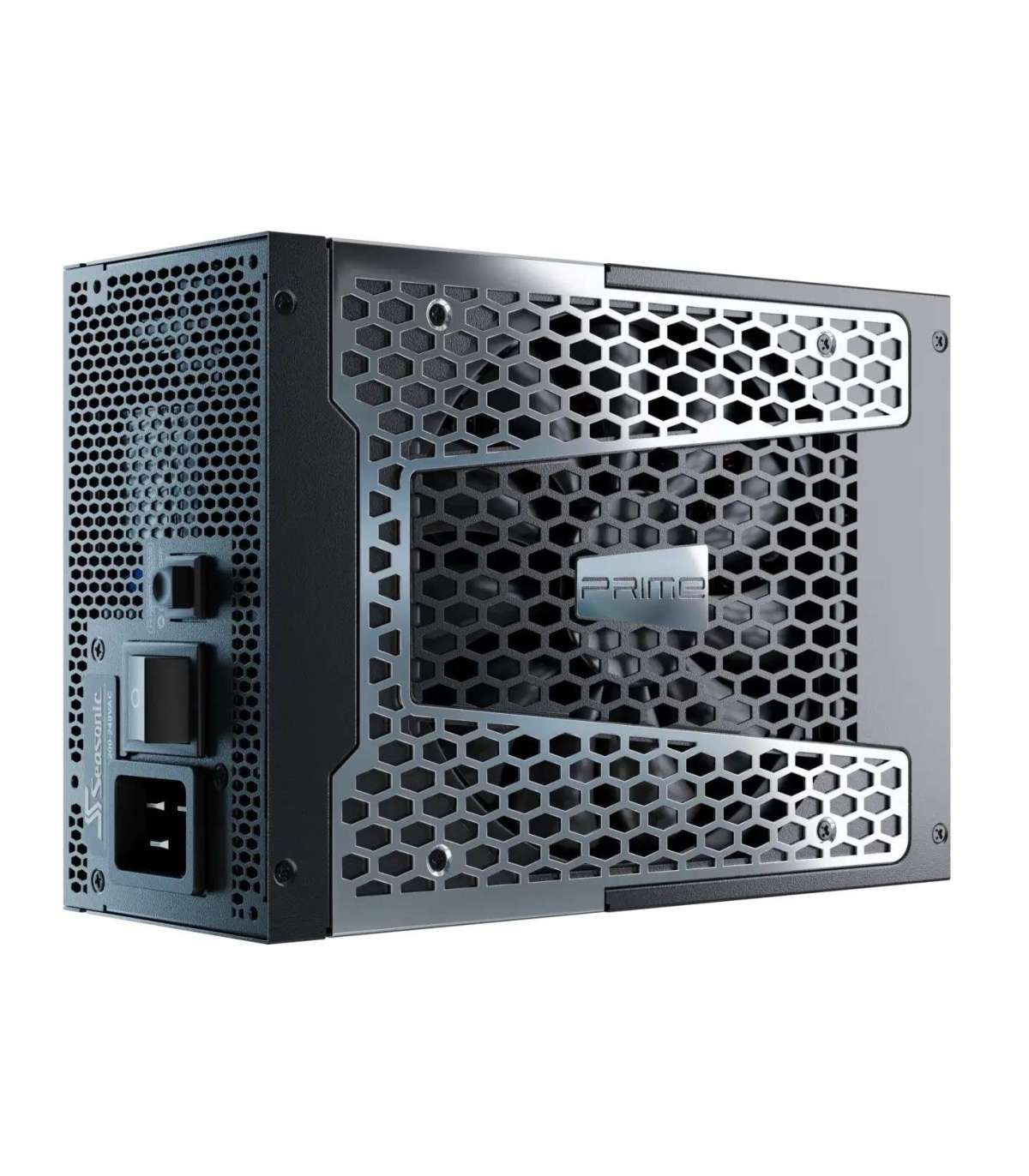

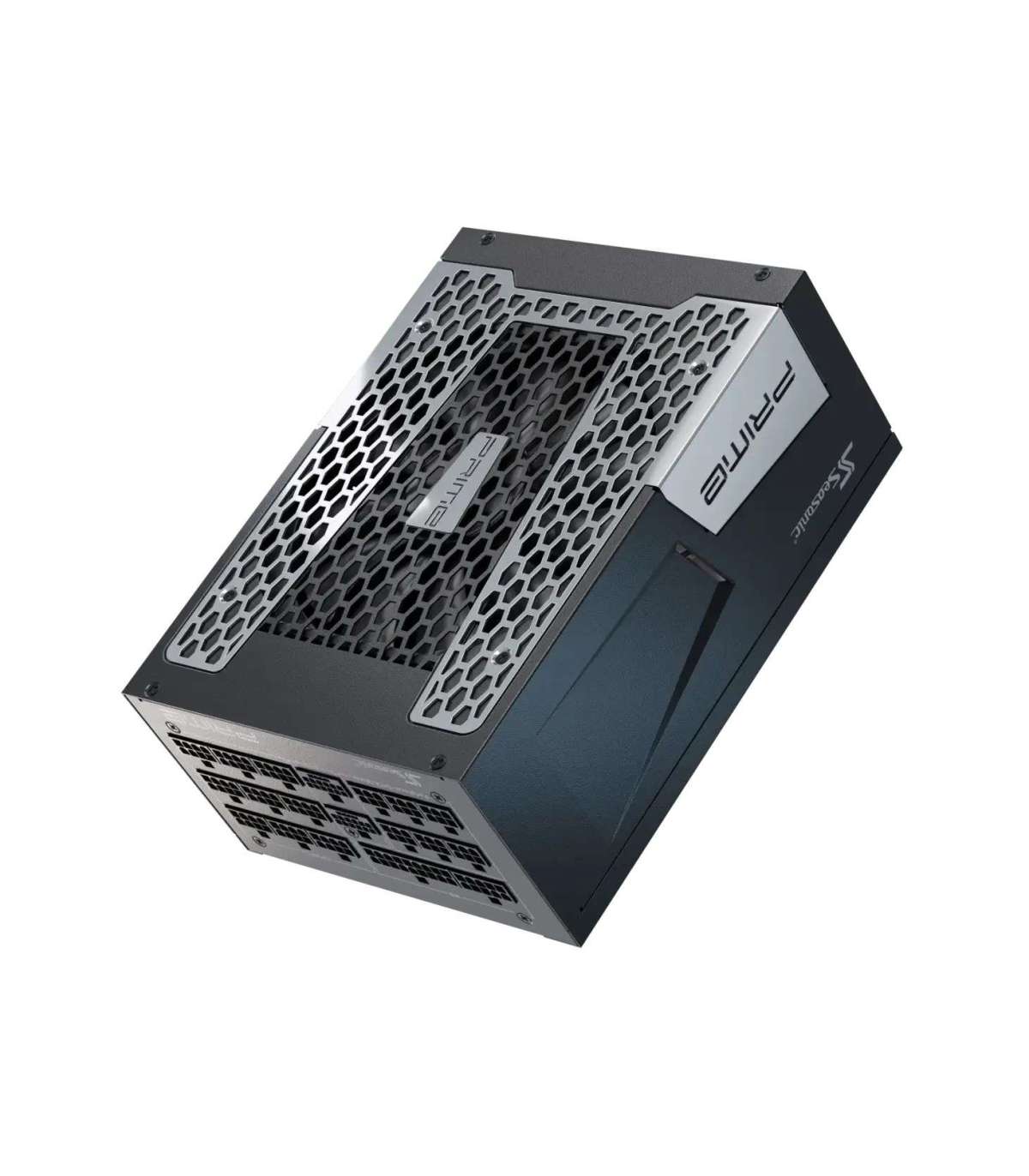

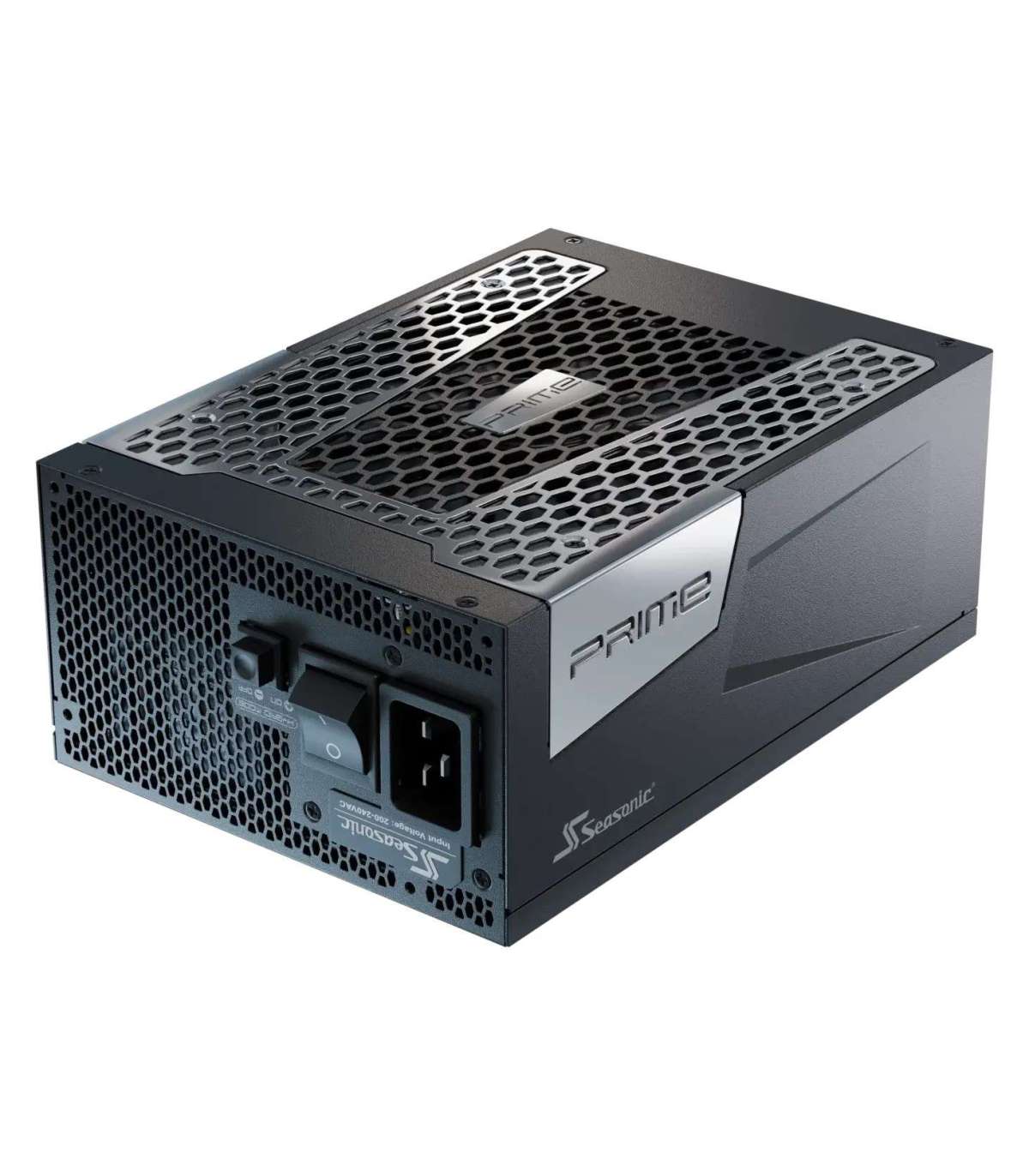

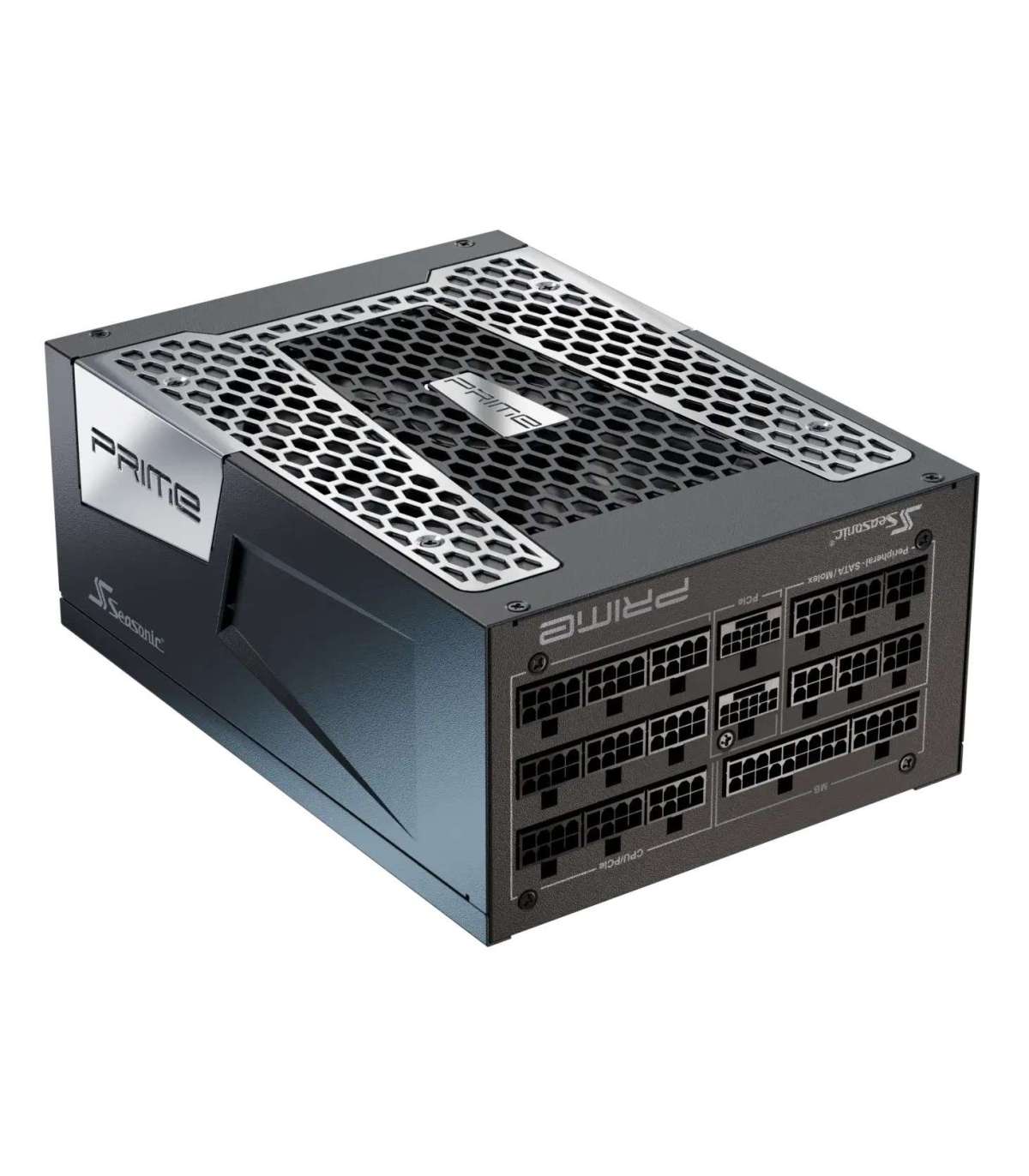

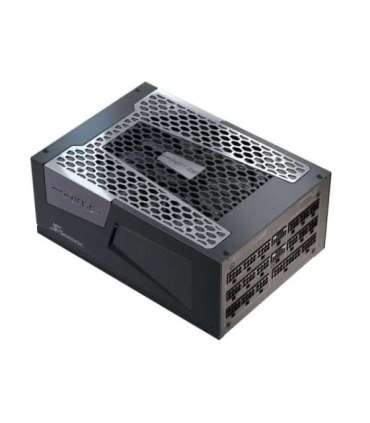

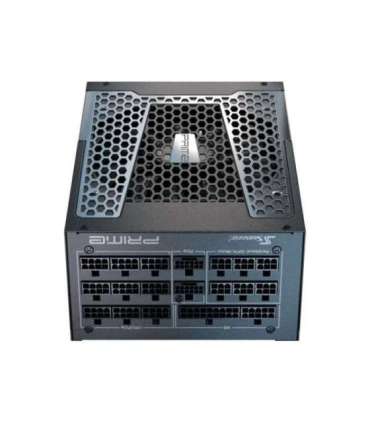

Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black

Характеристики

Depth

210 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 50 °C

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Compliance certificates

CCC
CE
REACH
RoHS
WEEE

AC input voltage

115 - 240 V

Input current

15 A

Package type

Box

Mean time between failures (MTBF)

150000 h

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Platinum

Total power

2200 W

Bearing technology

FDB

Combined power (-12V)

6 W

Max output current (+12V)

183.3 A

Combined power (+3.3V)

125 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

25 A

Max output current (+3.3V)

25 A

Combined power (+5V)

125 W

Combined power (+12V)

2200 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.5 A

ATX version

3.0

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

10

Motherboard power connector

24-pin ATX

SATA power cable length

450 mm
470
550
570
760
860 mm
950 mm

Peripheral (Molex) power cable length

470
690 mm

CPU power cable length

70 cm

Cabling type

Fully-Modular

Motherboard power cable length

61 cm
