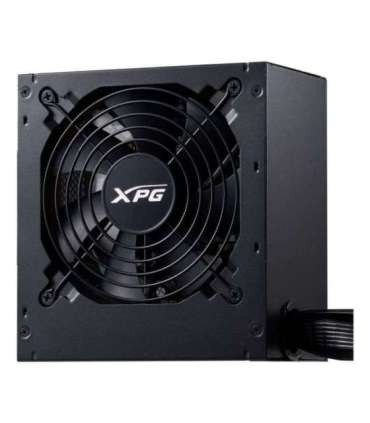

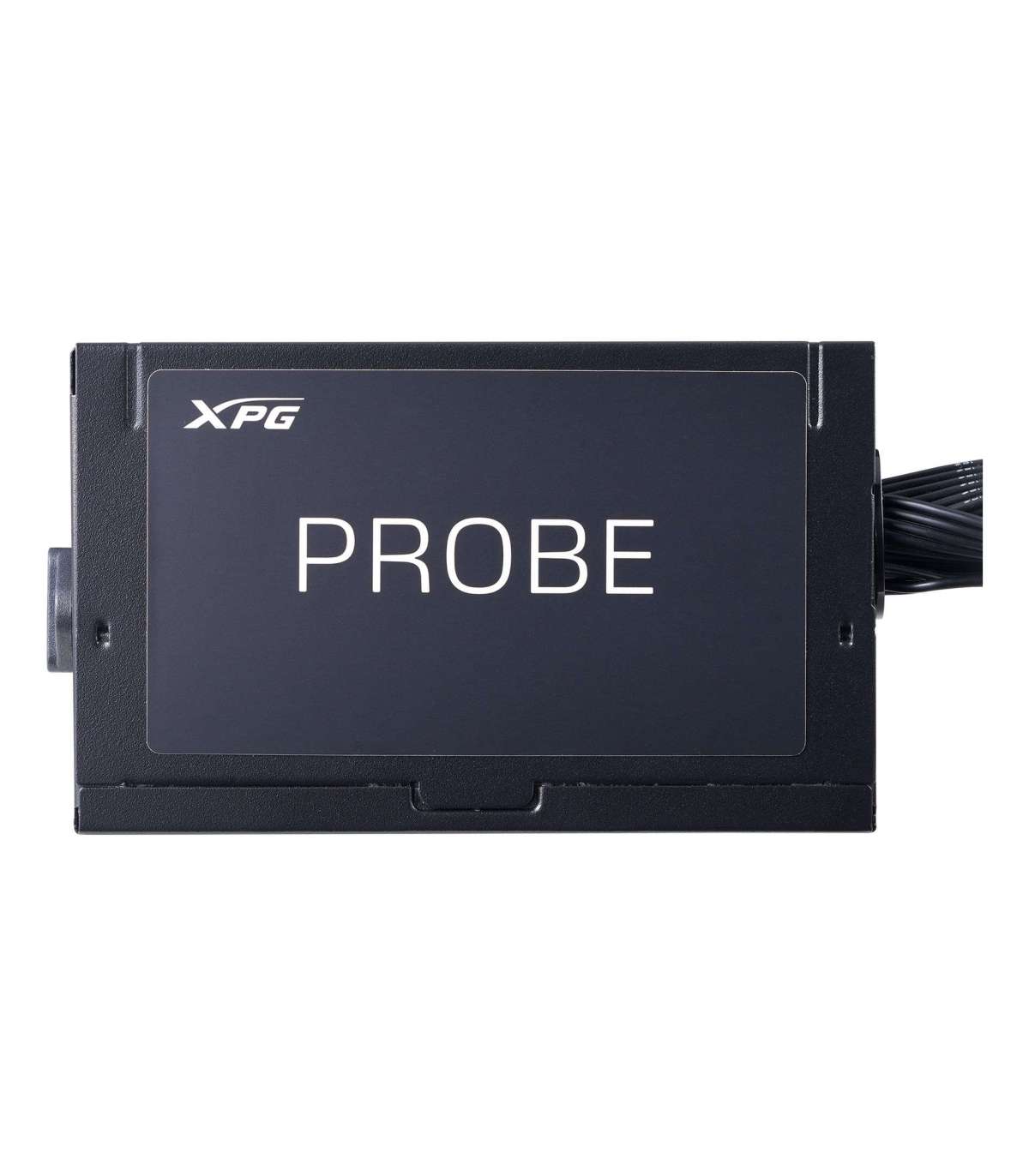

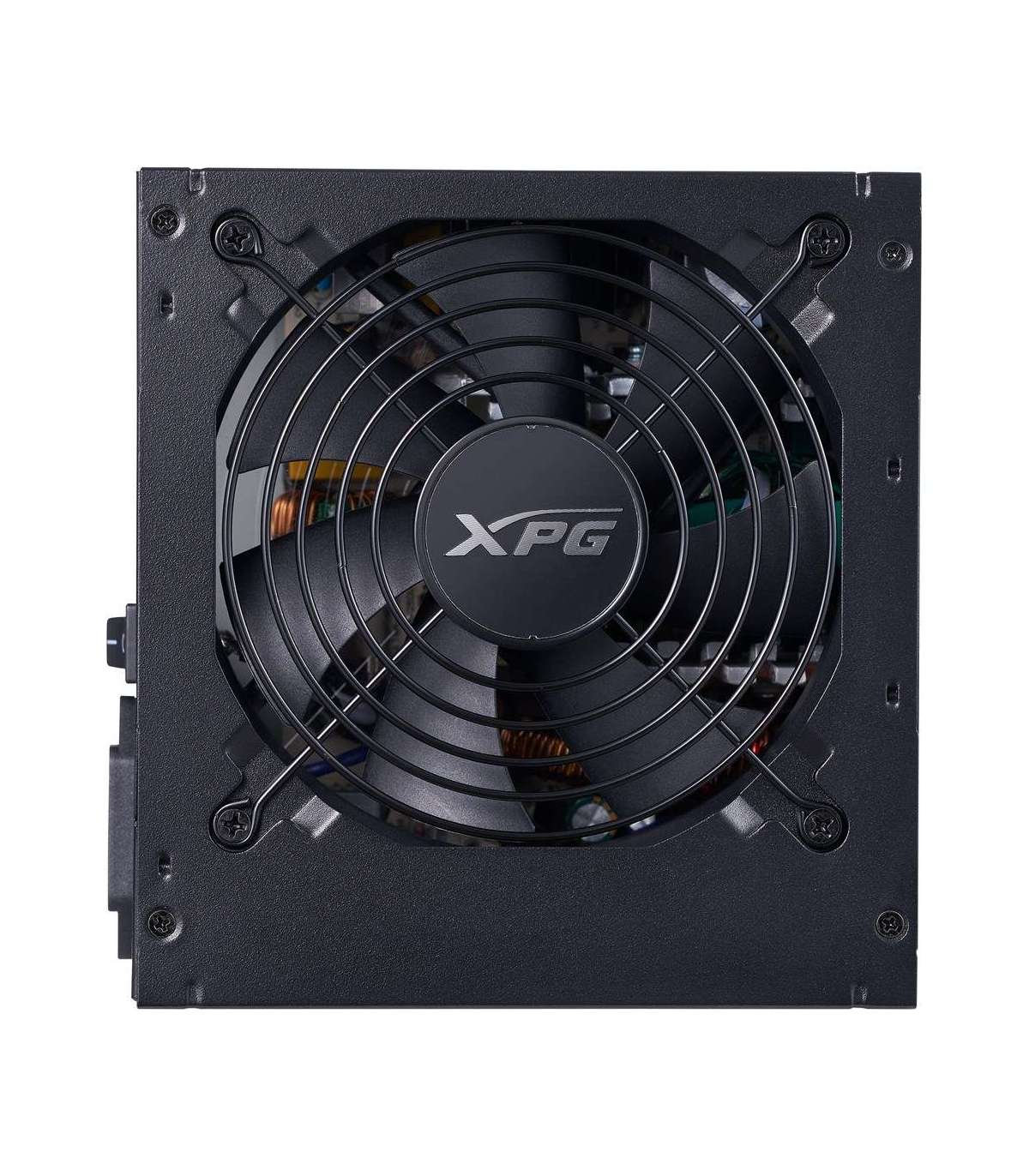

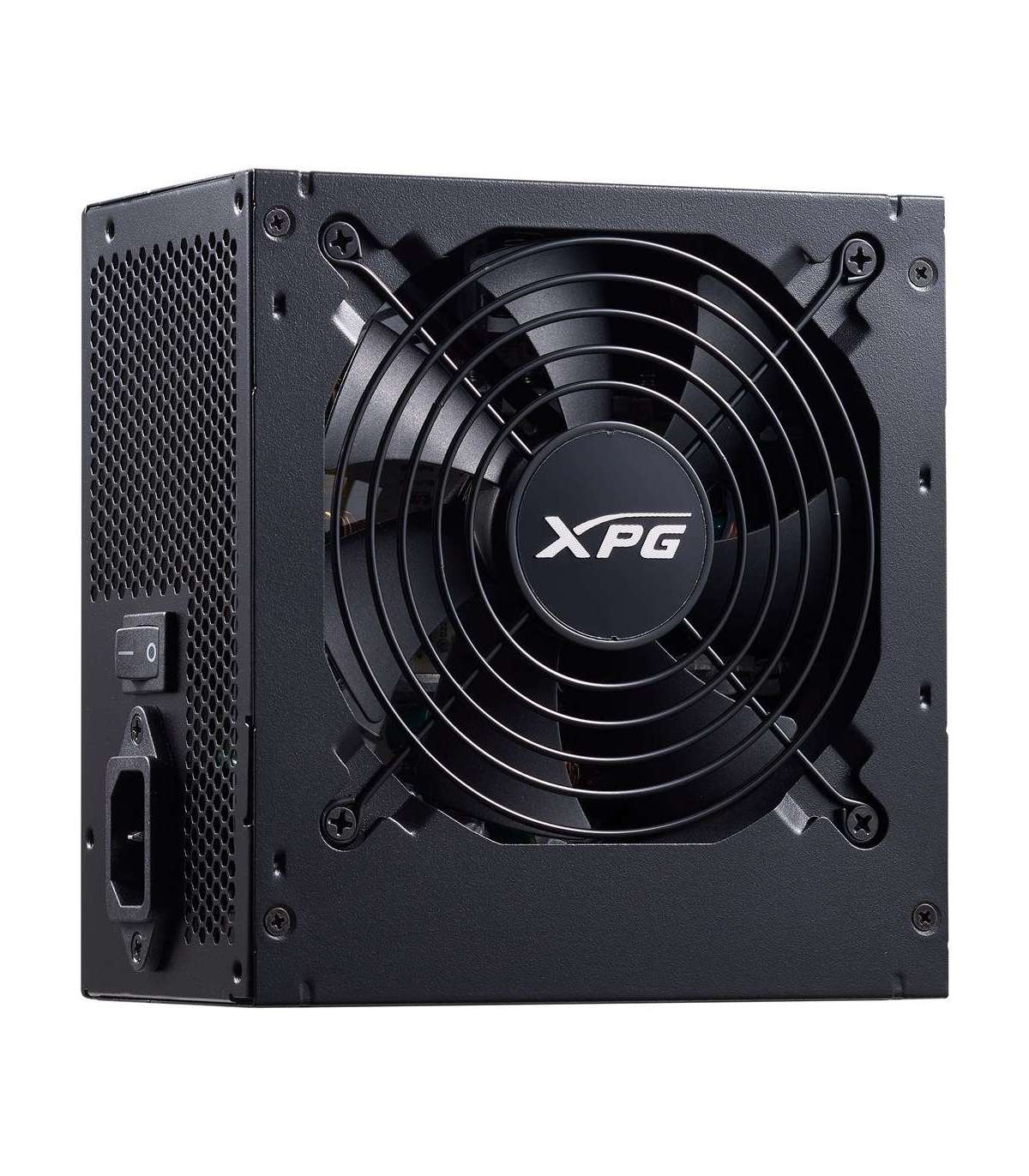

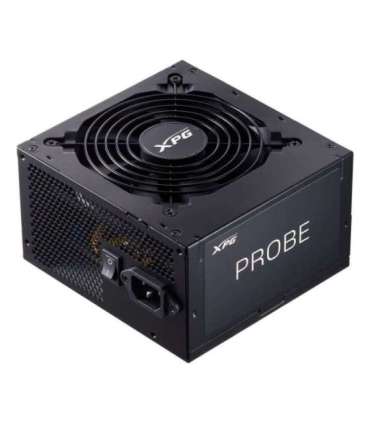

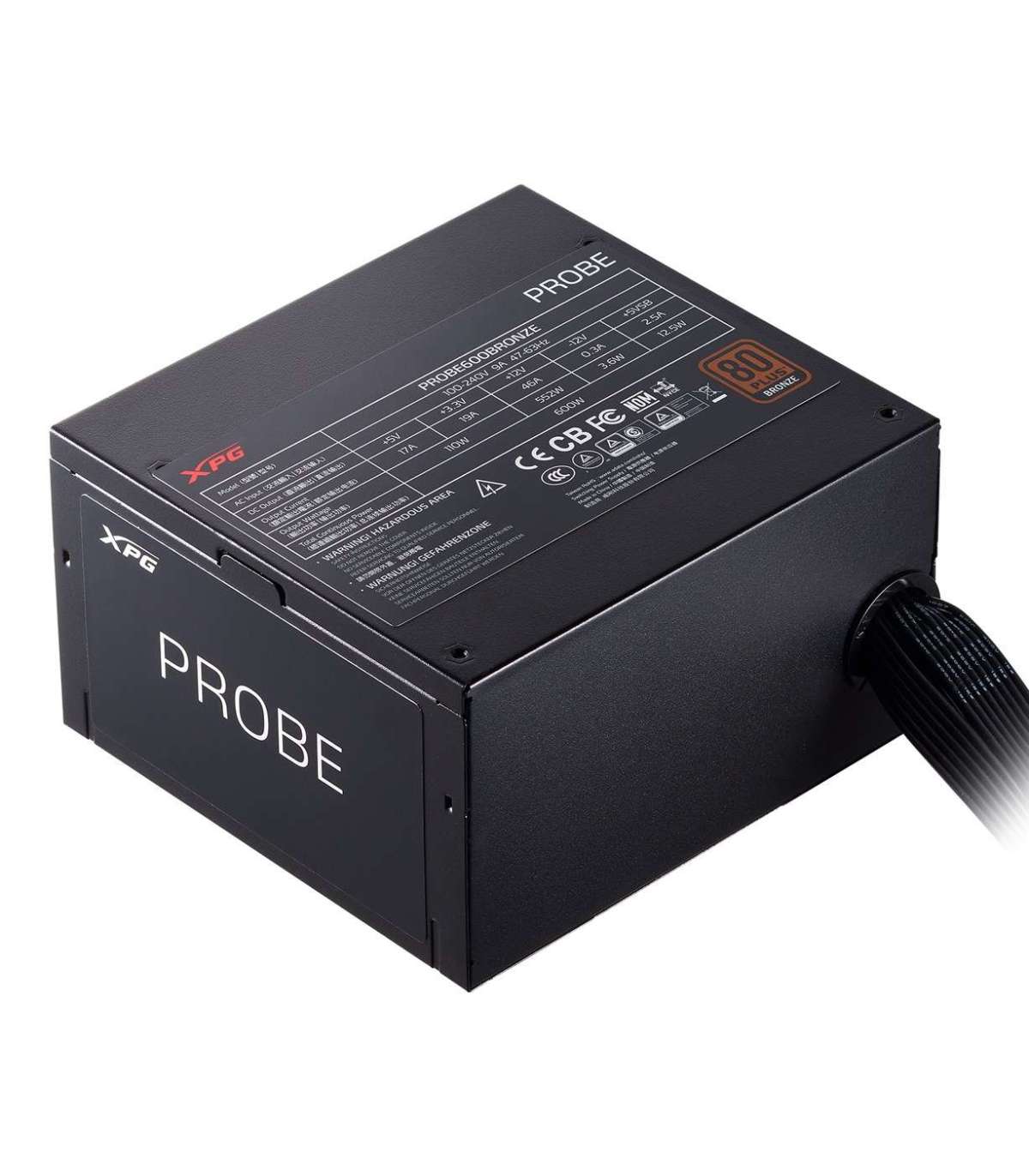

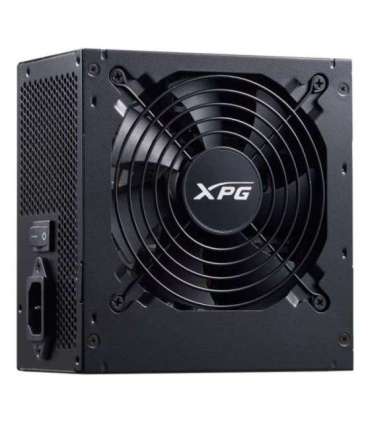

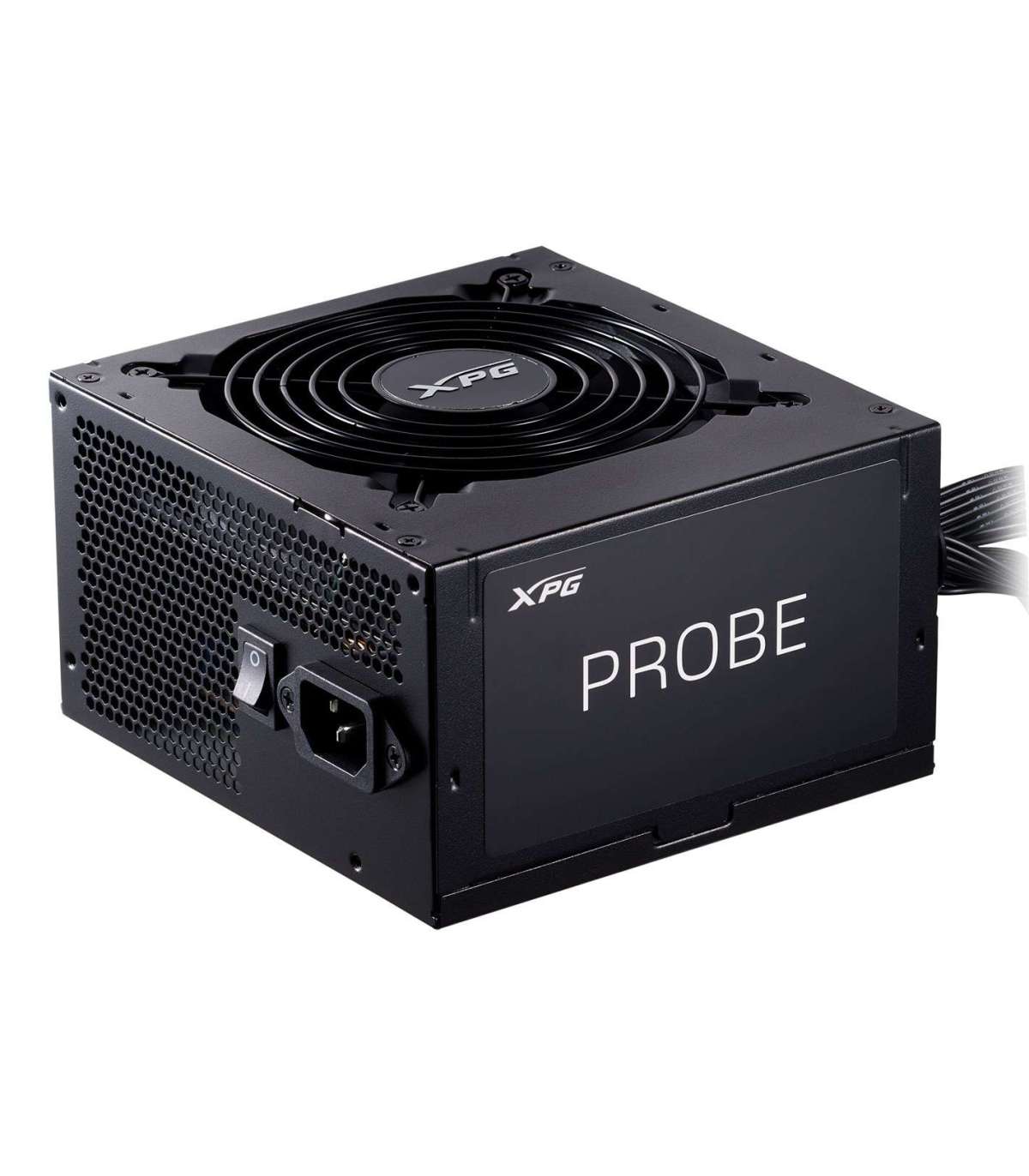

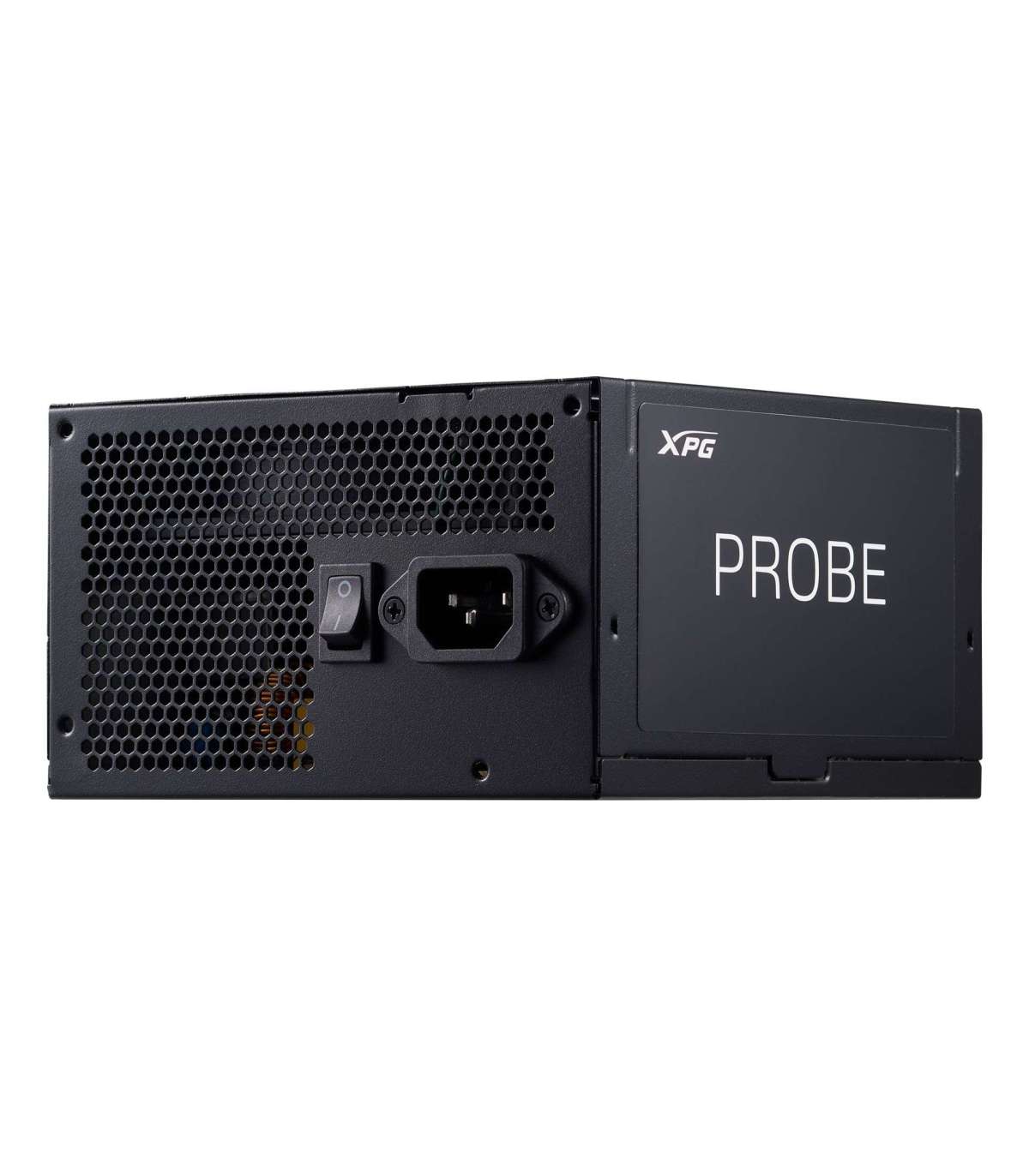

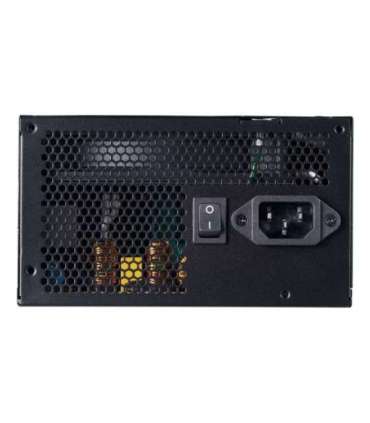

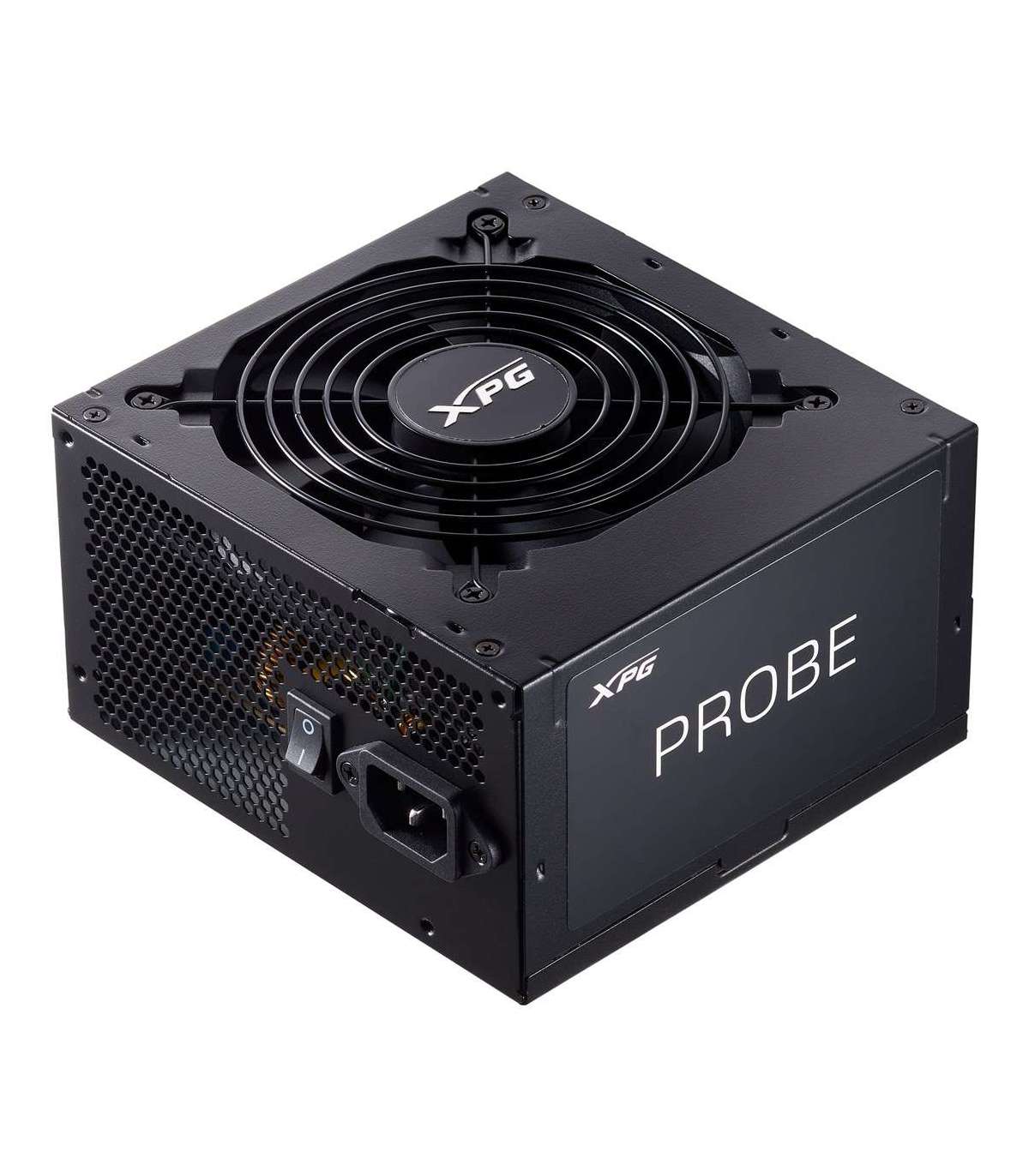

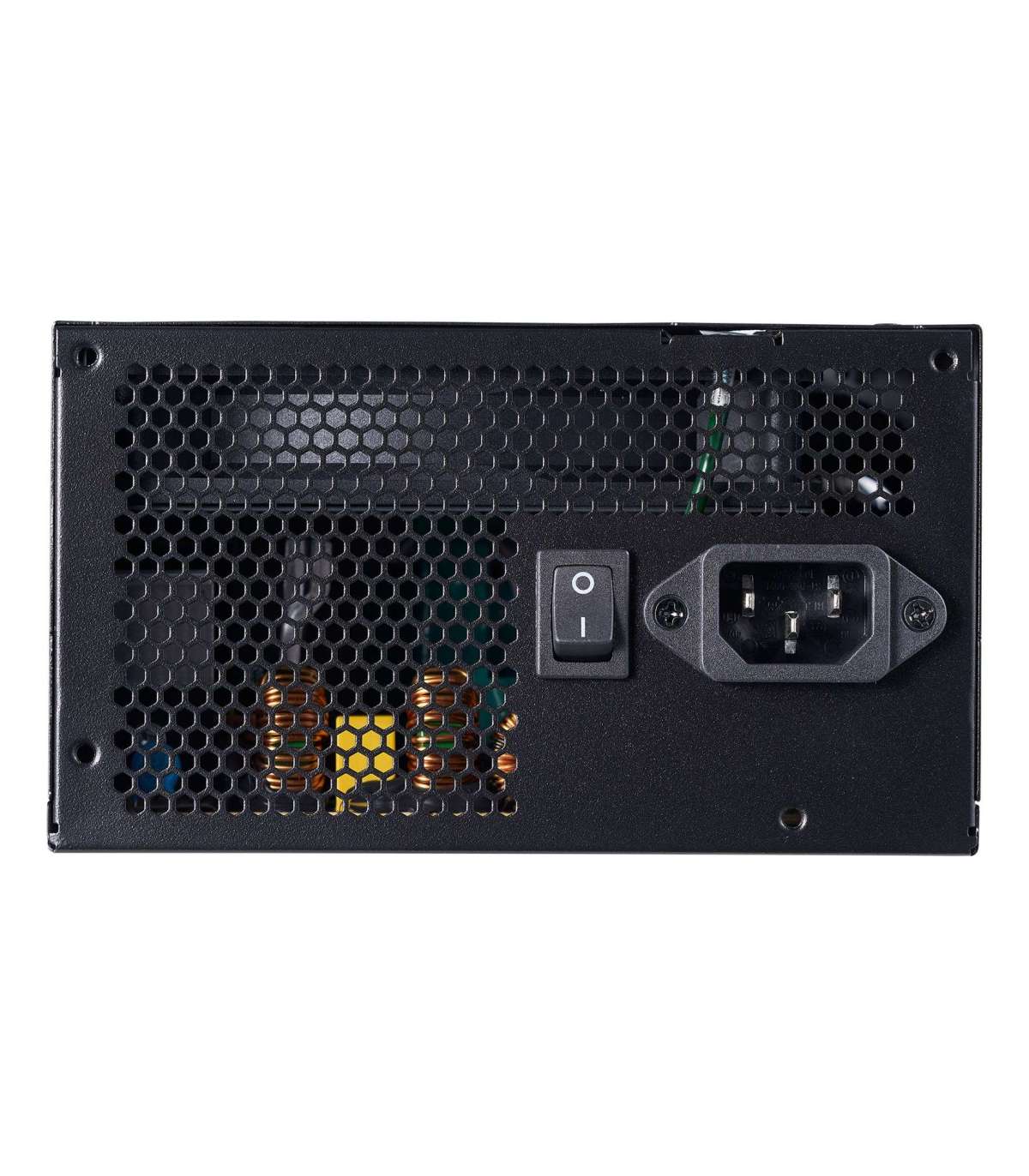

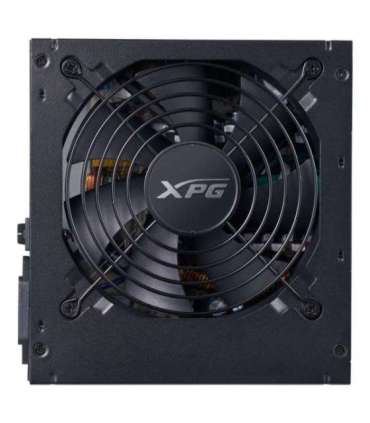

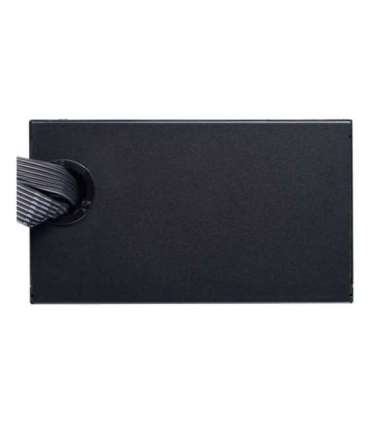

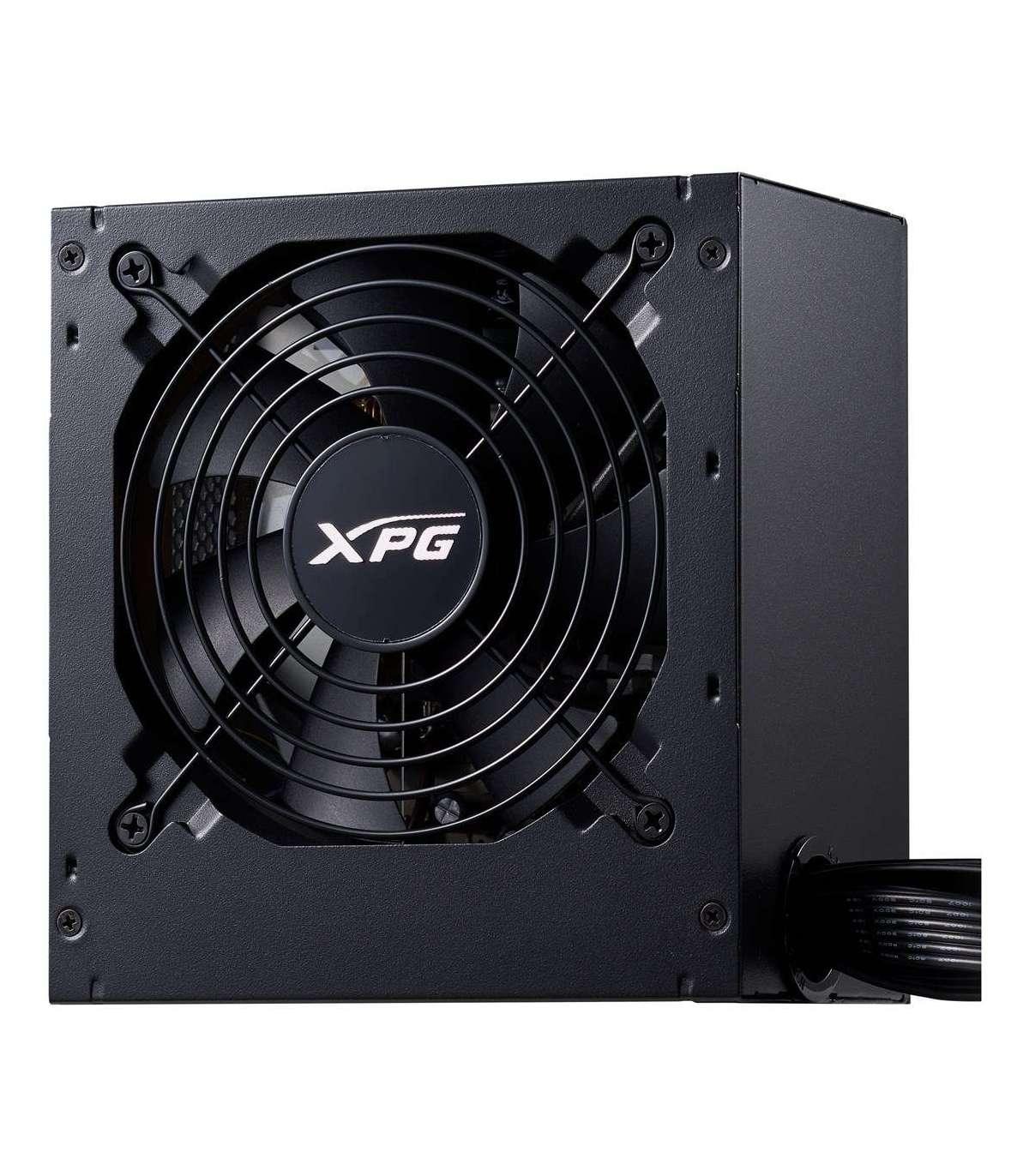

XPG PROBE 700 BRONZE Power Supply

Характеристики

Depth

140 mm

Weight

1.53 kg

Height

86 mm

Width

150 mm

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Certification

CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

10 A

Mean time between failures (MTBF)

100000 h

ATX Power connector (24-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

700 W

Power protection features

Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

Sleeve

Power Factor Correction (PFC) type

Active

Fan speed

2160 - 2640 RPM

Max output current (+12V)

54 A

Max output current (+5V)

17 A

Max output current (+3.3V)

19 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.52

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

5

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

Cabling type

Non-Modular

EPS power connector (4+4 pin)

Yes

Power factor

0.99
