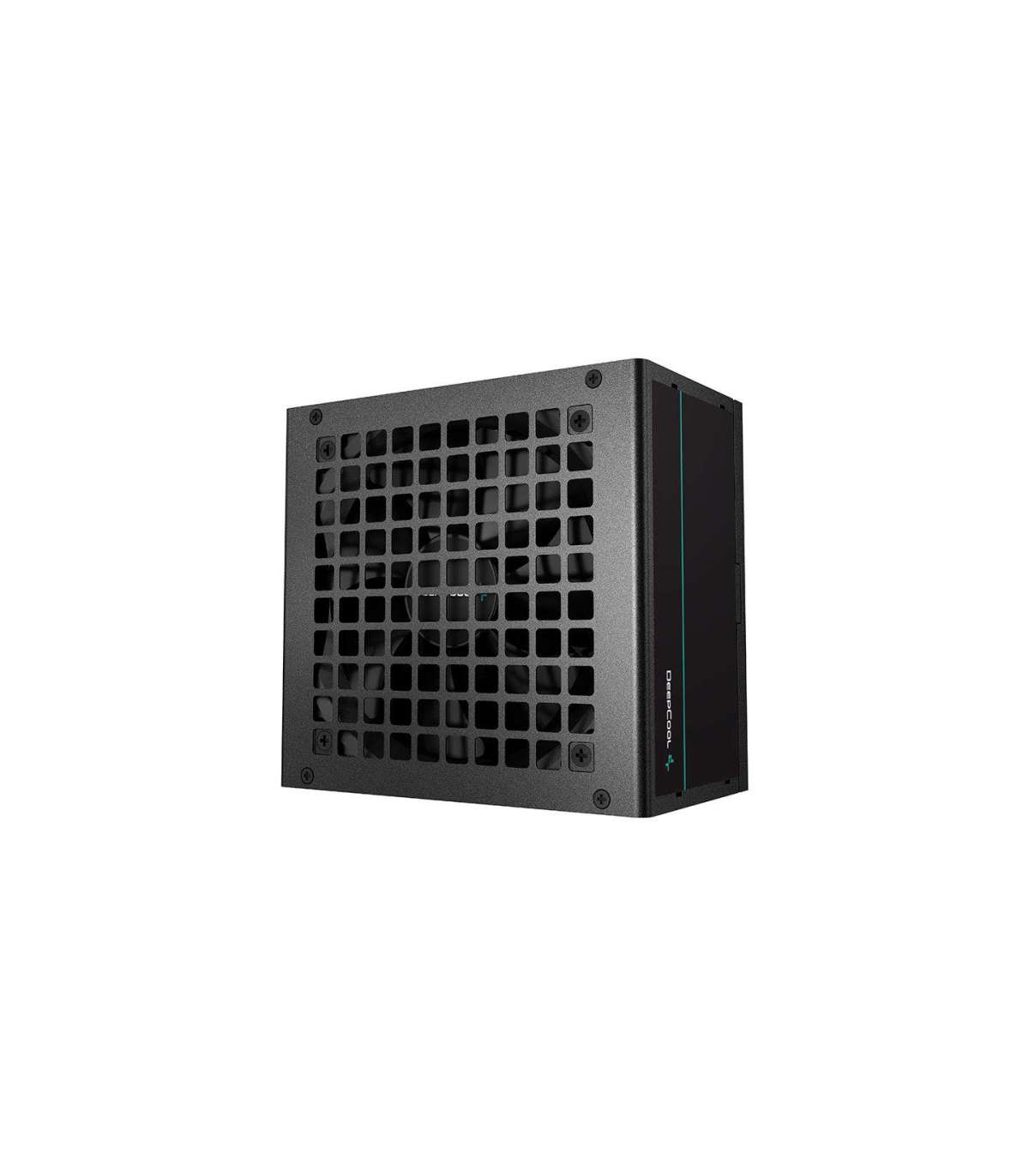

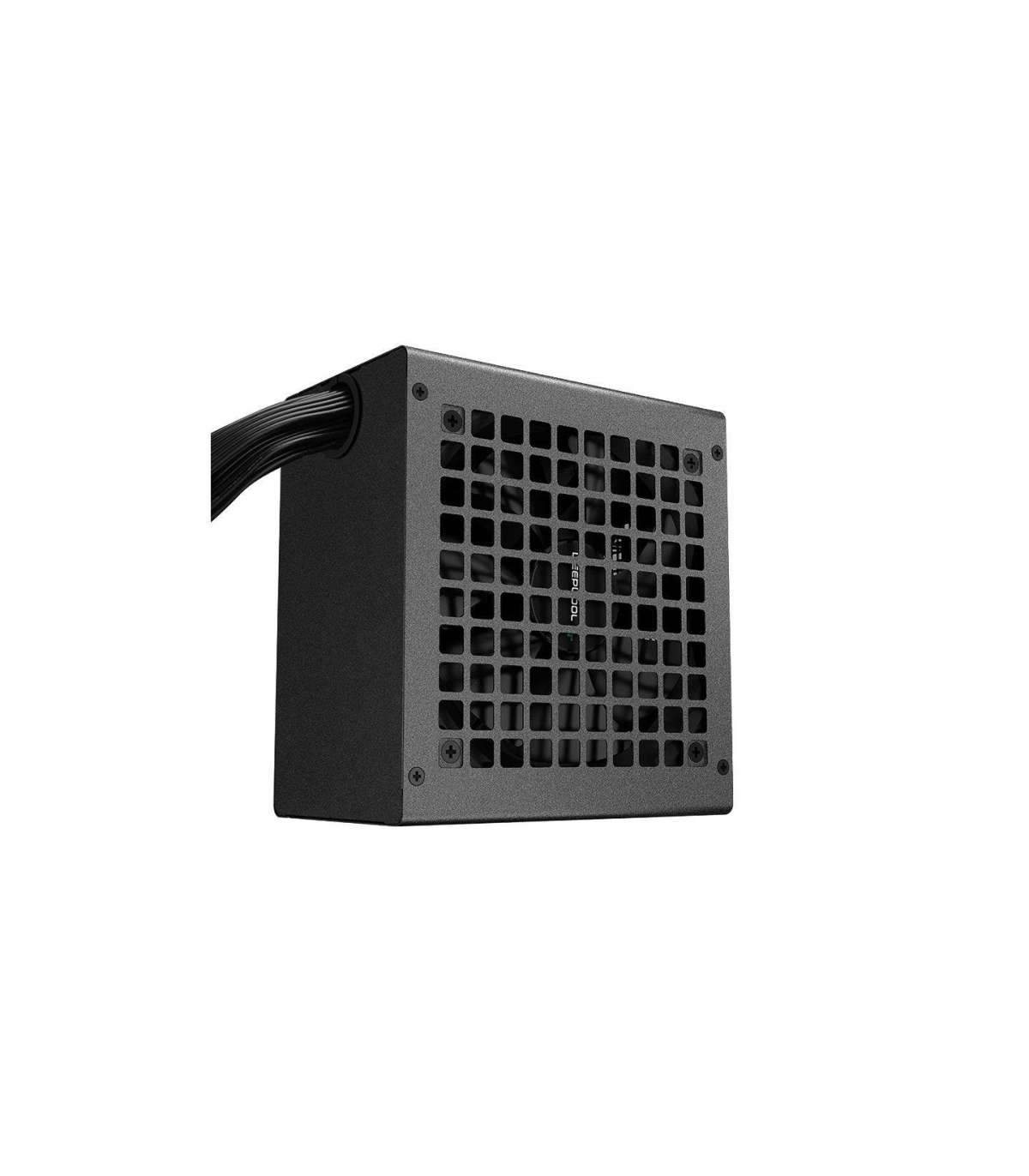

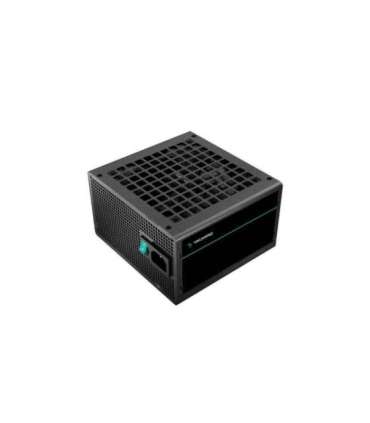

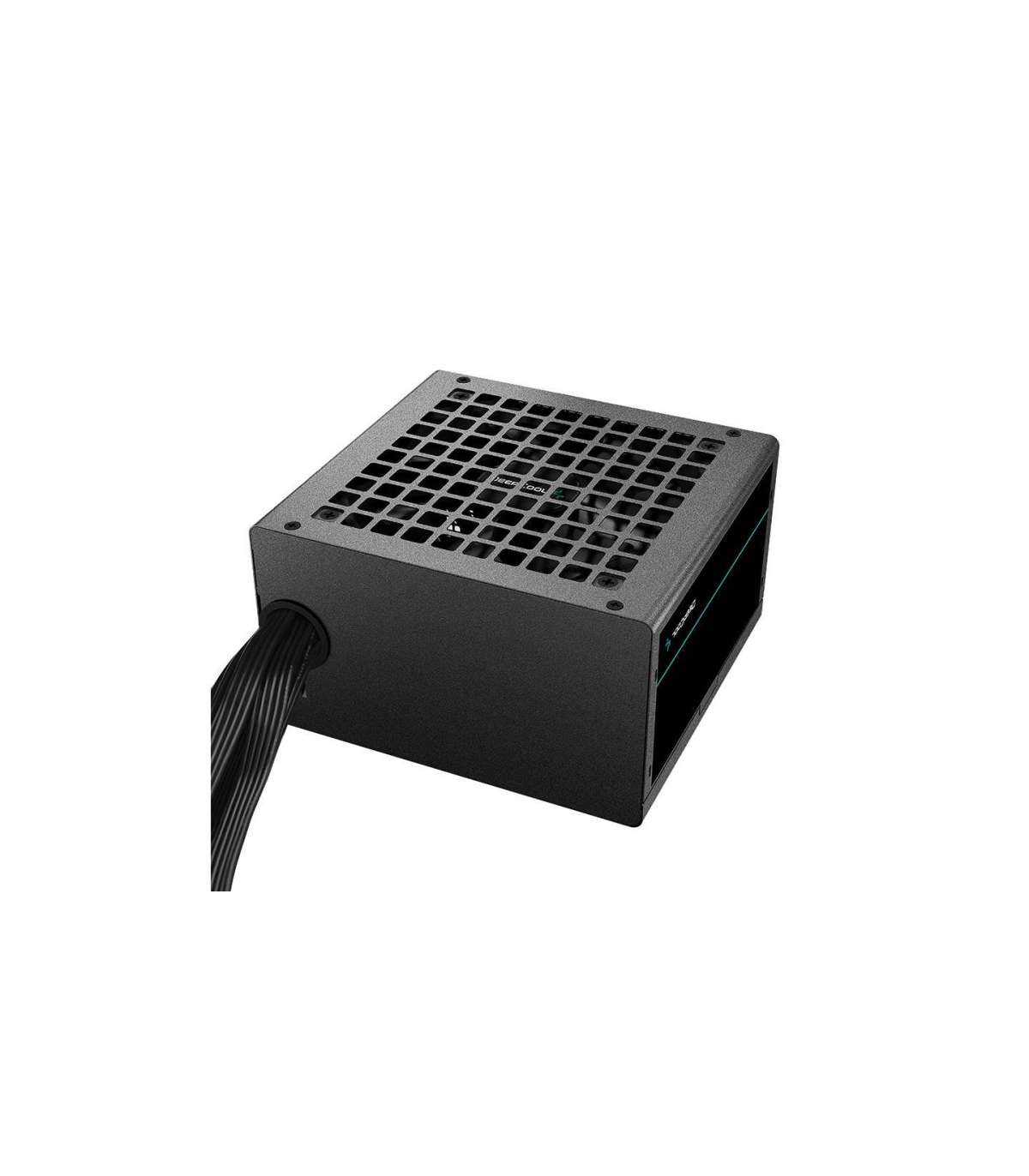

DeepCool PF700 power supply unit 700 W 20+4 pin ATX ATX Black

Характеристики

Depth

140 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Cables included

AC

AC input frequency

50 Hz

AC input voltage

220 - 240 V

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Efficiency

85%

Purpose

PC/Server

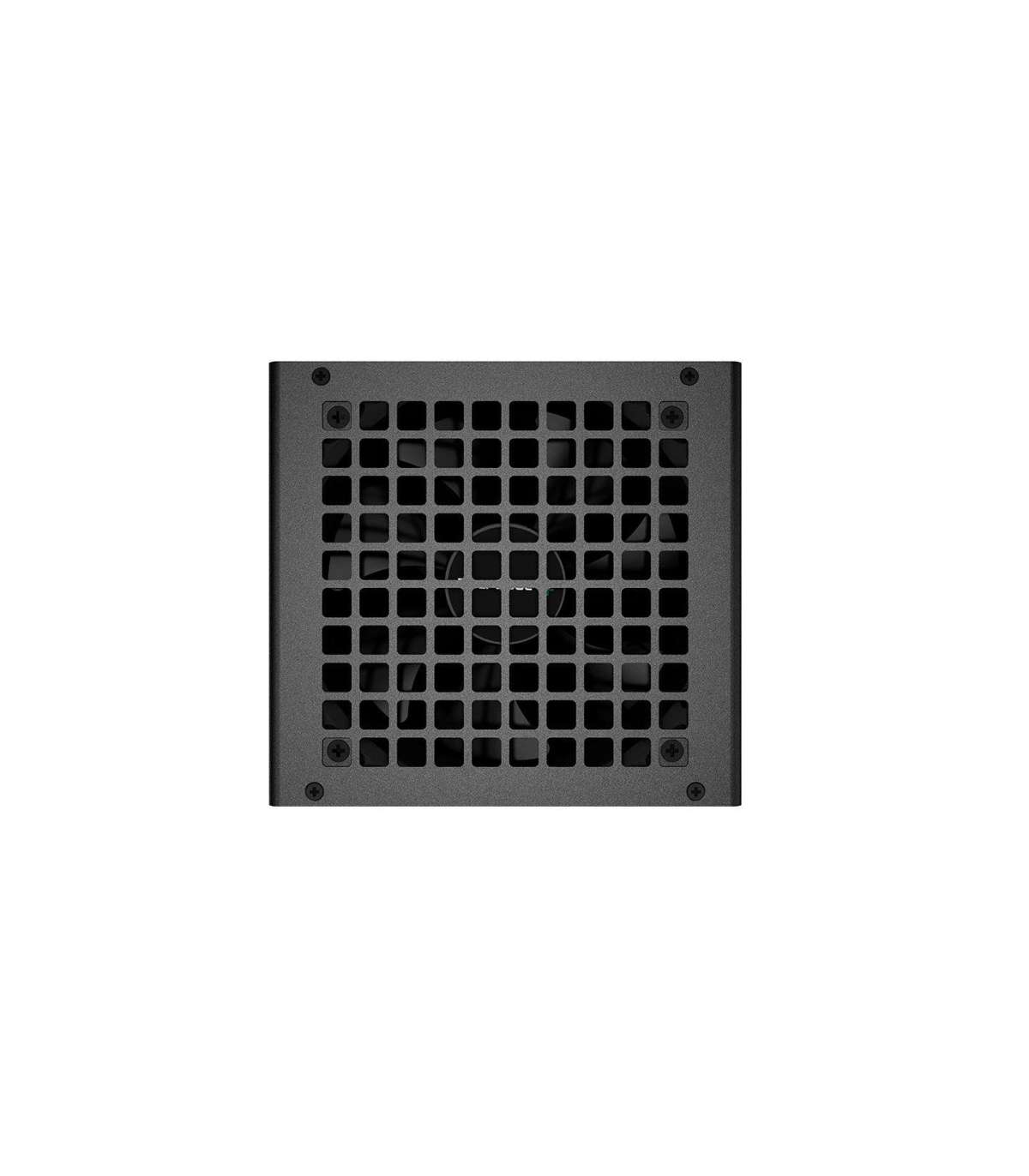

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS

Total power

700 W

Power protection features

Over power
Over voltage
Short circuit
Under voltage

Combined power (-12V)

3.6 W

Max output current (+12V)

58 A

Combined power (+3.3V)

100 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

15 A

Max output current (+3.3V)

15 A

Combined power (+5V)

100 W

Hold time

12 ms

Combined power (+12V)

696 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

4

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

450 mm
600 mm
750
900 mm

Cabling type

Non-Modular

Motherboard power cable length

55 cm

EPS power connector (4+4 pin)

Yes
