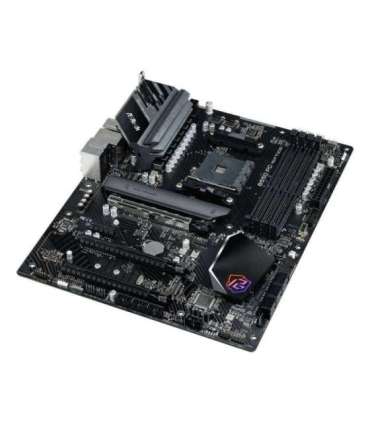

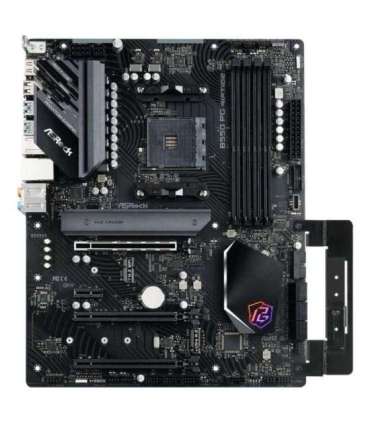

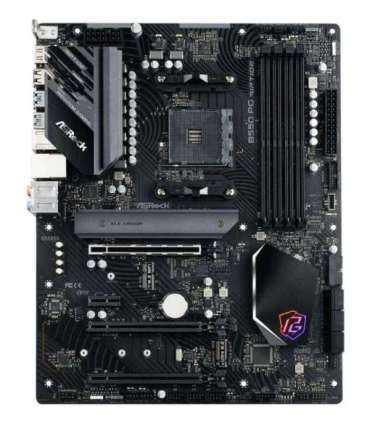

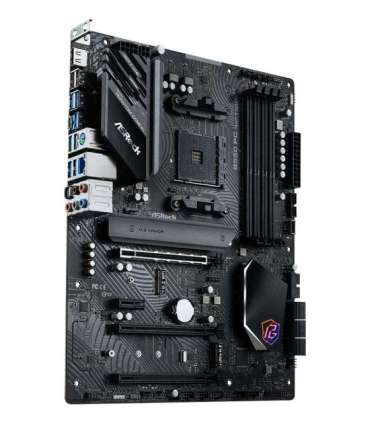

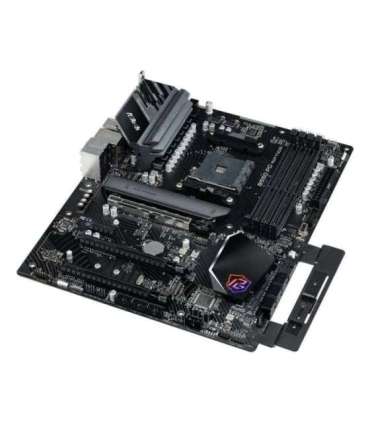

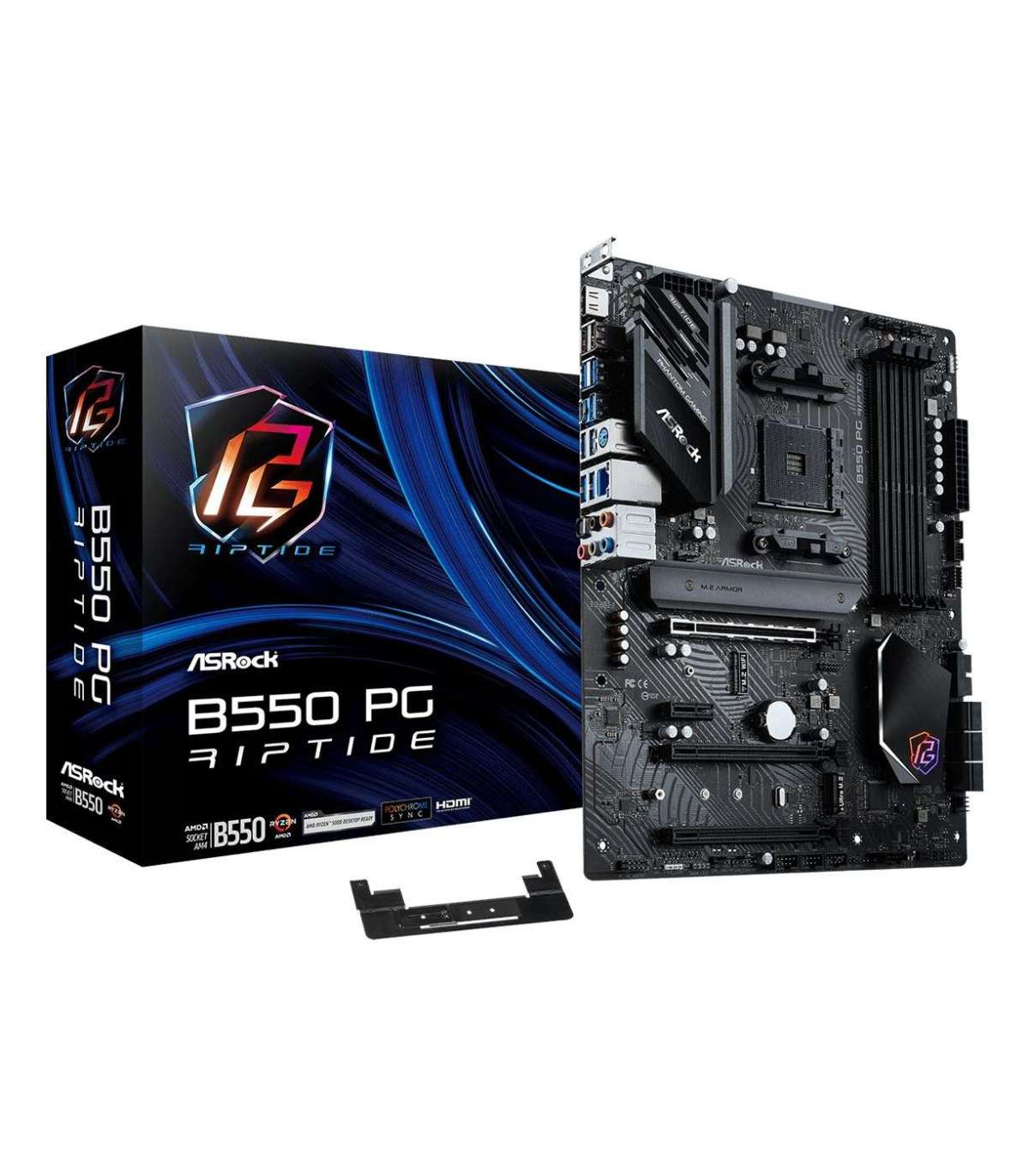

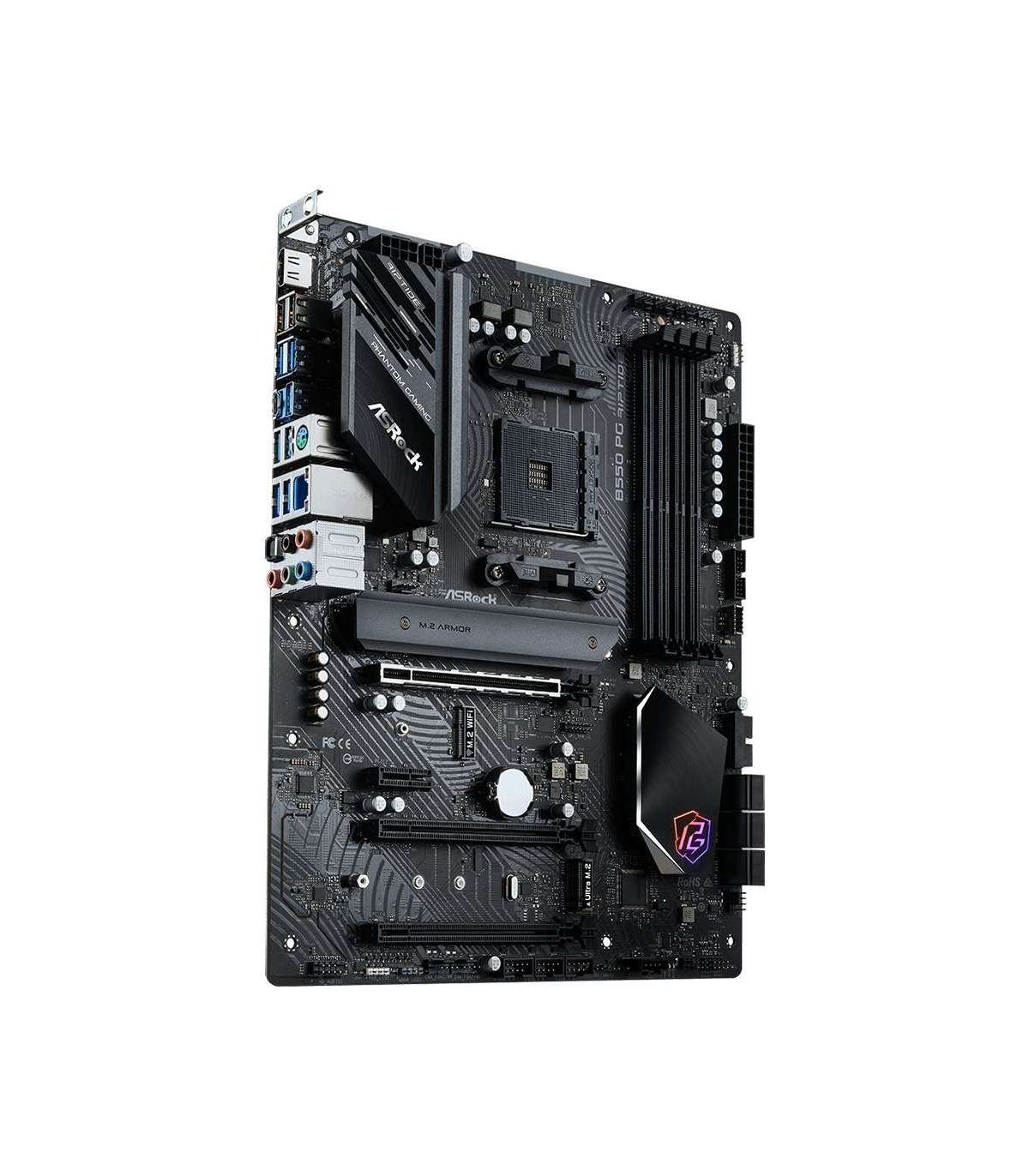

Asrock B550 PG Riptide AMD B550 Socket AM4 ATX

Характеристики

Depth

244 mm

Weight

465 g

Height

330 mm

Width

305 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Harmonized System (HS) code

84733020

Warnings

Avoid direct contact with sensitive electronic components.
Dispose of according to local electro-waste regulations.
Store away from water and sources of moisture.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

USB 2.0 ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD B550

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

3

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series
AMD Ryzen 5000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3466
3600
3733
3800
3866
4000
4133
4200
4266
4333
4400
4466
4533 MHz
4600
4666
4733
4933 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Killer E3100G

Number of chassis fan connectors

5

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

CrossFireX
Quad-GPU CrossFireX

Maximum resolution

4096 x 2160 pixels

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

6

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

S/PDIF out port

Yes

Digital audio optical out

1

Number of M.2 (M) slots

2

HDCP

Yes

RAID support

Yes

PCI Express x16 slots

3

DirectX version

12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt headers

1
