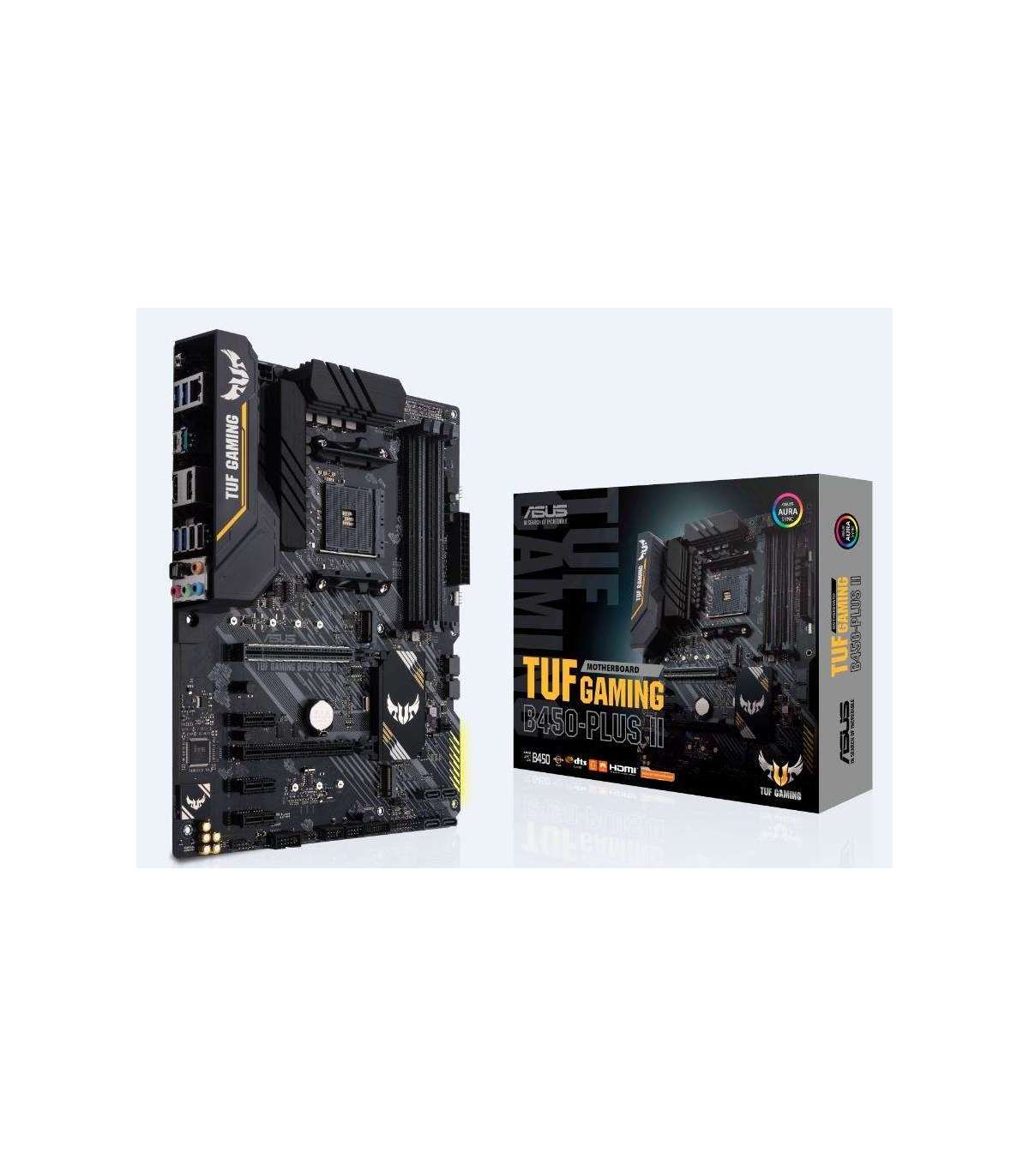

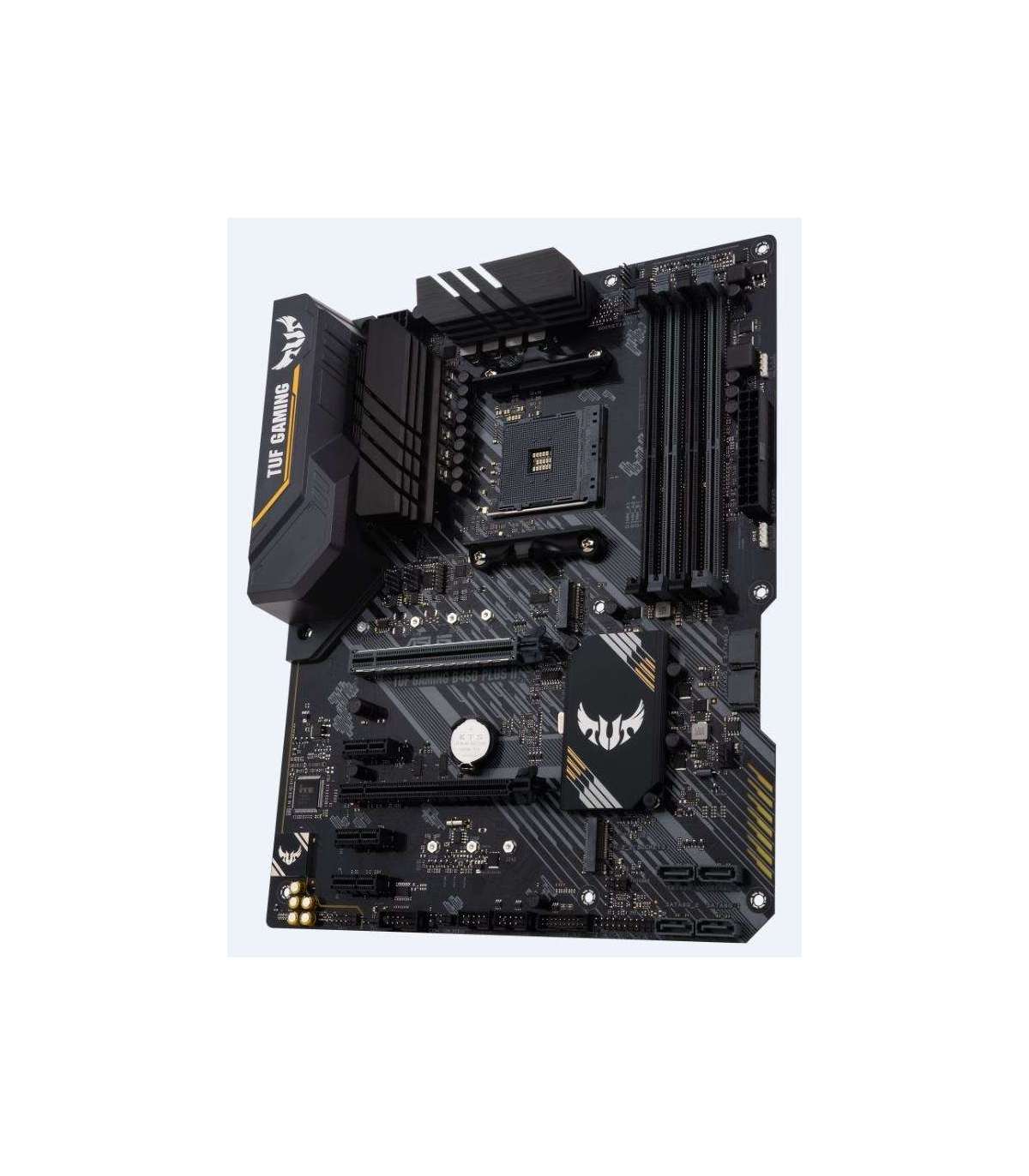

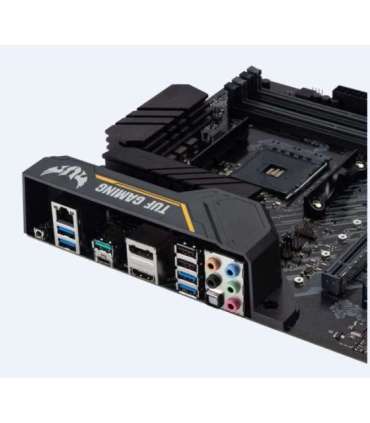

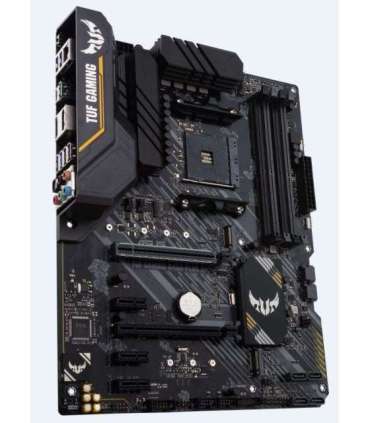

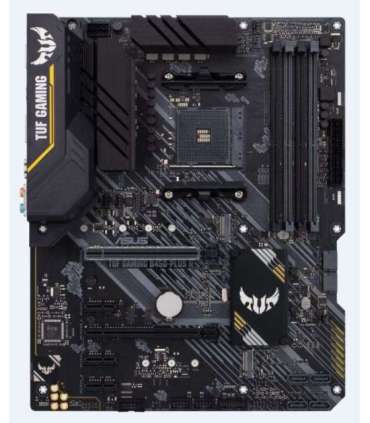

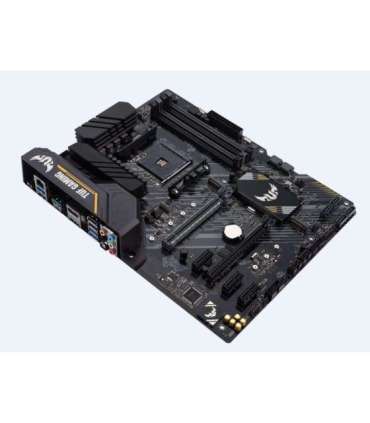

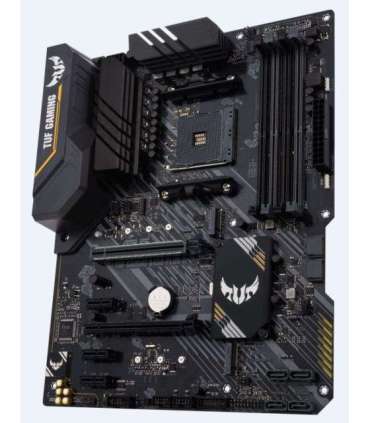

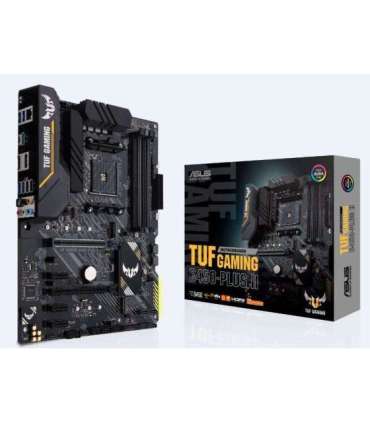

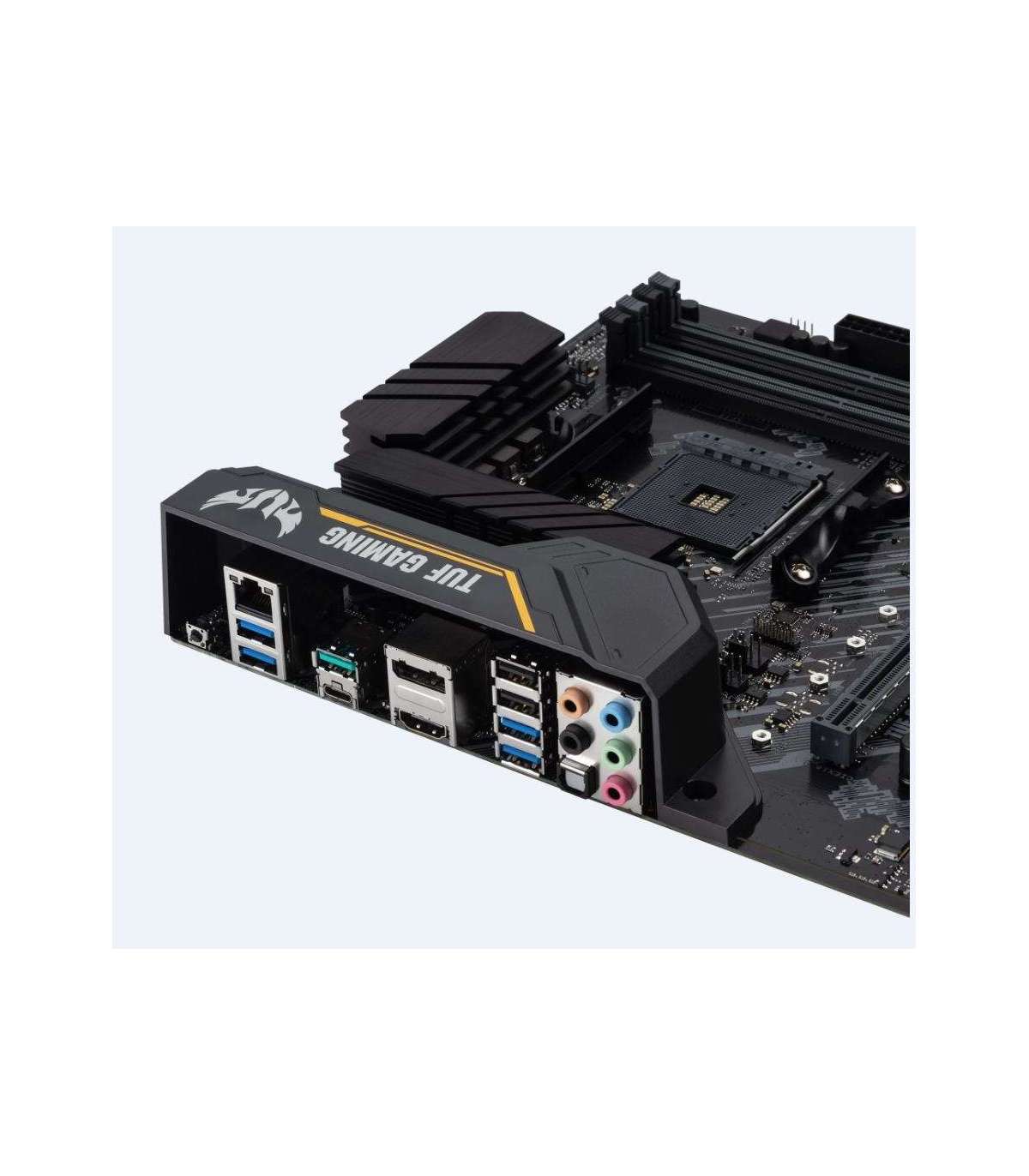

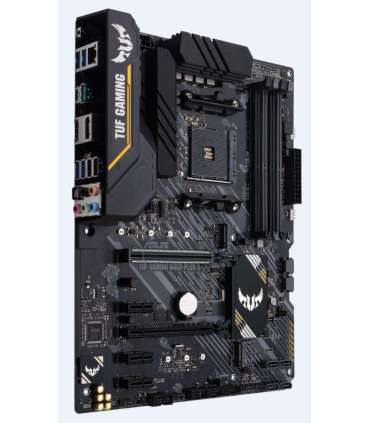

ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

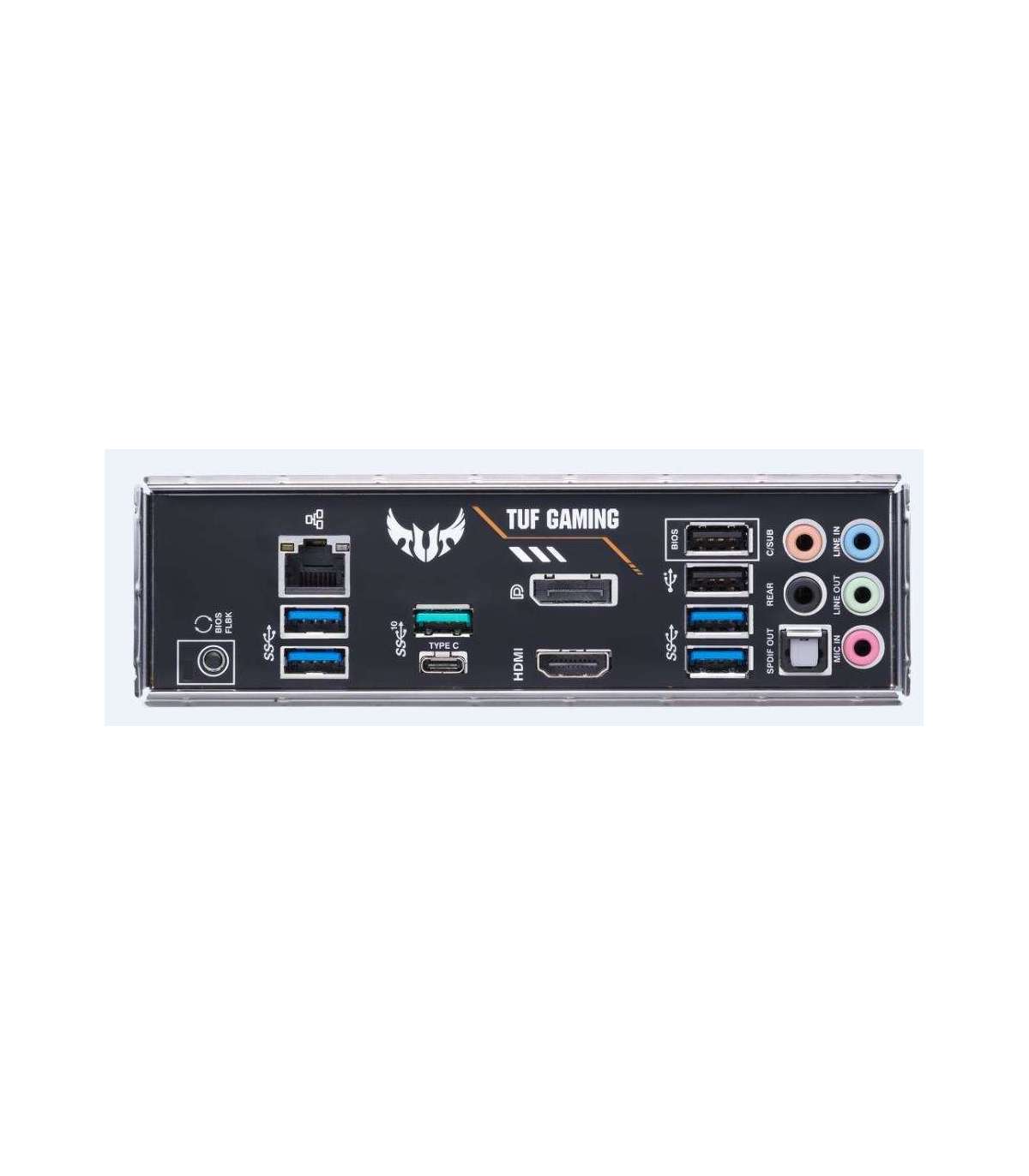

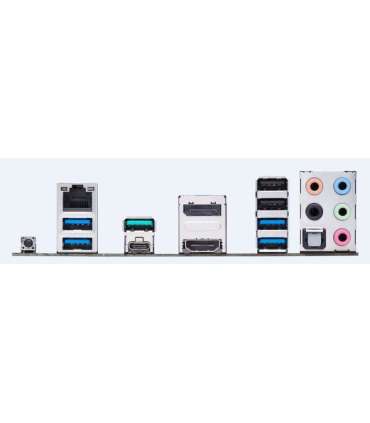

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 7 x64
Windows 10 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

128 GB

Motherboard chipset

AMD B450

HDMI version

2.0b

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC S1200A

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

8 channels

Supported memory clock speeds

2133
2400
2666
2800
3000
3200
3400
3466
3533
3600
3733
3866
4000
4400

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek L8200A

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, Serial ATA

PCI Express x16 (Gen 3.x) slots

1

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

CrossFireX

Number of mounting holes

8

Number of SATA III connectors

6

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

Number of M.2 (M) slots

1

PCI Express x1 (Gen 2.x) slots

3

Number of EATX power connectors

1

Audio connector

Yes

S/PDIF out connector

Yes

Cooling type

Active

DisplayPort version

1.2

Total number of SATA connectors

6
